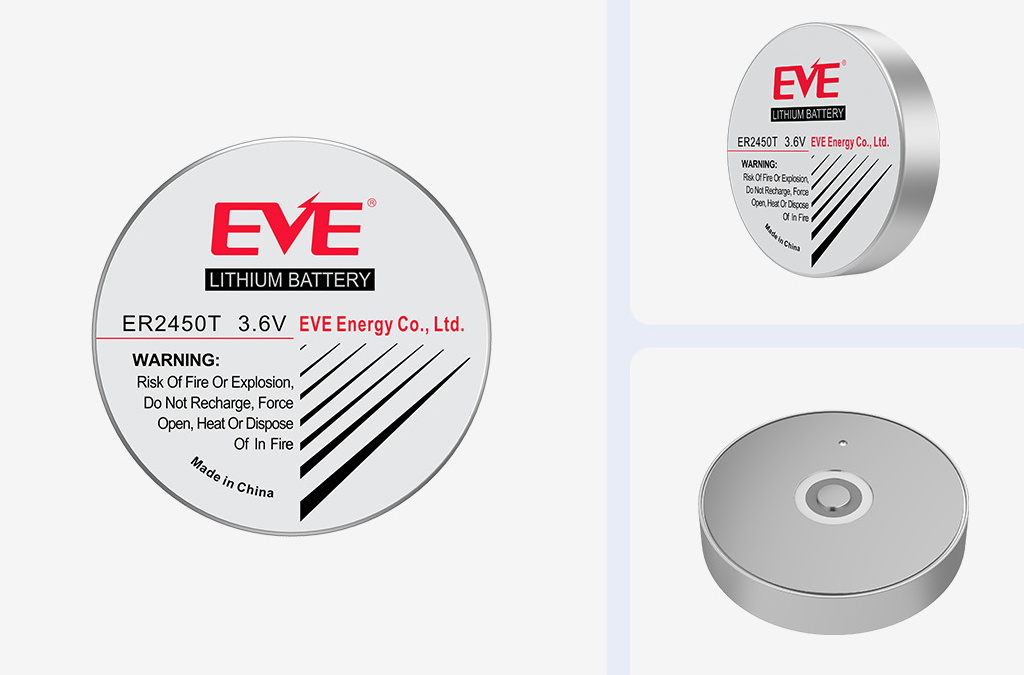

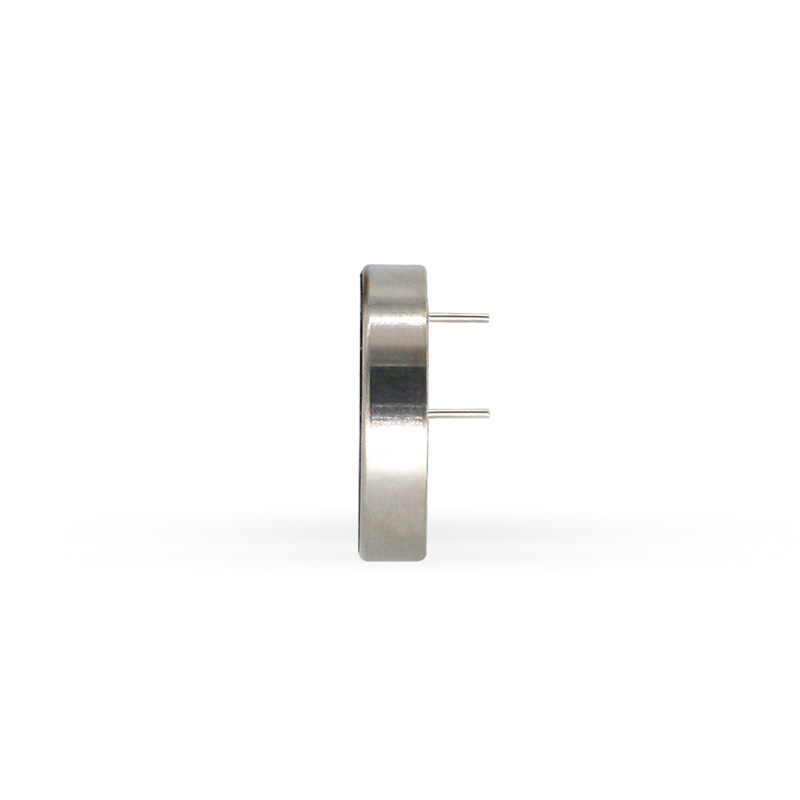

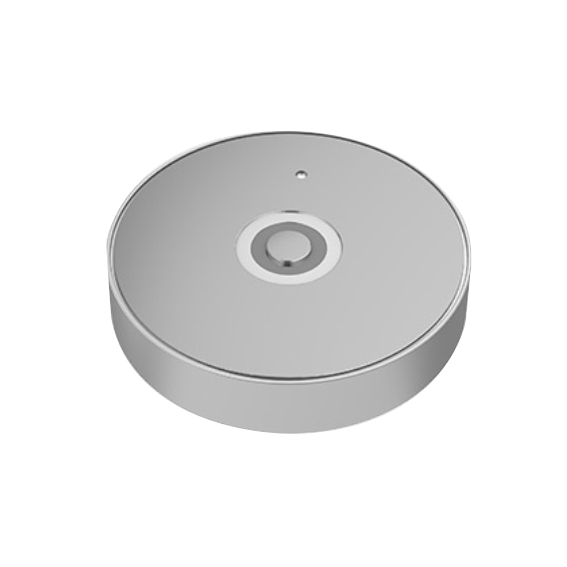

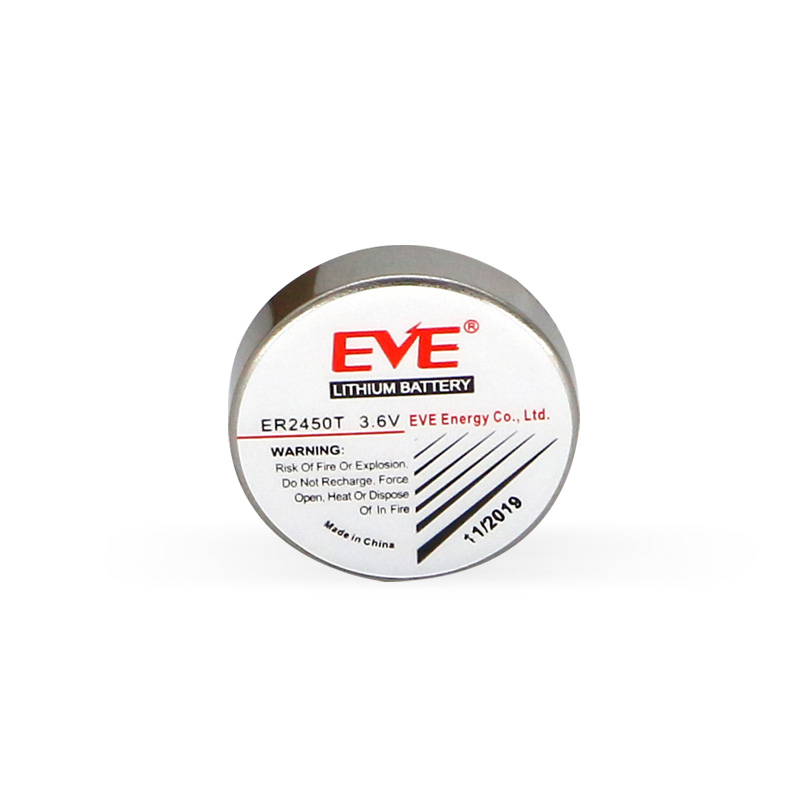

ER2450T 3.6V Li/SOCl 550mah Lthium Battery
ER2450T 3.6V Li/SOCl 550mah lithium battery Button design, small size, light weight, suitable for small electronic devices with limited space.
- Category: Lithium Thionyl Chloride Li SOCl2 Battery
- Tag: Li SOCl2 battery
ER2450T 3.6V Li/SOCl 550mAh Lithium Battery Button Cell for Smoke Temperature Smart Meter Gas Meter
Feature
· Voltage stabilization · Low self-discharge rate
· Fully sealed construction · Wide temperature range
· No memory effect · Small size
Specification
Parameter | Specification |
Model | ER2450T |
Nominal voltage | 3.6V |
Nominal capacity | 550mAH |
Maximum continuous discharge current | 5mA |
Maximum pulse discharge current | 20mA |
Lithium Weight | 9g |
Self-discharge rate | ≤1% |
Natural storage life | 10 years |
Storage temperature | - 20℃~ + 25℃ |
Operating temperature | -55~+125℃ |
Dimension | 24.3x6.2(mm) |
Product Certifications
3.6V Thionyl Chloride Lithium Battery Series
Model | Nominal voltage （V） | Nominal capacity (mAh) | Maximum continuous current(mA)
| Maximum pulse current(mA) | Weight (g) | Operating temperature(℃) | Dimension(mm) |
3.6 | 1200 | 35 | 50 | 10 | -55~+85℃ | 14.5x25.4 | |
3.6 | 1650 | 35 | 75 | 12 | -55~+85℃ | 14.5x33.5 | |
3.6 | 2700 | 60 | 150 | 19 | -55~+85℃ | 14.5x50.5 | |
3.6 | 3600 | 100 | 180 | 26 | -55~+85℃ | 17.5x51.0 | |
ER18505 | 3.6 | 4000 | 130 | 180 | 28 | -55~+85℃ | 18.7x50.5 |
3.6 | 8500 | 150 | 200 | 52 | -55~+85℃ | 26.2x50.0 | |
3.6 | 19000 | 230 | 300 | 100 | -55~+85℃ | 33.1x61.5 | |
3.6 | 400 | 5 | 20 | 5 | -55~+85℃ | 16.85x15.8x7.0 | |
3.6 | 750 | 10 | 30 | 8 | -55~+85℃ | 16.85x25.8x7.0 | |
3.6 | 1600 | 20 | 50 | 16 | -55~+85℃ | 23.3x38.3x7.5 | |
ER2450T | 3.6 | 550 | 5 | 20 | 9 | -55~+125℃ | 24.3x6.2 |
ER32L65 | 3.6 | 1000 | 10 | 50 | 19 | -55~+85℃ | 32.9x7.1 |
3.6 | 1700 | 10 | 50 | 24 | -60~+85℃ | 32.9x10 |
Application
It is usually a button-type design with a small size, such as a diameter of 24.5mm, a thickness of about 5.5mm, and a weight of about 9g, which is suitable for small electronic devices with limited space, such as tire pressure monitoring systems, smart watches, electronic door locks, etc
