ER26500 3.6 V Primary Lithium Thionyl Chloride Li SOCl2 8500mAh Battery
ER26500 3.6 V primary lithium thionyl chloride Li SOCl2 8500mAh battery for Internet of Things.
- Category: Lithium Thionyl Chloride Li SOCl2 Battery
- Tag: Li SOCl2 battery
Professional 3.6V primary lithium thionyl chloride Li SOCl2 battery, 8500mAh large capacity, stands out in many similar products. The operating voltage is always stable, perfect for smart meter wireless communication systems to ensure safe and efficient data transmission. Good temperature resistance, low self-discharge rate, excellent feedback, and recognition from customers.
Specification
Parameter | Specification |
Model | ER26500 |
Nominal voltage | 3.6V |
Nominal capacity | 8500mAH |
Maximum continuous discharge current | 150mA |
Maximum pulse discharge current | 200mA |
Lithium Weight | 52g |
Self-discharge rate | ≤1% |
Natural storage life | 10 years |
Storage temperature | - 20℃~ + 25℃ |
Operating temperature | -55℃~ + 85℃ |
Dimension | 26.2x50.0(mm) |

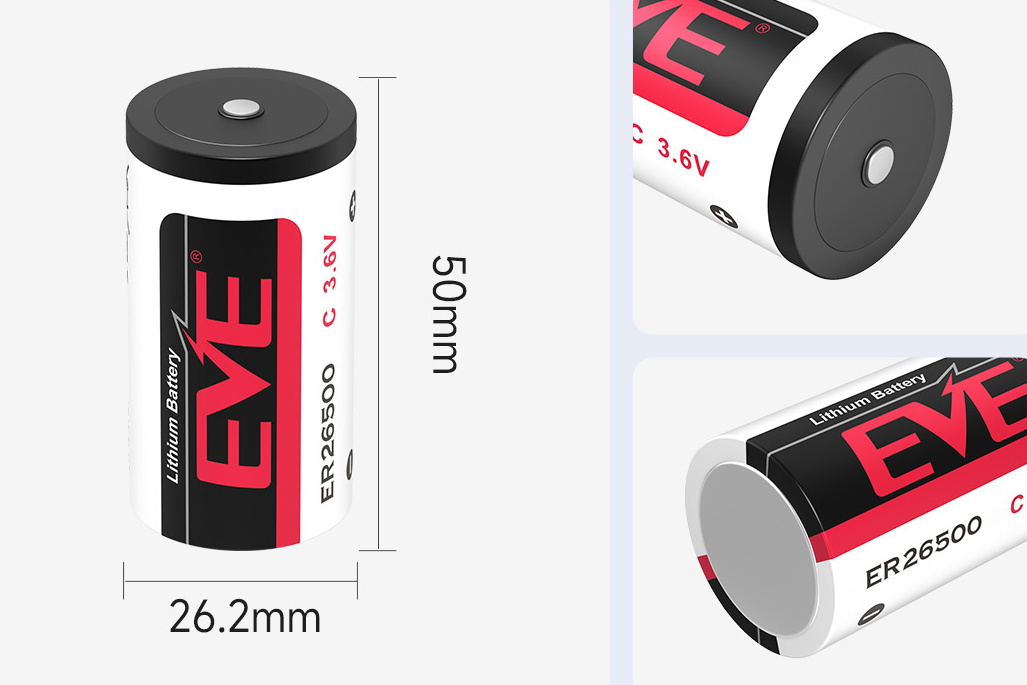

Dimension and Details
3.6 v primary lithium thionyl chloride li socl2 series
Model | Nominal voltage （V） | Nominal capacity (mAh) | Maximum continuous current(mA)
| Maximum pulse current(mA) | Weight (g) | Operating temperature(℃) | Dimension(mm) |
3.6 | 1200 | 35 | 50 | 10 | -55~+85℃ | 14.5x25.4 | |
3.6 | 1650 | 35 | 75 | 12 | -55~+85℃ | 14.5x33.5 | |
3.6 | 2700 | 60 | 150 | 19 | -55~+85℃ | 14.5x50.5 | |
3.6 | 3600 | 100 | 180 | 26 | -55~+85℃ | 17.5x51.0 | |
3.6 | 4000 | 130 | 180 | 28 | -55~+85℃ | 18.7x50.5 | |
ER26500 | 3.6 | 8500 | 150 | 200 | 52 | -55~+85℃ | 26.2x50.0 |
3.6 | 19000 | 230 | 300 | 100 | -55~+85℃ | 33.1x61.5 | |
3.6 | 400 | 5 | 20 | 5 | -55~+85℃ | 16.85x15.8x7.0 | |
3.6 | 750 | 10 | 30 | 8 | -55~+85℃ | 16.85x25.8x7.0 | |
3.6 | 1600 | 20 | 50 | 16 | -55~+85℃ | 23.3x38.3x7.5 | |
3.6 | 550 | 5 | 20 | 9 | -55~+125℃ | 24.3x6.2 | |
ER32L65 | 3.6 | 1000 | 10 | 50 | 19 | -55~+85℃ | 32.9x7.1 |
3.6 | 1700 | 10 | 50 | 24 | -60~+85℃ | 32.9x10 |
Product Certification
Wide Range of Applications
Intelligent meters, industrial automation, oil exploration, medical equipment, agricultural testing, intelligent transportation, etc
