ER26500M 3.6V 6000mAh li-socl2 Non rechargeable Lithium Battery
ER26500M 3.6V 6000mAh li-socl2 Non rechargeable Lithium Battery

ER26500M 3.6V 6000mAh Li-SOCl2 Non rechargeable Lithium Battery

ER26500M 3.6V 6000mAh li-socl2 battery is a kind of non-rechargeable lithium battery with high energy density and long life, suitable for high power continuous discharge.

ER26500M 3.6V 6000mAh Li-SOCl2 Non Rechargeable Lithium Battery with High Energy Density

ER26500M 3.6V 6000mAh li-socl2 Non rechargeable Lithium BatteryER26500M 3.6V 6000mAh li-socl2 Non rechargeable Lithium Battery

Product Characteristics:

· High Energy Density: Over 430wh/kg;

· Open Circuit Voltage: ≥3.65V, operating voltage ranging from 3.3~3.6V;

· Wide Operating Temperature Range: -55℃+85℃;

· Long Storage Life: Over 10 years[Under normal room Temperature];


Specifications


Model:

ER26500M

Product type:

LI/SOCl₂

Battery charging:

No

Maximum Profile Size（mm）:

φ26.2X 50.5

Weight:

58g

Nominal capacity（mAh）:

6000

Use temperature range:

-55℃~+85℃

Nominal voltage（V）:

3.6

Discharge cut-off voltag（V）:

2

lsn（mA）:

10

Maximum continuous（mA）:

1000

Maximum Pulse Dischar（mA）:

2000


Operation Characteristic

Suitable for high-power continuous discharge and pulse discharge

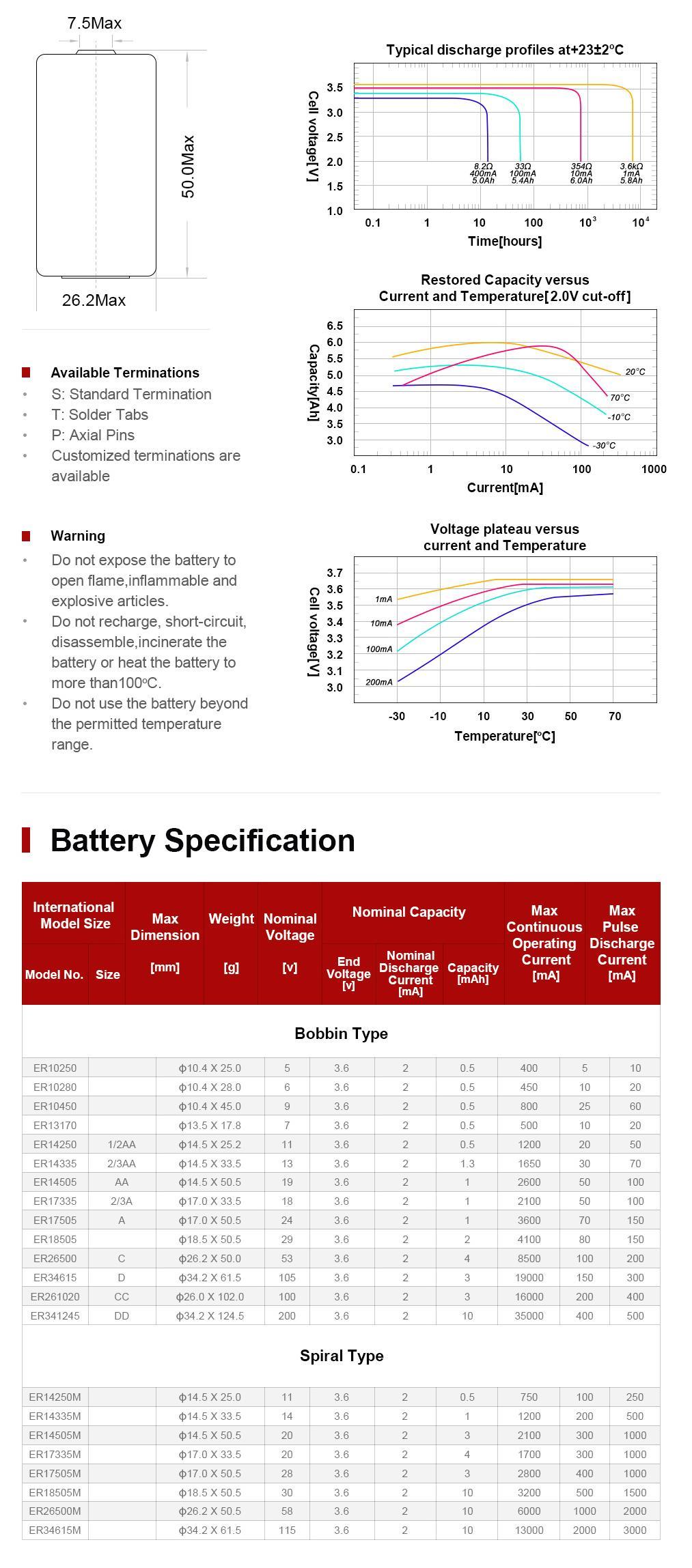

ER26500M Discharge Curve Diagram


ER26500M Discharge Curve Diagram


Applications

· LoT

· Alarms and Security Systems

· Utility Meters/AMR&AMI

· Automotive Telematics

· Storage and Tracking Devices

· Military Equipment

· R&D Instrument

· Sensor

· Oil Drilling
