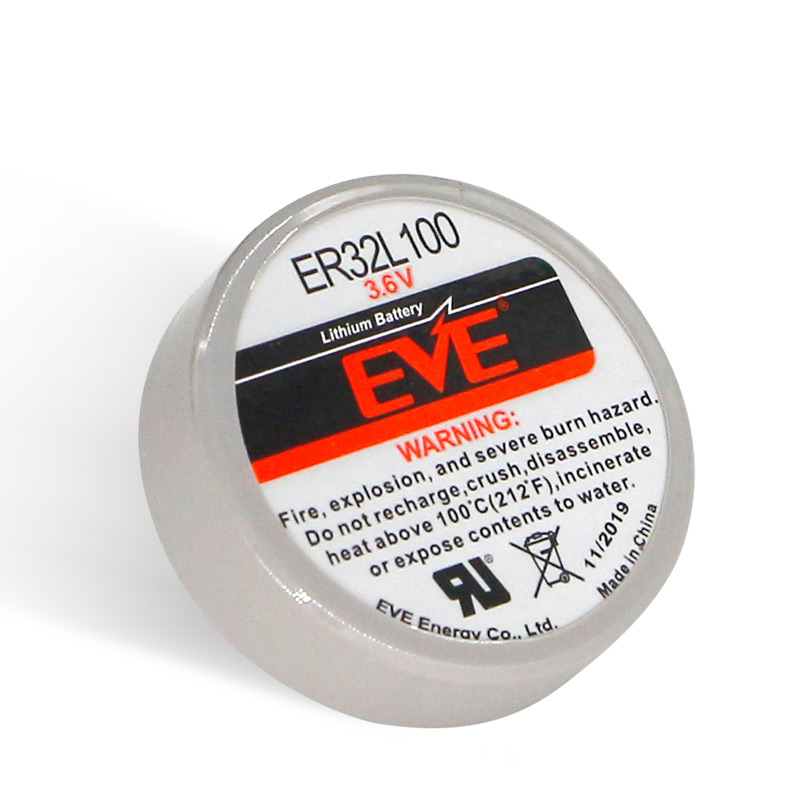

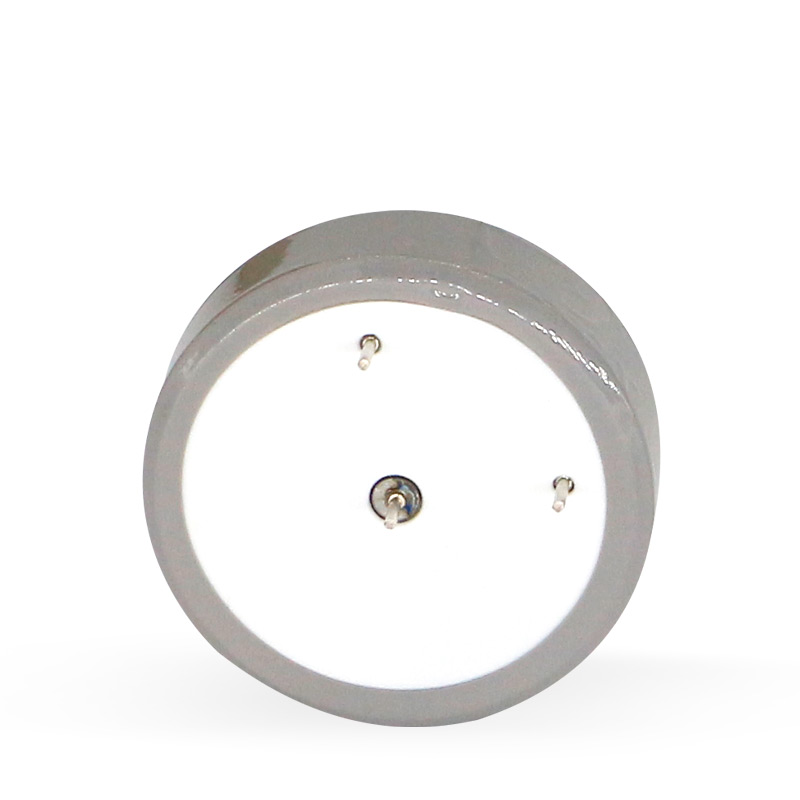

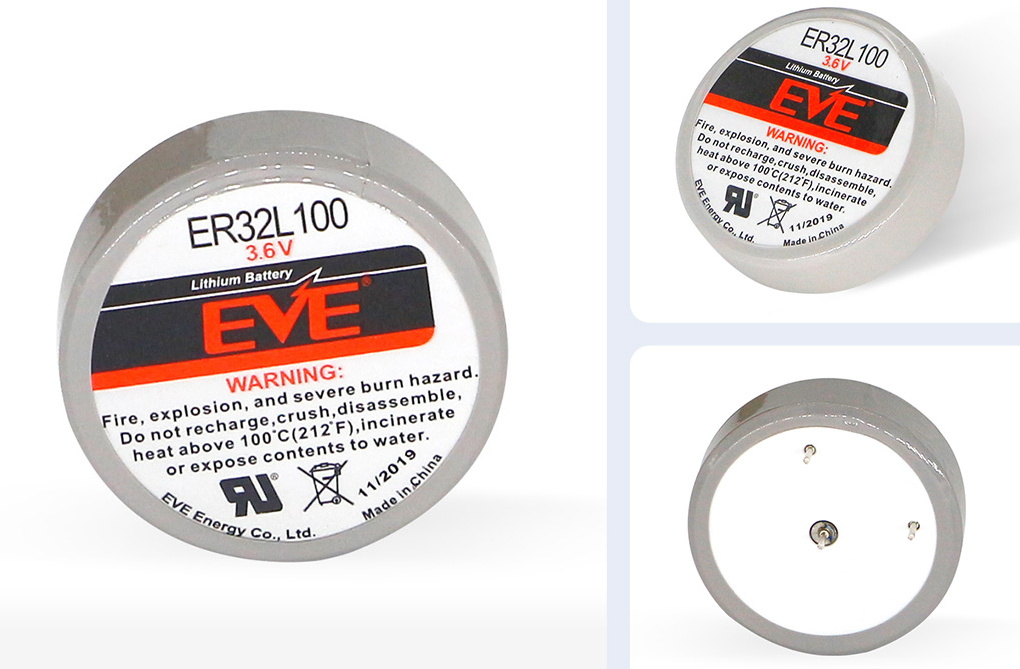

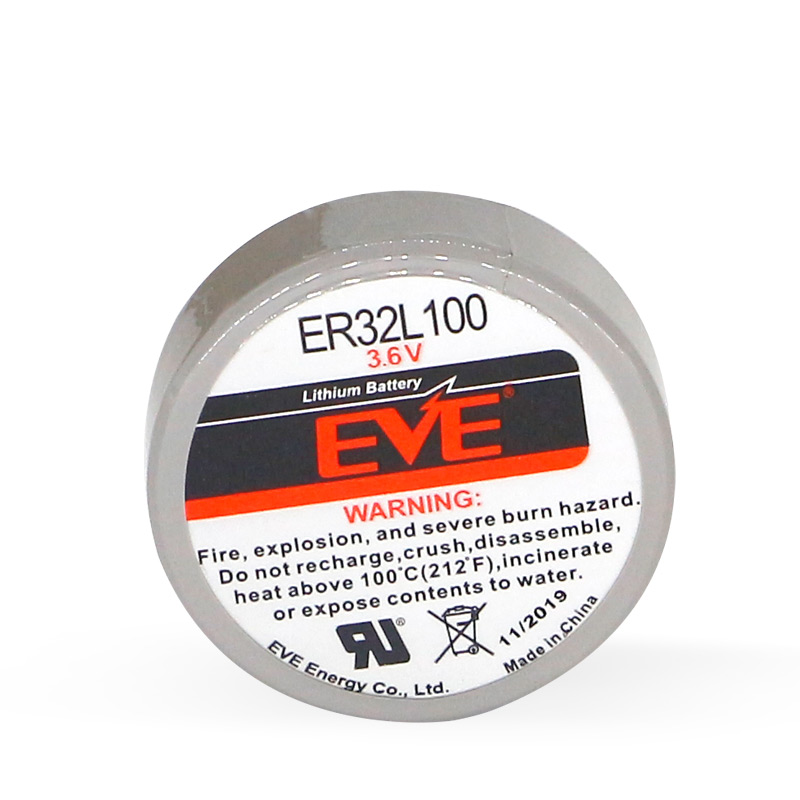

ER 32L100 3.6 V Lithium Battery Button Cell Li/SOCl2 Battery
ER32L100 has high energy density, low self-discharge rate, and stable voltage, and has a wide application range. Reliable power supply options in a variety of fields.
- Category: Lithium Thionyl Chloride Li SOCl2 Battery
- Tag: Li SOCl2 battery
ER 32l100 3.6 V Lithium Battery Button Cell Li/SOCl2 Battery Tire Pressure Monitoring PLC Industrial Control
Feature of ER 32l100 Button Cell Battery
· Voltage stabilization · Low self-discharge rate
· Fully sealed construction · Wide temperature range
· No memory effect · Small size
Specification
Parameter | Specification |
Model | ER32L100 |
Nominal voltage | 3.6V |
Nominal capacity | 1700mAH |
Maximum continuous discharge current | 10mA |
Maximum pulse discharge current | 50mA |
Lithium Weight | 24g |
Self-discharge rate | ≤1% |
Natural storage life | 10 years |
Storage temperature | - 20℃~ + 25℃ |
Operating temperature | -60~+85℃℃ |
Dimension | 32.9x10(mm) |
Product Certifications
3.6V Thionyl Chloride Lithium Battery Series
Model | Nominal voltage （V） | Nominal capacity (mAh) | Maximum continuous current(mA)
| Maximum pulse current(mA) | Weight (g) | Operating temperature(℃) | Dimension(mm) |
3.6 | 1200 | 35 | 50 | 10 | -55~+85℃ | 14.5x25.4 | |
3.6 | 1650 | 35 | 75 | 12 | -55~+85℃ | 14.5x33.5 | |
3.6 | 2700 | 60 | 150 | 19 | -55~+85℃ | 14.5x50.5 | |
3.6 | 3600 | 100 | 180 | 26 | -55~+85℃ | 17.5x51.0 | |
3.6 | 4000 | 130 | 180 | 28 | -55~+85℃ | 18.7x50.5 | |
3.6 | 8500 | 150 | 200 | 52 | -55~+85℃ | 26.2x50.0 | |
3.6 | 19000 | 230 | 300 | 100 | -55~+85℃ | 33.1x61.5 | |
3.6 | 400 | 5 | 20 | 5 | -55~+85℃ | 16.85x15.8x7.0 | |
3.6 | 750 | 10 | 30 | 8 | -55~+85℃ | 16.85x25.8x7.0 | |
3.6 | 1600 | 20 | 50 | 16 | -55~+85℃ | 23.3x38.3x7.5 | |
3.6 | 550 | 5 | 20 | 9 | -55~+125℃ | 24.3x6.2 | |
ER32L65 | 3.6 | 1000 | 10 | 50 | 19 | -55~+85℃ | 32.9x7.1 |
ER32L100 | 3.6 | 1700 | 10 | 50 | 24 | -60~+85℃ | 32.9x10 |
Applications
ER32L100 lithium sub-battery 3.6V, 1700mAh has a wide range of applications.
· In the industrial field, it can provide stable electric energy for various industrial instruments and automation equipment sensors to ensure data monitoring and production control in complex environments;
· In the field of energy, it can help smart meters and oil and gas field monitoring equipment operate stably to ensure accurate recording and transmission of energy-related data;
· In terms of traffic, it can be applied to on-board electronic devices and traffic signal sensors to maintain data monitoring and signal regulation in driving and road control;
· In the medical field, it can escort medical implant equipment and in vitro diagnostic equipment, protect the health of patients, and help the detection operation;
· In the field of the Internet of Things, it can also provide a continuous power supply for smart sensors, smart labels, etc., to achieve efficient operation of environmental control and logistics warehousing.
In short, it plays an important role in many industries and has its own advantages.
