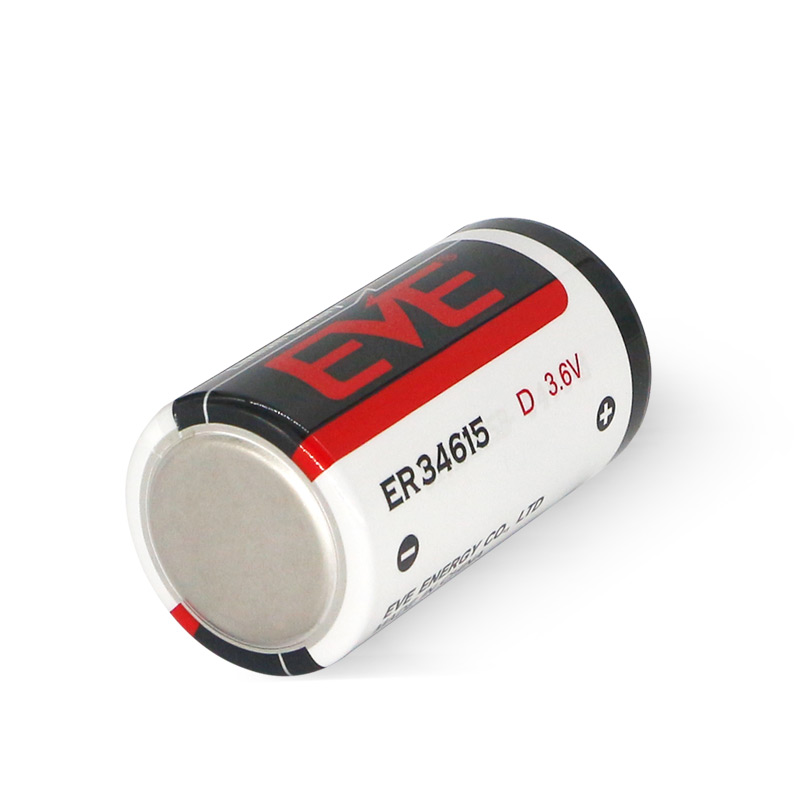

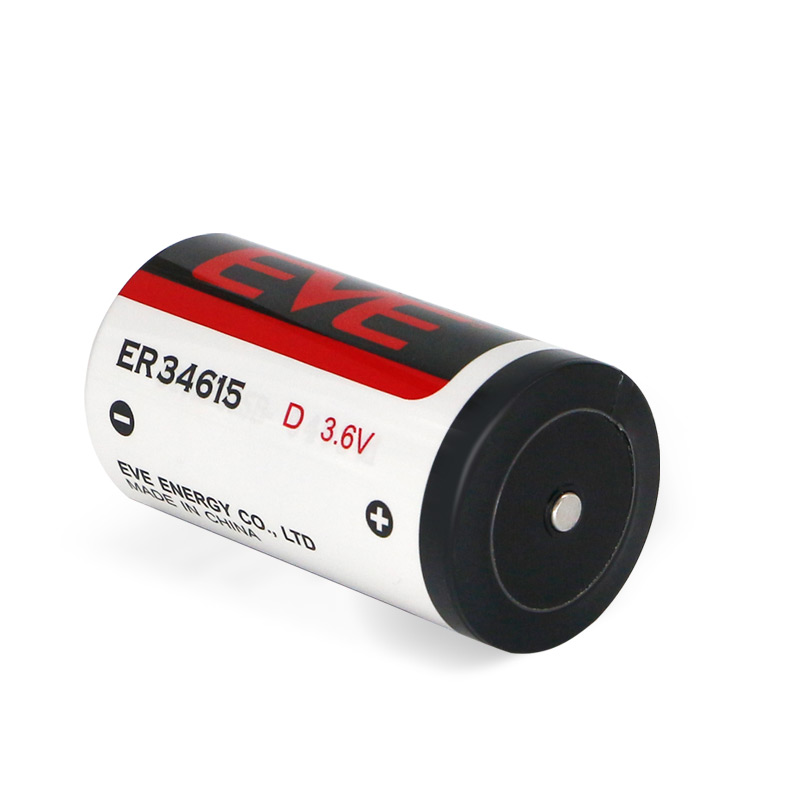

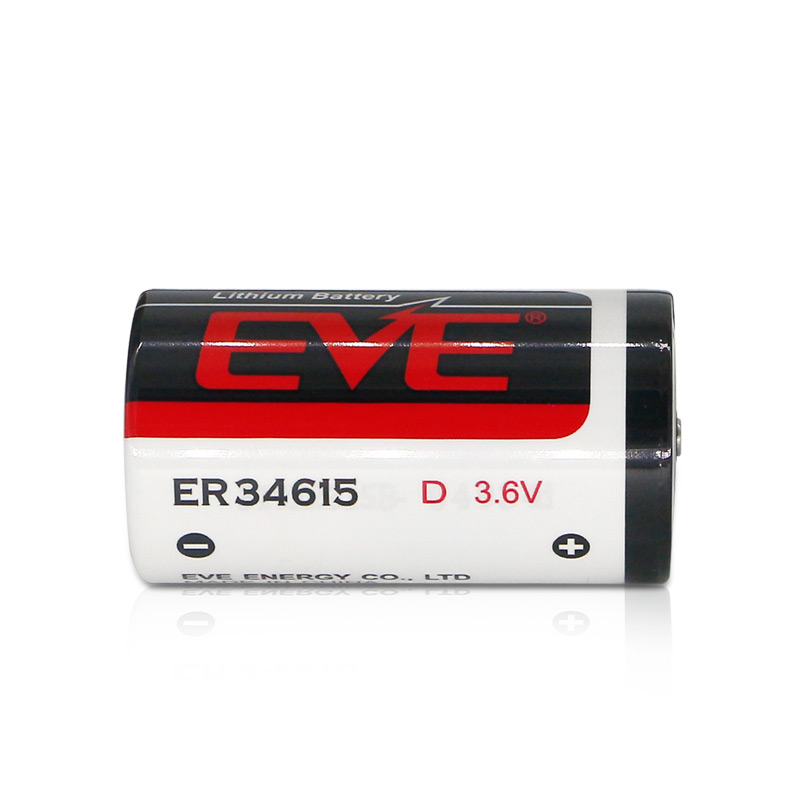

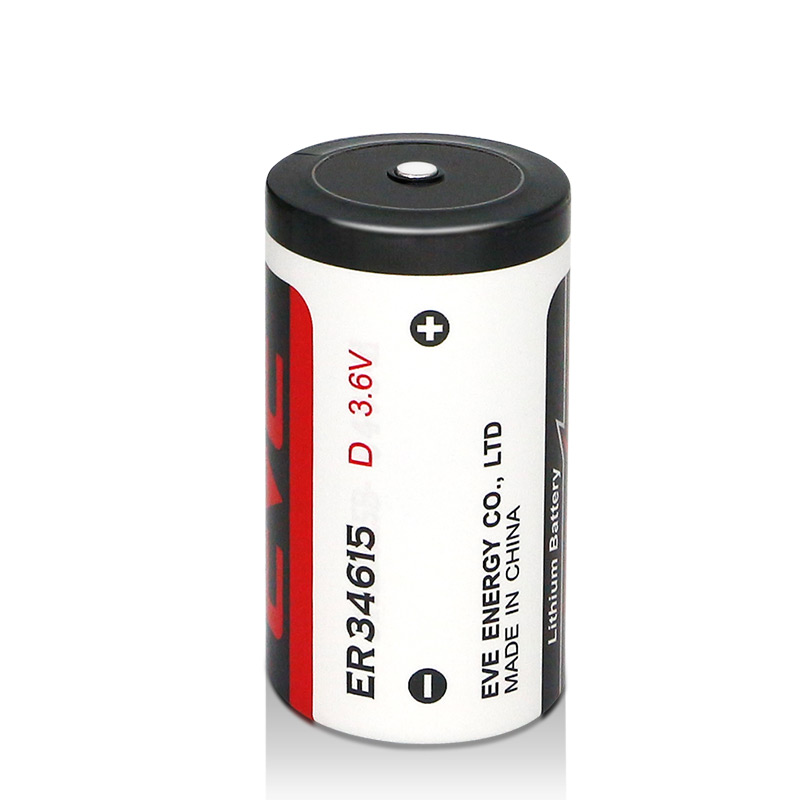

ER34615 3.6V 19000 mAh Lithium Thionyl Chloride D Cell Batteries
We offer er34615 lithium batteries as Lithium Thionyl Chloride D Cell Batteries with stable voltage and large capacity.
- Category: Lithium Thionyl Chloride Li SOCl2 Battery
- Tag: Li SOCl2 battery
ER34615 Li-ion battery, 3.6v lithium thionyl chloride D cell batteries series, up to 19000mAh large capacity, no matter what device you use, it can provide ultra-durable power life, and reduce frequent change points. Meet smart meters, water meters, gas meters, and other metering equipment that need long-term stable power supply and data transmission can not be interrupted, and the key backup power supply for remote monitoring and control systems in the field of industrial automation, as well as the alarm, camera and other equipment on standby in the security system.
Specifications
Parameter | Specification |
Model | ER34615 |
Nominal voltage | 3.6V |
Nominal capacity | 19000mAH |
Maximum continuous discharge current | 230mA |
Maximum pulse discharge current | 300mA |
Lithium Weight | 100g |
Self-discharge rate | ≤1% |
Natural storage life | ≥10 years |
Storage temperature | - 20℃~ + 25℃ |
Operating temperature | -55℃~ + 85℃ |
Dimension | 33.1x61.5 |

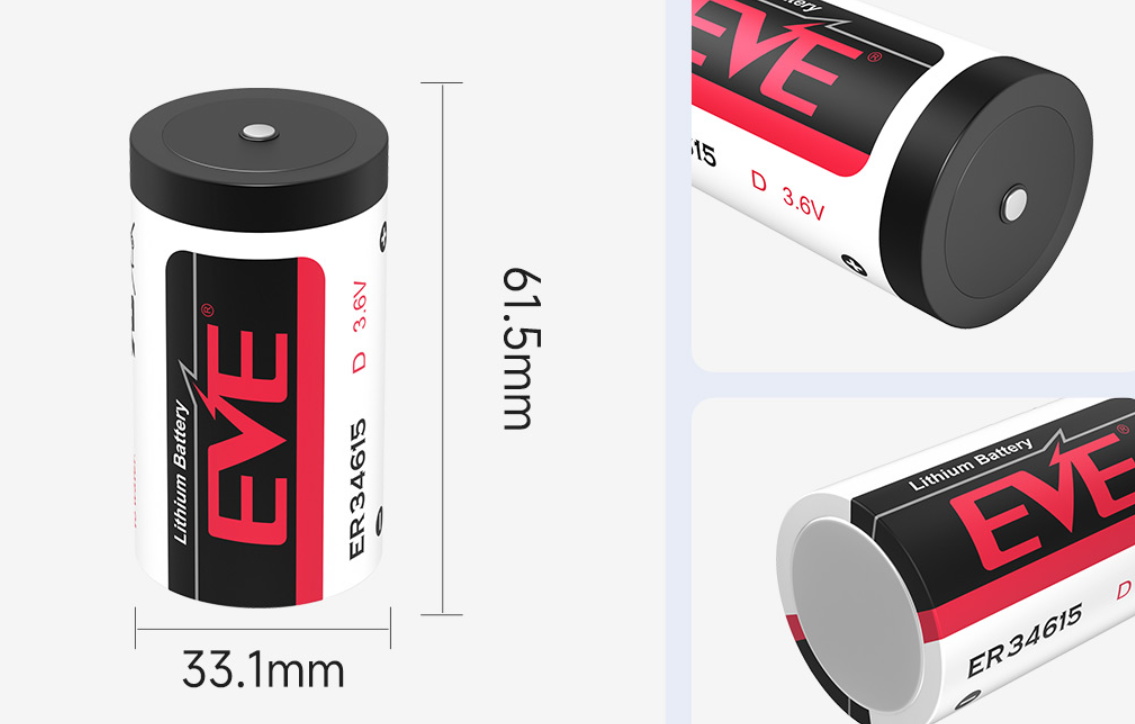

Dimension
3.6V Lithium Thionyl Chloride Series
Model | Nominal voltage （V） | Nominal capacity (mAh) | Maximum continuous current(mA)
| Maximum pulse current(mA) | Weight (g) | Operating temperature(℃) | Dimension(mm) |
3.6 | 1200 | 35 | 50 | 10 | -55~+85℃ | 14.5x25.4 | |
3.6 | 1650 | 35 | 75 | 12 | -55~+85℃ | 14.5x33.5 | |
3.6 | 2700 | 60 | 150 | 19 | -55~+85℃ | 14.5x50.5 | |
ER17505 | 3.6 | 3600 | 100 | 180 | 26 | -55~+85℃ | 17.5x51.0 |
3.6 | 4000 | 130 | 180 | 28 | -55~+85℃ | 18.7x50.5 | |
3.6 | 8500 | 150 | 200 | 52 | -55~+85℃ | 26.2x50.0 | |
ER34615 | 3.6 | 19000 | 230 | 300 | 100 | -55~+85℃ | 33.1x61.5 |
3.6 | 400 | 5 | 20 | 5 | -55~+85℃ | 16.85x15.8x7.0 | |
3.6 | 750 | 10 | 30 | 8 | -55~+85℃ | 16.85x25.8x7.0 | |
3.6 | 1600 | 20 | 50 | 16 | -55~+85℃ | 23.3x38.3x7.5 | |
3.6 | 550 | 5 | 20 | 9 | -55~+125℃ | 24.3x6.2 | |
ER32L65 | 3.6 | 1000 | 10 | 50 | 19 | -55~+85℃ | 32.9x7.1 |
3.6 | 1700 | 10 | 50 | 24 | -60~+85℃ | 32.9x10 |
Customized Product

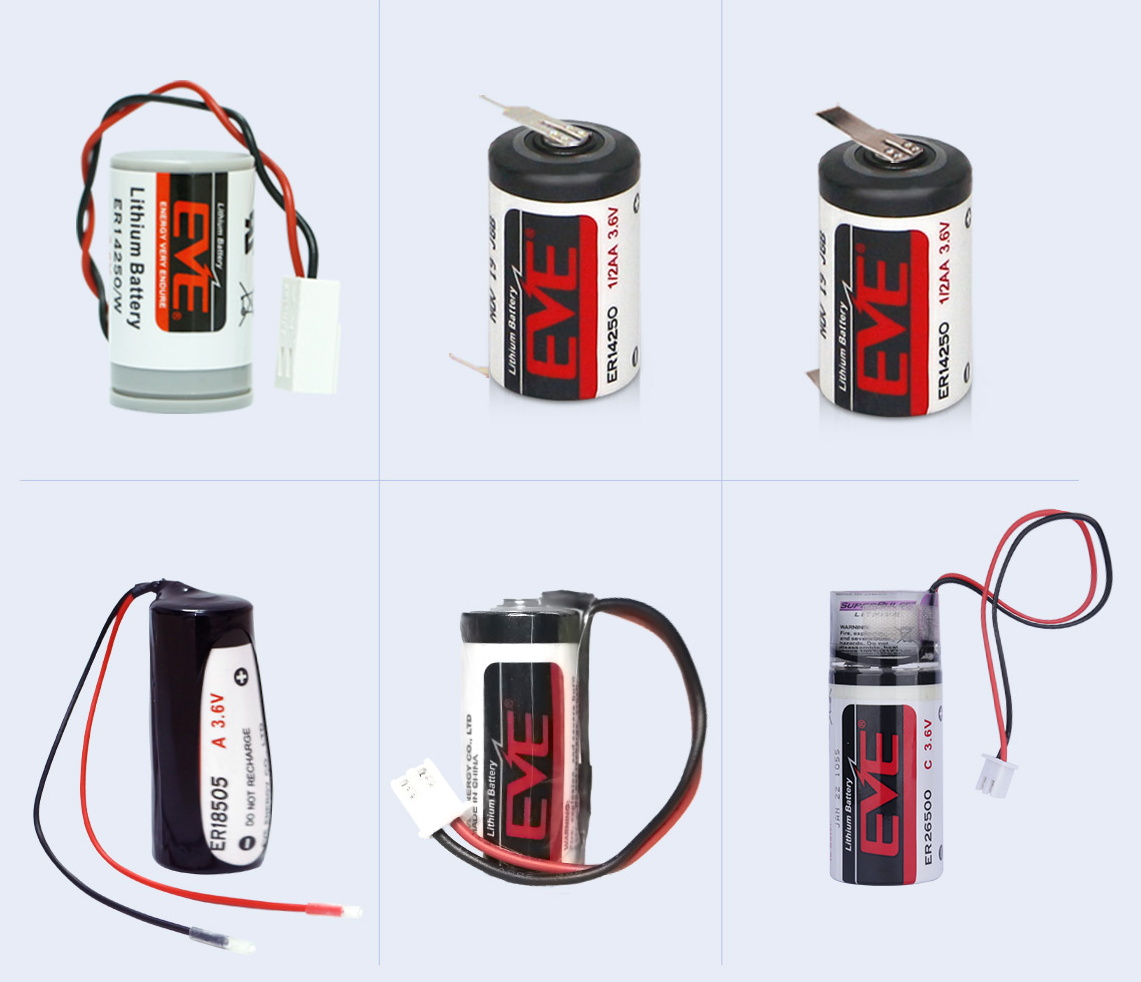

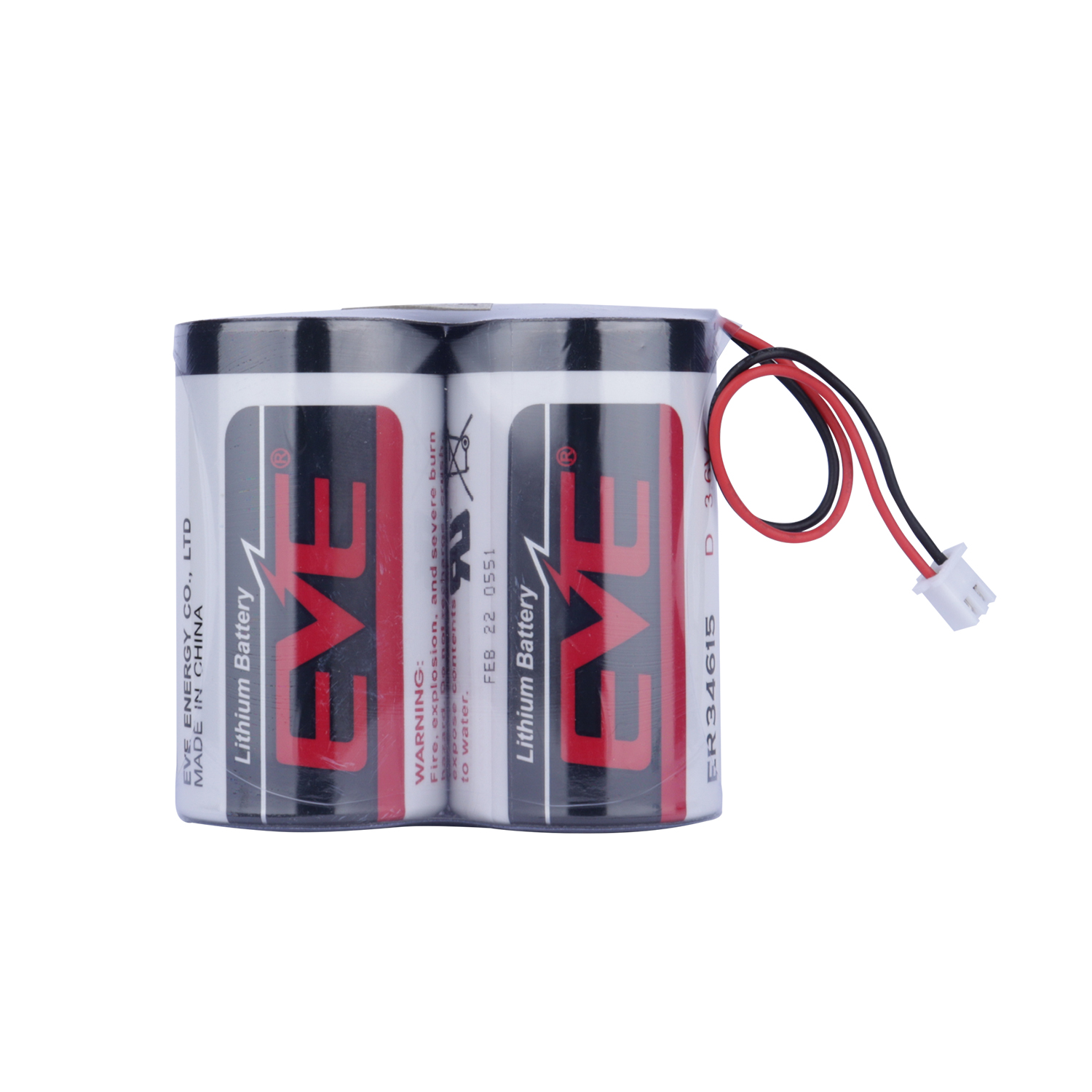

ER34615+ Plug leads
If your battery needs to be processed in series/parallel or to add wire leads, pins or splices, please contact us.
Product Certification
Application
Intelligent instruments, industrial automation, oil exploration, medical equipment, agricultural testing, intelligent transportation, etc
