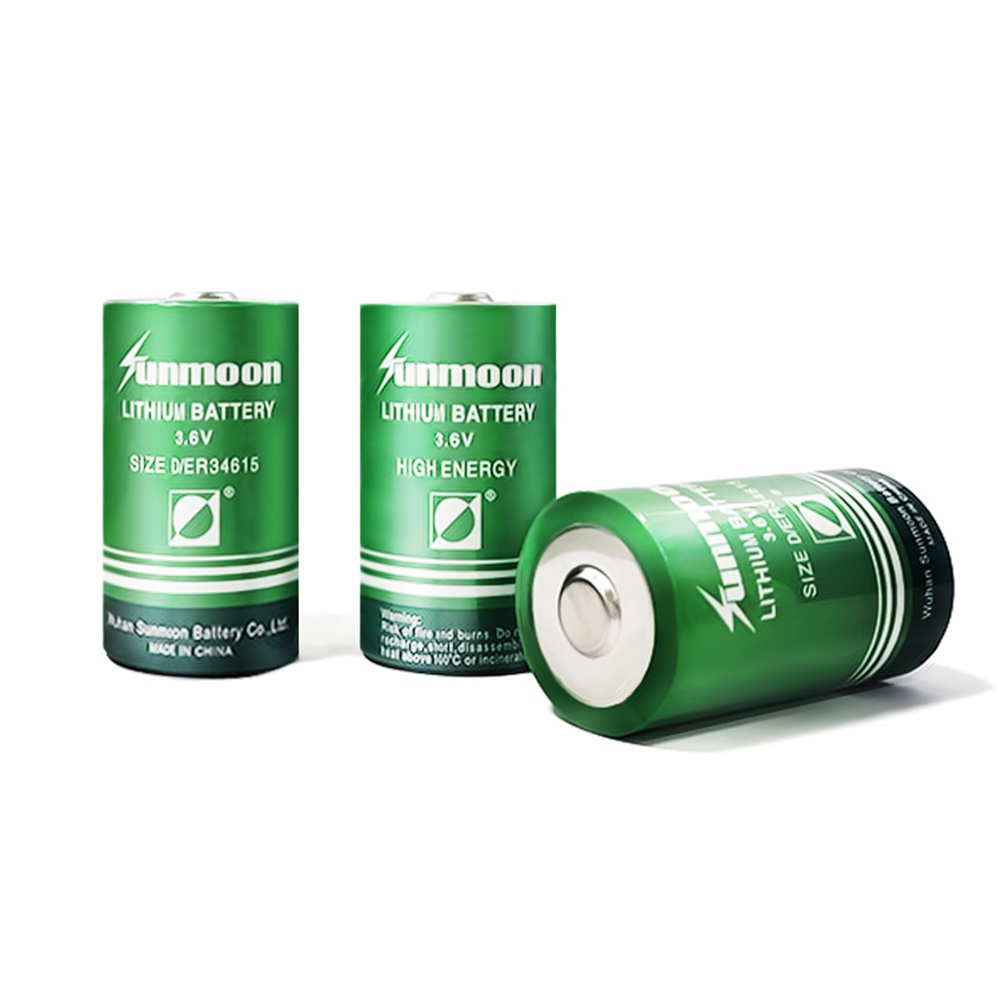

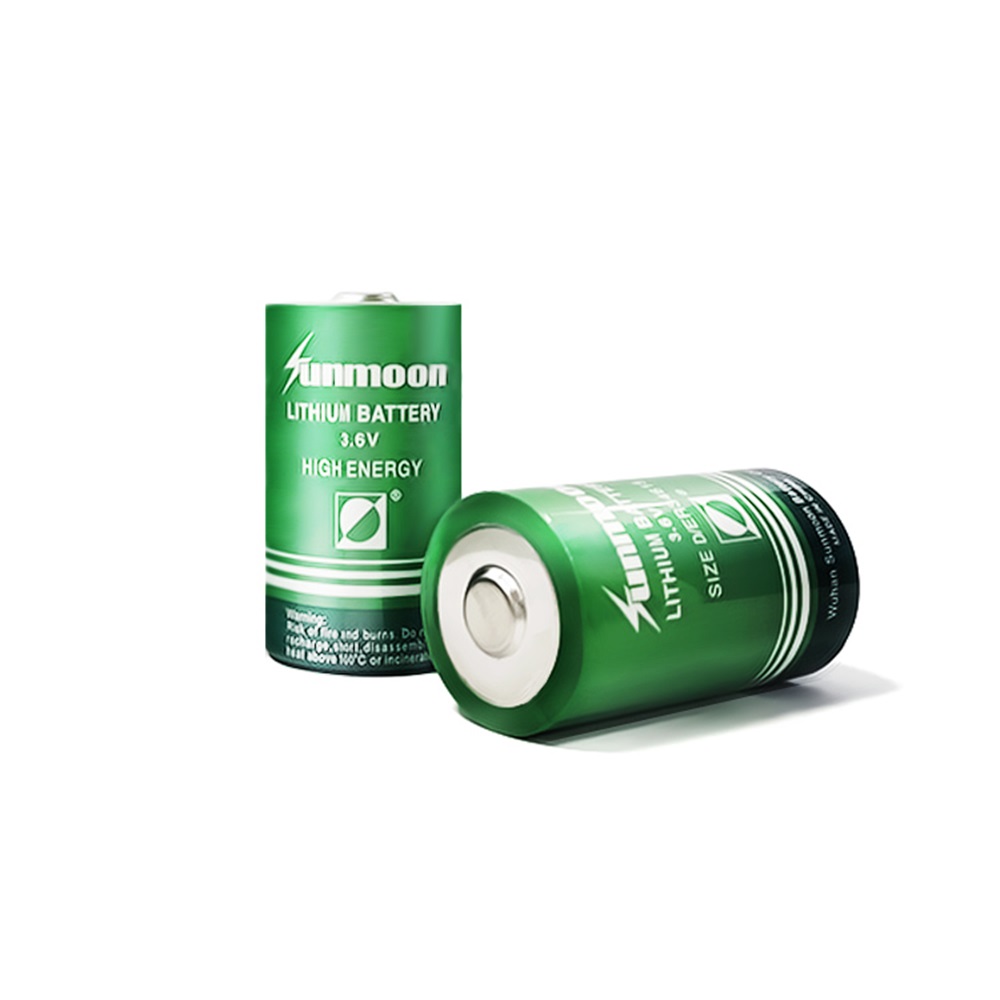

ER34615 3.6V 19000mAh Lithium Thionyl Chloride Battery BOBBIN TYPE
ER34615 3.6V 19000mAh lithium thionyl chloride battery bobbin type has this energy density, low self-discharge rate, and long service life to meet your continuous and stable power needs.
- Category: Lithium Thionyl Chloride Li SOCl2 Battery
- Tag: Li SOCl2 battery
Product Characteristics:
· High Energy Density: Over 620wh/kg[highest among all the chemical batteries]；
· Open Circuit Voltage: ≥3.65V, operating voltage ranging from 3.3~3.6V；
· Wide Operating Temperature Range: -55℃+85℃；
· Long Storage Life: 8-10 years[Under normal room Temperature]；
Specification
Model: | ER34615 |
Product type: | LI/SOCl₂ |
Battery charging: | No |
Maximum Profile Size（mm）: | φ34.2X61.5 |
Weight: | 105g |
Nominal capacity（mAh）: | 19000 |
Use temperature range: | -55℃~+85℃ |
Nominal voltage（V）: | 3.6 |
Discharge cut-off voltag（V）: | 2 |
lsn（mA）: | 3 |
Maximum continuous（mA）: | 150 |
Maximum Pulse Dischar（mA）: | 300 |

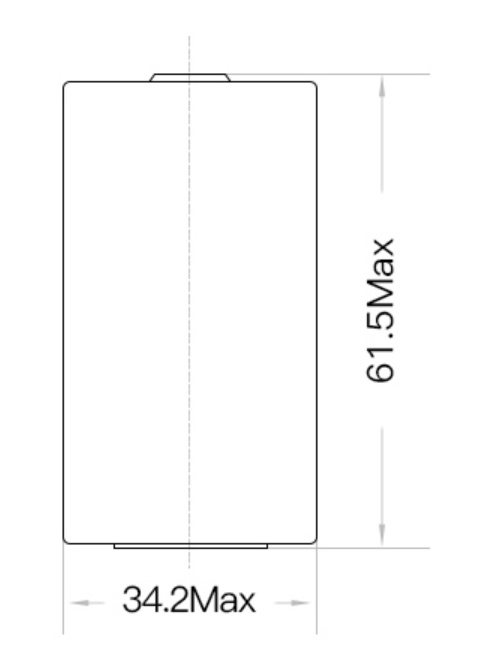

Details and Dimensions
Operation Characteristic
This series of batteries are suitable for operating under long-term tiny； currents. The batteries possess stable operating voltage and are safe.

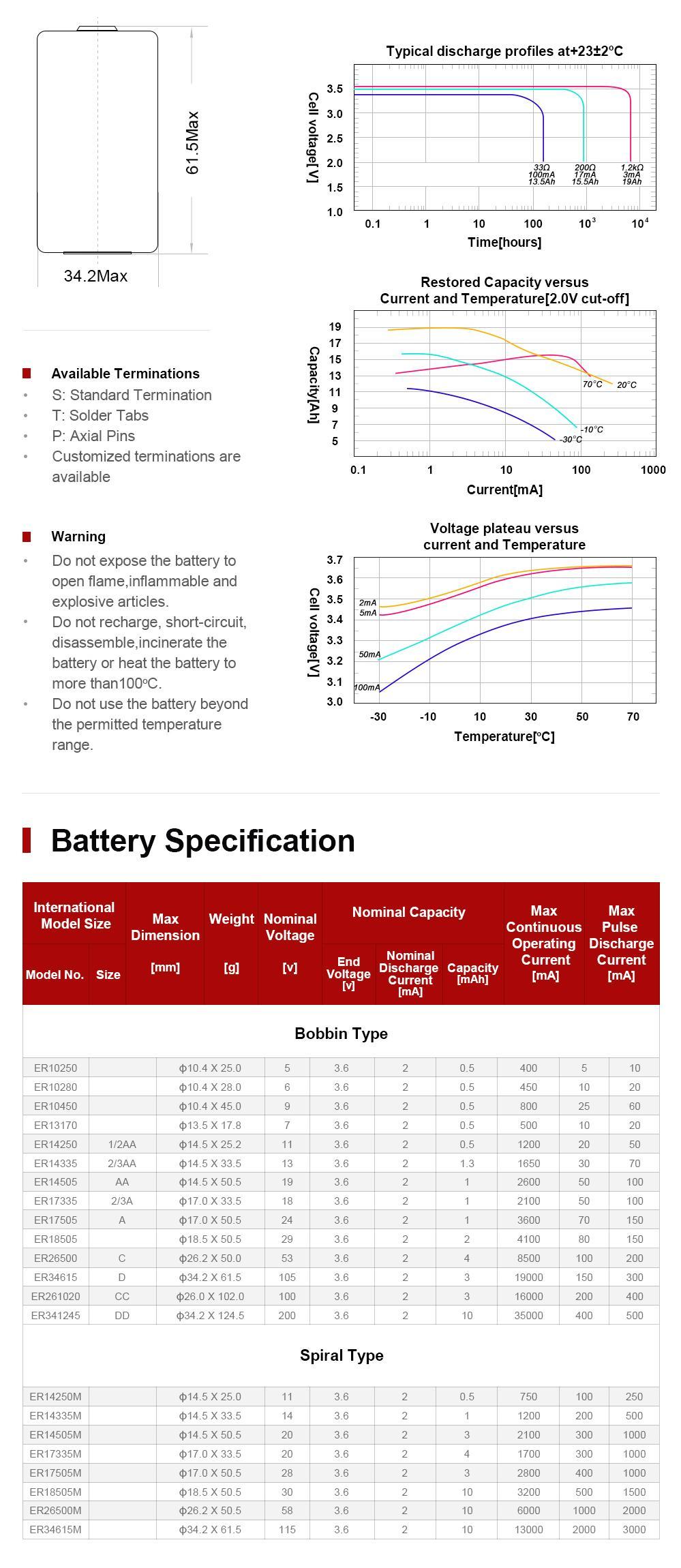

ER34615 Discharge Curve Diagram
Applications
LoT、Alarms and Security Systems、 Utility Meters/AMR&AMI、 Automotive Telematics、Storage and Tracking Devices、 Military Equipment、 R&D Instrument、 Sensor、 Oil Drilling
