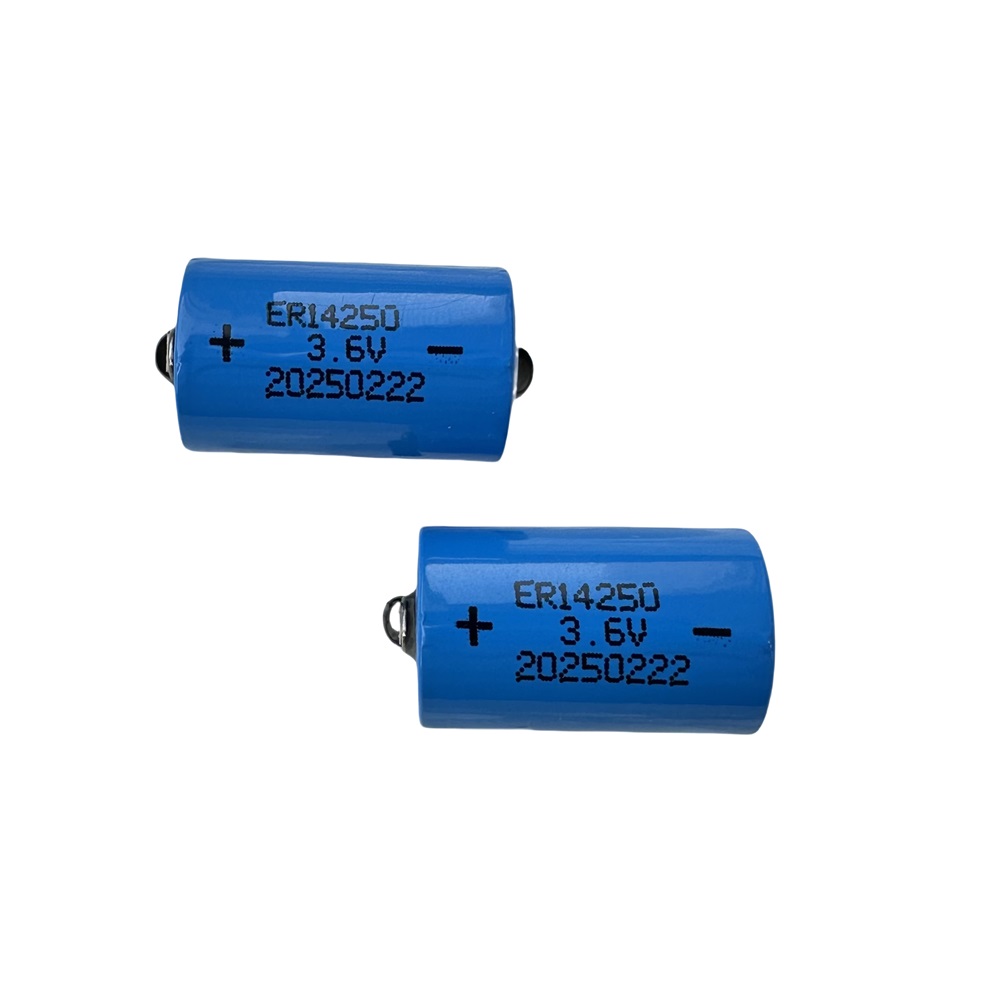

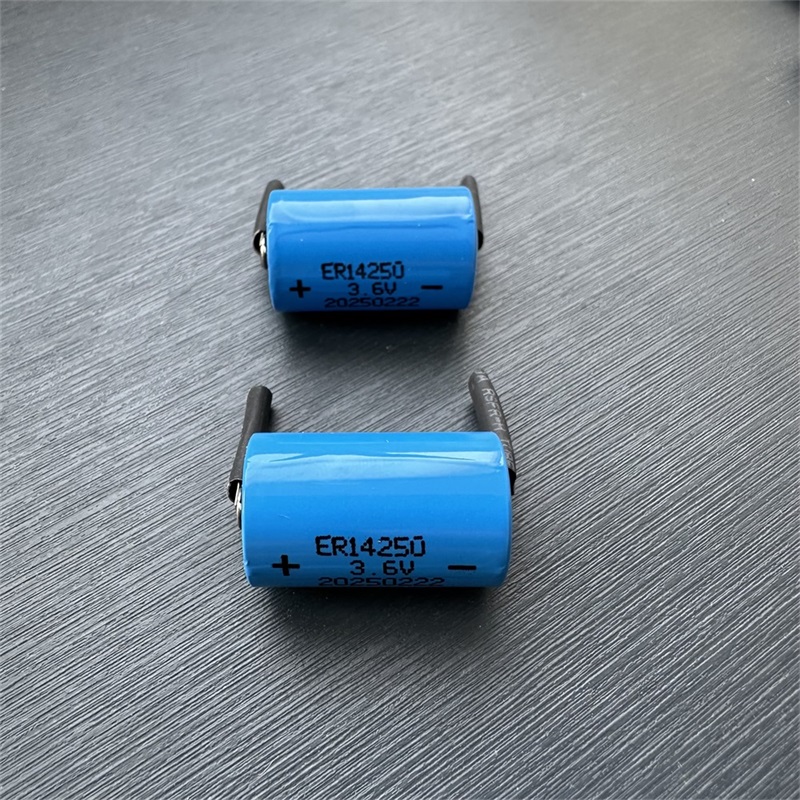

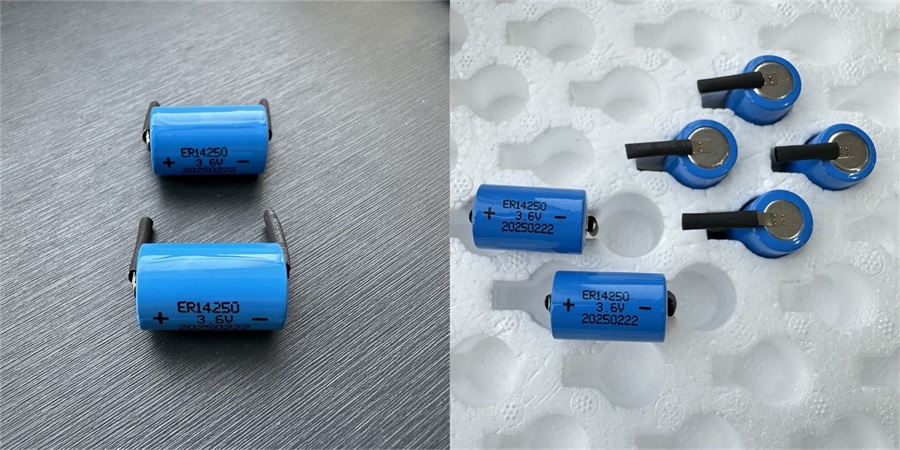

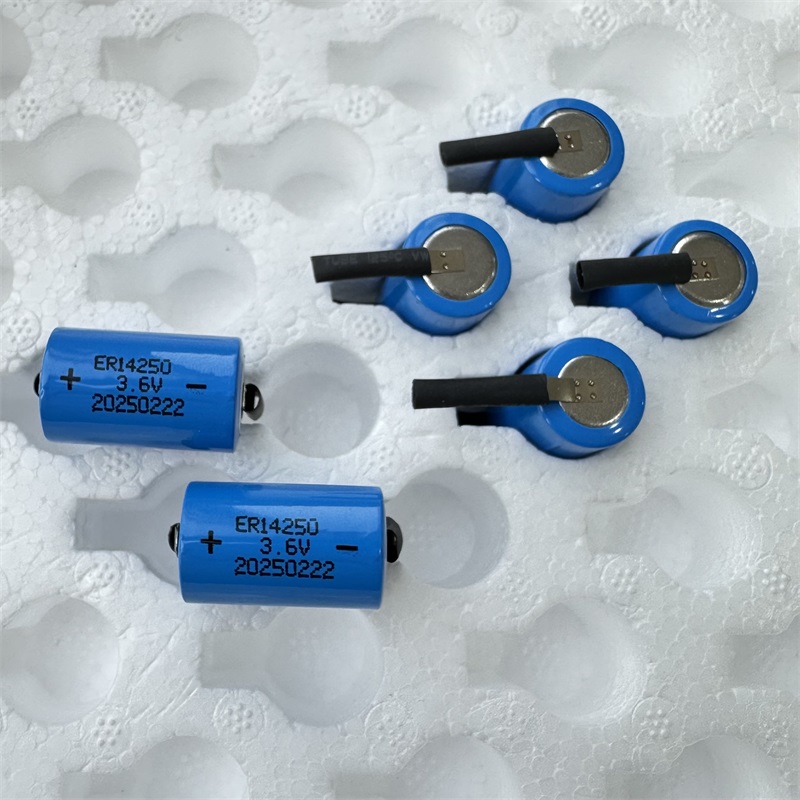

ER14250 3.6V 1200mAh Lithium Thionyl Chloride LiSOCL2 Battery

ER14250 LiSOCL2 Battery is characterized by long-time micro current operation, stable operating voltage and good safety. Specific energy up to 620wh/kg. The open circuit voltage ≥3.65V, the working voltage is usually between 3.3 and 3.6V, and more than 90% of the battery capacity is output on a high voltage platform with almost constant voltage. The temperature range is very wide and can reach -55~+85℃.

Advantages of ER14250 1200mAh Li/SOCL2

1. High energy density over 620wh/kg [highest among all the chemical batteries]

2. Open circuit voltage ≥ 3.65V, and operating voltage ranging from3.3~3.6V

3. Wide operating temperature range: -55°C~+85°C

4. Long storage life over 10 years [under normal room temperature]

5. Suitable to operate under long-term tiny current with stable voltage

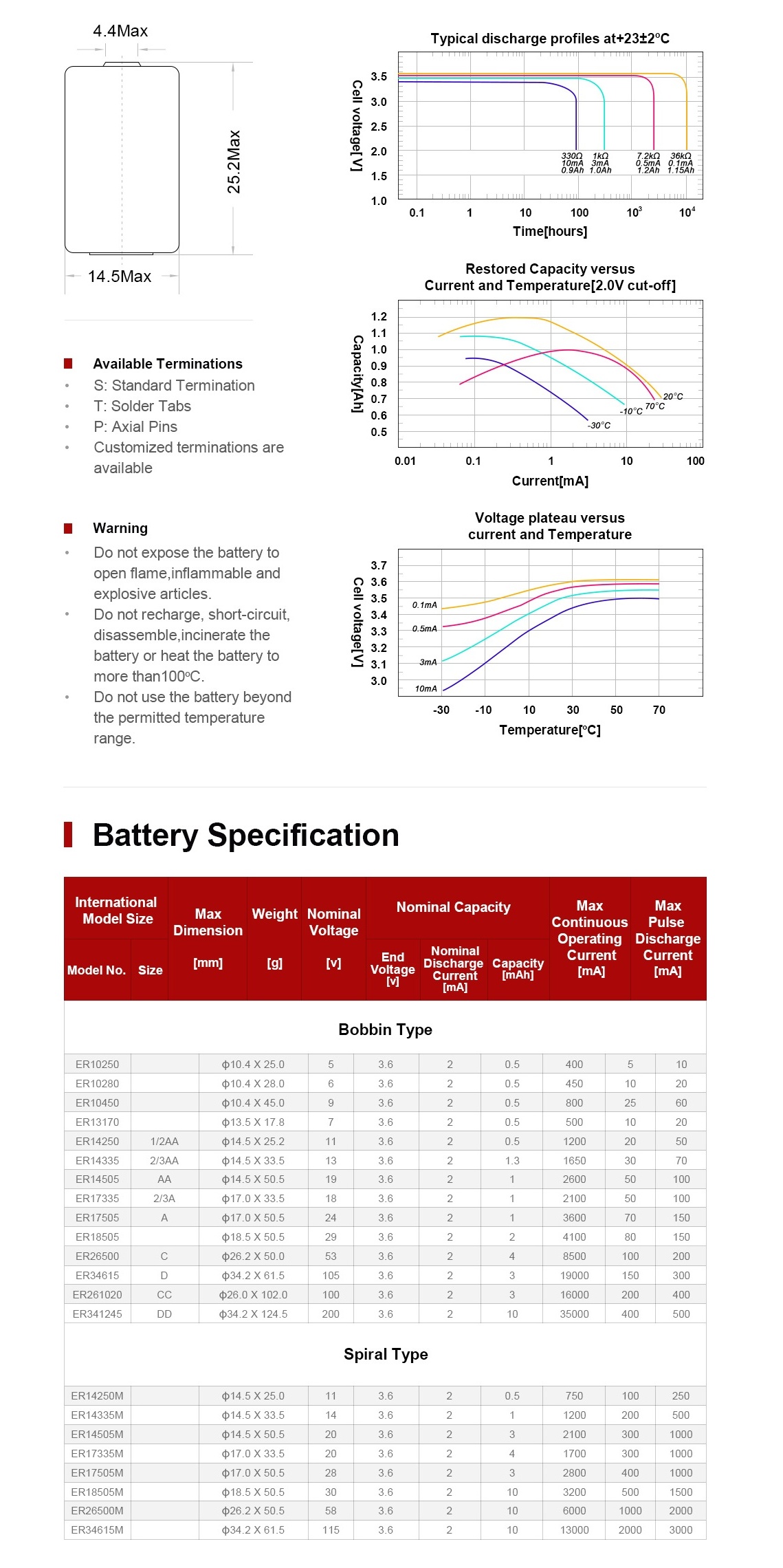

Specifications

ER14250 Discharge Curve Diagram

Applications

Mainly used in smart meters (water, electricity, gas meters), computer support power supply, medical equipment, wireless communication, oil drilling, portable communication equipment, scientific research equipment, automotive electronics, military equipment and so on
