ER14335 Li-SOCl2 3.6V 1650mAh 2/3AA Lithium Cylindrical battery Cell for Smart Meter
ER14335 Li-SOCl2 3.6V lithium primary battery Lithium battery 1650mAh smart water meter electric meter industrial control equipment.
- Category: Lithium Thionyl Chloride Li SOCl2 Battery
- Tag: Li-SOCl2 battery
ER14335 battery is a lithium thionyl chloride battery with excellent performance, nominal voltage 3.6V, capacity 1650mAh, with stable operating voltage, wide operating temperature range, high energy density, long storage life, high reliability, good sealing performance, environmental protection and other characteristics. Widely used in smart wearable devices, electronic atomizers, medical equipment, Internet of Things devices and other small electronic equipment.
Feature
· High and stable working voltage
· Wide operating temperature range
· High energy density
· Good storage life and reliability
· Good sealing performance
· Environmental protection
Specification
Parameter | Specification |
Model | ER14335 |
Nominal voltage | 3.6V |
Nominal capacity | 1650mAH |
Maximum continuous discharge current | 35mA |
Maximum pulse discharge current | 75mA |
Lithium Weight | 12g |
Self-discharge rate | ≤1% |
Natural storage life | 10 years |
Storage temperature | - 20℃~ + 25℃ |
Operating temperature | -55℃~ + 85℃ |
Dimension | 14.5×33.5(mm) |

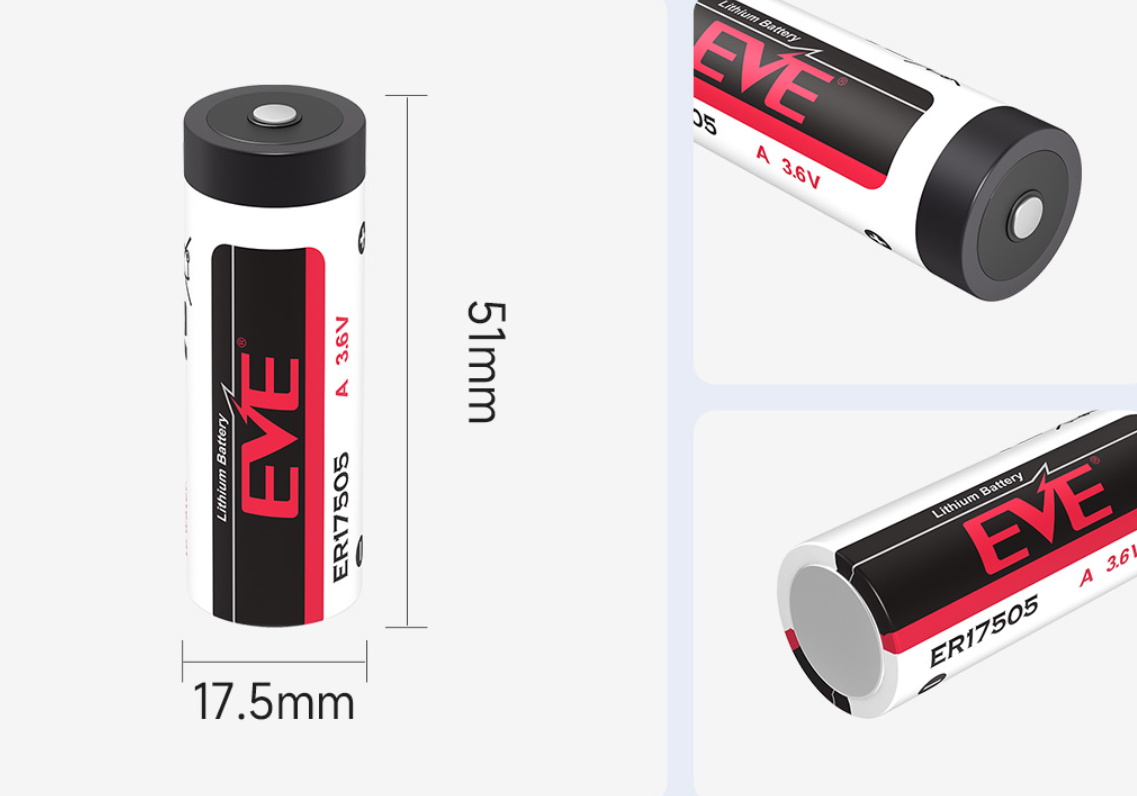

Dimension and Details
3.6V Li SOCl2 Battery Series
Model | Nominal voltage （V） | Nominal capacity (mAh) | Maximum continuous current(mA)
| Maximum pulse current(mA) | Weight (g) | Operating temperature(℃) | Dimension(mm) |
3.6 | 1200 | 35 | 50 | 10 | -55~+85℃ | 14.5x25.4 | |
ER14335 | 3.6 | 1650 | 35 | 75 | 12 | -55~+85℃ | 14.5x33.5 |
3.6 | 2700 | 60 | 150 | 19 | -55~+85℃ | 14.5x50.5 | |
3.6 | 3600 | 100 | 180 | 26 | -55~+85℃ | 17.5x51.0 | |
ER18505 | 3.6 | 4000 | 130 | 180 | 28 | -55~+85℃ | 18.7x50.5 |
ER26500 | 3.6 | 8500 | 150 | 200 | 52 | -55~+85℃ | 26.2x50.0 |
ER34615 | 3.6 | 19000 | 230 | 300 | 100 | -55~+85℃ | 33.1x61.5 |
EF651615 | 3.6 | 400 | 5 | 20 | 5 | -55~+85℃ | 16.85x15.8x7.0 |
EF651625 | 3.6 | 750 | 10 | 30 | 8 | -55~+85℃ | 16.85x25.8x7.0 |
EF702338 | 3.6 | 1600 | 20 | 50 | 16 | -55~+85℃ | 23.3x38.3x7.5 |
ER2450T | 3.6 | 550 | 5 | 20 | 9 | -55~+125℃ | 24.3x6.2 |
ER32L65 | 3.6 | 1000 | 10 | 50 | 19 | -55~+85℃ | 32.9x7.1 |
ER32L100 | 3.6 | 1700 | 10 | 50 | 24 | -60~+85℃ | 32.9x10 |
Product Certification
UN38.3UL1642ATEX Explosion-proof certification
Applications
· Smart wearable devices: such as smart glasses. Taking Huawei smart Glasses 2 as an example, the EVE 400935QH model lithium battery used in the mirror leg can provide enough energy for smart glasses in a limited space by virtue of its high energy density, compact and lightweight characteristics, to support its long-term operation and meet the daily use needs of users.
· Electronic atomizer: The electronic atomizer battery solution of Yiwei Lithium Energy covers a variety of material systems and technical solutions, and its characteristics of high power, long life and high safety can well meet the needs of electronic atomizer and provide users with high-quality atomization experience.
· Medical equipment: such as some small medical monitoring equipment, implantable medical equipment, etc., these devices usually need small size, high energy density, and strong reliability of the battery to provide long-term stable power support, ER14335 battery characteristics can meet these requirements to ensure the normal operation of medical equipment, for the patient's health monitoring and treatment to provide protection.
· Internet of Things devices: such as smart sensors, remote monitoring equipment, etc., these devices are usually distributed in different environments, requiring the battery to have a wide temperature range adaptability and long life, ER14335 batteries can work stably in a variety of harsh environments, reduce maintenance costs, and improve the reliability and service life of the equipment.
· Other small electronic devices: such as some small electronic products with high requirements for battery volume, weight, energy density and service life, such as handheld remote control, electronic labels, etc., ER14335 battery can provide reliable power support for these devices to ensure the normal operation of the equipment
