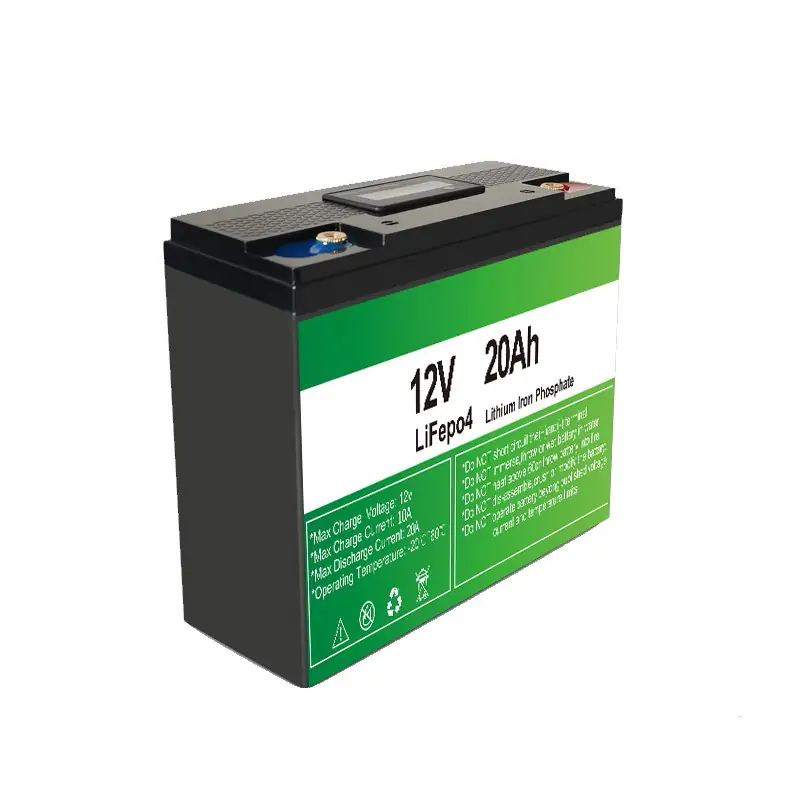

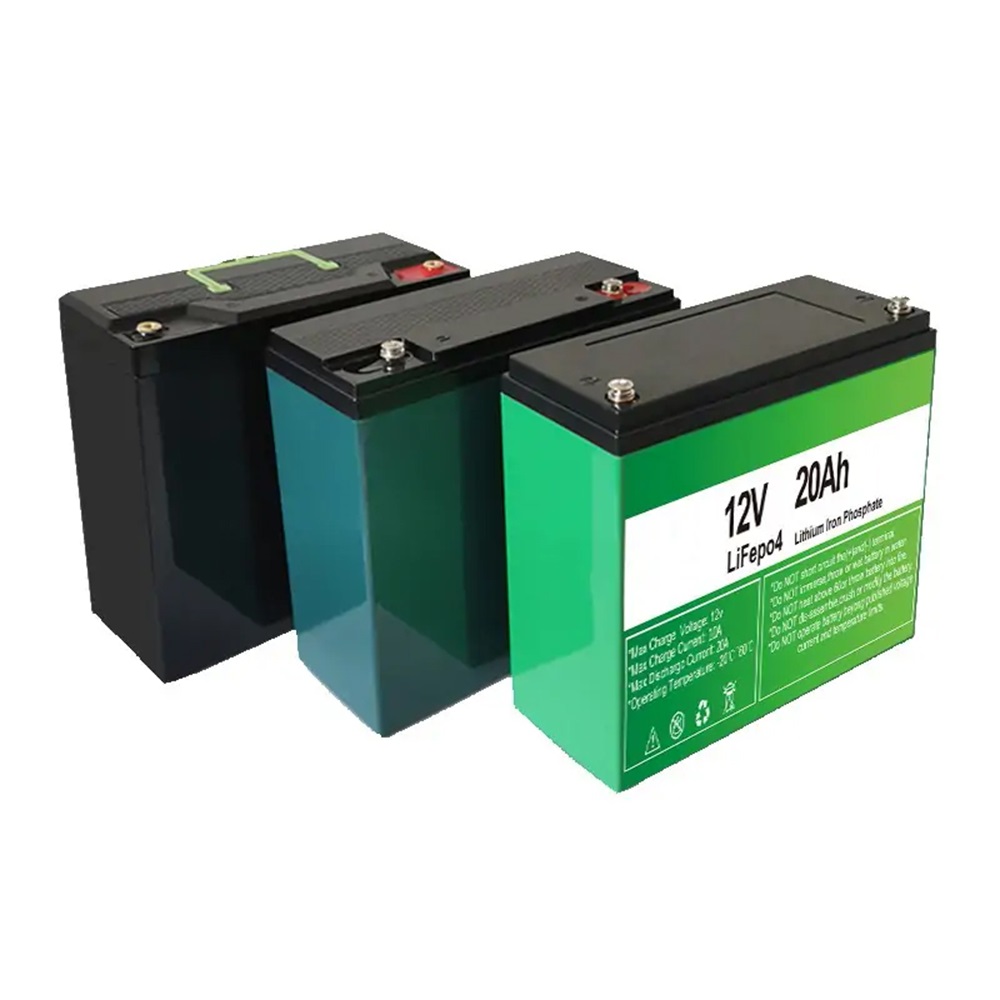

12V 12.8V 20Ah LiFePO4 Battery Pack

12V 12.8V 20Ah LiFePO4 Battery Pack for lead-acid battery replacement

12V 12.8V 20Ah LiFePO4 Battery Pack for lead-acid battery replacement


12V 12.8V 20Ah LiFePO4 Battery Pack for lead-acid battery replacement12V 12.8V 20Ah LiFePO4 Battery Pack for lead-acid battery replacement


Key Features:

1) Longer Cycle Life

Longer cycle life than the lead acid battery, helping to minimize replacement costs and reduce total ownership costs.

2) Lighter Weight

It is About 50% of the weight of a comparable lead acid battery.

3) Higher Power

Delivers twice the power of a lead acid battery, even high discharge rate, while maintaining high energy capacity.

4) Safety

Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high-impact overcharging or short circuit situations.


Applications

Wheelchairs and scooters;

Solar/wind energy storage;

Back-up power for small UPS;

Golf trolleys & buggies;

Kid electric cars;


Specifications

Item

Parameters

Nominal Voltage

12.8V

Nominal Capacity

20Ah

Cycle Life

≥2000 cycles @ 1C 100% DOD

Charge Voltage

14.6±0.2V

Max. Charge Current

10A (customize)

Max. discharge Current

20A (customize)

Discharge Cut-off Voltage

10V

Charge Temperature

0℃ to 45℃

Discharge Temperature

-20℃ to 60℃

Approx. Dimensions

181mm*77mm*170mm

Approx. Weight

3.0kg
