12V 50Ah Car Audio Lifepo4 Lithium Ion Battery
We designed the 12V 50Ah lithium battery for a United States Car Audio battery company.
- Category: LiFePO4 Battery
- Tag: lifepo4 battery

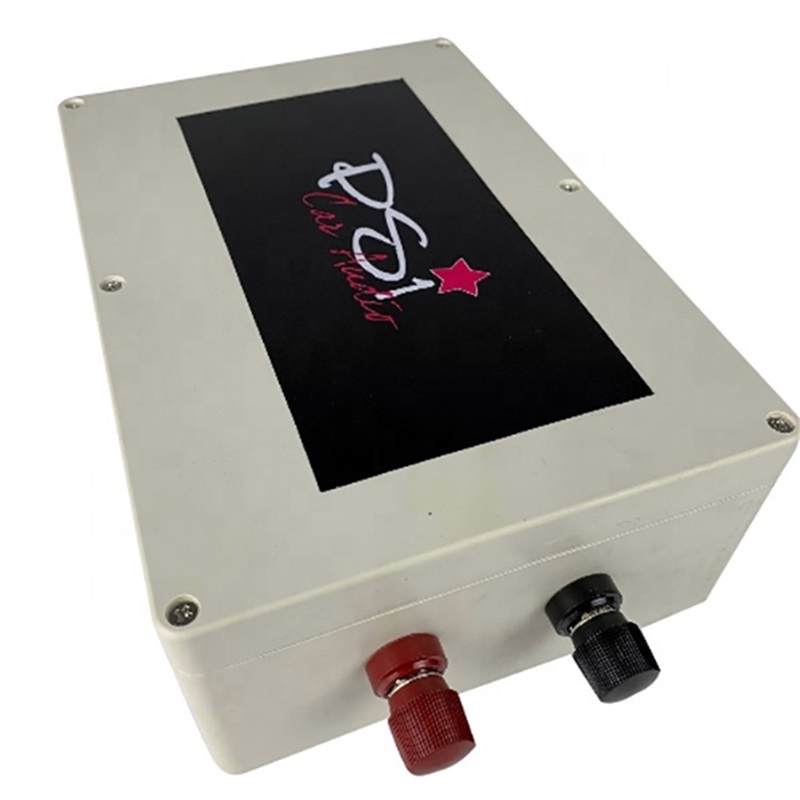

12V 50Ah car audio lifepo4 lithium ion battery pack for car audio application with plastic case. with a high discharge rate.
Specifications
Item | Parameter Specification | |
Battery Module | EVL-12V50AH | |
Nominal Capacity | 50AH | |
Minimum Capacity | 50AH | |
Nominal Voltage | 14.8 V | |
Internal Resistance | ≤1mΩ | |
Charging (CC-CV) | Maximum Charging Current | 1C |
Charging Upper Limit Voltage | 17V | |
Discharging | Maximum Discharging Current | 5C |
Discharging Cut-off Voltage | 11.2V | |
Charging Time | Standard Charging | 4h |
Quick-acting Charging | 1h | |
Recommended SOC Usage Window | SOC: 10%~90% | |
Operation Thermal Ambient | Charging | 0°C ~ 65°C |
Discharging | -20°C ~ 55°C | |
Storage Thermal Ambient | Short-term (within 1 month) | -20°C ~ 65°C |
Long term (within 1 year) | -20°C ~ 55°C | |
Storage Humidity | < 70% | |
Battery Weight | Around 5kg | |
Battery Dimension | 265*185*100mm | |
Shell Material | Aluminum | |

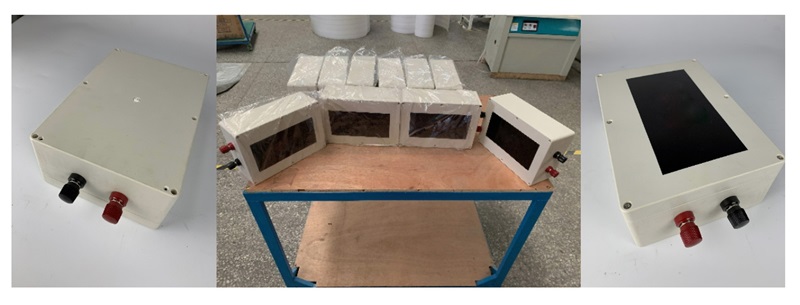

We designed the 12V 50Ah lithium battery for a United States Car Audio battery company,
We provide customized solutions, if you need to contact us!
