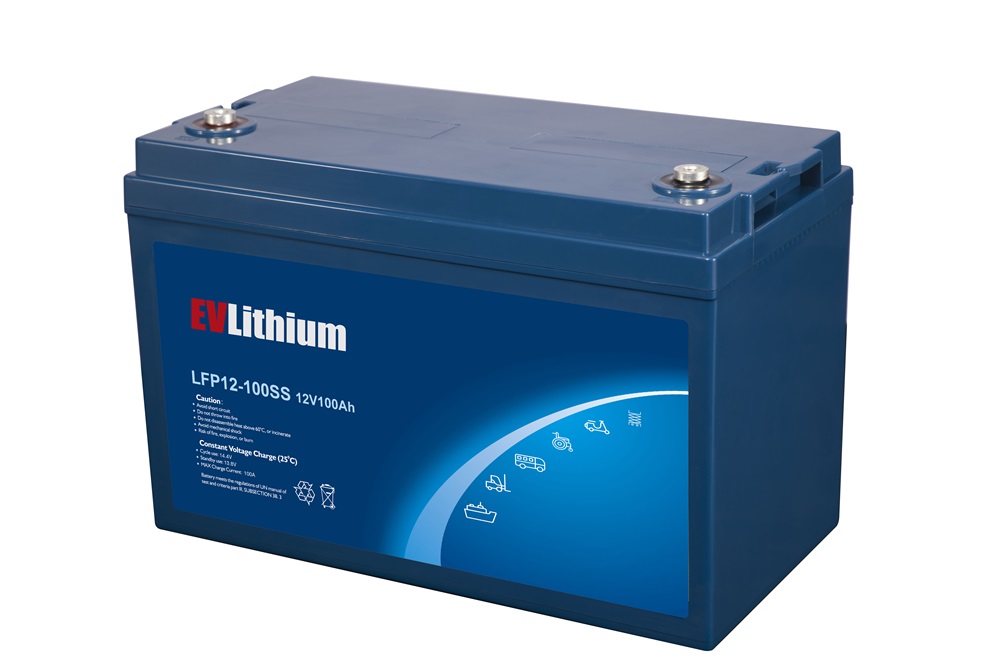

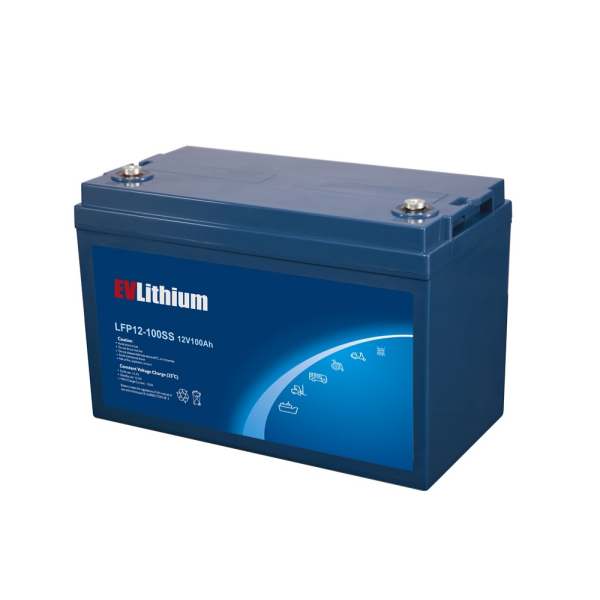

12V LiFePO4 Deep Cycle Battery With 100Ah
12v lifepo4 deep cycle battery feature of cost-effective, long life and other excellent performance, is the energy solution of choice, contact us to get a price.
- Category: LiFePO4 Battery
- Tag: lifepo4 battery cell
12V 100Ah Lithium Iron Phosphate deep cycle lifepo4 lithium iron phosphate battery pack used for energy storage systems, solar system
Features
· Cost Effectiveness
· Longer Service Life
· Guaranteed Safety
· Fast Charge
· Drop-in Replacement
Technical Characteristics
NORMAL CHARACTERISTICS | |
Nominal Voltage | 12.8 V |
Nominal Capacity | 100Ah |
Energy | 1280Wh |
IR | ≤12mΩ@100%SOC |
Efficiency | ≥99.5% |
Maximum Modules in Series | 2（Single Use） |
CHARGE & DISCHARGE CHARACTERISTICS | |
Voltage Range | 10.8-14.6V |
Max. Continuous Charge Current | 100A |
Max. Continuous Discharge Current | 100A |
Peak Discharge Current | 200A（15s±2s） |
Recommended charge current/A | 50A |
Recommended discharge current/A | 50A |
Charge current cut-off/A | 3A |
OPERATING CONDITIONS | |
Cycle Life | ≥2000 |
Operating Temperature | Charge: 10℃~45℃ |
Discharge: -20℃~55℃ | |
Storage Temperature | 20℃~30℃ |
MECHANICAL CHARACTERISTICS | |
Case Material | ABS |
Dimension（L*W*H） | 306*169*215mm |
Weight | 10.3Kg |
Terminal Type | F12（M8） |
Cell Type-Chemistry | Prismatic LiFePO4 |
Details
BMS CHARACTERISTICS
Primary Charging Protection: Current: >105.0±2.5A, Delay time:15±2
Secondary Charging Protection: Current: >120.0A±2.5A, Delay time: 2±1s
Primary Discharging Protection: Current: >105.0±2.5A, Delay time: 20±1s
Secondary Discharging Protection: Current: >210.0A±2.5A, Delay time: 1±1s
Over-charge Voltage Protection: Voltage: >14.8±0.2V, Delay time: 2±0.5s
Over-discharge voltage protection: Voltage: <9.6±0.2V, Delay time: 2±0.5s
High Temperature Protection: Charging: 65±3℃ Recover: 60±3℃, Discharging: 65±3℃ Recover: 60±3℃
Low Temperature Protection: Charging: 0±3℃ Recover: 3±3℃, Discharging: -20±3℃ Recover: -15±3℃
