1P16S 51.2V 202Ah LiFePO4 Battery Module

1P16S 51.2V 202AH 10342Wh LiFePO4 battery module with a dimension of 905*174*208mm

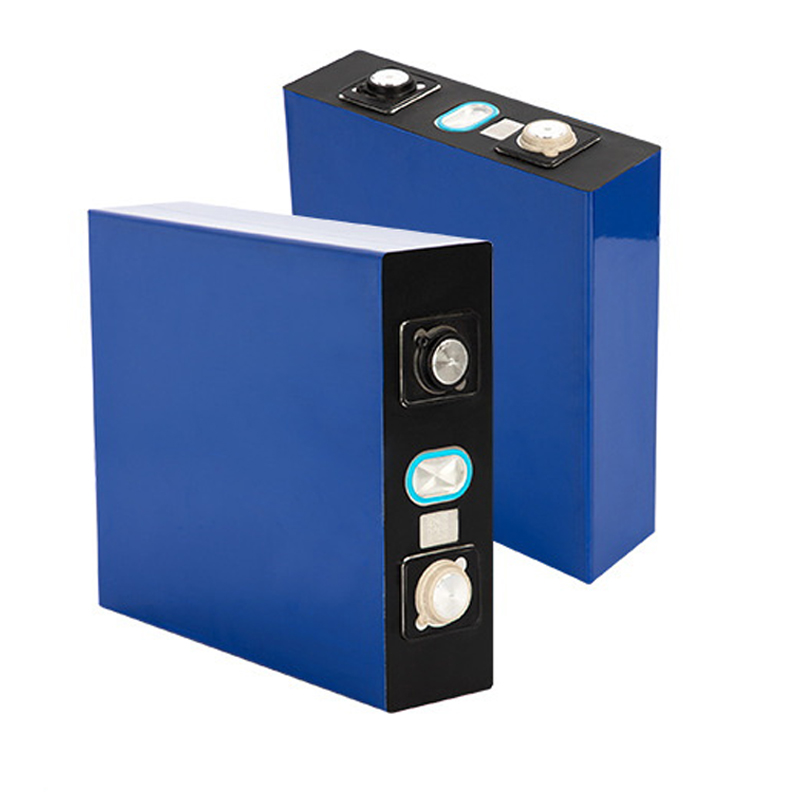

Details of 202ah Single LiFePO4 Battery Cell - LP54173210-202Ah



1P16S 51.2V 202Ah LiFePO4 Battery Module1P16S 51.2V 202Ah LiFePO4 Battery Module



Items

Parameters

Battery type

Lithium iron phosphate

Model

LP54173210-202ah

Nominal capacity

202ah

Nominal voltage

3.2V

Internal resistance

≤0.4mΩ

Weight

3.9±0.1kg

Max. charge current

1C(continuous), 2C(50%SOC,10s)

Charge voltage

3.65V

Max. discharge current

1C(continuous), 3C(50%SOC,30s)

Discharge cut-off voltage

2.5V(>0℃), 2.0V(≤0℃)

Operating temperature range

Charging: 0℃~55℃

discharging: -30℃~60℃


Weight

3.9kg ± 0.1kg

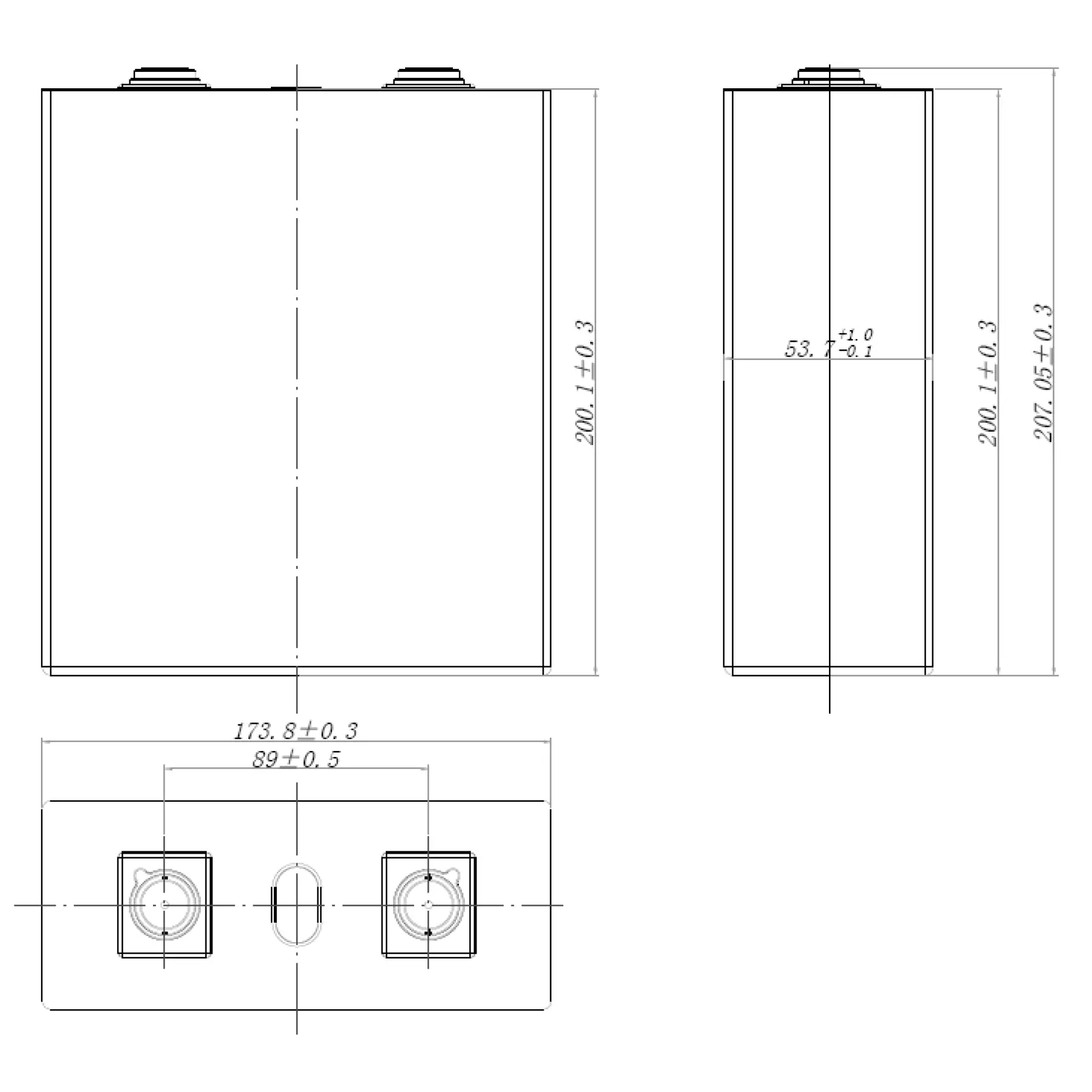

Dimension

54*173*205mm

Cycle life

≥3500 cycles

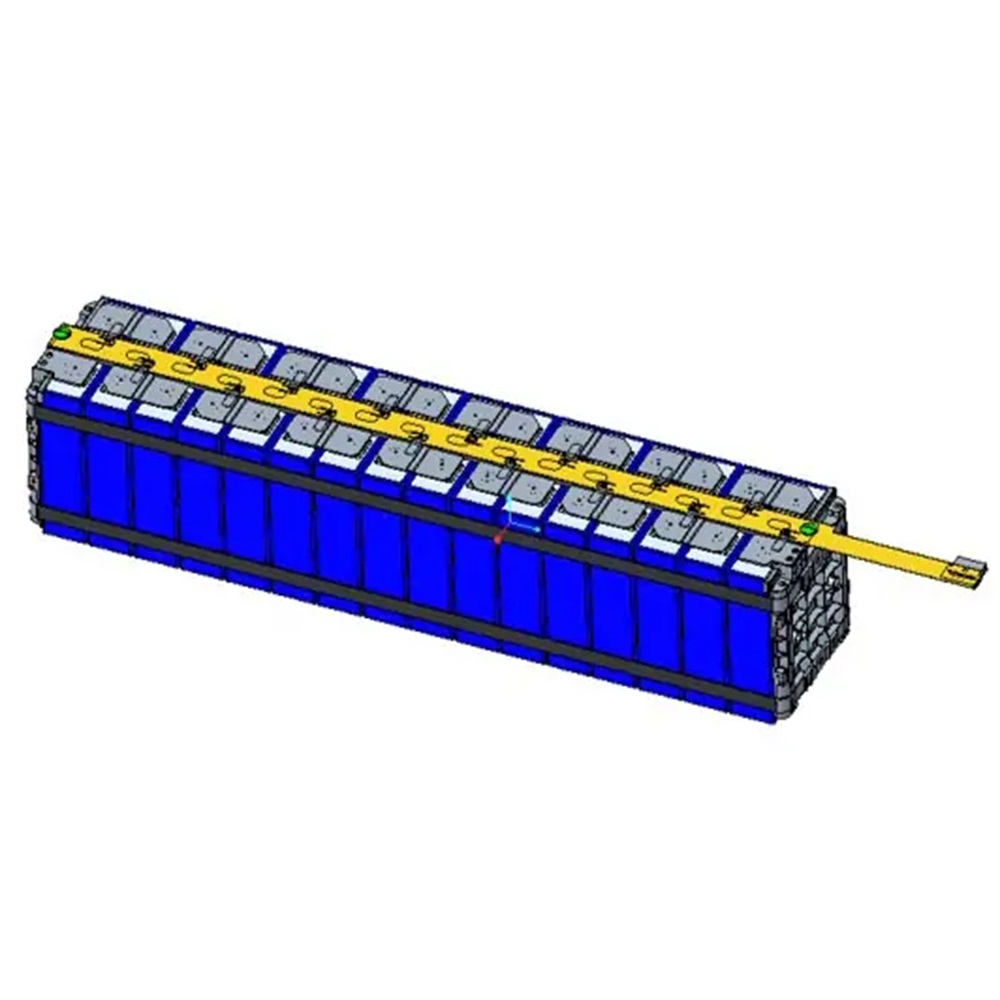

Module: 1P16S A module



Module: 1P16S A module


Module

Parameters

configuration

1P16S

Nominal Capacity

202Ah

Nominal Voltage

51.2V

Nominal Energy

10342.4Wh

Dimensions

905*174*208mm
