1P48S 280Ah 0.5P Liquid Cooling Battery Pack for ESS
1P48S 280Ah 0.5P Liquid Cooling Battery Pack, Widely used to provide stable power supply
- Category: LiFePO4 Battery
- Tag: Liquid Cooling Battery Pack
1P48S liquid cooling box, condensing advanced technology. With efficient liquid cooling cooling system to ensure stable operation. Suitable for various scenarios, compact and reasonable structure, and convenient installation. Excellent performance in the field of energy storage, reliable quality to help energy efficient storage and utilization, is a reliable quality product.
Feature
· Safety and reliability
· High efficiency heat dissipation
· Flexible and convenient
· Intelligent management
Specification
Item
| Specifications
| Remark
|
Nominal voltage | 153.6V DC | Cell voltage 3.2V |
Operating voltage range | 120~175.2 DC | Cell voltage range 2.5~3.65V |
Nominal capacity | 280Ah | 0.5C，25℃ |
Nominal energy | 43.008kWh | 0.5C，25℃ |
Configuration | 1P48S | 4 battery module in series |
Operating ambient temperature | Charging：0~55℃ Discharging：-25~55℃ | / |
Storage temperature | -30~60℃ | / |
Operating humidity | 5%~95% RH | / |
Dimension | L1084±5*W786±5*H242±5mm | / |
Weight | 315±5kg | / |

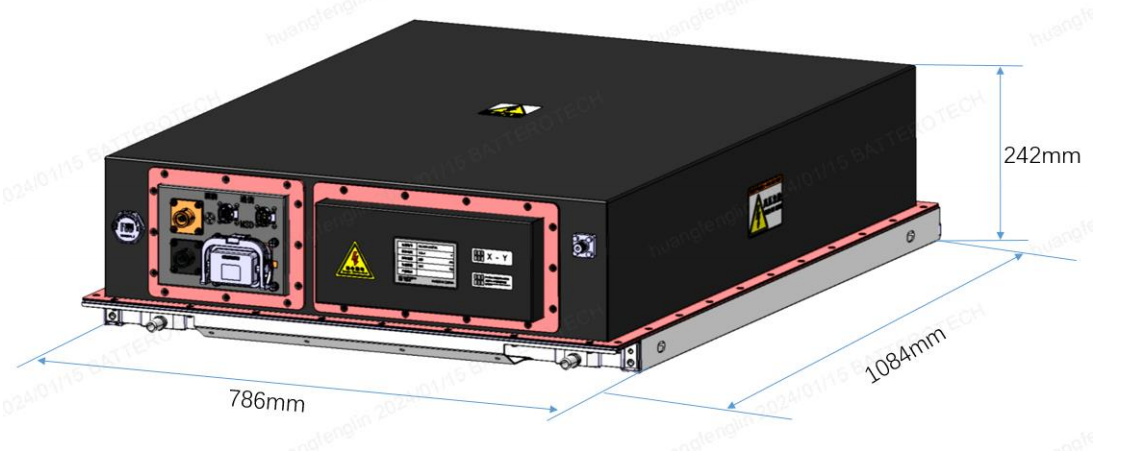

Dimension
Applications
Widely used, covering industrial and commercial energy storage for peak cutting and valley filling, as backup power supply; In the power grid energy storage to help peak and frequency regulation, renewable energy consumption; It is also used for home energy storage to achieve photovoltaic self-use and emergency backup, and also plays an important role in communication base stations, data centers, microgrid systems and other fields.
