1P4S 12V 280Ah LiFePO4 Lithium Battery Module

1P4S 12V 280Ah LiFePO4 Lithium Battery Module with four brand new A grade CB2W0 3.2V 280Ah LiFePO4 Battery cells in series.

*The 12V 280Ah LiFePO4 Battery Module is Combined with four brand new A grade CB2W0 3.2V 280Ah LiFePO4 Battery cells in series, which is used in electric vehicles, and energy storage systems.


 1P4S 12V 280Ah LiFePO4 Lithium Battery Module1P4S 12V 280Ah LiFePO4 Lithium Battery Module

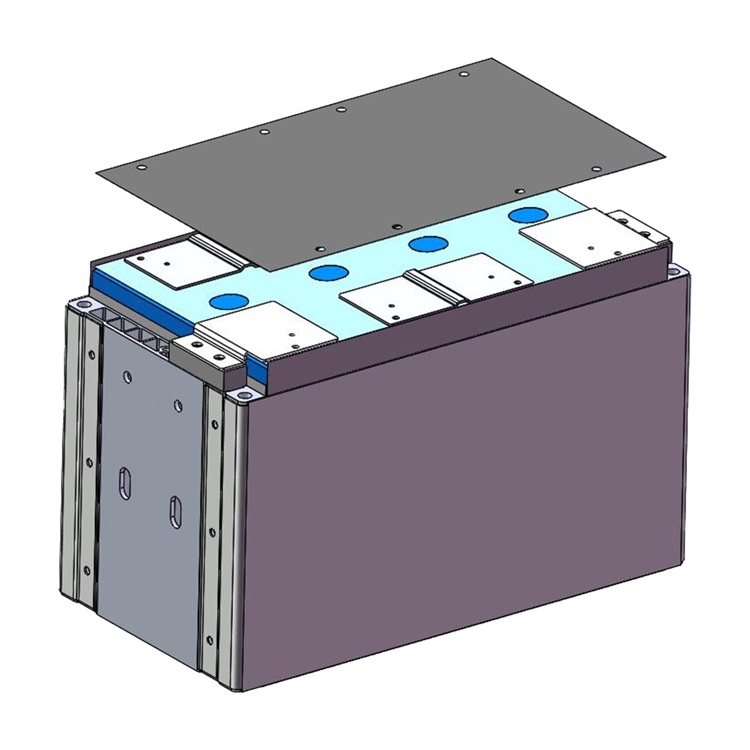

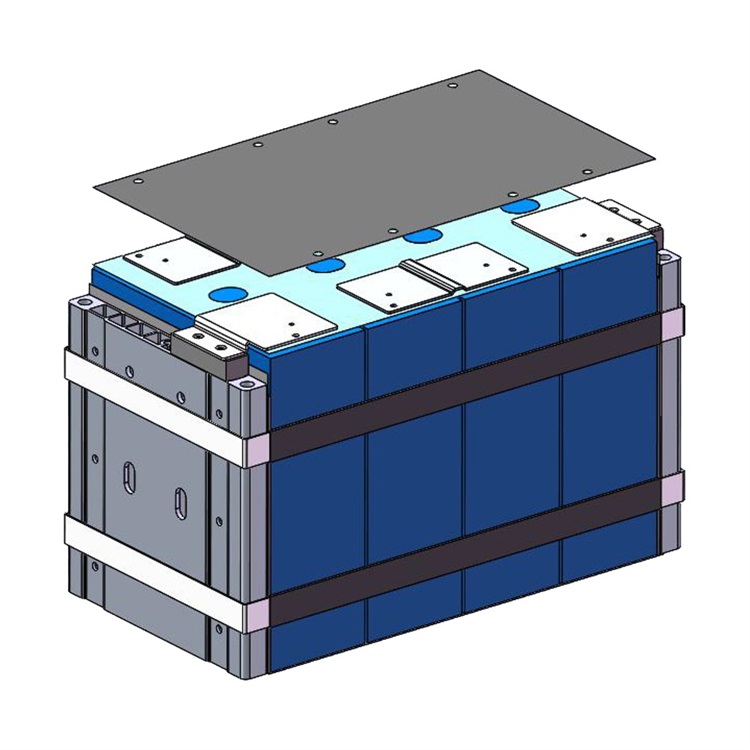

Optional end plate + steel tie belt or side plate process


Parameters of 12V 280Ah LiFePO4 Lithium Battery Module



Item

Parameter

Combination

1P4S

Nominal Capacity

280Ah

Nominal Voltage

12.8V

Nominal Energy

3584

Max. Continuous Charging Current

280Ah(1C)

Max. Continuous Discharging Current

280Ah(1C)

Recommended SOC Window

90%

Operating Temperature

Charging: 0~55℃

Discharging: -20~60℃

Dimension

332*177*211mm

Weight

Around 22.7kg

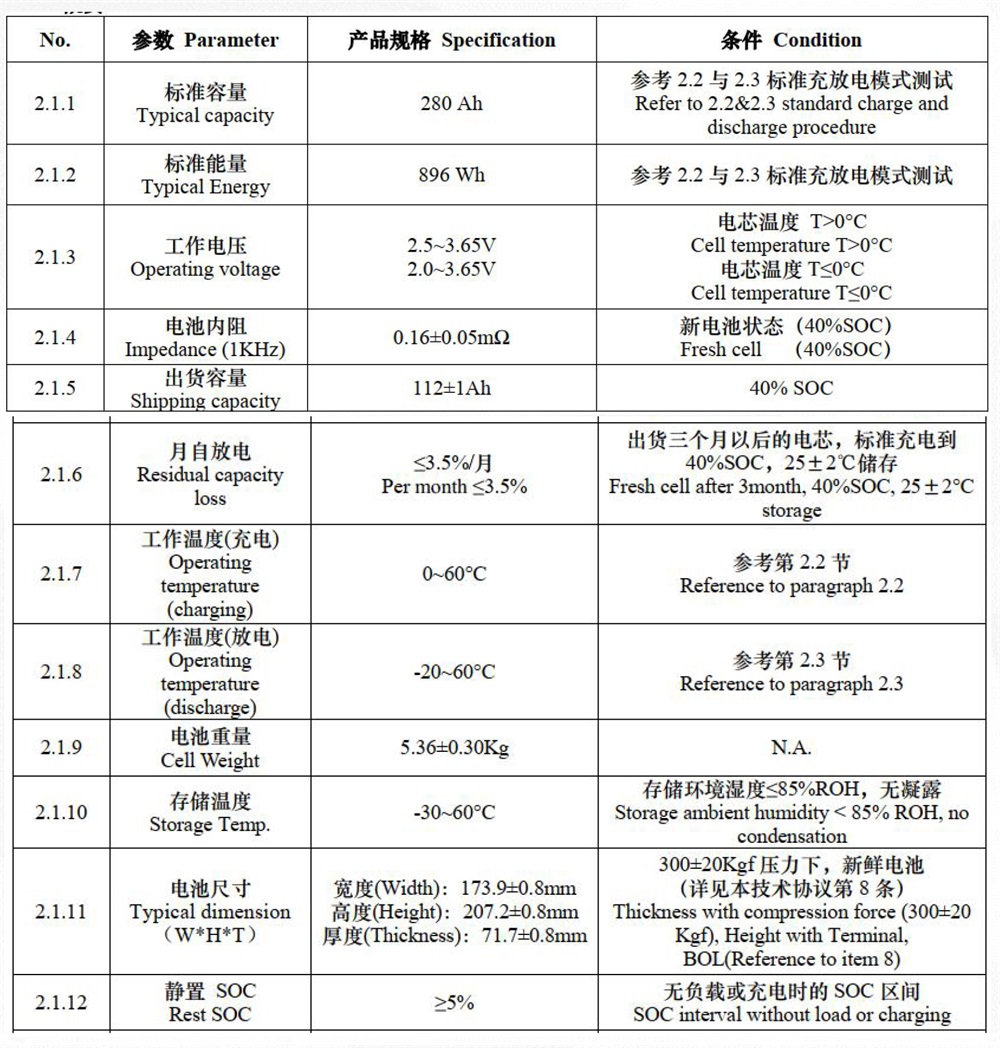

Parameters of 280Ah LiFePO4 Battery Cell

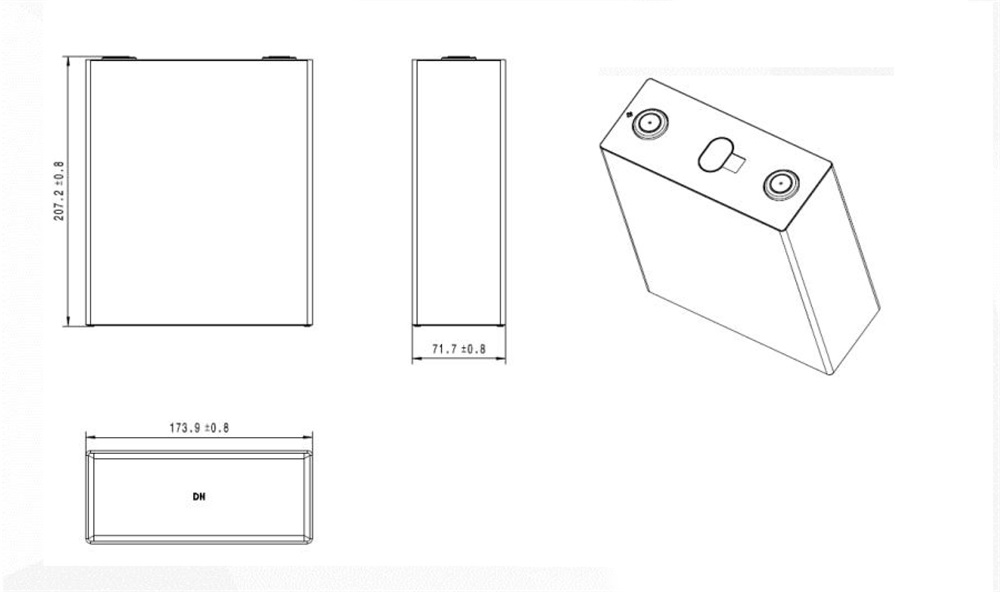

dimension



Specification


specification
