BM-1/8-25.6/100L 1P8S LF100LA 25.6V 100Ah LiFePO4 Battery Module
BM-1/8-25.6/100L 1P8S LF100LA 25.6V 100Ah LiFePO4 Battery Module For Industrial and Commercial, Household ESS.
- Category: LiFePO4 Battery
- Tag:

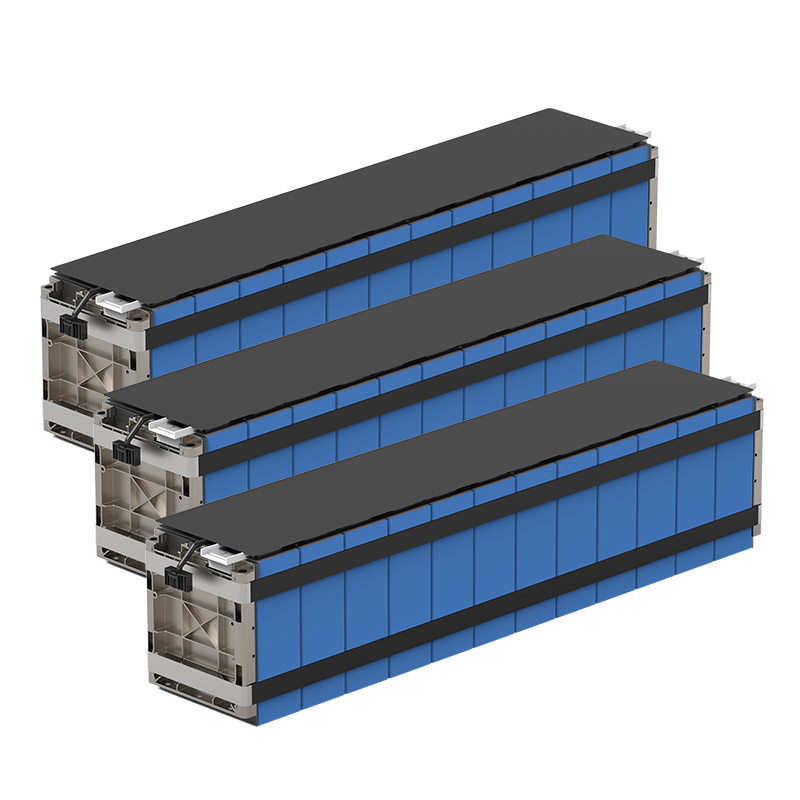

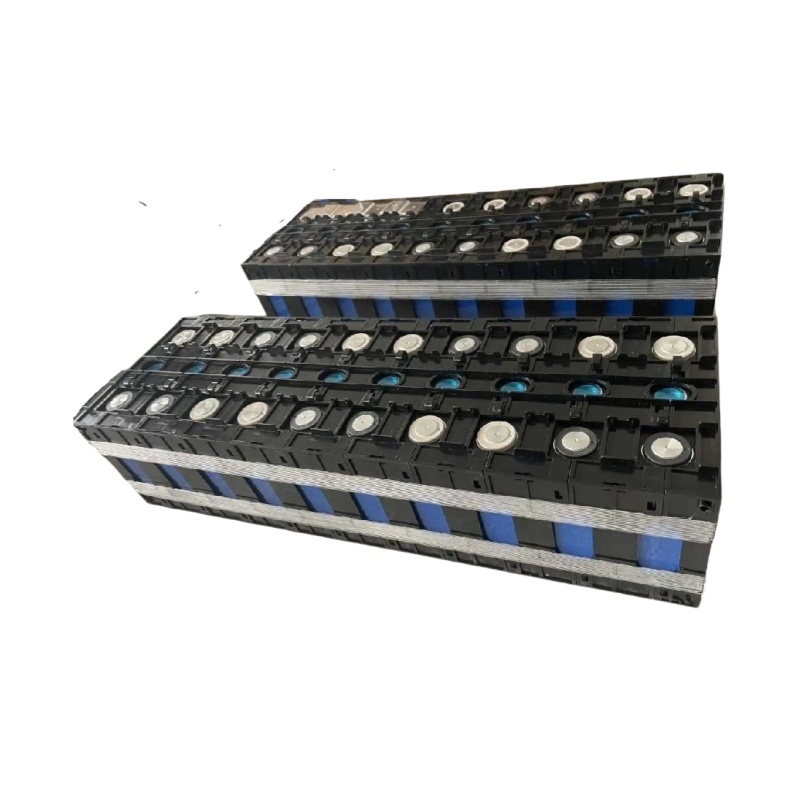

The EVE BM-8-25.6-100L battery module consists of 1P8S LF100LA in series, and integrated with acquisition wires to collect voltage and temperature inside.
For more models, please contact online customer service for details.
Module Feature
1. Integrated Liquid Cooling Ultra-long life
2. Safe and Stable Reliable and Efficient
3. Efficient Grouping Safety
4. Multiple Fire Protection Ultra-high energy
Parameters of Battery Module
Parameter | Specification |
Model | BM-8-25.6-100L |
Nominal Capacity | 100Ah |
Nominal Voltage | 25.6V |
Disposition | 1P8S |
Weight | 17±2kg |
Energy Density | 2.560KWh |
Maximum Charge/Discharge Current | 100A/100A |
Discharge Operating Temperature | -20℃~55℃ |
Charge Operating Temperature | 0℃~55℃ |
Dimension(L*W*H) | 448.5*163*125.6mm |
Cell Advantage
1. Automated: Automated production Product consistency
2. Customized Custom-made: Customer Demand Customization
3. Environmentally Friendly: Passed environmental certification
4. Ultra-Safe: Explosion-proof / Noleakage
5. Stable: Low IR / High CR / Discharge Steadily
6. Super Long: Ultra-long life cycle

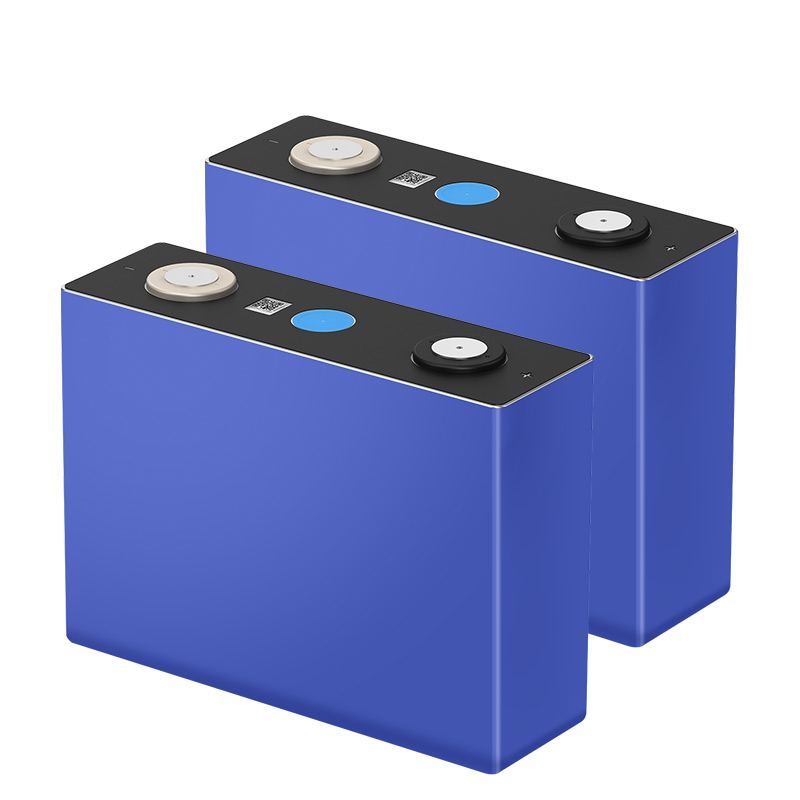

Parameters of LF100LA Cell
Parameter | Specification |
Battery Brand | EVE |
Battery Model | LF100LA |
Min. Capacity | 100Ah |
Min. Energy | 320wh |
Initial internal resistance | ≤0.5mΩ |
Nominal Voltage | 3.2V |
Charging Cut-off Voltage | 3.65V |
Discharging Cut-off Voltage | 2.5V (T>0℃), 2.0V (T≤0℃) |
Standard Charge Current | 50A0.5C |
Max. Constant Charge/discharge Current | 100A 1.0C |
Max. Pulse charging/discharging Current | 200A 2C(30s) |
Cycle Life | 4000 Cycles @80% DOD |
Charging Temperature | 0'C~55° |
Dimension | 118.5+0.50mm(H)*160+0.50mm(w)*50.1+0.5mm(T) |
Weight | 1.98+0.05 kg |
Encapsulation mode | U-shaped capsule |
Certifications
1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...
2.In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...
3.In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...
4.Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...
5.We support certification according to the needs of our customers to ensure product quality and safe transportation
Application
Mainly used in power storage, industrial and commercial energy storage, household energy storage, communication energy storage, electric ships. Modules are widely used in the following scenarios, please contact online customer service for details.
Battery Safety Specification
During the use of batteries, the following requirements must be observed
1) Do not remove the battery from its original packaging before use.
2) Do not place the battery scattered together to avoid accidental short circuit.
3) Do not heat the battery above 100C or burn it.
4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.
5) Do not mix new and used batteries, or batteries from different places of origin.
6) Disassembling and dissecting the battery is strictly prohibited.
7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
