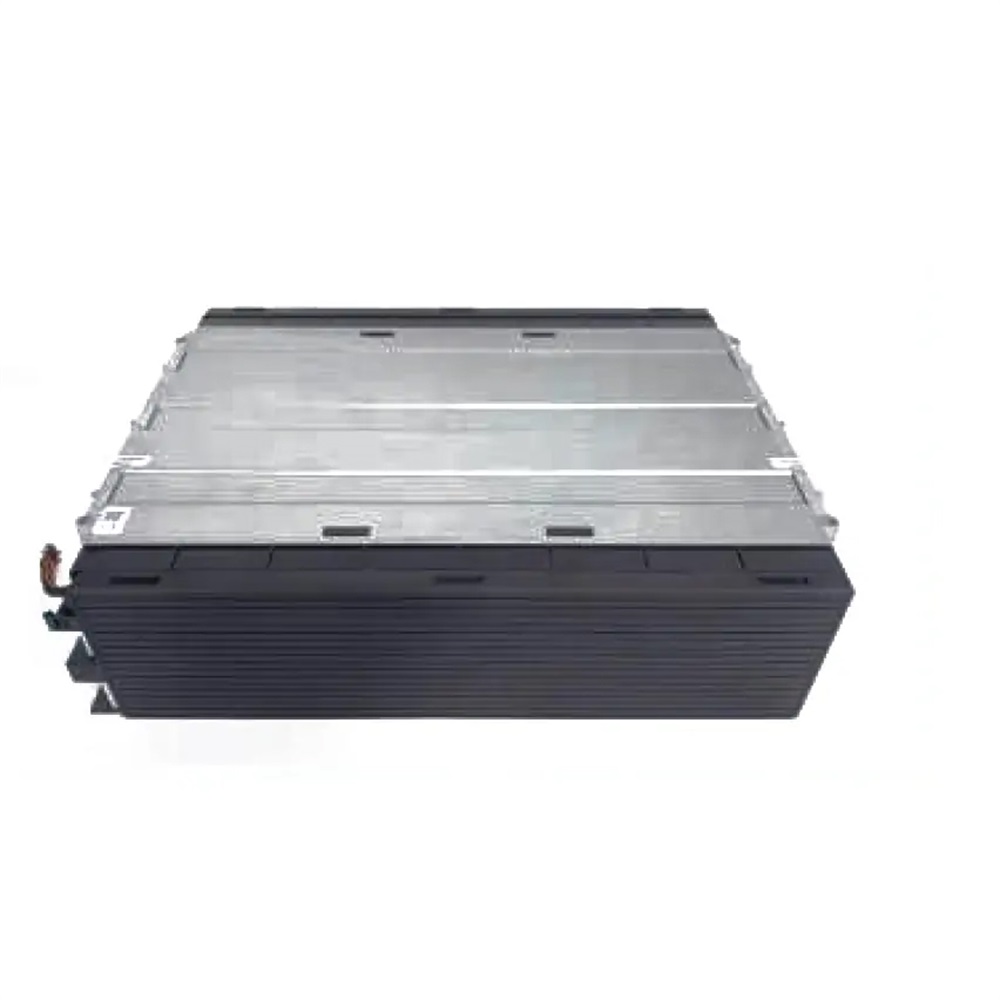

25.6V 200Ah LiFePO4 Battery Module

1MGRS108-C15 25.6V 200Ah LiFePO4 Battery Module with 6000times cycle life for energy storage system

1MGRS108-C15 25.6V 200Ah LiFePO4 Battery Module

25.6V 200Ah LiFePO4 Battery Module


24V/25.6V 200Ah Original brand LiFePO4 Battery module with more than 6000 cycles for energy storage


Specifications

Item

Parameter

Modular Standard Voltage

25.6V


Standard Capacity

200Ah

Charge method

CC

Charge current

50A

Maximum continuous charge current

100A @ 23°C


Max charge voltage

30.4V

Discharge method

CC

Discharge current

50A

Maximum continuous discharge current

100A @ 23°C

Max Discharge Voltage

21.6V

Working Temperature

Charge: 0~+50℃

Discharge: -20~+55℃


Storage humidity

5%~95%

SOC

SOC:20%~40%, SOC is adjustable

Elevation

≤4000m

Output connection

M8

Waterproof

IP20

Cycle life

6000 cycles@80%DOD, 25°C

Weight

About 54 Kg
