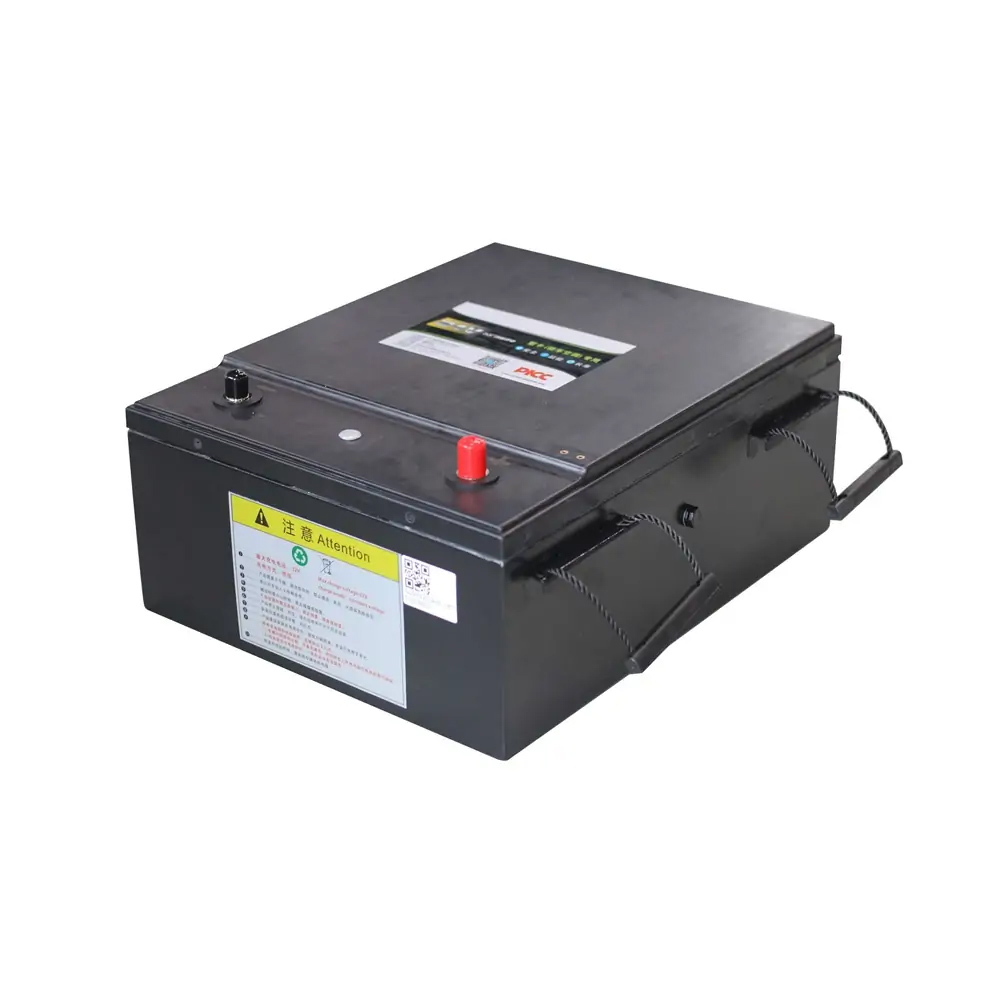

24V 255Ah LiFePO4 Battery Pack for electric trucks forklifts

24V 255Ah LiFePO4 Battery Pack, built-in intelligent BMS, Equipped with smart Bluetooth applet, used for electric trunks forklifts, energy storage system

24V 255Ah LiFePO4 Battery Pack for electric trucks forklifts


24V 255Ah LiFePO4 Battery Pack24V 255Ah LiFePO4 Battery Pack


Mainly used for heavy trucks; Safety: overcurrent protection, overvoltage protection and short circuit protection; Longevity: The warranty period is five years, the deep cycle life. Built-in intelligent current flow rate management system;  Intelligent temperature control management system;  Intelligent charge and discharge management system;  Intelligent power distribution management system;  Intelligent short-circuit protection management system;  Equipped with smart Bluetooth applet, it can monitor the power usage.


Specifications

Item

Parameters

Nominal voltage

24V

System energy

5.12KWh

Maximum starting current

1600A

Max. continuous discharge current

150A

Maximum continuous charging current

120A

Heating current

20A

Operating temperature range

-40°C~60°C

Operating voltage range

25V~28.5V

Maximum charging upper limit voltage

32V

IP level

IP67

Weight

46±1kg

Cycle life

2000cycles

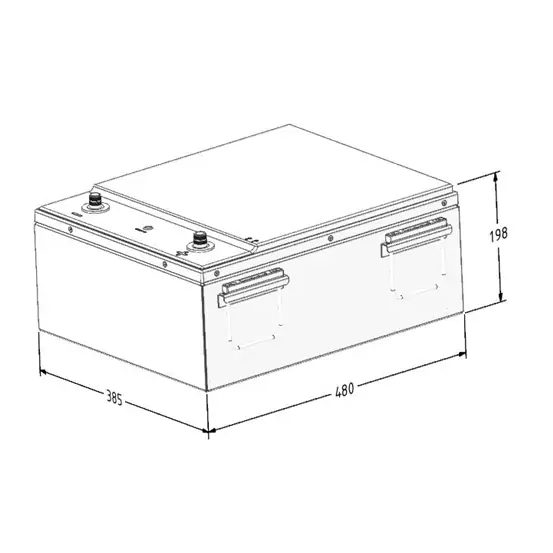

Dimension

480*385*198mm


\



Function Introduction

1) Charge and discharge protection is directional: only charging is prohibited during overcharge protection, which does not affect discharge; When over-protecting, only discharge is prohibited, and charging is not prohibited;

2) The system has protection functions such as overcharge, over-discharge, overtemperature, overcurrent and short circuit.

3) The system has a low-temperature self-heating function, which can also protect the safe use of batteries in low-temperature environments;

4) The system has the power-saving sleep function, and enters the power-saving sleep after detecting no load and reaching a certain time, and the system wakes up to work when detecting charging and discharging;

5) The system has the function of reserving power for emergency start-up;

6) The system has Bluetooth connection function, and the status of the battery system (SOC, charge, and discharge) can be viewed through the APP

Total voltage, cell voltage, battery temperature, pole temperature, fault state, etc.); When feeding, the vehicle can be started through APP emergency power-on;

7) Cover the LED light source button to display the electric quantity and battery status, and use it for emergency start-up;

8) The system has a CAN communication function.
