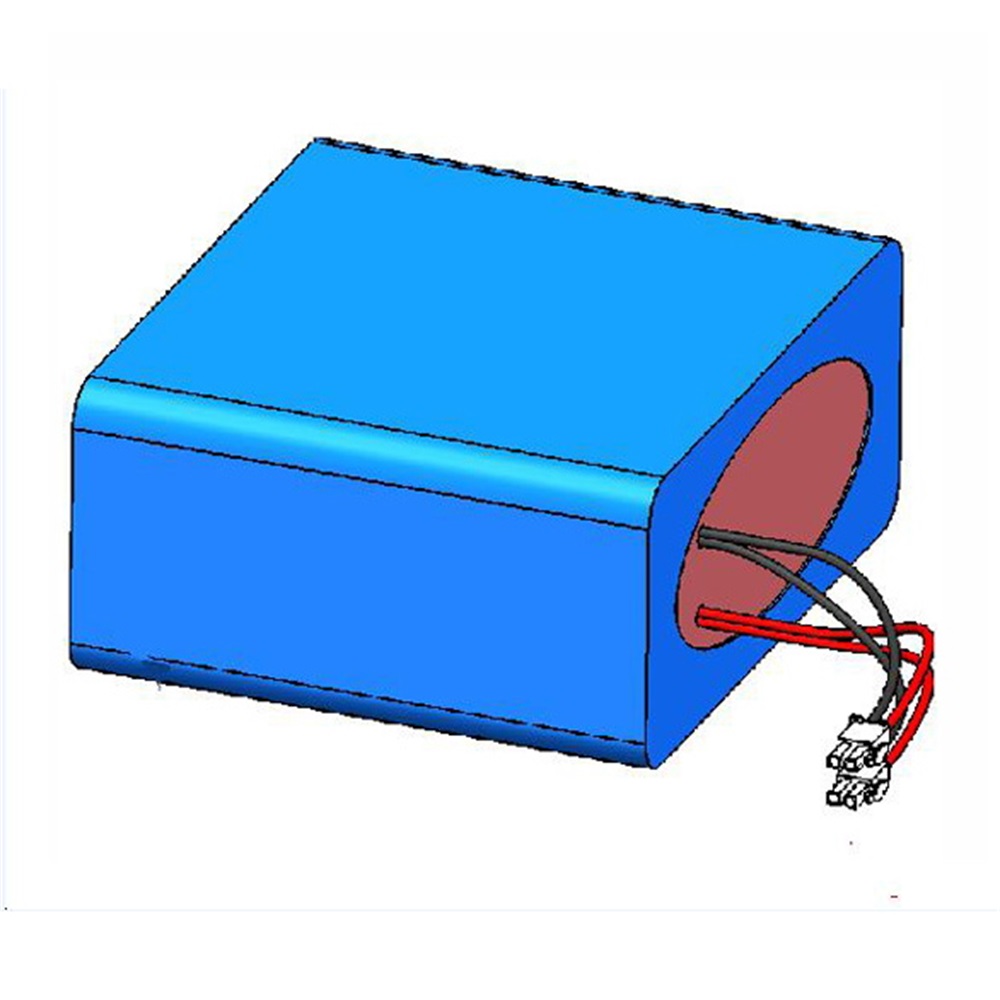

25.6V 18Ah Lithum ion LiFePO4 Battery Pack

25.6V 18Ah Lithum ion LiFePO4 Battery Pack Supplier

Now we provide a 25.6V13.5Ah  Lithium-ion Rechargeable Battery Pack for your energy applications, It consists of eight 3.2V 18650 batteries in series and eleven in parallel.

25.6V 18Ah Lithum ion LiFePO4 Battery Pack


Product Parameter

No.

Items

Parameter

1

Product Model

JG-8IFR25.6-18-Y(18650-3.2V-8S11P)

2

Normal Voltage

25.6V

3

Rated Capacity

18.6Ah(C5)

4

Min Capacity

18.6Ah(C5)

5

Energy

About 460.8Wh

6

Internal Resistance

≤100mΩ

7

Size

(162±2)mm *(183±2)mm*(85±2)mm

8

weight

3.9±0.2kg

9

Charge Voltage

28.8±0.15V

10

Standard Cutoff Voltage

About 20V

11

Charge Current

≤3.6A

12

Charging cut-off current

180mA~360mA

13

Discharge Current

Normal Current

5A

Max Continuous Current

5A -6A(≤5min)

14

Passive Protection

Over charge protection, Over discharge protection,

Temperature protection, Balanced function

15

Charge and Discharge Connector

18AWG Length :

200±10mm Red+,

Black-

Connect TYCO

 plug(Charge )

18AWG Length :

200±10mm Red+, Black-

Connect TYCO

 plug(Discharge )

16

Charge Retention

After charging according to standard 3.2,

placing the battery for 28 days

 under the standard test conditions,

then discharge it under standard 3.3,

and the charge retention rate is ≥80%.

17

Cycle time

The cycle life is not less than 2000,

the capacity retention rate is ≥80%.
 (Charging according to 3.2

 standard, leaving 0.5~1h;

discharging according to 3.3 standard,

leaving 0.5~1h, counting 1 cycle time).


Characteristics Curve

Characteristics Curve


Battery Service Environment

Battery discharge ambient temperature is -20 ℃ ~ + 60 ℃ (When the ambient temperature >45  ℃, please pay attention to the ventilation and heat dissipation),

Charging temperature is 0 ℃ ~ + 45 ℃. Ambient humidity RH is ≦ 85%. Pay attention to waterproof when ambient humidity is > 85%, at the same time the battery

surface condensation phenomenon should be avoided
