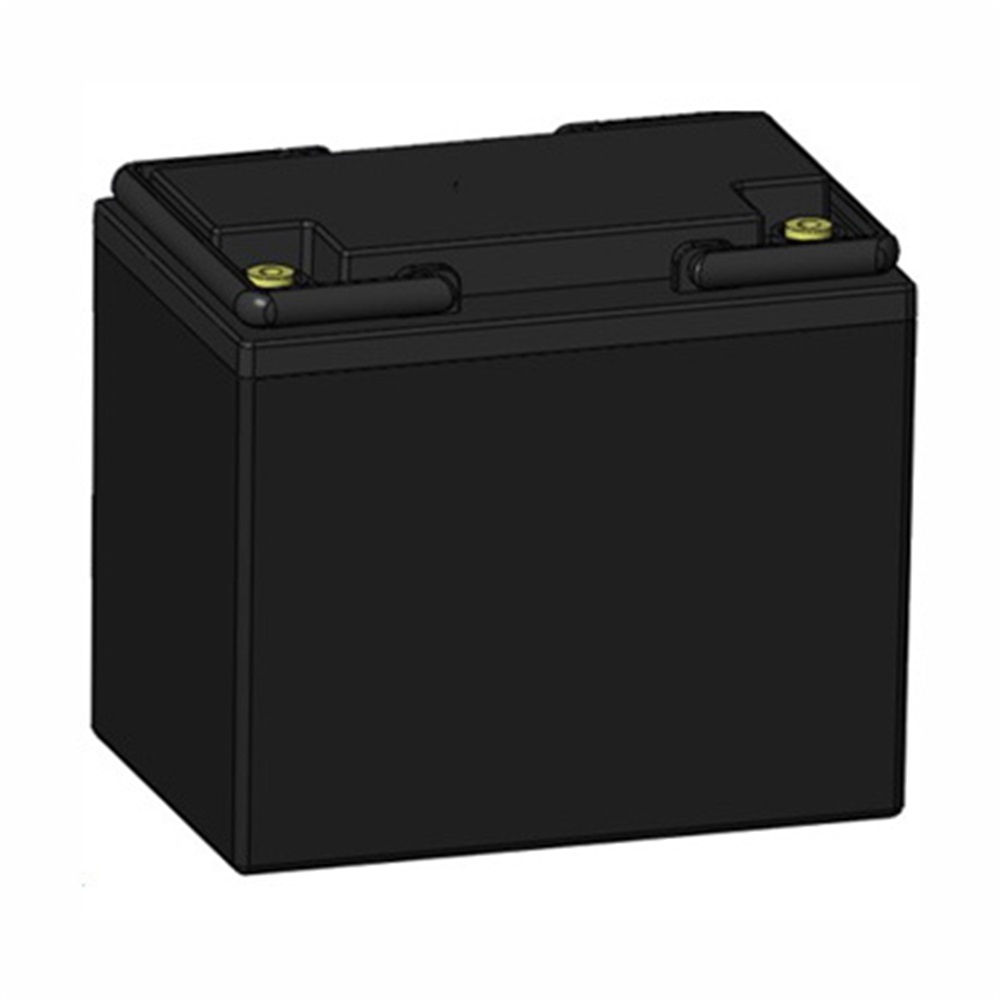

25.6V 19.2Ah Lithium ion LiFePO4 Battery Pack
25.6V 19.2Ah Lithium ion LiFePO4 Battery Pack Supplier
- Category: LiFePO4 Battery
- Tag: lifepo4 battery
Now we provide 25.6V 19.2Ah Lithium-ion Rechargeable Battery Pack for your energy applications, It consists of eight 3.2V 26650 batteries in series and six in parallel.
Product Parameter
No. | Items | Parameter | |
1 | Product Model | JG-8IFR25.6-19.2-Y(26650-3.2V-8S6P) | |
2 | Normal Voltage | 25.6V | |
3 | Rated Capacity | 19.2Ah(C5) | |
4 | Min Capacity | 18.2Ah(C5) | |
5 | Energy | About 491.52Wh | |
6 | Internal Resistance | ≤70mΩ | |
7 | Size | （135±1）mm *（197±1）mm *（172±2）mm | |
8 | weight | 5.2±0.2kg | |
9 | Charge Voltage | 28.8±0.15V | |
10 | Standard Cutoff Voltage | About 20V | |
11 | Charge Current | ≤3.84A | |
12 | Charging cut-off current | 192mA~384mA | |
13 | Discharge Current | Normal Current | 20A |
Max Continuous Current | 20A -40A(≤5min) | ||
14 | Passive Protection | Over charge protection, Over discharge protection, Temperature protection, Balanced function | |
15 | positive | M6 hole | |
16 | Negative | M6 hole | |
17 | Charge Retention | After charging according to standard 3.2, placing the battery for 28 days under the standard test conditions, then discharge it under standard 3.3, and the charge retention rate is ≥80%. | |
18 | Cycle time | The cycle life is not less than 2000, the capacity retention rate is ≥80%. (Charging according to 3.2 standard, leaving 0.5~1h; discharging according to 3.3 standard, leaving 0.5~1h, counting 1 cycle time). | |

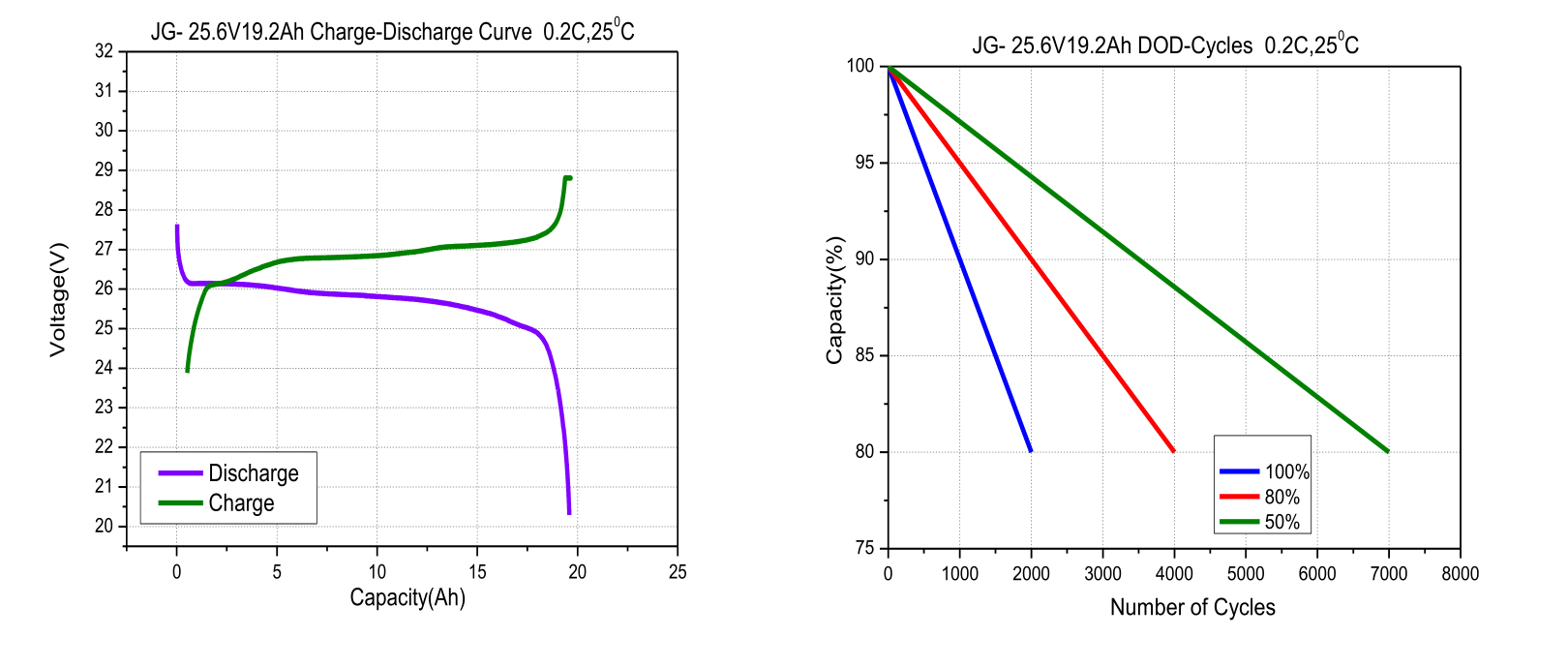

Characteristics Curve
Battery Service Environment
Battery discharge ambient temperature is -20 ℃ ~ + 60 ℃ (When the ambient temperature >45 ℃, please pay attention to the ventilation and heat dissipation),
Charging temperature is 0 ℃ ~ + 45 ℃. Ambient humidity RH is ≦ 85%. Pay attention to waterproof when ambient humidity is > 85%, at the same time the battery surface condensation phenomenon should be avoided.
