25.2V 13.5Ah rechargeable lithium ion battery pack

we provide 25.2V 13.5Ah rechargeable lithium ion battery pack for your energy applications

Product Parameter

No.

Items

Parameter

1

Product Model

JG-7INR25.2-13.5-Y (26650-3.6V-7S3P)

2

Normal Voltage

25.2V

3

Rated Capacity

13.5Ah(C5)

4

Min Capacity

13Ah(C5)

5

Energy

About 340.2Wh

6

Internal Resistance

≤120mΩ

7

Size

(174±2)mm *(149±2)mm *(54±2)mm

8

weight

2.2±0.1kg

9

Shell material

PVC

10

Charge Voltage

29.05-29.4V

11

Standard Cutoff Voltage

about 21V

12

Charge Current

≤6A

13

Charging cut-off current

135mA~270mA

14

Discharge Current

Normal Current

10A

Max Continuous Current

10A -25A(≤5min)

15

Passive Protection

Over charge protection,

Over-discharge protection,

Temperature protection, Balanced function

16

Positive

14AWG length :200±10mm , Red

17

Negative

14AWG length :200±10mm ,Black

18

Charge Retention

After charging according to standard 3.2,

 placing the battery for 28 days

 under the standard test conditions,

 then discharge it under standard 3.3,

and the charge retention rate is ≥80%.

19

Cycle time

The cycle of life is not less than1000,

the capacity retention rate is ≥70%.

(Charging according to 3.2 standard,

leaving 0.5~1h; discharging according to 3.3 standard,

leaving 0.5~1h, counting 1 cycle time).



Details

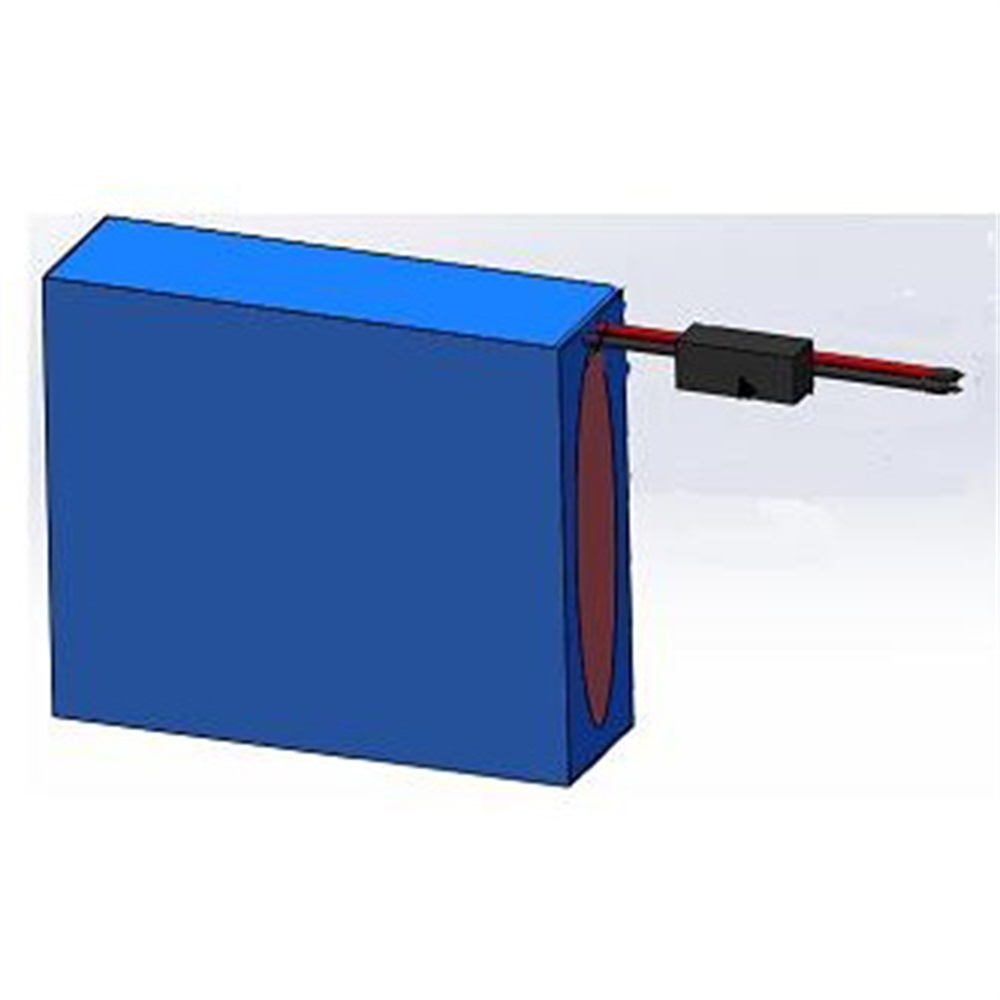

25.2V 13.5Ah Lithium-ion Rechargeable Battery Pack

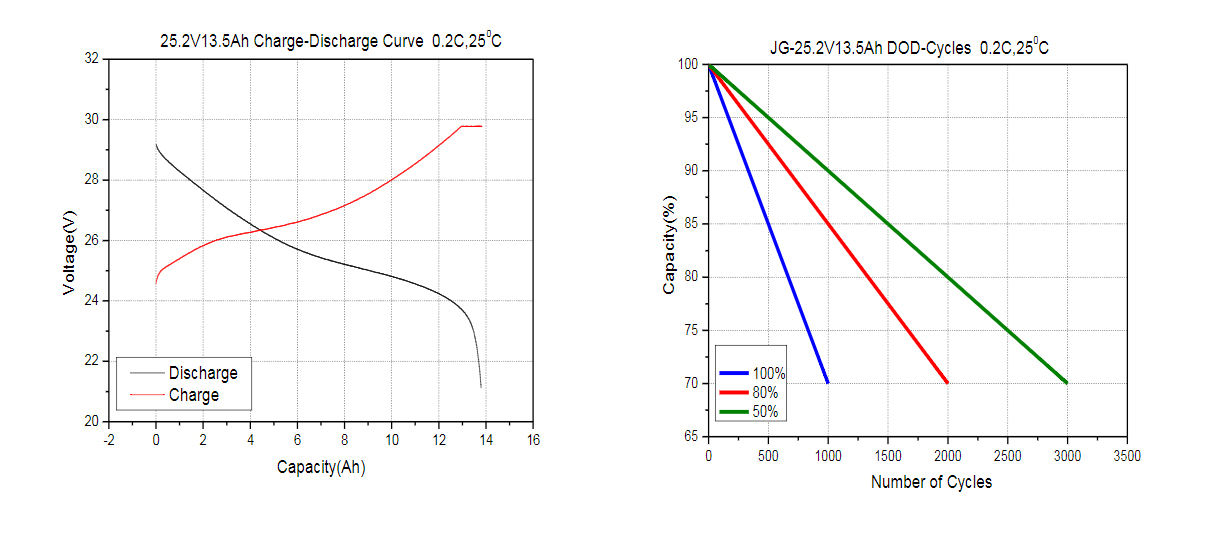

Characteristics Curve

curve
