BM-12-19.2/105 2P6S LF105 19.2V 210Ah LiFePO4 Battery Module For ESS
BM-12-19.2/105 2P6S LF105 19.2V 210Ah LiFePO4 Battery Module For Power Forklift Engineering/Industrial and Commercial/Household ESS.
- Category: LiFePO4 Battery
- Tag:

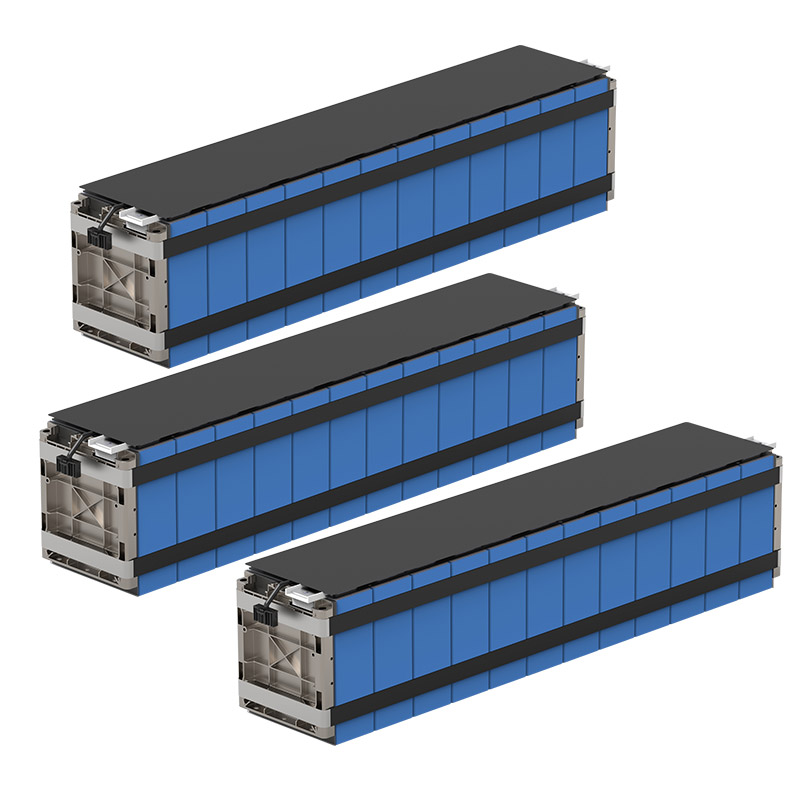

The BM-12-19.2-105 battery module consists of 2P6S LF105 in series, and integrated with acquisition wires to collect voltage and temperature inside.
For more models, please contact customer service for details.
Module Feature
1. Integrated Liquid Cooling Ultra-long life
2. Safe and Stable, Reliable, and Efficient
3. Efficient Grouping Safety
4. Multiple Fire Protection Ultra-high energy
Parameters of Battery Module
| Parameter | Specification |
Model | BM-12-19.2-105 |
Nominal Capacity | 210Ah |
Nominal Voltage | 19.2V |
Disposition | 2P6S |
Weight | 25.8±0.5kg |
Energy Density | 4.032KWh |
Maximum Charge/Discharge Current | 0.5C/0.5C |
Discharge Operating Temperature | -20℃~55℃ |
Charge Operating Temperature | 0℃~55℃ |
Dimension(L*W*H) | L485.9*W135*H209.6mm |
Cell Advantage
1. Automated: Automated production Prodcut consistency
2. Customized Custom-made: Customer Demand Customization
3. Environmentally Friendly:Passed environmentalsystem certification
4. Ultra-Safe: Explosion-proof / Noleakage
5. Stable: Low IR / High CR / Discharge Steadily
6. Super Long: Ultra-long life cycle

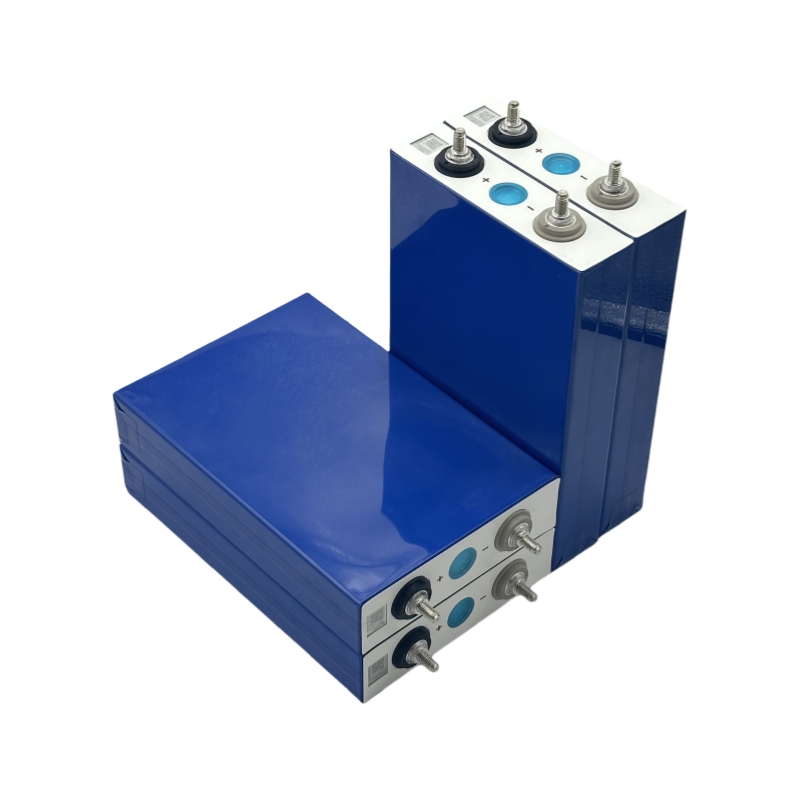

Parameters of LF105 Cell
Item | Parameter | Remark | |
Typical Capacity | 106.5 Ah @ 1.0C discharge | Discharge current 1.0C with 2.5V cut off. (25±2)℃
| |
Minimum Capacity | 105.0 Ah @ 1.0C discharge | ||
Typical Voltage | 3.2V | Under 0.5CA cc-discharge
| |
AC Impedance Resistance | 0.32mΩ±0.05mΩ | ||
Charge current （CC-CV） | Max Charge Current | 1C | The maximum charge current of the battery does not exceed 1C Cut under 0℃～45℃. |
Cut-off Voltage | 3.65V | ||
Discharge | Max Discharge Current | 3C | Preference value. |
Cut-off Voltage | 2.5V | ||
Charging time | Standard | 2.0h | 0.5C charge (time is a reference) |
Quick-charge | 1.0h | 1C charge (time is reference) | |
Recommend SOC Window | SOC：10%~90% | ||
Charging Temperature | 0℃~65℃ | ||
Discharging Temperature | -35℃~65℃ | ||
Storage Temperature | One month | -20℃~45℃ | |
One year | 0℃~35℃ | ||
Storage Humidity | ＜70﹪ | ||
Cycle life | ≥4000cycle | 25℃, 80% DOD | |
Weight | 1980g±60g | ||
Dimension(W*T*H) | 130.3*36.35*200.5mm | ||
Certifications
1. International regulatory certification, we have CE、ROHS、RECHAR、BIS、EPR、RCM、PSE、GOST、MIC...
2.In the product testing report, we have IEC62368、IEC62619、IEC62620、CB、GB、CCC、CCS...
3.In international transportation, we have UN38.3 (support sea, land and air transportation)、MSDS、UL、ATEX...
4.Special certificates: ESG、 ASPICE CL2、 ISO26262、 TISAX、Green Factory...
5.We support certification according to the needs of our customers to ensure product quality and safe transportation

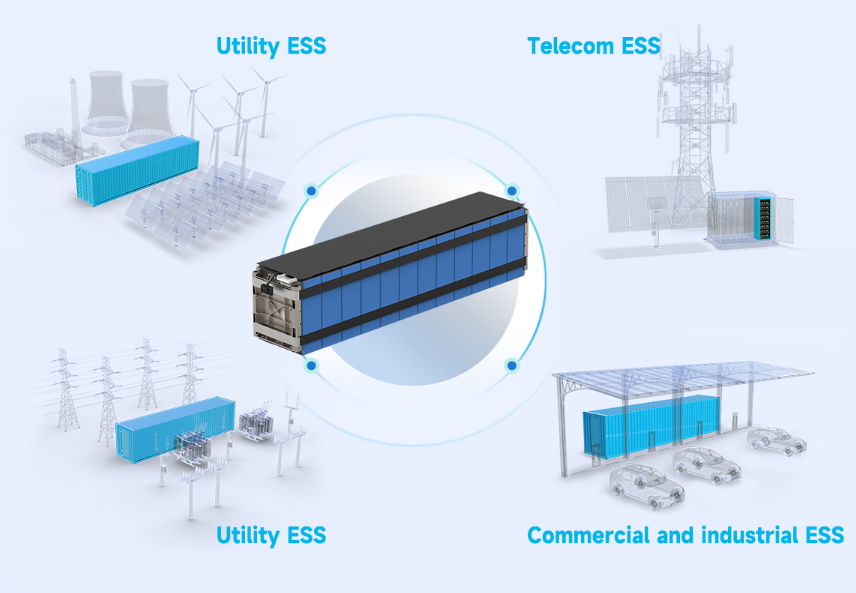

Application
Mainly used in power storage, industrial and commercial energy storage, household energy storage, communication energy storage, electric ships. Modules are widely used in the following scenarios, please contact online customer service for details.
Battery Safety Specification
During the use of batteries, the following requirements must be observed
1) Do not remove the battery from its original packaging before use.
2) Do not place the battery scattered together to avoid accidental short circuit.
3) Do not heat the battery above 100C or burn it.
4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.
5) Do not mix new and used batteries, or batteries from different places of origin.
6) Disassembling and dissecting the battery is strictly prohibited.
7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
