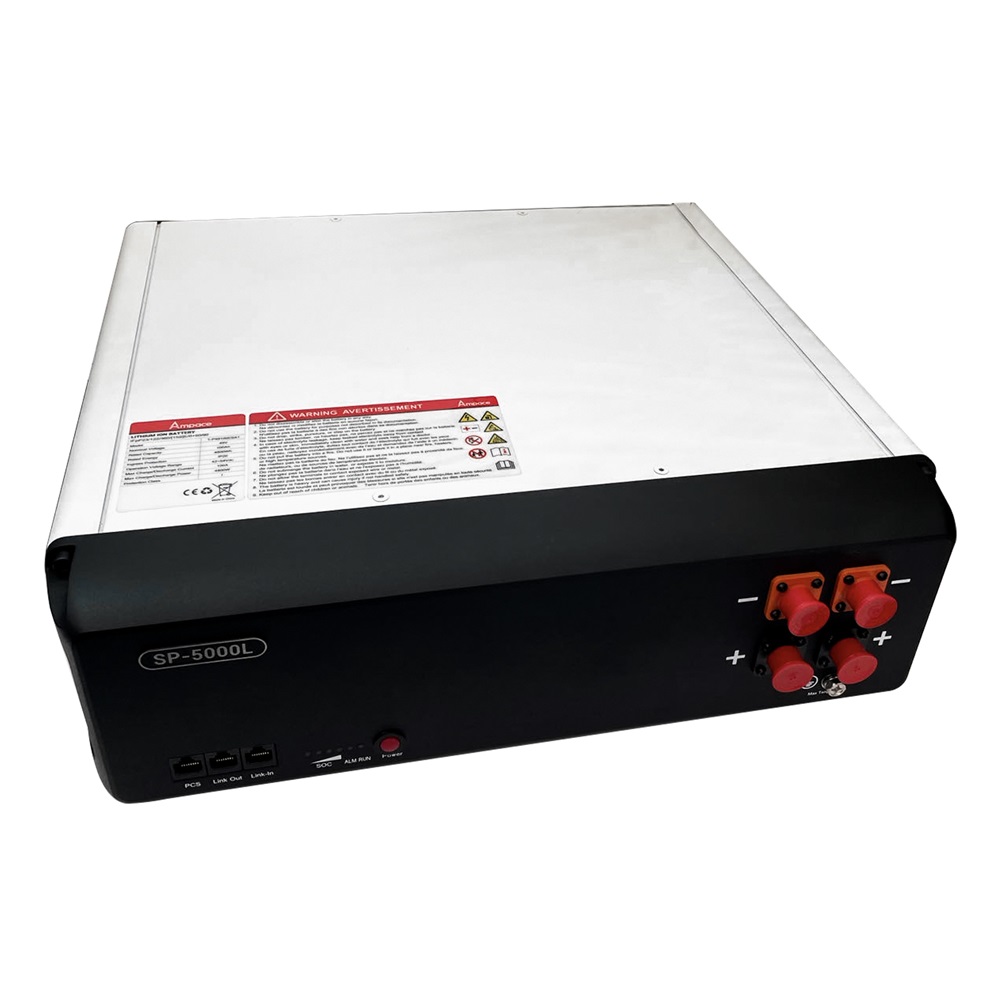

4.8 kwh lithium ion battery pack (LiFePO4 Battery)

4.8 Kwh Lithium Ion Battery Pack (LiFePO4 Battery)

4.8 kwh lithium ion battery pack provides safe and reliable backup power for base station primary equipment, capable of integrating

T-P48100ESA1 48V 100Ah 4.8 kwh Lithium ion Battery (LiFePO4 Battery Pack)

4.8 kwh lithium ion battery (LiFePO4 Battery Pack)


Feature

1. High Safety

2. Long Cycle Life

3. Easy Installation

4. Intelligent Anti-theft


Application Scenarios

Provide safe and reliable backup power for base station primary equipment, capable of integrating with third-party power sources or site monitoring equipment protocols, achieving lithium batterystatus/alert information reporting, intelligent software anti-theft, and other functions.


Parameters

Items

Parameters

Rated Capacity(Ah)

100

Rated Energy (kWh)

4.8

Rated Voltage (V)

48

Operating Voltage Range (V)

42~54

Max. Continuous Charge/Discharge Current (A)

100 / 100

Cycle Life

3500@80%DOD, 35℃

Weight (kg)

38

Dimension (W*D*H)(mm)

442*480*130

(3U, excluding handles and mounting ears)

Communication Interface

CAN/RS485 and 2 Dry Contact

Status Indication

SOC / ALM / RUN

Max. Module Parallel Connect

16

Authenticate

IEC62619, IEC62620, CE, UN38.3

Ingress Protection

IP20

Operating Temperature (°C)

Charge: 0~55; Discharge: -20~ 55

Optional Features

LCD Display, Circuit Breakers, Fuses,

Heating, Fire Protection, Gyroscope, GPS


WARNING AVERTISSEMENT

· Do not disassemble or alter the battery in any way.

· Do not use the battery for purposes not described in its documentation.

· Do not drop, strike, puncture, or step on the battery.

· In case of electrolyte leakage, keep leaked electrolyte away from contact with eyes or skin, immediately clean with water and seek help from a doctor.

· Do not put the battery into a fire. Do not use it or leave it in a place near fire, heaters, or high temperature sources.

· Do not submerge the battery in water, or expose it to moisture.

· Do not allow the terminals to contact exposed wire or metal.

· The battery is heavy and can cause injury if not handled safely.

· Keep out of reach of children or animals.
