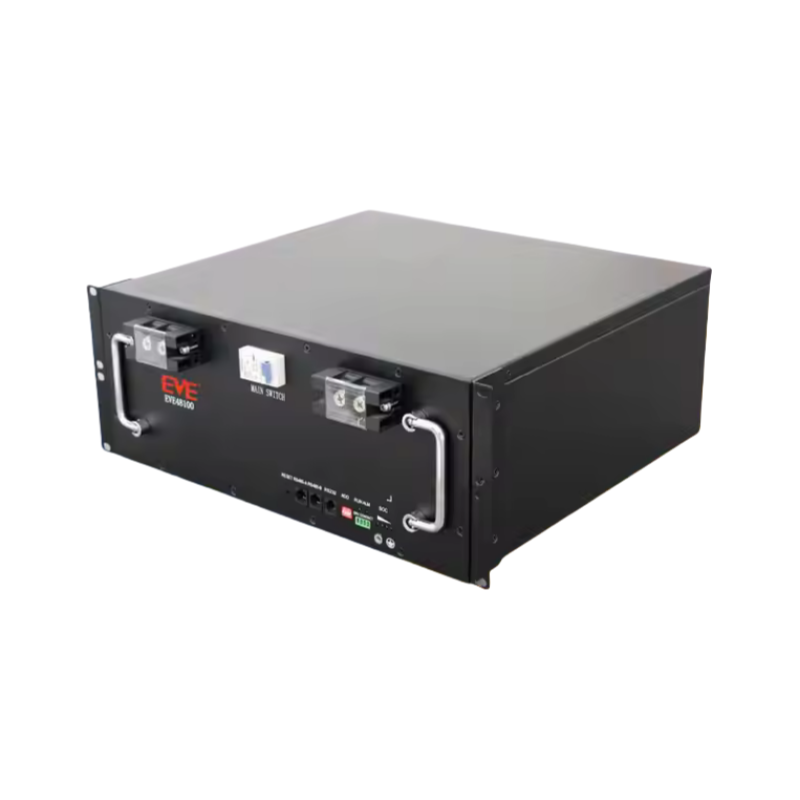

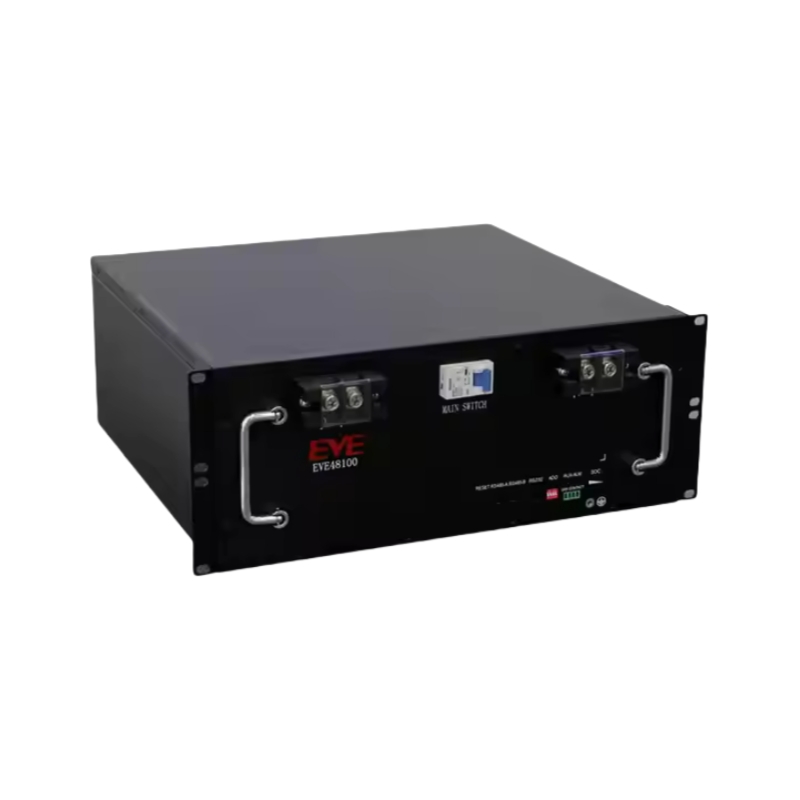

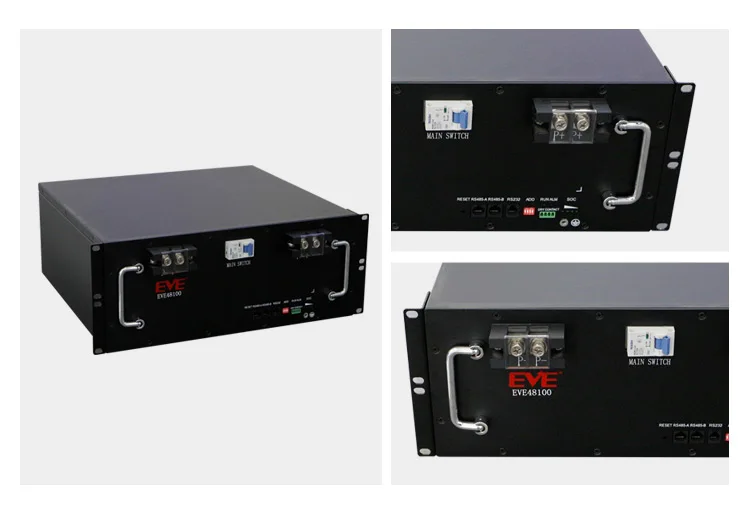

48100T-4U 48V 100Ah 1P15S LF105 LiFePO4 Battery Pack For ESS
48100T-4U 48V 100Ah LiFePO4 Battery Pack With 1P15S LF105 For Emergency Power System
- Category: LiFePO4 Battery
- Tag:
Product Features
1. The built-in BMS has multiple protection and communication functions, ensuring the reliability of battery pack performance and achieving remote real-time monitoring of battery data.
2. Low internal resistance of the battery, superior rate discharge performance
3. Wide temperature range and high reliability
4. Multiple battery packs can be used in parallel, suitable for high-capacity applications
5. Standard maintenance-free design, suitable for installation in19 19-inch communication cabinets
6. Long lifespan, with battery pack cycling life exceeding 3000 times

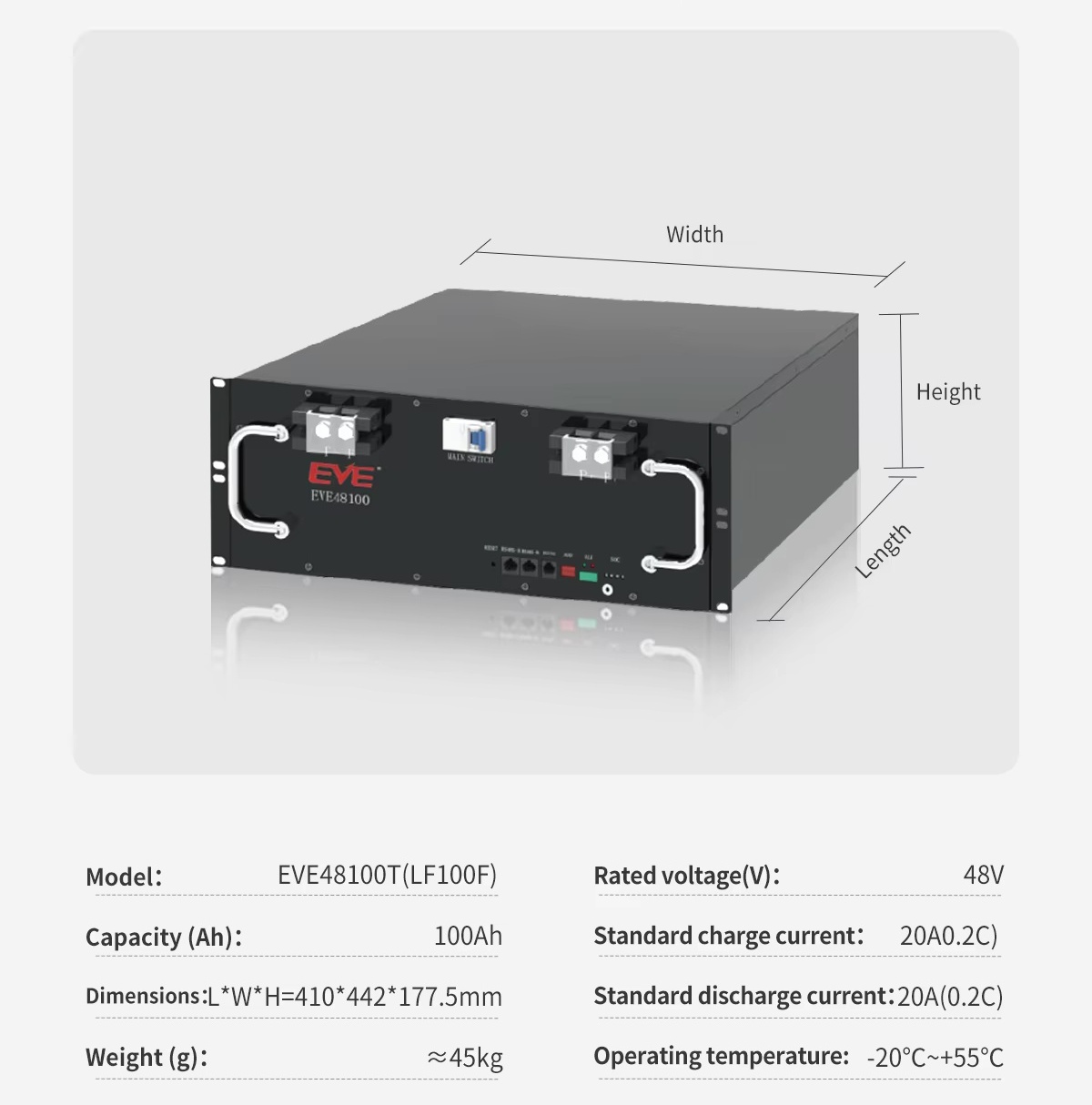

Specifications
Item | Specification | Remark |
Configuration | 1P15S | |
Rated Capacity | 100Ah | 25℃±2℃,0.2C constant current discharging,40.5V cut off |
Rated Voltage | 48V | |
Standard Charge Current | 20A（0.2C） | |
Max Continuous Charge Current | 50A（0.5C） | |
Max Charge Current | 100A（1C） | Requirement: 1 cycle/day |
Charge Cut Off Voltage | 44-54V | |
Standard Discharge Current | 20A（0.2C） | 0.2C CC（Constant Current）discharge, cut off 40.5V. |
Max Continuous Discharge Current | 50A（0.5C） | Continuous 50A discharge |
Max Pulse Discharge Current | 100A(1C) | 25℃±3℃,≤1s |
Working Temperature (charge) | 0℃~55℃ | 0℃-10℃：continuous 20A（max）charge 10℃-45℃: continuous 50A（max）charge 45℃-55℃：continuous 20A（max）charge |
Working Temperature (discharge) | -20℃~55℃ | |
Storage temperature | -20℃～ 45℃ | (short term) Within 1 month |
Storage temperature | 0℃～35℃ | (long term) Within 1 year |
Battery Weight | 45±2Kg | Subject to actual conditions |
Battery Impendence | ≤30mΩ | 50%SOC,AC 1kHz |
IP rating | IP20 | |
Charge/Discharge Efficiency | ≥99% | Charge/discharge efficiency in Wh (round trip efficiency) at 0.2C charge and discharge current，25℃. |

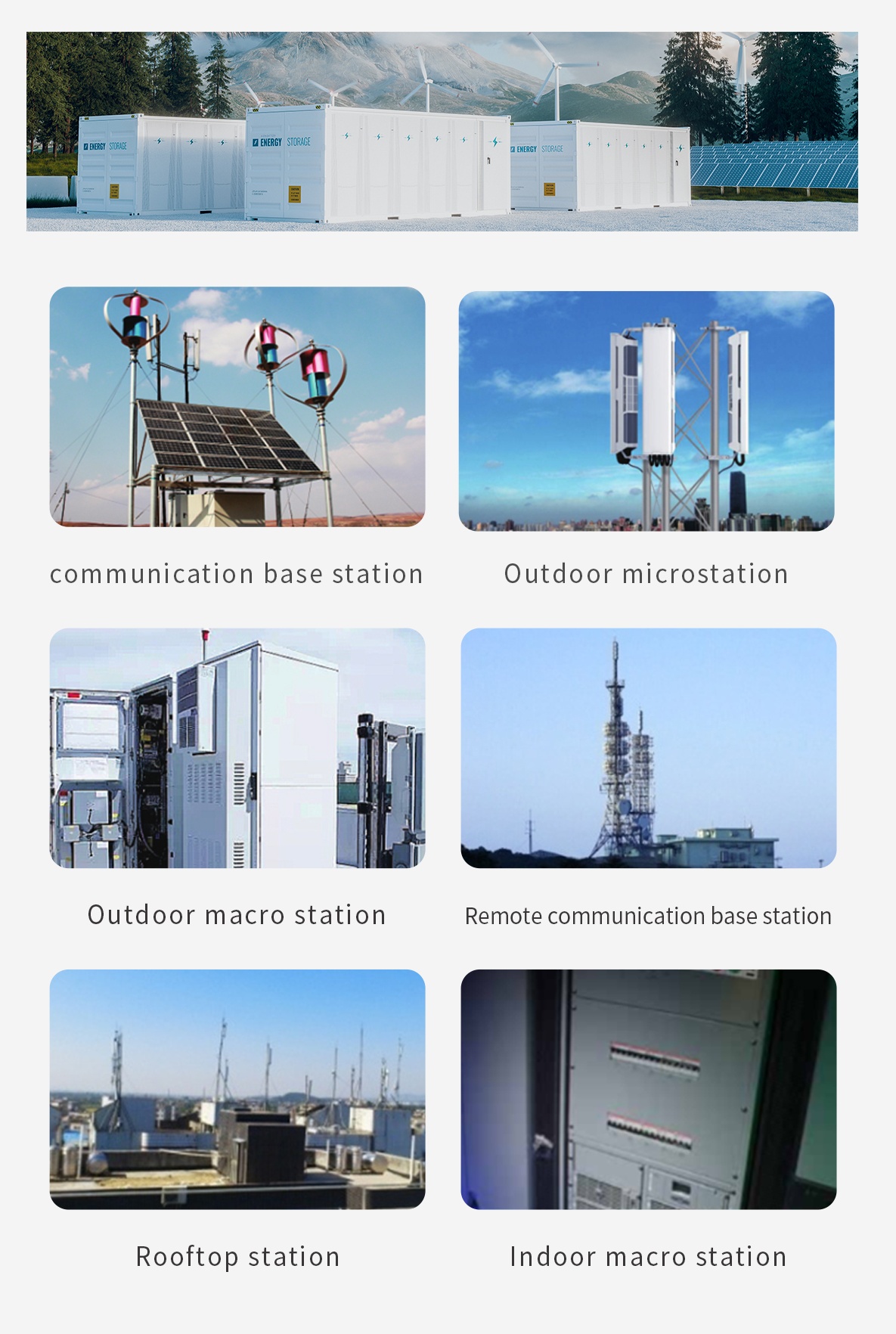

Applications
Outdoor marginal stations, distributed base stations, indoor macro base stations, microcell base stations and other small-capacity, end power supply stations, new energy stations
Battery Safety Specification
During the use of batteries, the following requirements must be observed
1) Do not remove the battery from its original packaging before use.
2) Do not place the battery and its components together to avoid an accidental short circuit.
3) Do not heat the battery above 100 °C or burn it.
4) Do not weld directly on the surface of the battery; use a battery pre-equipped with welding feet or leads.
5) Do not mix new and used batteries, or batteries from different places of origin.
6) Disassembling and dissecting the battery is strictly prohibited.
7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
