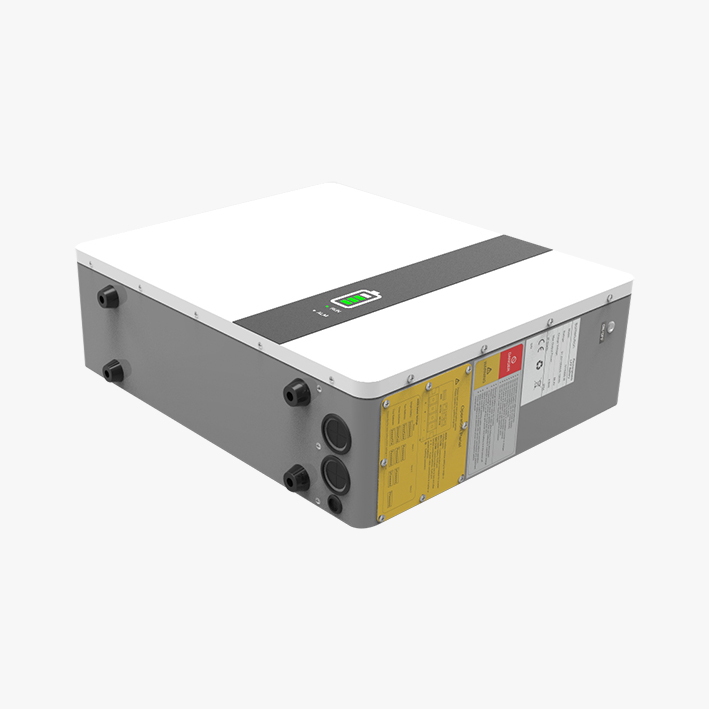

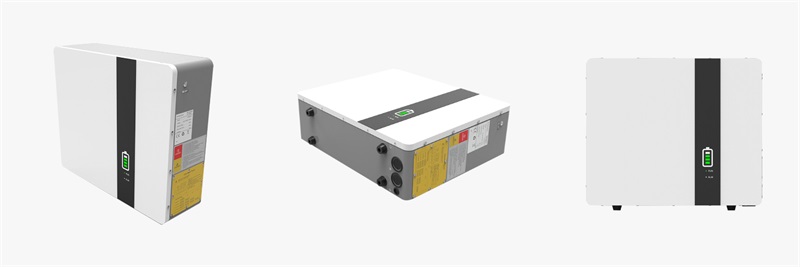

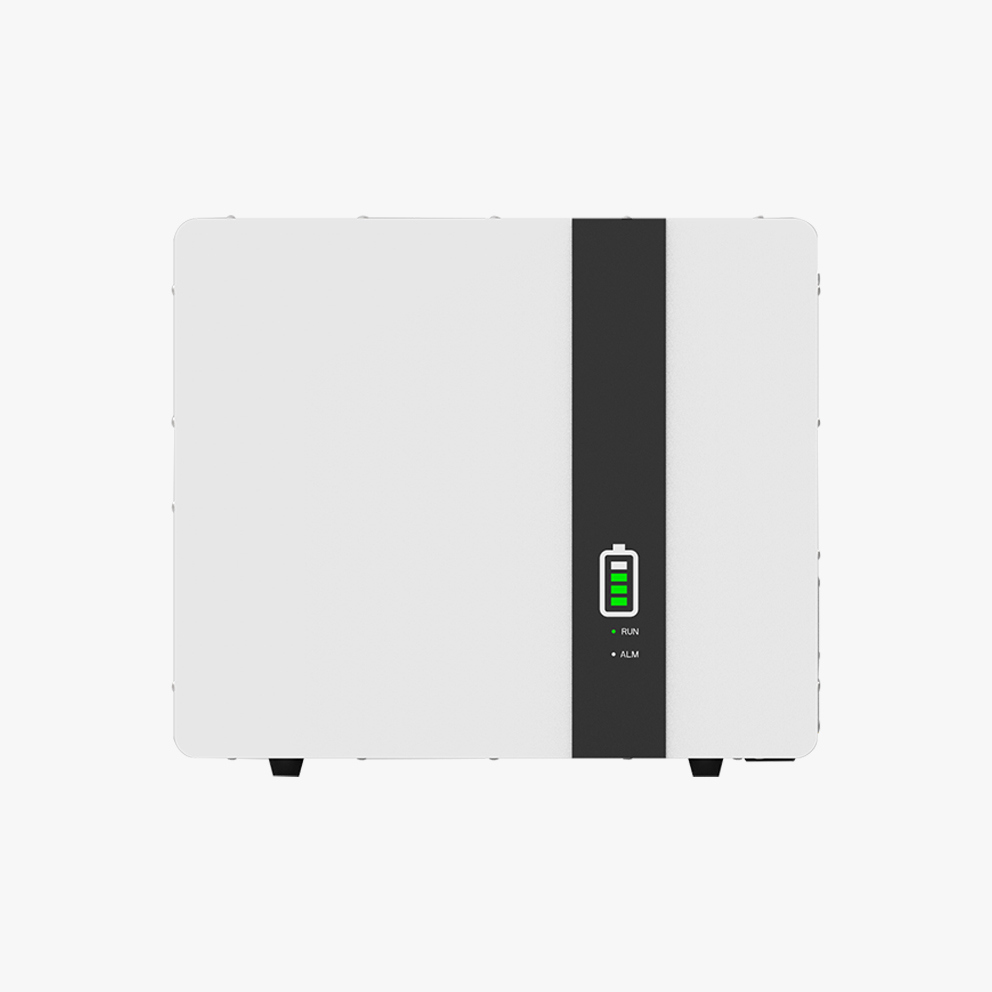

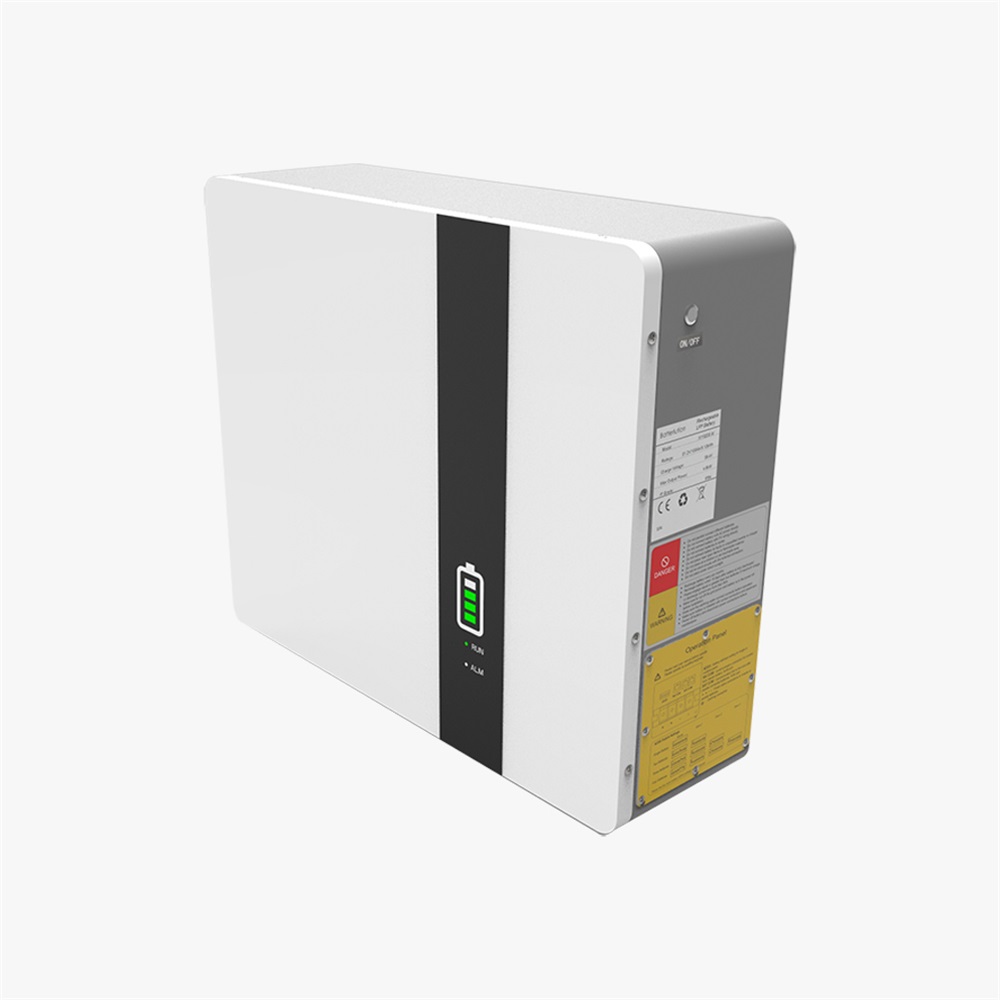

48V 100Ah 5KW lithium wall mounted lifepo4 battery for household energy storage

48V 100Ah 5KW lithium wall mounted lifepo4 battery for household energy storage

48V 100Ah 5KW lithium wall mounted lifepo4 battery for household energy storage

EVL 48v 100Ah is a Wall-mounted Lithium battery storage system. It is a perfect solar energy lithium battery for residential/private home use. 5 Kwh is the most popular energy device. EVL 48v 100Ah power-wall mounted installation built-in with High-Quality LiFePo4 prismatic large capacity cells. It makes sure the battery system provides a high cycle-long life span. Inside is Energy storage designed BMS. It is already proven to be compatible with different brand inverters, whether on the grid or off-grid.

Features

Built in BMS:

Battery modular with built in high quality BMS, protect battery cells all the way.

Safety:

With Brand new grade A LiFePO4 Battery cells, stay safe with battery storage at home.

Scalable:

Battery modular is scalable for any larger storage system, allowed 8pcs in parallel.

Long life span:

15-20 years life design, Up to 6000+ cycle life.

Installation easy:

Wall mount or ground stack brick simply connecting to inverter, ready to enjoy.

OEM supported:

Low MOQ for OEM order, built your brand, much easier with OSM

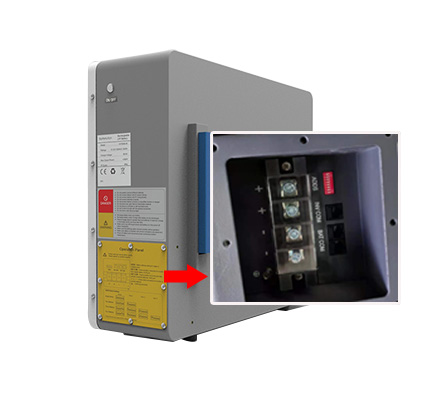

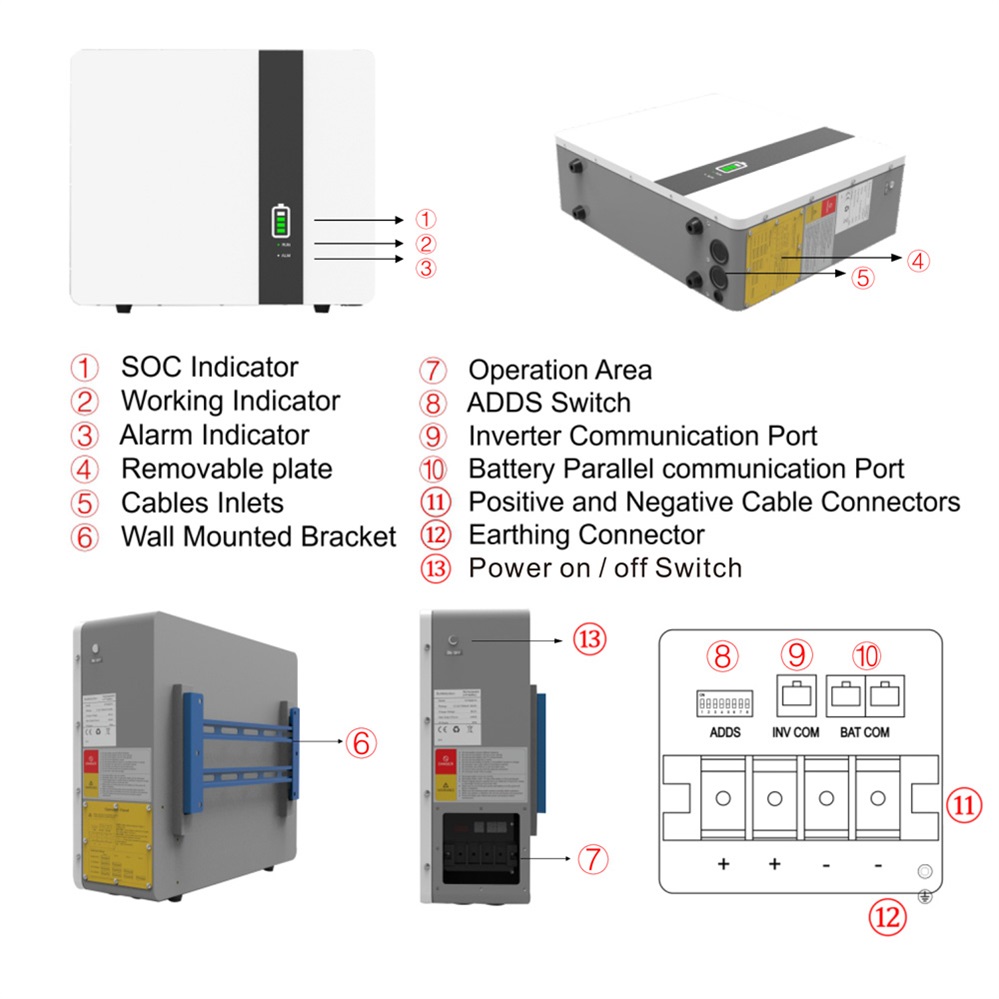

terminal cabin

The terminal cabin includes two positive and two negative poles.


RS232/RS485/CAN port. Behind the cabin with a waterproof silicone gasket. It will protect the

terminal's connection and prevent water or dust slightly from coming into it.




details



Capacity Energy (Wh)

5120Wh (Per Pack)

Capacity (Ah)

100Ah (Per Pack)

Suggested SOC

5%~95%

Nominal Voltage (V)

51.2V

Operation Voltage (V)

43.2V~58.4V

Maximum Charging/Discharging Current (A)

100A/100A Per Pack

Operation Temperature (℃)

Charge: 0~45℃, Discharge: -20~45℃

Storage Temperature (℃)

-20~45℃

Weight (kg)

50kg

Dimension (mm)

480*160*560mm

Certifications

MSDS, UN38.3, RoHS, CE

IP Grade

IP65

Number of Cycles

6000 @25℃ 80%DOD

Communication

RS232, RS485, CAN

Module Capacity Energy

25.6V 100Ah

25.6V 200Ah

48V/51.2V 100Ah

48V/51.2V 200Ah

The maximum 8 battery packs can

be parallelly communicated.
