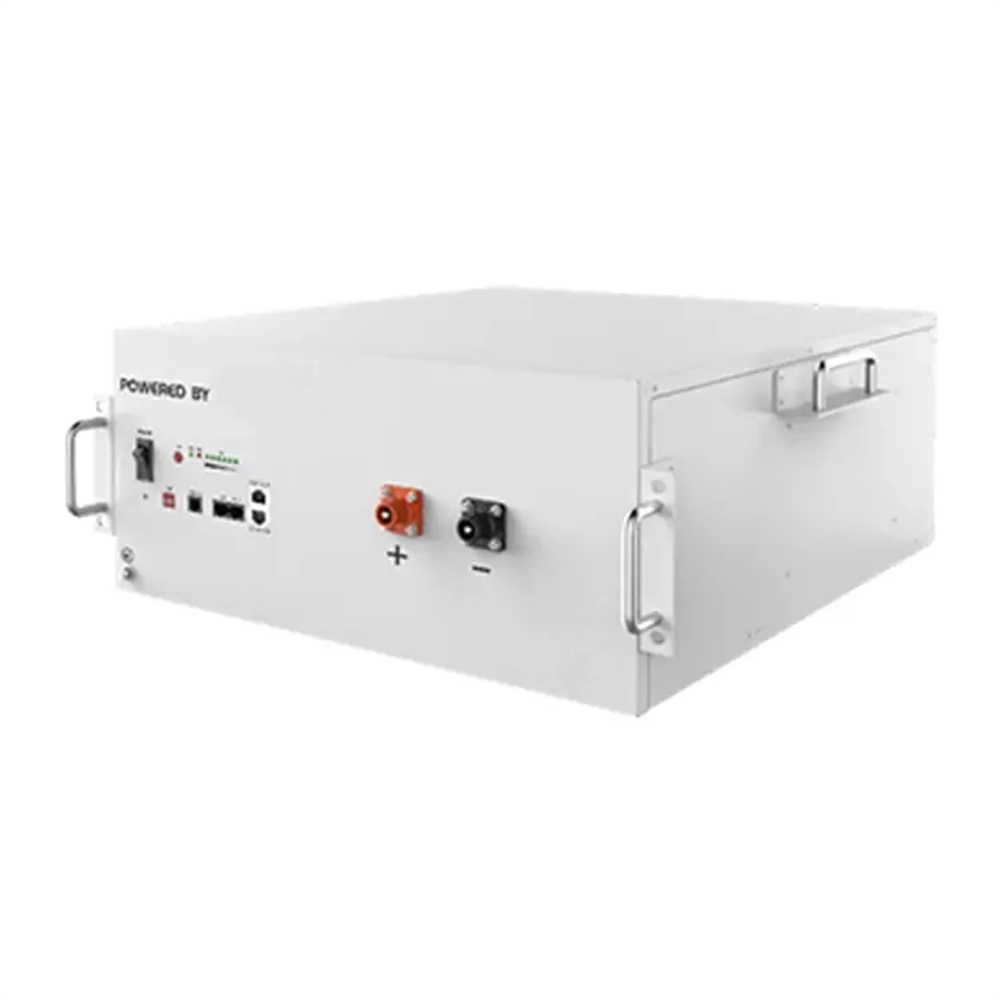

51.2V 100Ah Server Rack LiFePO4 Battery Pack Powerd For Home ESS

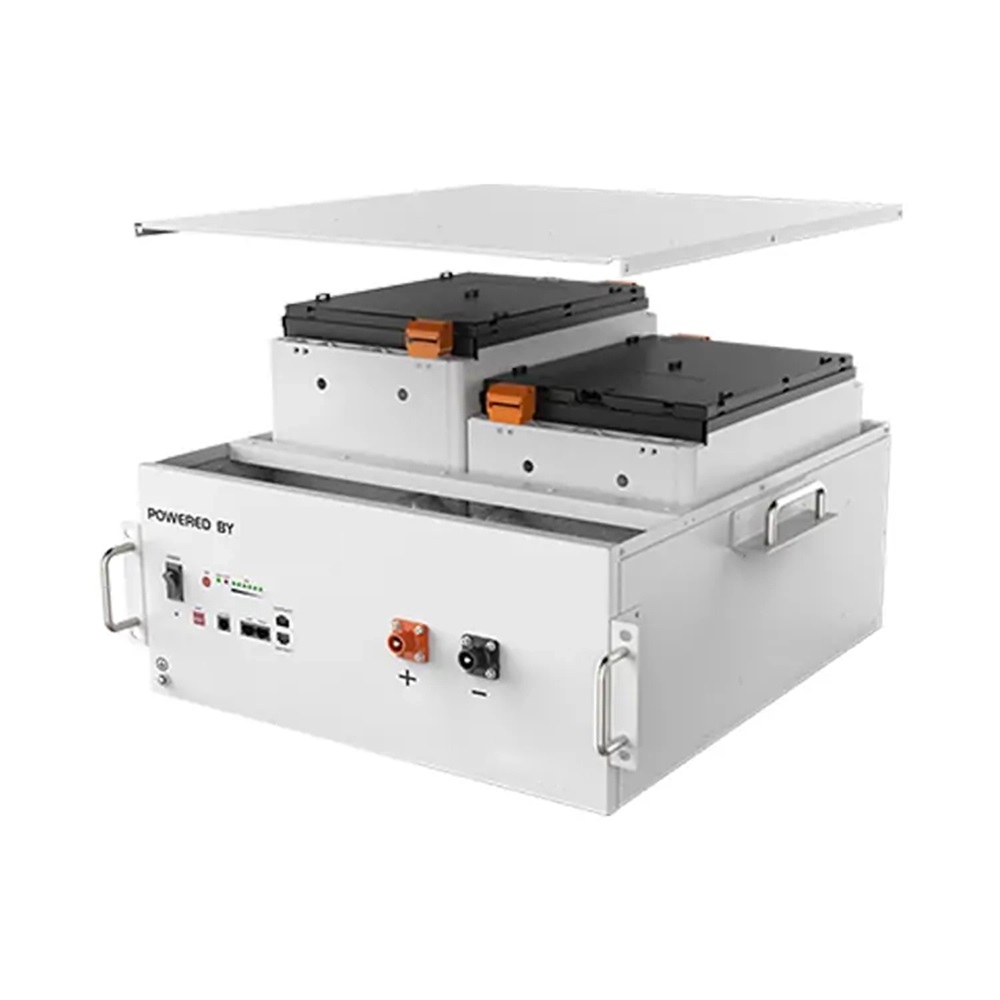

1. Modular structure can be flexibly composed of various voltage platforms, various capacity level systems, and easy maintenance;
2. Battery management system design to provide maximum reliability;
3. CATL Lithium iron phosphate battery cells with high safety performance, long cycle life, the service life of more than ten years;
4. Small size, lightweight, easy to carry, and can be quickly used in various scenarios.
Items | Parameters |
Model | LBB051100A-A03 |
Cell type | LiFePO4 |
Configuration | 1P16S |
Nominal voltage | 51.2V |
Nominal capacity | 100Ah |
Nominal energy | 5.12kwh |
Operating voltage range | 44.8V~57.6V |
Standard charge current | 50A |
Max. charge current | 70A |
Standard discharge current | 50A |
Max. discharge current | 70A |
Weight | ~50kg |
Dimension | 440*480*200mm |
Operating temperature range | Charge: 0℃~55℃ Discharge: -20℃~55℃ |
Cycle life | ≥6,000times(0.5C/0.5C,70%EOL) ≥4,000times(0.5C/0.5C,80%EOL) |
Certification | IEC62619,CE-EMC,UN38.3 |
