48V 51.2V LiFePO4 Batteries Series

48V 50ah, 100ah, 200ah lithium iron phosphate server rack lifepo4 battery pack for Tiny Homes, RVs, Van Conversions, Campers and anything Off Grid, Solar

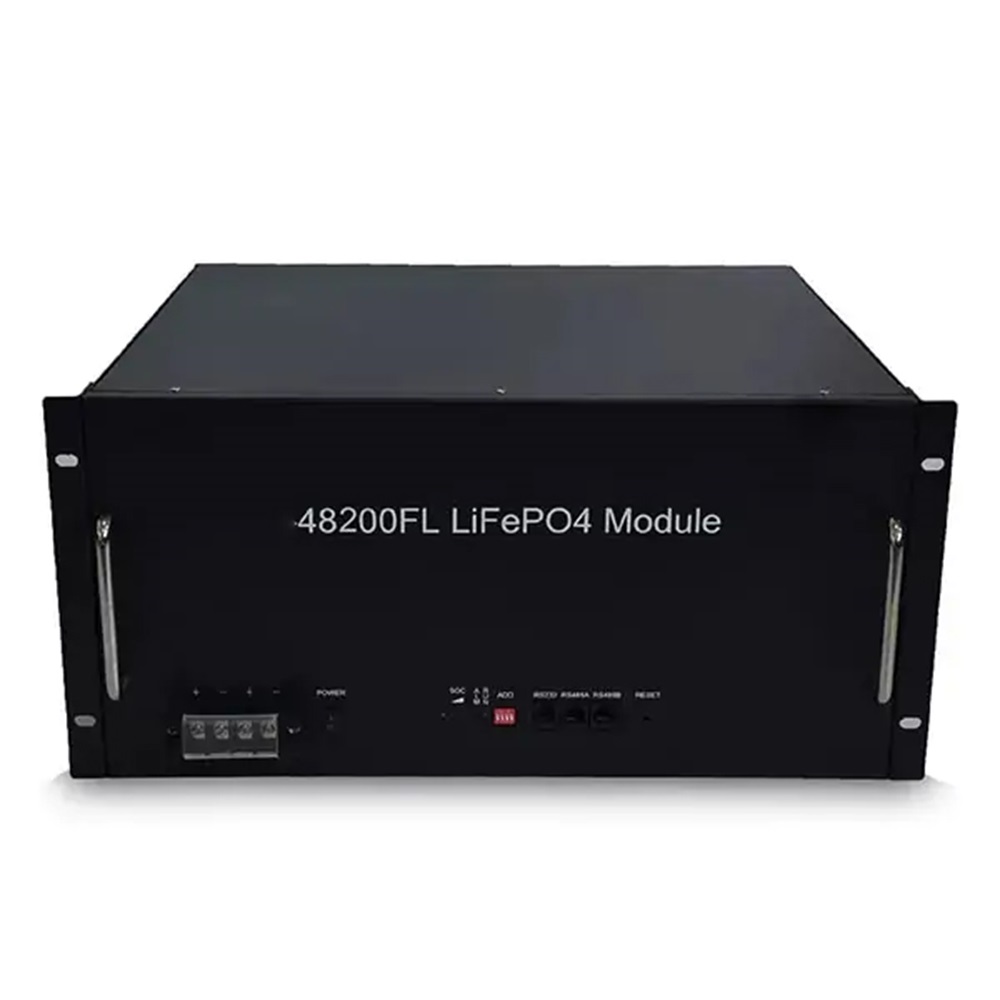

48V/51.2V Server Rack Batteries LiFePO4


48V/51.2V Server Rack Batteries LiFePO4


details


Super Points: ONE Battery For Multiple Brand Inverters


Product Advantages

lifepo4 battery cell


Long cycle life

Using high-quality lithium iron phopshate battery cells, the cycle life is more than 6000 times at 80%DOD, and can be used for 10~15 years.

High quality prismatic lifepo4 battery cells

High capacity, high current, long cycle life

Low internal resistance and high current

low internal resistance of the battery, excellent continuous high current discharge performance





Intelligent BMS battery protection

Built-in intelligent BMS(Battery management system), effectively avoiding overcharge, over-discharge, overcurrent, short-circuit, balance

and other problems

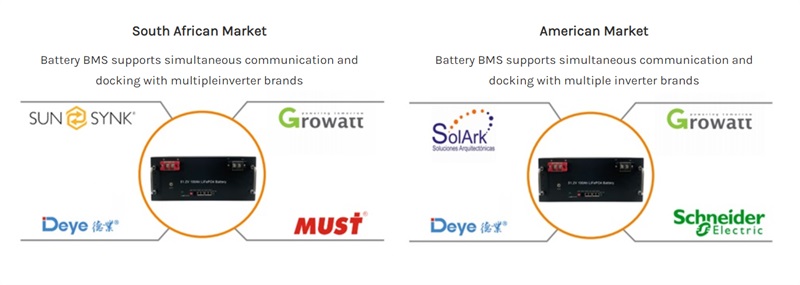

Communicated with multiple brands inverter same time

Battery BMS supports simultaneous communication and docking with multiple brands inverter

Good safety performance

Extreme safety test, no fire, no explosion, no leakage


Key Features

1. Automotive Grade Cells-16 cell configuration

2. Integrated CAN bus RS485 BMS.

3. LCD display shows battery information.

4. Pre-configured with optimal parameters.

5. No other LiFePO4 battery offers this functionality, longevity and warranty at our price.

6. Warranted for daily cycling.

7. Optional smart heating function, can work -40 degrees centigrade


Function

1. Over charge detection function

2. Over discharge detection function

3. Over current detection function

4. Temperature protection function

5. Short circuit detection function

6. Balance function

7. Upper computer software monitor

8. LCD screen optional


LiFePO4 Battery 48V Specification

Battery Specification

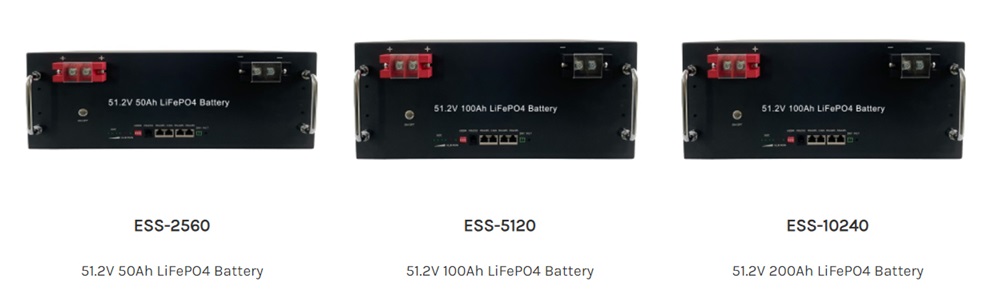

Model

ESS-2560

ESS-5120

ESS-10240

Voltage and capacity

51.2V 50Ah

51.2V 100Ah

51.2V 200ah

Nominal voltage

51.2V

51.2V

51.2V

Nominal capacity

50ah

100ah

200ah

Discharge current

≤1C

Cycle life (capacity ≥80% of nominal)

100% DOD

4000 cycles

80% DOD

6000 cycles

50% DOD

10000 cycles

Discharge

Max. continuous discharge current

50A

100A

200A

Recommended continuous discharge current

≤50A

≤100A

≤100A

End of discharge voltage

40V

40V

40V

Operating conditions

Operating temperature

Discharge: -20℃~50℃

Charge: 5℃~50℃

Storage temperature

-25℃~45℃

Humidity (non-condensing)

Max. 95%

Protection class

IP22

Charge

Charge voltage

58.4V

Max. charge current

50A

100A

100A

Other

Capable parallel quantity

≤15 modules

Communication Port

RS232 RS485 CAN

BMS Connector

Barrier Terminals/customized

Dimension(L*W*H)

483*440*134

483*440*178

483*440*267

Weight (fully charged)

28kg

45kg

85kg

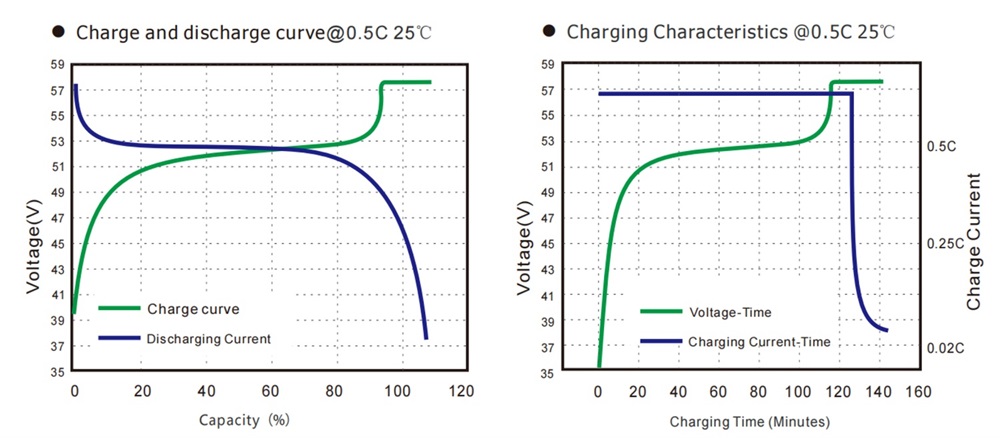

Charging and discharging curve

Charging and discharging curve

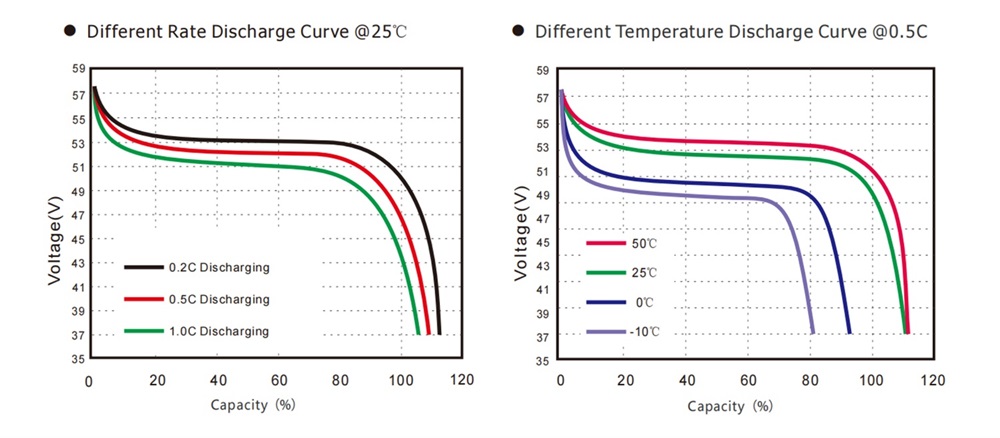

Different current/temperature Discharge Curves

Different current/temperature Discharge Curves

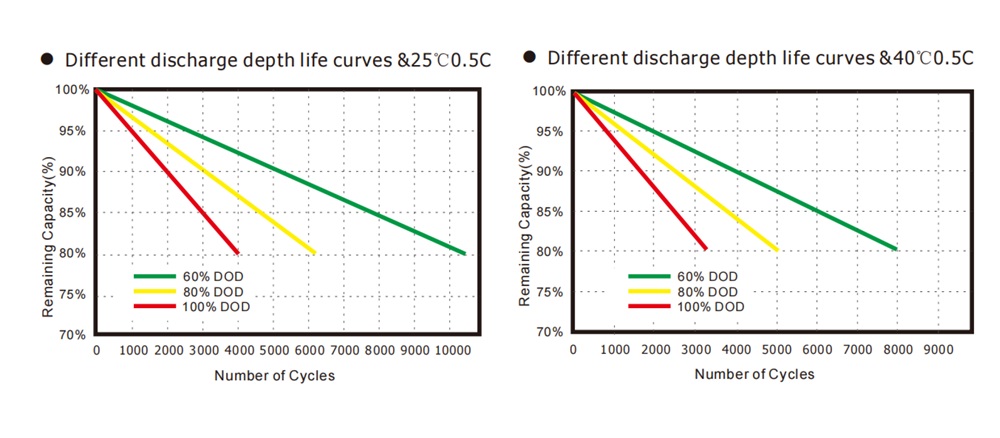

Cycle Life Curves

Cycle Life Curves


Applications

Telecom base station backup energy storage, wind power storage, solar energy storage system, data center backup power supply, Tiny Homes, RVs, Van Conversions, Campers and anything Off Gridetc.


application
