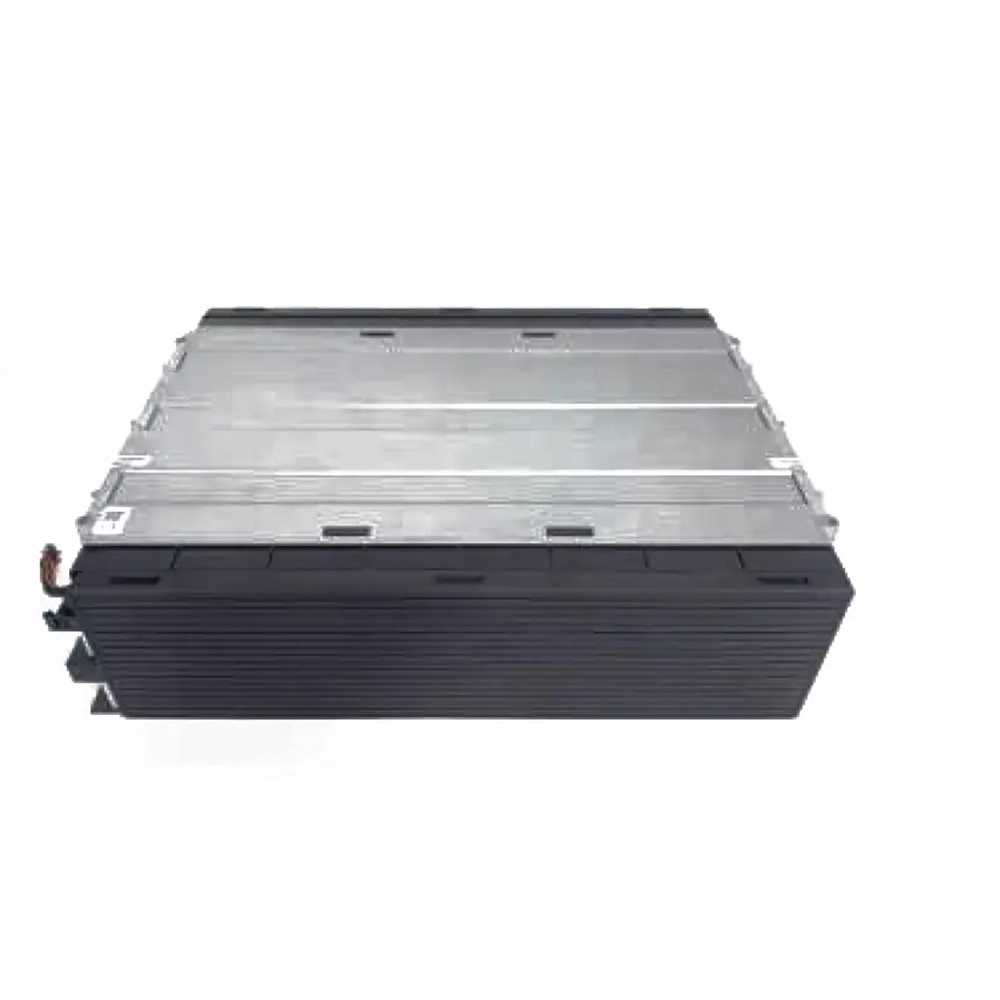

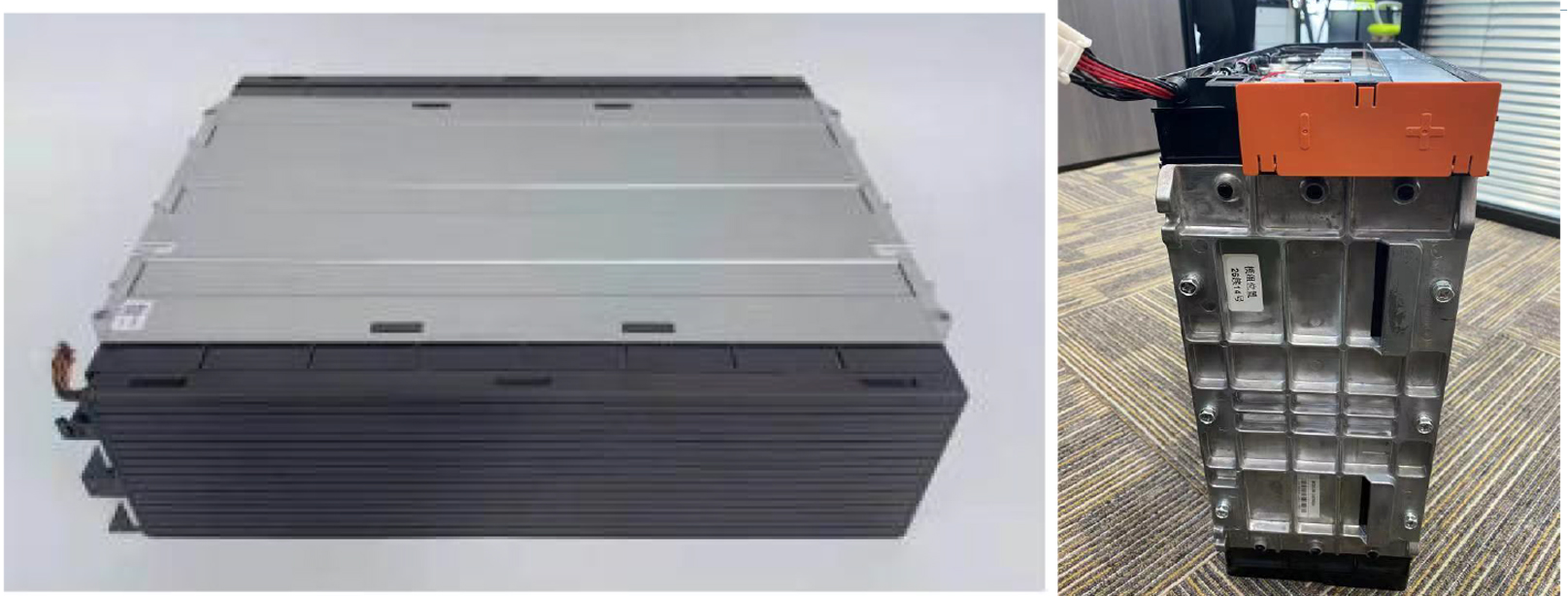

25.6V Battery Module with LiFePO4 Cells 200Ah
1MGRS108-C15 25.6V 200Ah LiFePO4 Battery Cells Module with 6000times cycle life for energy storage system
- Category: LiFePO4 Battery
- Tag: lifepo4 battery
1MGRS108-C15 25.6V 200Ah LiFePO4 Battery Cells Module
24V/25.6V 200Ah Original brand LiFePO4 Battery module with more than 6000 cycles for energy storage
Specifications
Item | Parameter |
Modular Standard Voltage | 25.6V |
Standard Capacity | 200Ah |
Charge method | CC |
Charge current | 50A |
Maximum continuous charge current | 100A @ 23°C |
Max charge voltage | 30.4V |
Discharge method | CC |
Discharge current | 50A |
Maximum continuous discharge current | 100A @ 23°C |
Max Discharge Voltage | 21.6V |
Working Temperature | Charge: 0~+50℃ |
Discharge: -20~+55℃ | |
Storage humidity | 5%~95% |
SOC | SOC:20%~40%, SOC is adjustable |
Elevation | ≤4000m |
Output connection | M8 |
Waterproof | IP20 |
Cycle life | 6000 cycles@80%DOD, 25°C |
Weight | About 54 Kg |
