48v 200ah 10KWh Server Rack lithium iron phosphate Solar battery pack with 100a bms

ESS 51.2V 10kwh 48v 200ah lithium iron phosphate battery with 100a bms for Solar Energy Storage for Household / Commercial / Industria

ESS 48volt/51.2volt 10kwh Server Rack LiFePO4 Solar Lithium ion Battery Pack


48V 200Ah 10KWh Server Rack LiFePO4 Battery

Model: EVL-48200
Battery Type: LiFePO4 Battery Module
Battery Voltage: 48V/51.2V
Battery Capacity: 200Ah
Communication: RS485/ RS232/ CAN
Application: Solar Household Commercial/Industrial/ESS

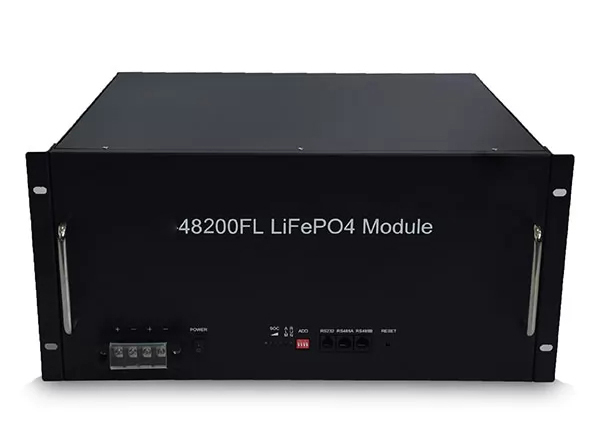

This 10kwh rack ESS is made with a 5U 51.2V 200AH lifepo4 battery module, each module is made by 16s2p 30pcs 3.2v 100ah prismatic lifepo4 battery cells inside and smart BMS to support 15pcs parallel connection at max.



Product Advantages

48V 200Ah 10KWh

Long cycle life

Using high-quality lithium iron phosphate battery cells, the cycle life is more than 6000 times at 80%DOD and can be used for 10~15 years.

High-quality prismatic lifepo4 battery cells

High capacity, high current, long cycle life

Low internal resistance and high current

low internal resistance of the battery, excellent continuous high current discharge performance

Circuit board


Intelligent BMS battery protection

Built-in intelligent BMS(Battery management system), effectively avoiding overcharge, over-discharge, overcurrent, short-circuit, balance

and other problems

Communicated with multiple brands inverter same time

Battery BMS supports simultaneous communication and docking with multiple brands inverter

Good safety performance

Extreme safety test, no fire, no explosion, no leakage



Specifications



Item

Parameters

Model

EVL-48200

Battery Type

LiFePO4

Energy

10240Wh

Rated Capacity

200Ah

Rated Voltage

51.2V

Battery cell

3.2V 100Ah Prismatic Battery Cell

Configuration (*S*P)

16S2P (51.2v 200Ah)

Discharge Cut-off Protect Voltage

40V

Charge Cut-off Protect Voltage

58.4V

Max. Charge Current

100A

Max. Discharge Current

100A

Communication Port

CAN, RS485, RS232

Compatible Inverter Brand

SMA, Growatt, Solax, Solis, DEYE, Sungrow,

Sofar, Voltronic, Sorotec, Studer, etc.

Module Parallel Ability

1S1P~1S15P(Low Voltage System);

Cycle life

80% DOD 5000 times

L*W*H (mm)

445*430*222mm/module

Net Weight (KG)

80KG

Cooling

Natural cooling

Environment

Indoor

Discharge Temperature (℃)

-10℃~+60℃

Charge Temperature (℃)

0℃~+45℃

Storage Conditions

–20°C to 30°C (–4°F to 86°F) Up to 95% RH,

non-condensing State of Energy (SoE): 25% initial

Maximum Elevation

3000 m (9843 ft)




Key Features

· Automotive Grade Cells-16 cell configuration

· Integrated CAN bus RS485 BMS.

· LCD display shows battery information.

· Pre-configured with optimal parameters.

· No other LiFePO4 battery offers this functionality, longevity and warranty at our price.

· Warranted for daily cycling.

· Optional smart heating function, can work -40 degrees centigrade


Function

· Over charge detection function

· Over discharge detection function

· Over current detection function

· Temperature protection function

· Short circuit detection function

· Balance function

· Upper computer software monitor

· LCD screen optional
