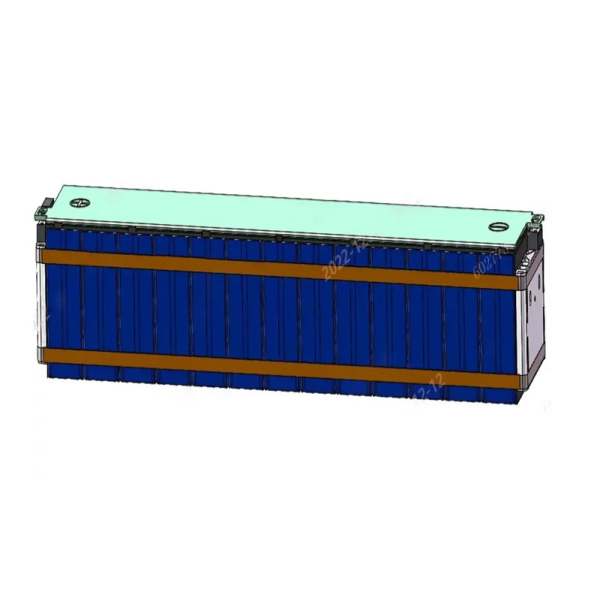

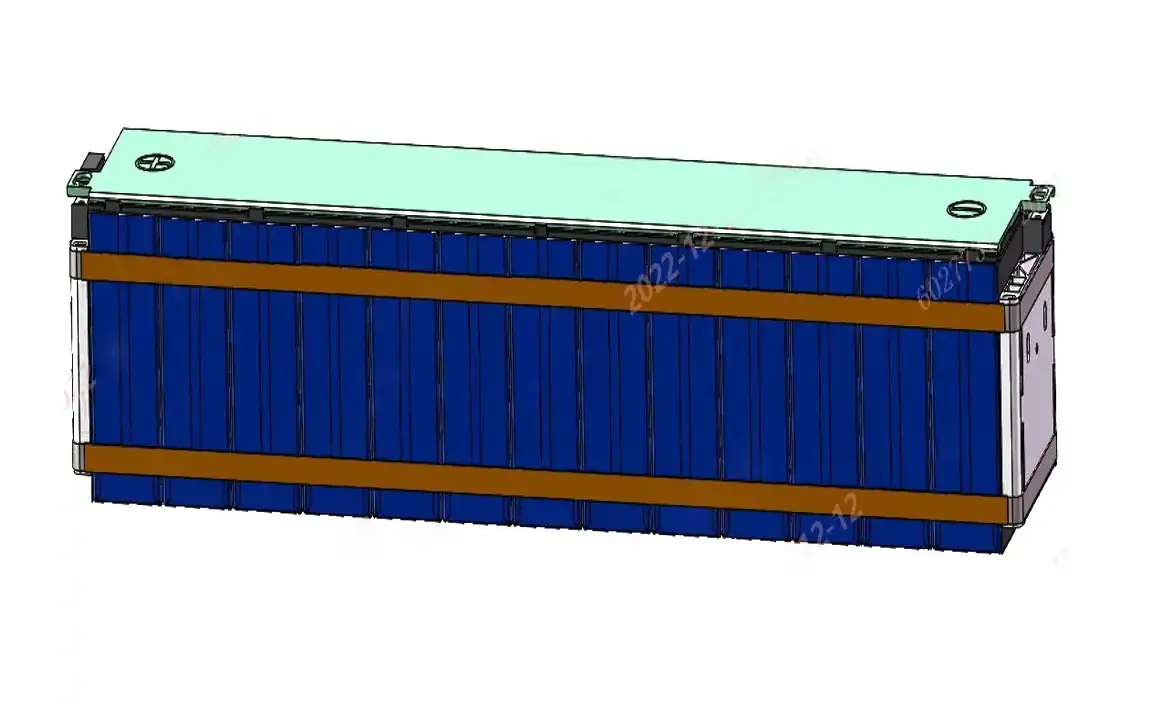

280Ah LiFePO4 ESS Battery Module

A liquid-cooling 280Ah LiFePO4 battery module product is designed to provide efficient thermal management for the batteries, which can improve their performance, safety, and lifespan

Liquid Cooling 280Ah LiFePO4 Battery Module For Energy Storage System

280Ah LiFePO4 ESS Battery Module


A liquid cooling 280Ah LiFePO4 battery module for an energy storage system is a product that uses a cold plate with mini-channels to circulate a coolant between two prismatic lithium iron phosphate (LiFePO4) batteries. This product is designed to provide efficient thermal management for the batteries, which can improve their performance, safety, and lifespan


Some of the features and benefits of this product are:


It uses LiFePO4 batteries, which have high energy density, long cycle life, and good safety characteristics

It uses a liquid cooling system, which has a higher heat transfer coefficient and lower thermal resistance than air cooling systems

It uses a cold plate with mini-channels, which can optimize the coolant flow rate, pressure drop, and heat transfer across the battery surface

It can maintain the battery temperature within a desirable range of 25 °C-40 °C, which can prevent overheating, thermal runaway, and degradation of the batteries

It can be used for various energy storage applications, such as grid stabilization, peak shaving, renewable integration, backup power, and microgrids


Specifications


String Formation Method

1P12S

1P13S

Cell Type

LFP71173204

LFP71173204

Charging Rate

≤0.5C

≤0.5C

Discharge Rate

≤0.5C

≤0.5C

Series Parallel Mode

1P12S

1P13S

Nominal Capacity

280Ah

280Ah

Nominal Energy

10.75KWh

11.64KWh

Nominal Voltage

38.4V

41.6V

Operating Voltage Range

30.0V~43.8V

32.5V~47.4V

Operating Temperature Range

Discharge:-20℃~55℃

Charge:0℃~55℃

Discharge:-20℃~55℃;

Charge:0℃~55℃

Size

L922*W182*H220(mm)

L922*W182*H220(mm)

Weight

≈70kg

≈73kg
