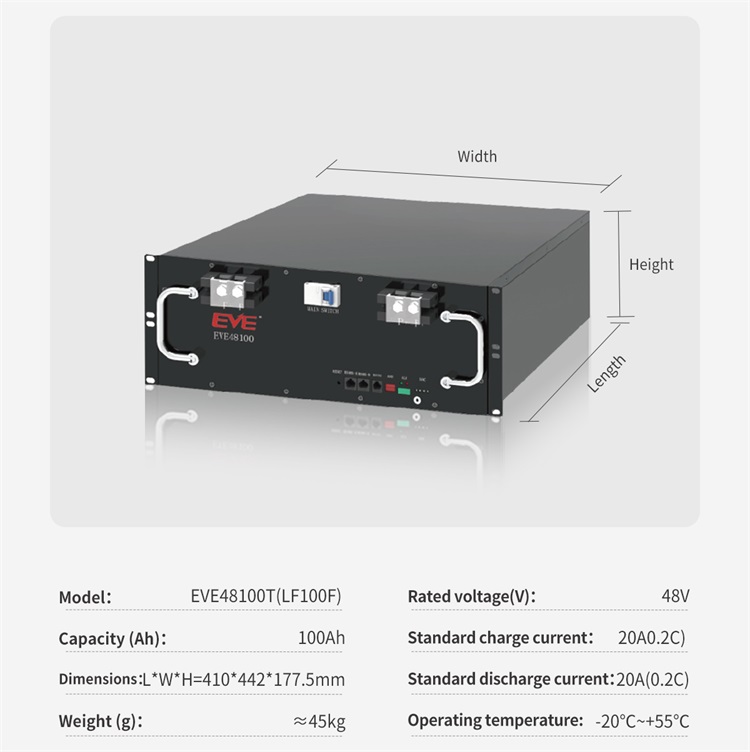

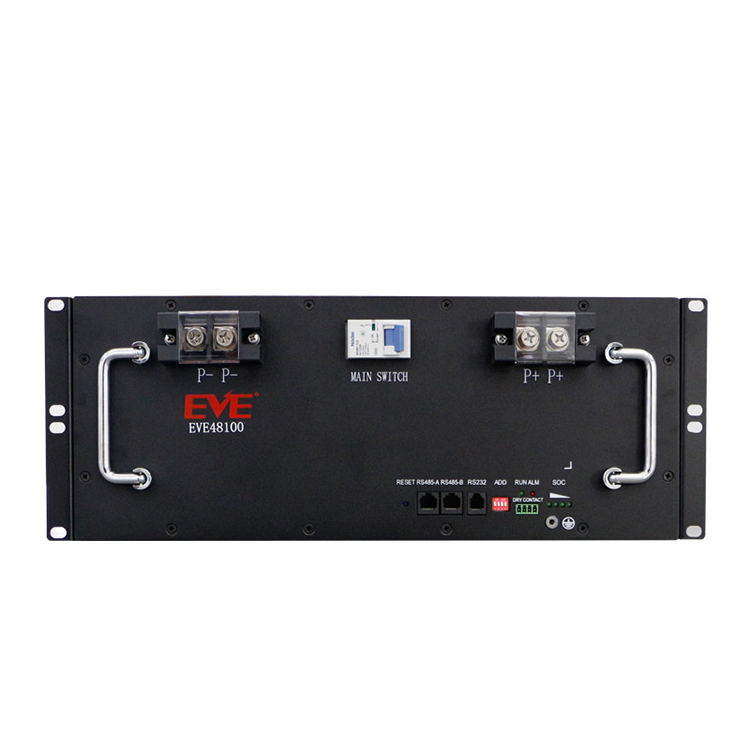

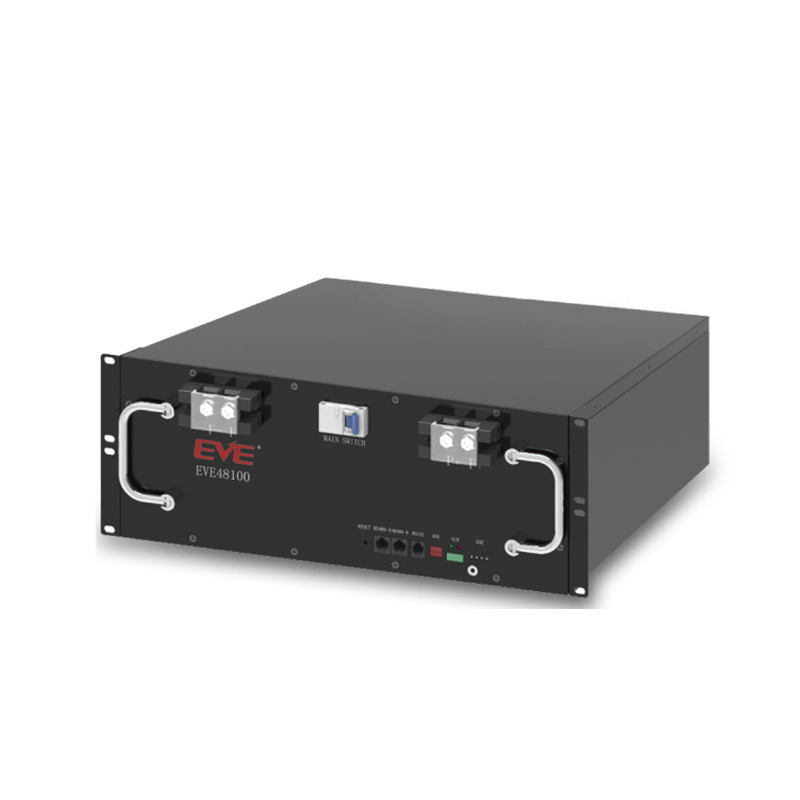

EVE 48100 48V 100Ah LiFePO4 Battery Pack For ESS

EVE 48100 48V 100Ah lifepo4 battery pack communication Energy storage 8V battery system 102Ah base station power communication energy storage

Features:

1. Communication functions, ensuring the reliability of battery pack performance and achieving remote real-time monitoring of battery data

2. Standard maintenance free design, suitable for installation in 19 inch communication cabinets

3. Wide temperature range and high reliability

4. Long lifespan, with battery pack cycling llife exceeding 3000 times

5. Low internal resistance of the battery, superior rate discharge performance

6. Multiple battery packs can be used in parallel, suitable for high-capacity applications

Parameters:



Items

Parameters

Remarks

Rated Capacity

100Ah

25℃±3℃,0.2C constant

current discharging,40.5V cut off

Rated Voltage

48V


Standard Charge Current

20A(0.2C)

0.2C CC(Constant current)charge to 54.0V,

then CV(constant voltage)charge,

cut off when charging current≤0.05C.

Max Continuous

 Charge Current

50A(0.5C)

Do not exceed 0.5C

Max Charge Current

100A(1C)

Requirement: 1 cycle/day

Charge Cut Off Voltage

54.0V

Equalized Charge Voltage:

53.5V Floating Charge Voltage:51.0V

Standard Discharge Current

20A(0.2C)

0.2C CC(Constant Current)

discharge, cut off @40.5V.

Max Continuous

 Discharge Current

50A(0.5C)

 Continuous 50Adischarge

Max Discharge Current

100A(1C)

Requirement: 1 cycle/day

Discharge Cut Off Voltage

40.5V

2.7V/Cell, 40.5V / Pack.

Max Pulse Discharge Current

130A

25℃±3℃,≤1s

Working Temperature (charge)

0℃~55℃

0℃-10℃:continuous 20A(max)charge

10℃-45℃: continuous 50A(max)charge

45℃-55℃:continuous 20A(max)charge

Working Temperature

 (discharge)

-20℃~55℃

Battery can work at specified temperature

range with capacity loss in tolerance.

Storage temperature

-20℃~ 45℃

(short term) Within 1 month

Storage temperature

0℃~35℃

(long term) Within 1 year

Battery Weight

About 45Kg


Battery Impendence

≤30mΩ

DC Internal Resistance

Charge/Discharge Efficiency

≥95%

Charge/discharge efficiency in

Wh (round trip efficiency) at 0.2C charge and

discharge current,25℃.



Applications:

Outdoor marginal stations, distributed base stations, indoor macro base stations. Microcell base stations and other small capacity, end power supply stations, new energy stations.
