Power Your Forklifts with Efficiency: Forklift Lithium Battery System
Upgrade your forklifts with our 24V 48V 72V 202ah/272ah/404ah/544ah Forklift Lithium Battery System for efficient, long-lasting, and eco-friendly performance
- Category: LiFePO4 Battery
- Tag: lifepo4 battery cell

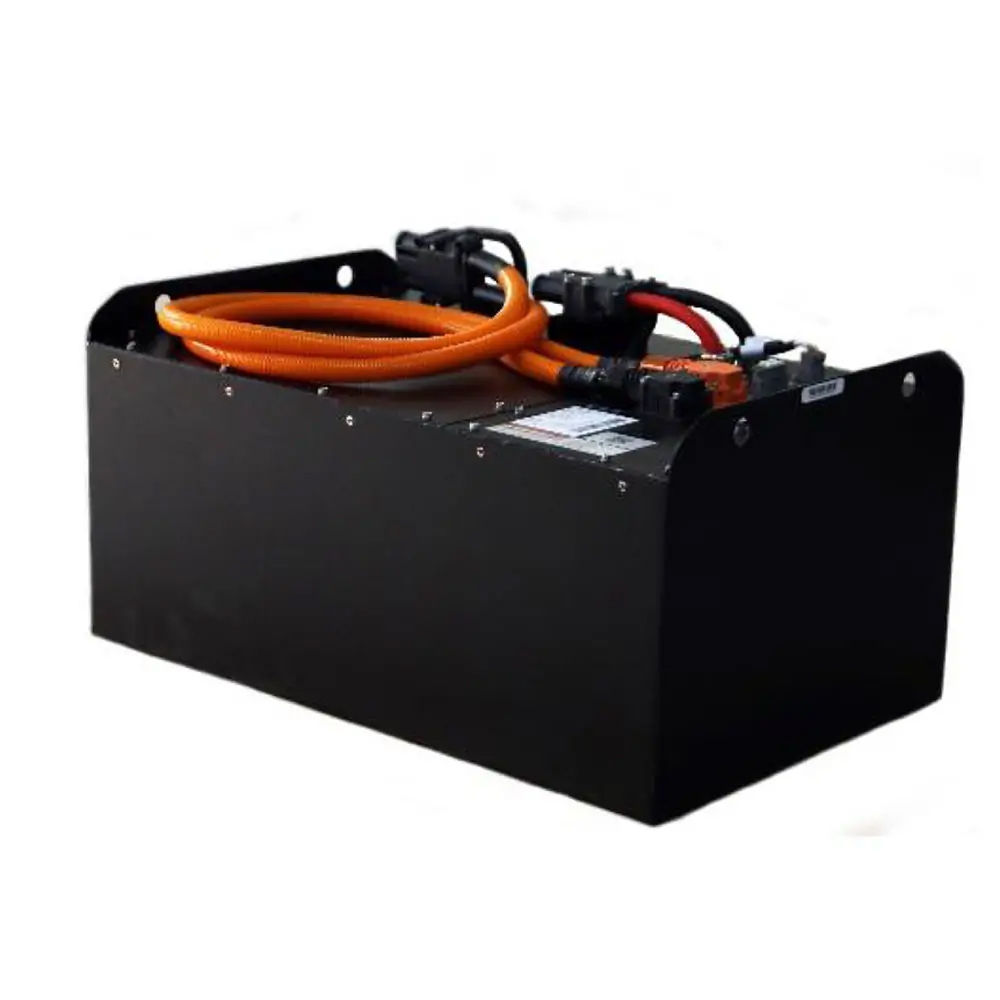

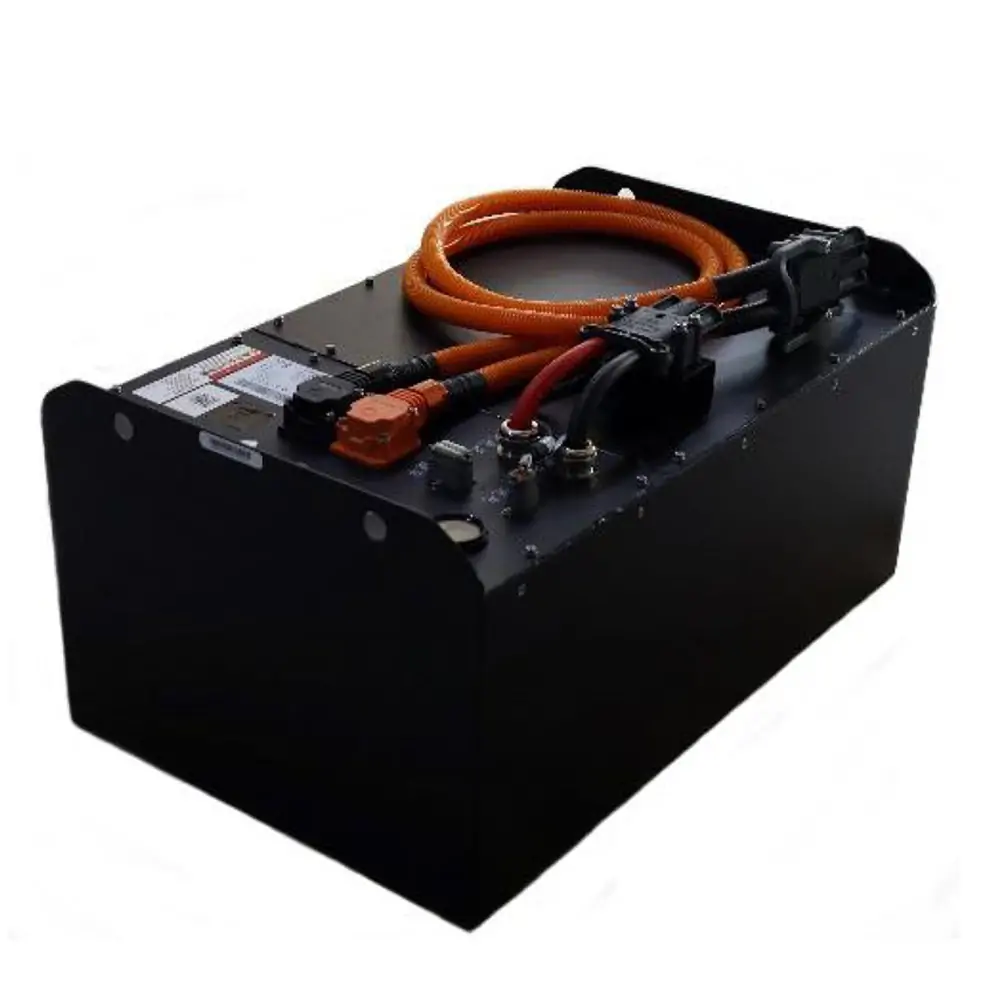

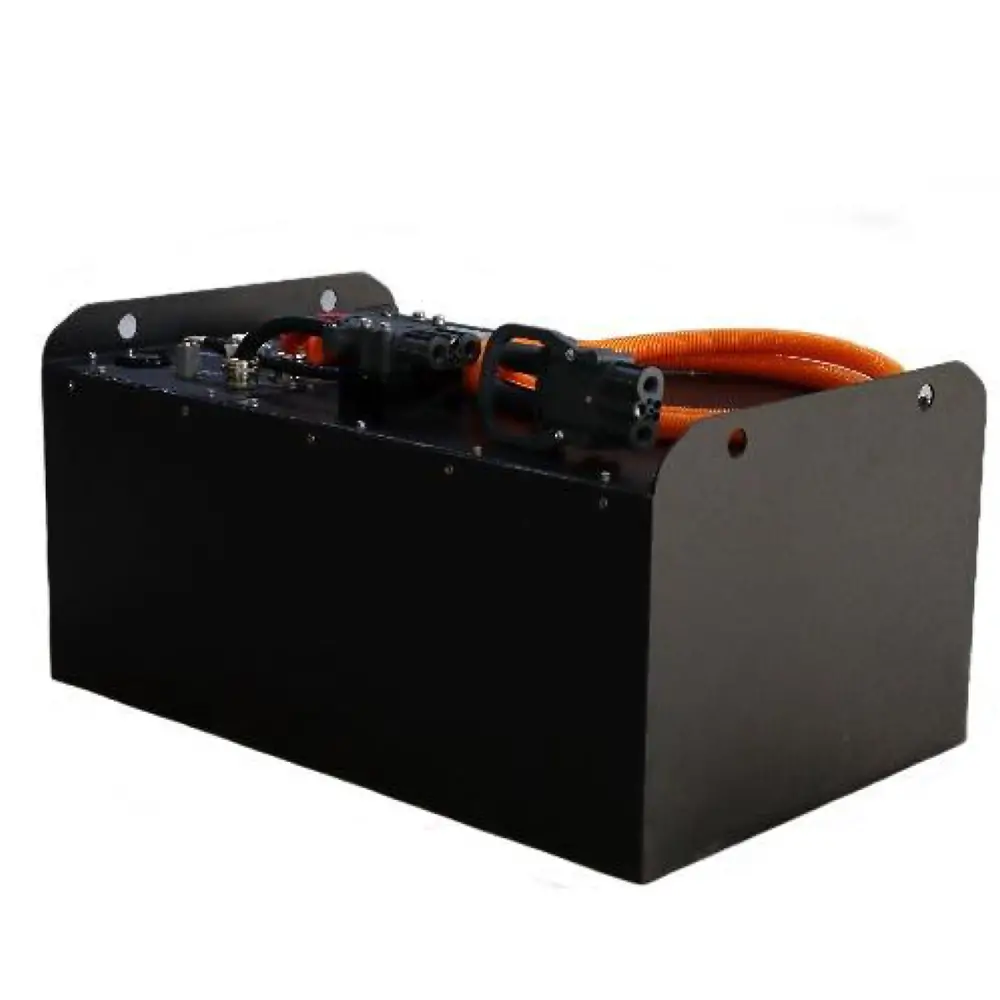

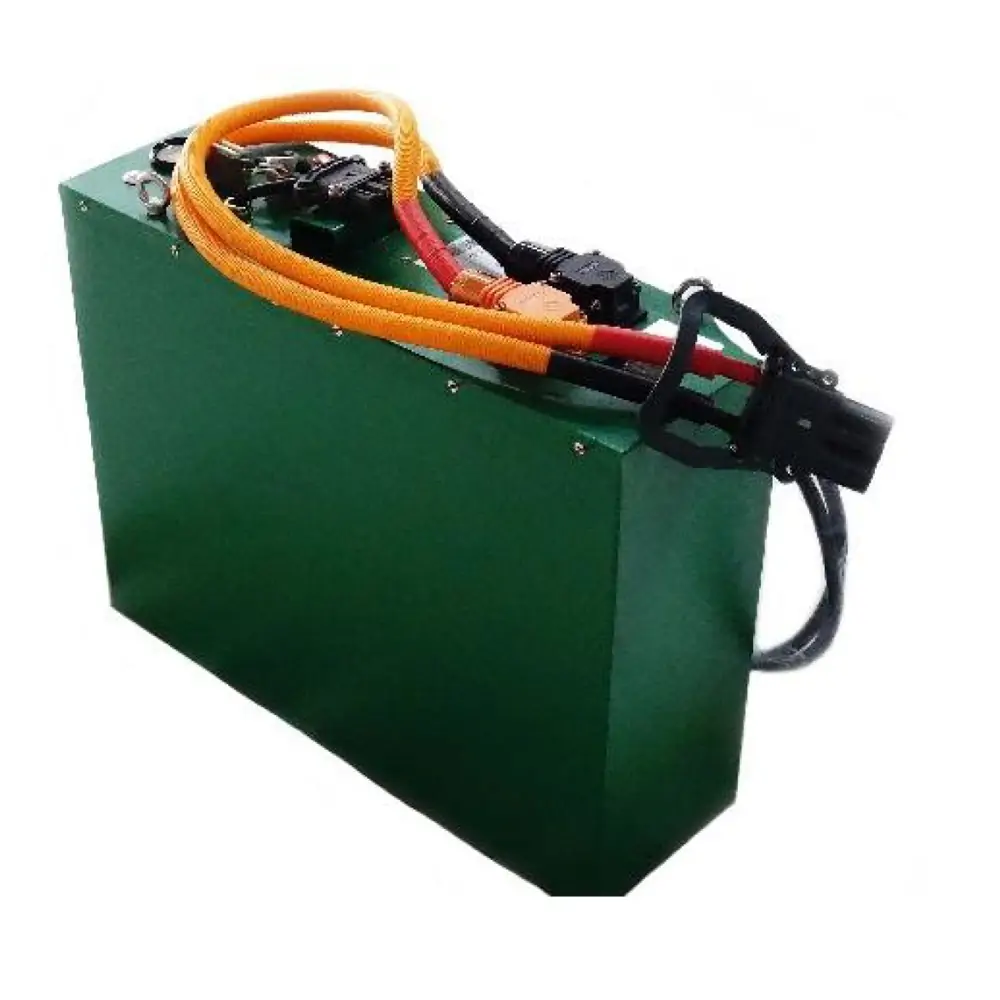

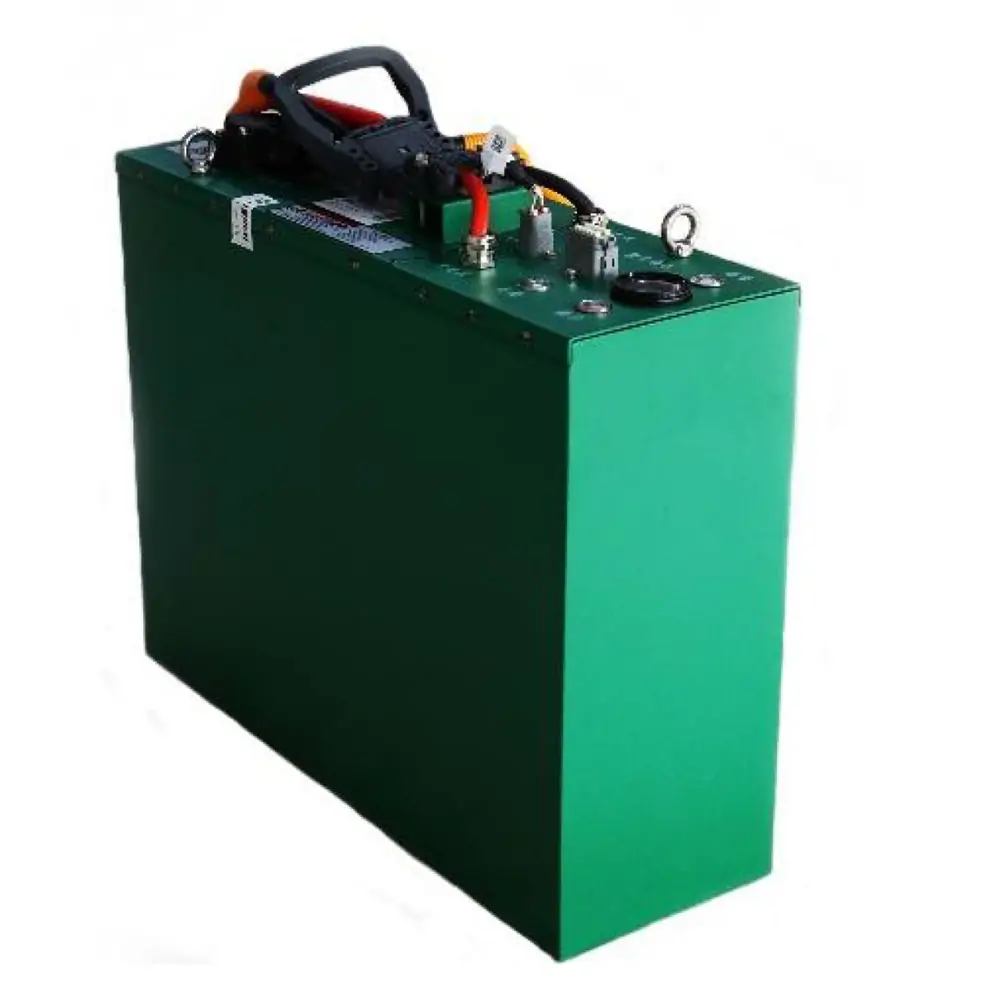

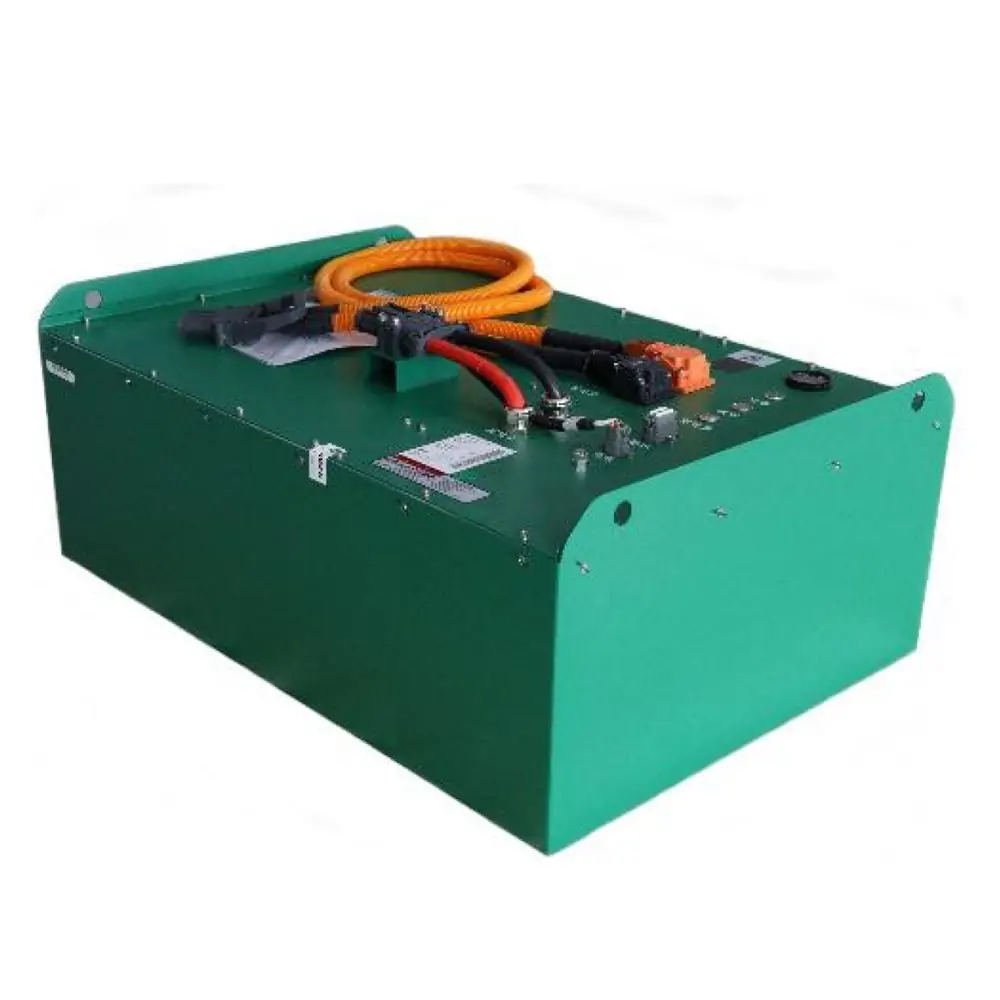

Forklift Lithium Battery System
Our Forklift Lithium Battery System provides reliable, long-lasting performance to power your forklifts efficiently and reduce downtime. Advanced lithium technology enables our battery system to last longer than traditional lead-acid batteries, so you can run your forklifts for more extended periods with fewer interruptions. Plus, our batteries are safe for indoor use as they do not emit hazardous gases, and they are recyclable with no hazardous materials included, making them an eco-friendly choice. With our Forklift Lithium Battery System, you get high performance with maximum safety and minimal environmental impact.
FSS24200 25.6V 202Ah Forklift lithium battery system
FSS24200 System | Model A | Model B | Model C | Model D |
Rate Voltage (V) | 25.6 | 25.6 | 25.6 | 25.6 |
Voltage Range(V) | 20~29.2 | 20~29.2 | 20~29.2 | 20~29.2 |
Rated Capacity (Ah) | 202 | 202 | 202 | 202 |
Max charging current (A) | 80 | 80 | 80 | 80 |
Link Method | 8s1p | 8s1p | 8s1p | 8s1p |
Box Weight ( Kg) | 70 | 70 | 80 | 90 |
Box Size (mm) | 620*205*530 | 620*205*530 | 620*205*530 | 620*205*530 |
Operating temperature | -10℃∽40℃ | -10℃∽40℃ | -10℃∽40℃ | -10℃∽40℃ |
Heating Method | √ | √ | ||
Cooling Method | Natural cooling | Natural cooling | Natural cooling | Liquid cooling |
Protection Class | IP55 | IP55 | IP55 | IP67 |
Power Display | √ | √ | √ | √ |
Alarm System | √ | √ | √ | √ |
GPS Track GPS | √ | √ | √ | |
Remote Communication | √ | √ | √ | |
Remote Control | √ | √ | ||
Main Connector（Rema95016-32） | √ | √ | √ | √ |
Communication Connection (AMP1-965425-1962351-1) | √ | √ | √ |
FSS24270 25.6V 272Ah Forklift lithium battery system
FSS24270 System | Model A | Model B | Model C | Model D |
Rate Voltage (V) | 25.6 | 25.6 | 25.6 | 25.6 |
Voltage Range (V) | 20~29.2 | 20~29.2 | 20~29.2 | 20~29.2 |
Rated Capacity (Ah) | 272 | 272 | 272 | 272 |
Max charging current (A) | 80 | 80 | 80 | 80 |
Link Method | 8s1p | 8s1p | 8s1p | 8s1p |
Box Weight ( Kg) | 80 | 80 | 90 | 100 |
Box Size (mm) | 620*205*530 | 620*205*530 | 620*205*530 | 620*205*530 |
Operating temperature | -10℃∽40℃ | -10℃∽40℃ | -10℃∽40℃ | -10℃∽40℃ |
Heating Method | √ | √ | ||
Cooling Method | Natural cooling | Natural cooling | Natural cooling | Liquid cooling |
Protection Class | IP55 | IP55 | IP55 | IP67 |
Power Display | √ | √ | √ | √ |
Alarm System | √ | √ | √ | √ |
GPS Track GPS | √ | √ | √ | |
Remote Communication | √ | √ | √ | |
Remote Control | √ | √ | ||
Main Connector（Rema95016-32） | √ | √ | √ | √ |
Communication Connection (AMP1-965425-1962351-1) | √ | √ | √ | √ |
FSS48400 51.2V 404Ah Forklift lithium battery system
FSS48400 System | Model A | Model B | Model C | Model D |
Rate Voltage (V) | 51.2 | 51.2 | 51.2 | 51.2 |
Voltage Range (V) | 40~57.6 | 40~57.6 | 40~57.6 | 40~57.6 |
Rated Capacity (Ah) | 404 | 404 | 404 | 404 |
Max charging current (A) | 80 | 80 | 80 | 80 |
Link Method | 16s2p | 16s2p | 16s2p | 16s2p |
Box Weight ( Kg) | 200 | 200 | 210 | 220 |
Box Size (mm) | 780*495*380 | 780*495*380 | 780*495*380 | 780*495*380 |
Operating temperature | -10℃∽40℃ | -10℃∽40℃ | -10℃∽40℃ | -10℃∽40℃ |
Heating Method | √ | √ | ||
Cooling Method | Natural cooling | Natural cooling | Natural cooling | Liquid cooling |
Protection Class | IP55 | IP55 | IP55 | IP67 |
Power Display | √ | √ | √ | √ |
Alarm System | √ | √ | √ | √ |
GPS Track GPS | √ | √ | √ | |
Remote Communication | √ | √ | √ | |
Remote Control | √ | √ | ||
Main Connector（Rema95016-32） | √ | √ | √ | √ |
Communication Connection (AMP1-965425-1962351-1) | √ | √ | √ | √ |
FSS48540 51.2V 540Ah Forklift lithium battery system
FSS48540 System | Model A | Model B | Model C | Model D |
Rate Voltage (V) | 51.2 | 51.2 | 51.2 | 51.2 |
Voltage Range (V) | 40~57.6 | 40~57.6 | 40~57.6 | 40~57.6 |
Rated Capacity (Ah) | 540 | 540 | 540 | 540 |
Max charging current (A) | 150 | 150 | 150 | 150 |
Link Method | 16s2p | 16s2p | 16s2p | 16s2p |
Box Weight ( Kg) | 250 | 250 | 260 | 280 |
Box Size (mm) | 780*634*380 | 780*634*380 | 780*634*380 | 780*634*380 |
Operating temperature | -10℃∽40℃ | -10℃∽40℃ | -10℃∽40℃ | -10℃∽40℃ |
Heating Method | √ | √ | ||
Cooling Method | Natural cooling | Natural cooling | Natural cooling | Liquid cooling |
Protection Class | IP55 | IP55 | IP55 | IP67 |
Power Display | √ | √ | √ | √ |
Alarm System | √ | √ | √ | √ |
GPS Track GPS | √ | √ | √ | |
Remote Communication | √ | √ | √ | |
Remote Control | √ | √ | ||
Main Connector（Rema95016-32） | √ | √ | √ | √ |
Communication Connection (AMP1-965425-1962351-1) | √ | √ | √ | √ |
FSS80400 83.2V 404Ah Forklift lithium battery system
FSS80400 System | Model A | Model B | Model C | Model D |
Rate Voltage (V) | 83.2 | 83.2 | 83.2 | 83.2 |
Voltage Range (V) | 72.8~93.6 | 72.8~93.6 | 72.8~93.6 | 72.8~93.6 |
Rated Capacity (Ah) | 404 | 404 | 404 | 404 |
Max charging current (A) | 150 | 150 | 150 | 150 |
Link Method | 26s2p | 26s2p | 26s2p | 26s2p |
Box Weight ( Kg) | 320 | 320 | 330 | 350 |
Box Size (mm) | 954*670*380 | 954*670*380 | 954*670*380 | 954*670*380 |
Operating temperature | -10℃∽40℃ | -10℃∽40℃ | -10℃∽40℃ | -10℃∽40℃ |
Heating Method | √ | √ | ||
Cooling Method | Natural cooling | Natural cooling | Natural cooling | Liquid cooling |
Protection Class | IP55 | IP55 | IP55 | IP67 |
Power Display | √ | √ | √ | √ |
Alarm System | √ | √ | √ | √ |
GPS Track GPS | √ | √ | √ | |
Remote Communication | √ | √ | √ | |
Remote Control | √ | √ | ||
Main Connector（Rema95016-32） | √ | √ | √ | √ |
Communication Connection (AMP1-965425-1962351-1) | √ | √ | √ | √ |
FSS80540 83.2V 540Ah Forklift lithium battery system
FSS80540 System | Model A | Model B | Model C | Model D |
Rate Voltage (V) | 83.2 | 83.2 | 83.2 | 83.2 |
Voltage Range (V) | 72.8~93.6 | 72.8~93.6 | 72.8~93.6 | 72.8~93.6 |
Rated Capacity (Ah) | 544 | 544 | 544 | 544 |
Max charging current (A) | 150 | 150 | 150 | 150 |
Link Method | 26s2p | 26s2p | 26s2p | 26s2p |
Box Weight ( Kg) | 390 | 390 | 400 | 430 |
Box Size (mm) | 954*822*380 | 954*822*380 | 954*822*380 | 954*822*380 |
Operating temperature | -10℃∽40℃ | -10℃∽40℃ | -10℃∽40℃ | -10℃∽40℃ |
Heating Method | √ | √ | ||
Cooling Method | Natural cooling | Natural cooling | Natural cooling | Liquid cooling |
Protection Class | IP55 | IP55 | IP55 | IP67 |
Power Display | √ | √ | √ | √ |
Alarm System | √ | √ | √ | √ |
GPS Track GPS | √ | √ | √ | |
Remote Communication | √ | √ | √ | |
Remote Control | √ | √ | ||
Main Connector（Rema95016-32） | √ | √ | √ | √ |
Communication Connection (AMP1-965425-1962351-1) | √ | √ | √ | √ |
