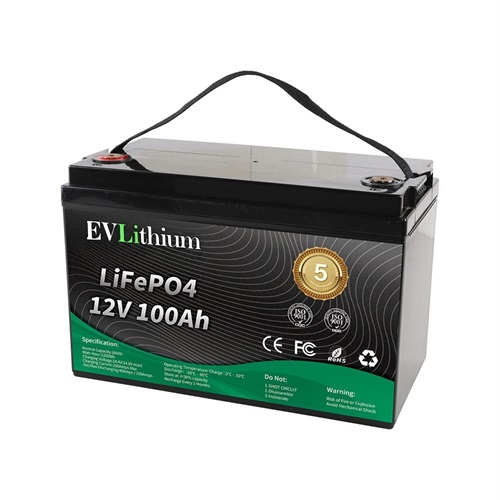

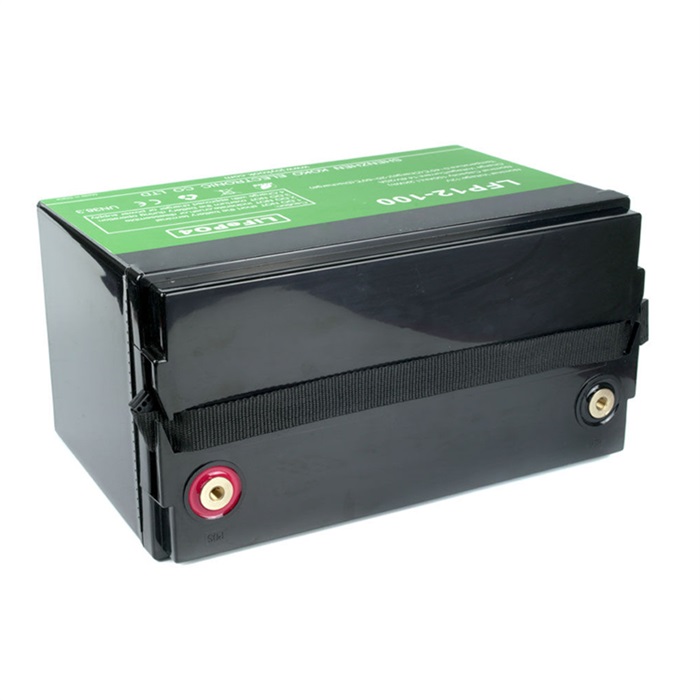

12v 100ah lifepo4 battery pack with long cycle life
Get long-lasting, efficient, and eco-friendly power with a 12v 100ah lifepo4 battery pack. Invest in a reliable and lightweight power source for all your needs
- Category: LiFePO4 Battery
- Tag: lifepo4 battery
Our lifepo4 100ah 12V battery pack has a long cycle life of more than 3500times @80%DOD, can provide long-lasting power for your devices and applications, it also has a performance of efficiency and lightness if you need a portable power source.
Features of 12V 100Ah LiFePO4 Battery pack
1. Using the technology of lithium iron phosphate lifepo4 100ah cell, superior safety, thousands of cycles,100%DOD, under normal conditions
2. Built-in automatic protection for over-charge, over-discharge, over-current and over temperature
3. Maintenance free
4. Internal cell balancing
5. Lighter weight: About 40%~50% of the weight of a comparable lead-acid battery
6. Can be charged using most standard lead-acid chargers
7. Wide temperature range:-20℃~60℃
Applications
1. UPS
2. Solar & Wind power system
3. RV, boad, yacht
4. Electric vehicle, E-bike, E-rickshaw e.g.
5. Lead-acid battery instead
Parameters
Item | Parameters |
Nominal Voltage | 12.8V |
Nominal Capacity | 100Ah |
Cell Type | 100Ah Prismatic Cell |
Dimension | 332mm*172mm*220mm (Customized) |
Charge End Voltage | 14.6V |
Discharge End Voltage | 10.0V |
Charge Method | CC/CV (Constant Current/Constant Voltage) |
Max Continuous Charge Current | 100A |
Max Continuous Discharge Current | 200A |
Max Pulse Discharge Current | 300A/ 3Seconds |
Net Weight | 10.8Kg |
Case Material | ABS |
BMS Protection | Over charge, Balance, Over-discharge, Over-current, Short-circuit, etc. |

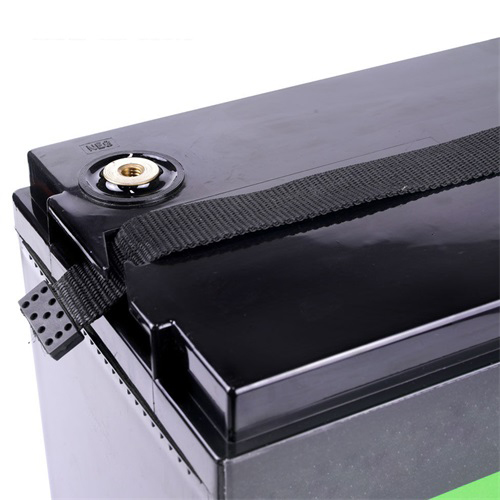

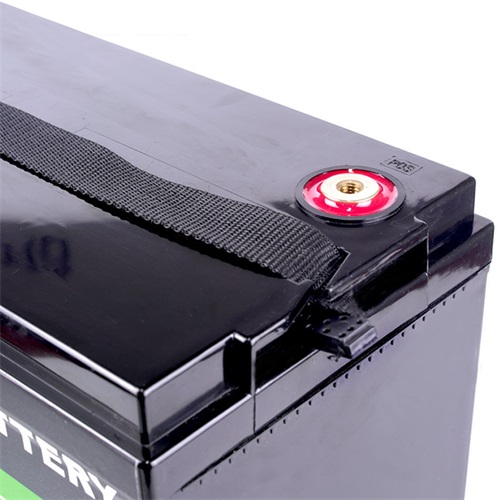

Terminal Type | M6 |
Life Cycle | More than 3500 Cycles at 80% DOD |
Charge Temperature | 0-45℃ |
Discharge Temperature | -20-60℃ |
Storage Temperature | -20-60℃ |
Enclosure Protection | IP65 |
Detail
We also provide brand new, grade A quality 100ah lifepo4 battery cells and BMS for your DIY 12V 100Ah LiFePO4 Battery Pack if you need a more cost-effective solution.
