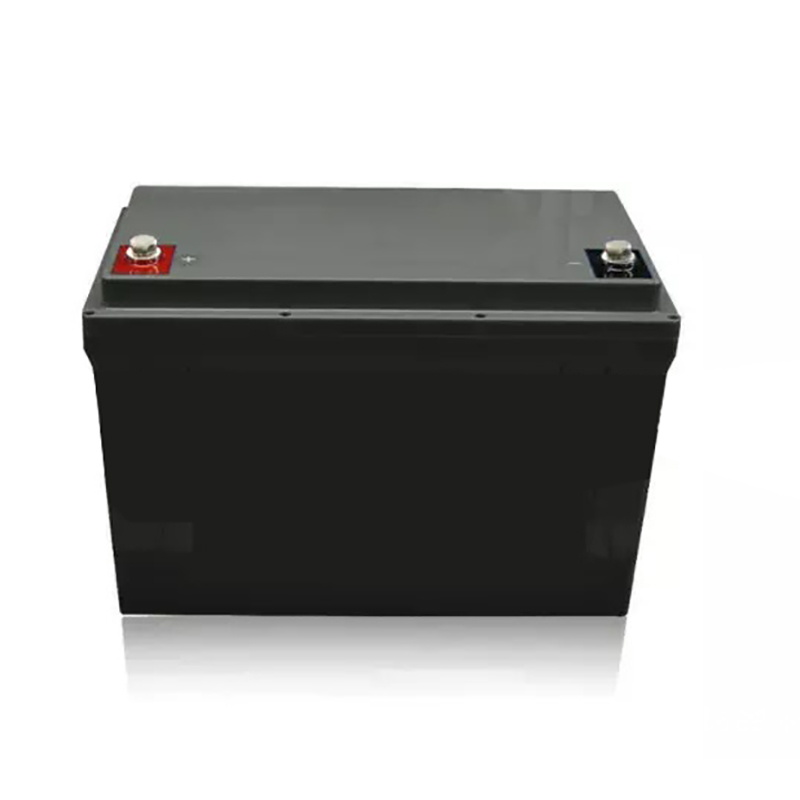

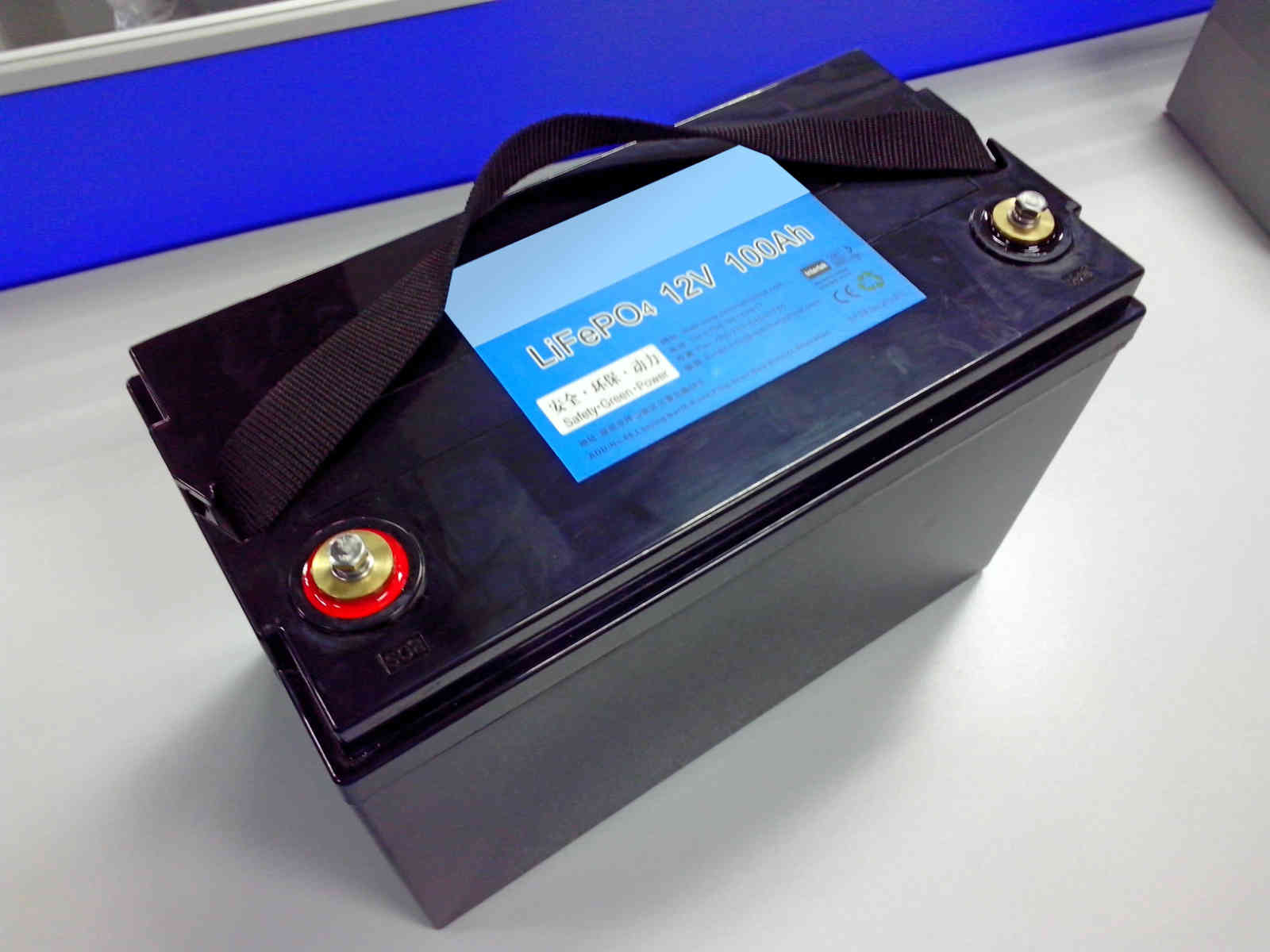

LiFePO4 Lithium Battery 12V 100Ah Pack for Vehicle Starting Battery
LiFePO4 Lithium Battery 12V 100Ah Pack is widely used as a starting battery for all kinds of vehicles and a battery pack for golf cart
- Category: LiFePO4 Battery
- Tag: lifepo4 battery
12V100Ah LiFePO4 battery pack is widely used as a starting battery for all kinds of vehicles and a battery pack for golf cart
Specification
NO | Item | General Parameter | Remark |
1 | Model | IFR 32650-5Ah | Single-cell |
2 | Casing material for single-cell | Nickel plated steel | |
3 | Standard capacity（0.2C 5 A） | 100Ah | |
4 | Rated voltage | 12.8V | |
5 | Max.Charge voltage | 14.6V | |
6 | Cut-off voltage | 10V | |
7 | Standard charge current | 50A | |
8 | Charging Time | About 2h | 0.5C |
9 | Max Continuous discharge current | 100A | 1C |
10 | Max discharge current | 200A | 2C 2mintues |
11 | Peak discharge current | 200A | 2C 10seconds |
12 | Battery dimension | 323±1*171±1*215±1mm | |
13 | Total weight（Approx.) | About15.4kg | |
14 | Impedance（Max, at 1000Hz.） | ≤19mΩ | |
15 | Operating Temperature(CC/CV) | Standard 0℃～45℃ | |
Discharge -20℃～45℃ | |||
Storage -20℃～45℃ |
