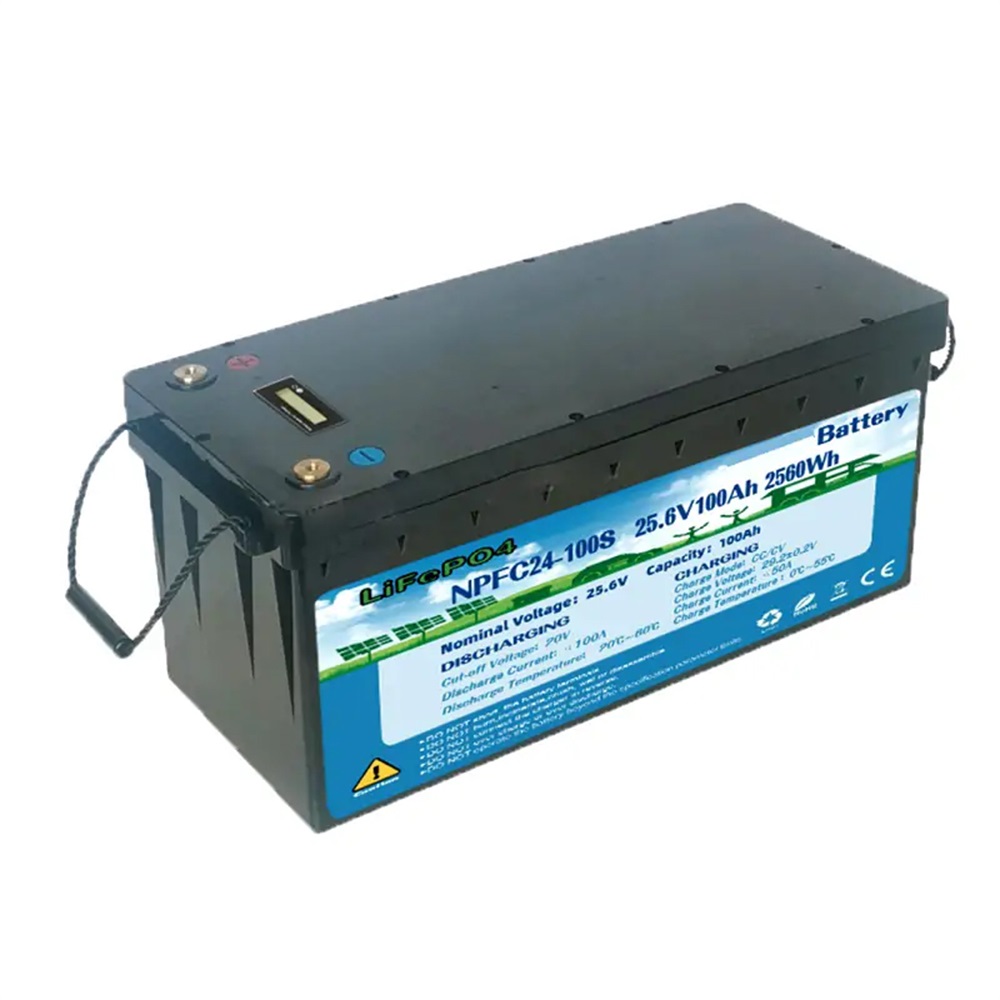

NPFC24-100S 25.6V 100Ah Lithium iron LiFePO4 Battery Pack
NPFC-100S 24V 25.6V 100Ah lithium iron phopshate lifepo4 battery pack
- Category: LiFePO4 Battery
- Tag: lifepo4 battery
NPFC24-100S 25.6V 100Ah Lithium iron phopshate LiFePO4 Battery Pack
Features
Longer Life
More than 2000 cycles at Lab test condition, longer serving time ranges helps vendors to extend the product serving life and help final users to reduce the battery replacement costs.
Lighter Weight
It is equivalent to 40% of the weight of lead-acid battery, which is convenient for handling, taking and placing.
Super Safety
The olivine structure of lithium iron phosphate material is eliminated fundamentally the risk of explosion or combustion due to high-temperature impact, overcharged or short circuit situations. Besides, BMS protection ensures safe and efficient operation.
Specifications
Item | Parameters | |
Electrical Characteristics | Nominal Voltage | 25.6V |
Nominal Capacity | 100Ah | |
Min Capacity | 99Ah | |
Energy | 2560Wh | |
Internal Resistance (AC) | ≤50mΩ | |
Self-discharge Rate | ≤3%/Month | |
Cycle Life (100%DOD) | ≥2,000 cycles | |
Standard Charge | Charge Voltage | Charge Voltage |
Charge Mode | CC/CV | |
Charge Current | 25A | |
Max. Charge Current | 50A | |
Standard Discharge | Continues Discharge Current | 100A |
Max. Pulse Current | 300A(≤50mS) | |
Discharge Cut-off Voltage | 20V | |
Environmental | Charge Temperature | 0℃-55℃ |
Discharge Temperature | -20℃-60℃ | |
Storage Temperature | -20℃-45℃ | |
IP Class | IP65 | |
Mechanical | Cell | 2670-4Ah-3.2V |
Configuration | 8S25P | |

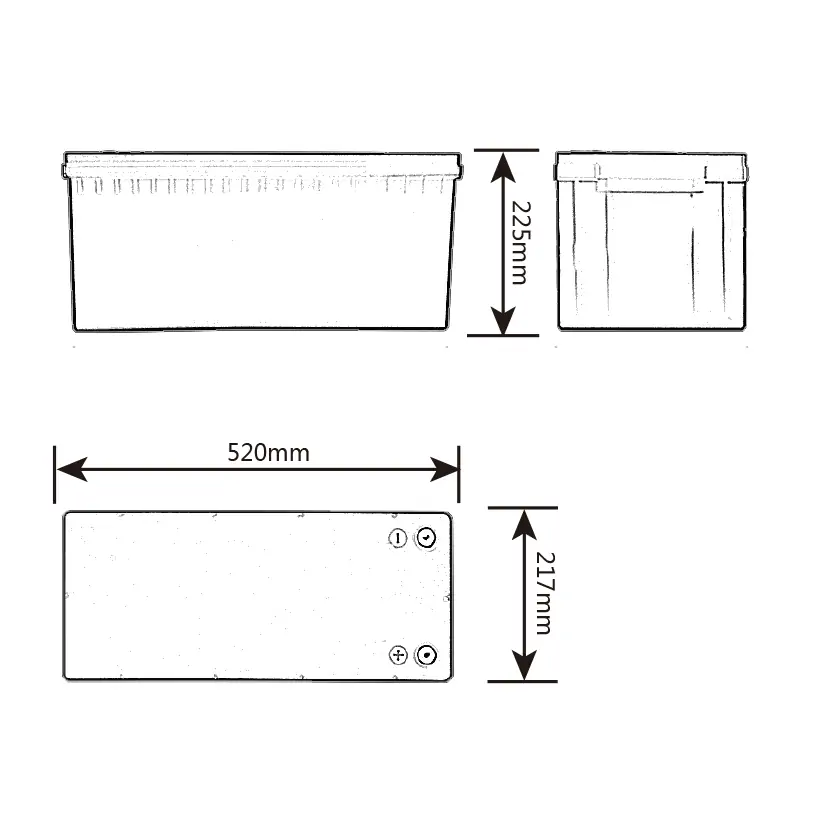

Dimension(L*W*H) | 520*217*225mm | |
Material of case | ABS plastic | |
Weight | About 23.5Kg | |
Color | Black or other | |
Terminal | M8 |
Details
Applications
Solar Light, Marine, RV, and Golf cart, Energy Storage System
