100ah 3.2V 100Ah Lifepo4 Prismatic Battery Cell

3.2V 100Ah lithium iron phosphate lifepo4 prismatic battery cell

Applications

DIY Lifepo4 Battery Pack, Solar system, Energy Storage (ESS), Electric vehicles, Golf carts, RV

High Energy Density

Long Cycle Life

Good performance at high/low temperature

High-rate continuous discharge

Automatic production, good consistency

Environment-Friendly

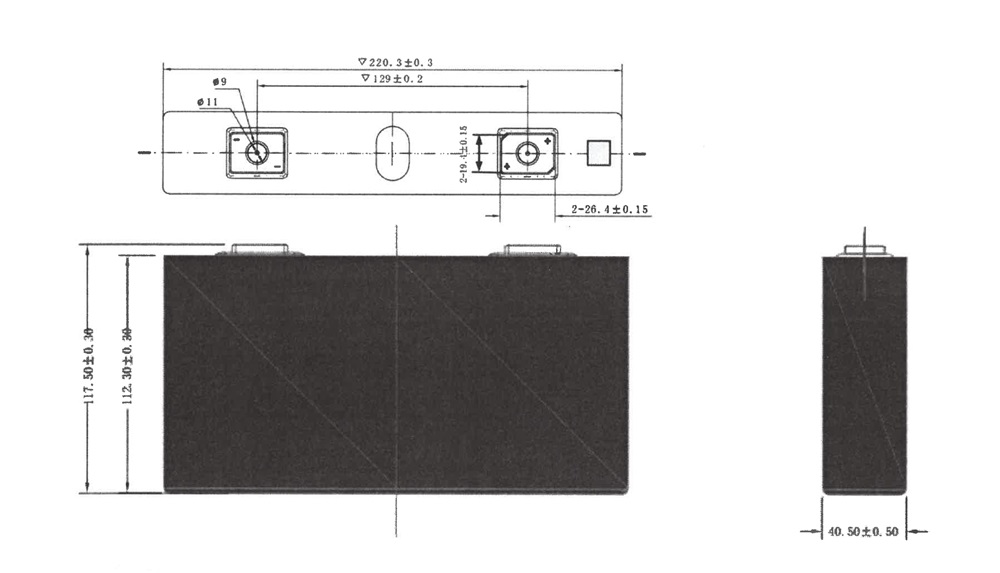

dimension

Item	Parameter
Minimal capacity	100Ah
Typical capacity	101Ah
Nominal voltage	3.2V (0.5C)
Charge ending voltage	3.65V
Discharge ending voltage	2.5V (>0°C) 2.0V (≤0°C)
Nominal energy	320Wh
Max. charge limited current at room temperature (not for cycle)	150A (Continuous) 300A (50%SOC, 10s)
Max. discharge limited current at room temperature (not for cycle)	200A (Continuous) 300A (50%SOC, 10s)
Charge temperature range	0~+55°C
Discharge temperature range	-20~+60°C
Internal resistance	≤0.6mΩ (AC Impedance, 1000 Hz) typical: 0.4mΩ
Cycle life	≥2000cycles(1C/1C, RT) ≥3000cycles(0.5C/0.5C, RT)
Weight	2.98±0.10kg

· Don’t immerse the battery in water and seawater. Please put it in cool and dry environment if no using.

· Don’t use and leave the cell near a heat source such as fire or heater.

· Do not use or leave the cell under the blazing sun (or in heated car by sunshine).

· Being charged, using the battery charger specifically for that purpose.

· Don’t reverse the positive and negative terminals.

· Do not disassemble or modify the cell.

· Do not use the cell with conspicuous damage or deformation.

· Don’t connect the cell to an electrical outlet directly.

· Don’t discard the cell in fire or heater

· Do not short circuit, over-charge or over-discharge the cell.

· Battery pack designing and packing Prohibition injury batteries.
