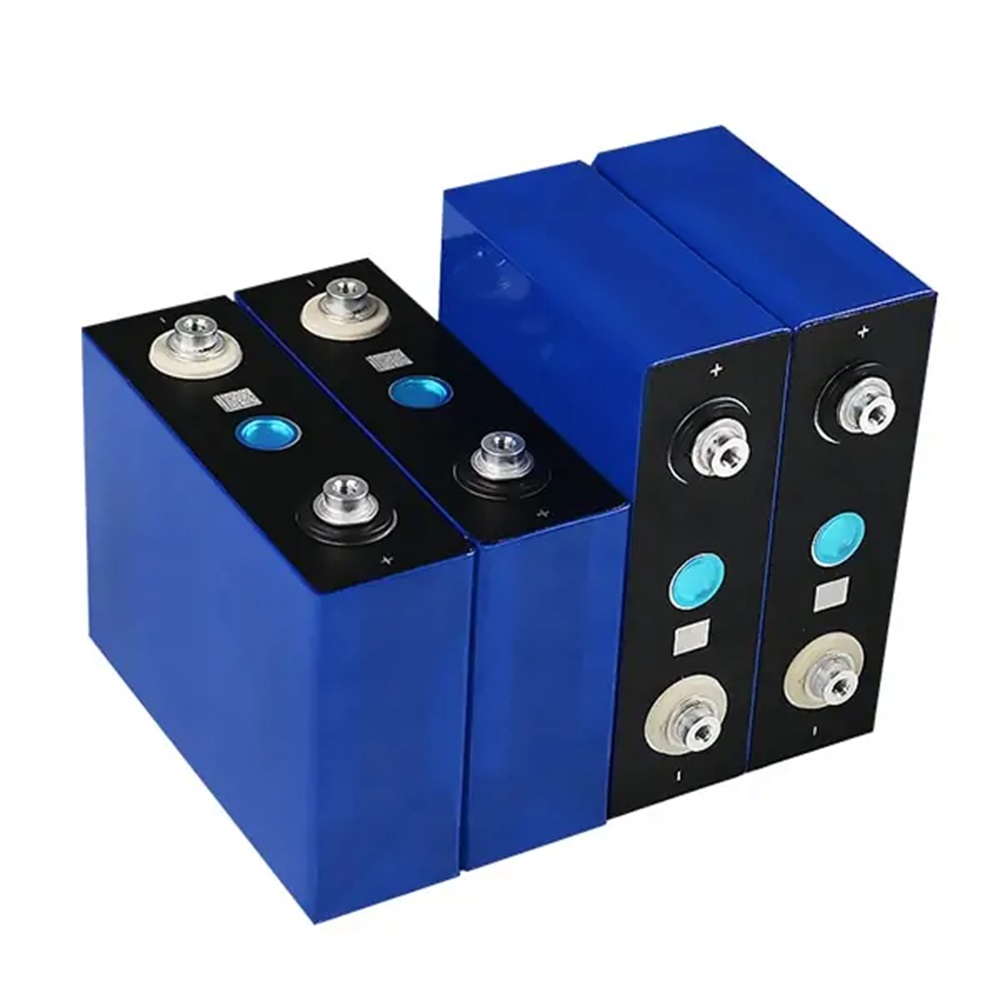

3.2V 102Ah LiFePO4 Prismatic Battery Cell
Product model: LFP(SG)50160118 aluminum prismatic cell of lithium iron phosphate battery
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
Product model: LFP(SG)50160118 alumimum prismatic cell of lithium iron phosphate battery
Discover the 3.2V 102Ah LiFePO4 Prismatic Battery Cell, your key to uninterrupted energy solutions. This high-performance battery cell is engineered to meet your power needs with exceptional reliability.
Product Features
1.The big capacity 3.2V 102Ah prismatic LiFePO4 battery cell with good performance.
2. Nice performance on safety:It is almost the safest lithium battery type recognized in this industry.
3. Lithium iron phosphate is a new type of electrode material for lithium-ion batteries. It is characterized by large discharge capacity, low price, non-toxicity and no environmental pollution.
4. Specially designed for power supply application like EV.
5. long cycle life more than 3000times@80%DOD
6. 1C charging and 2C discharging rate
Product Parameters
Item | Specification |
Nominal Capacity | 102Ah |
Nominal Voltage | 3.2V |
AC Impedance | ≤0.5mΩ (1khz@50%SOC) |
Charging Cut-off Voltage | 2.5V(T>0℃) 2.0V(T<0℃) |
Maximum Continuous Charging Current | 100A |
Maximum Continuous Discharging Current | 200A |
Cycle Life | 3000 cycles @80%DOD |
Operating Temperature Range | Charging: 0~60℃ Discharging: -20~60℃ |
Storage Environment | -40~60℃ 5%RH~95%RH |
Dimension | 115.5(H)*160(W)*49.9(D)mm |
Weight | 1950±75g |
