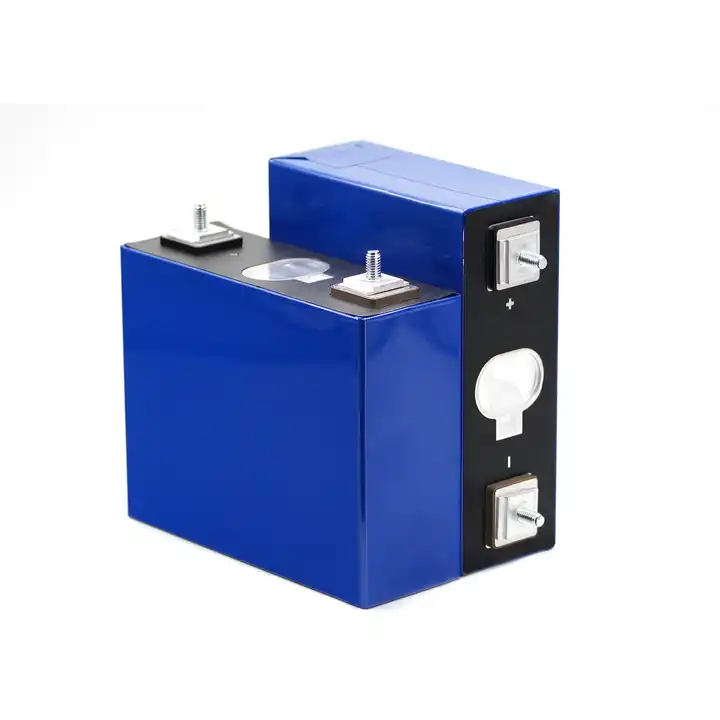

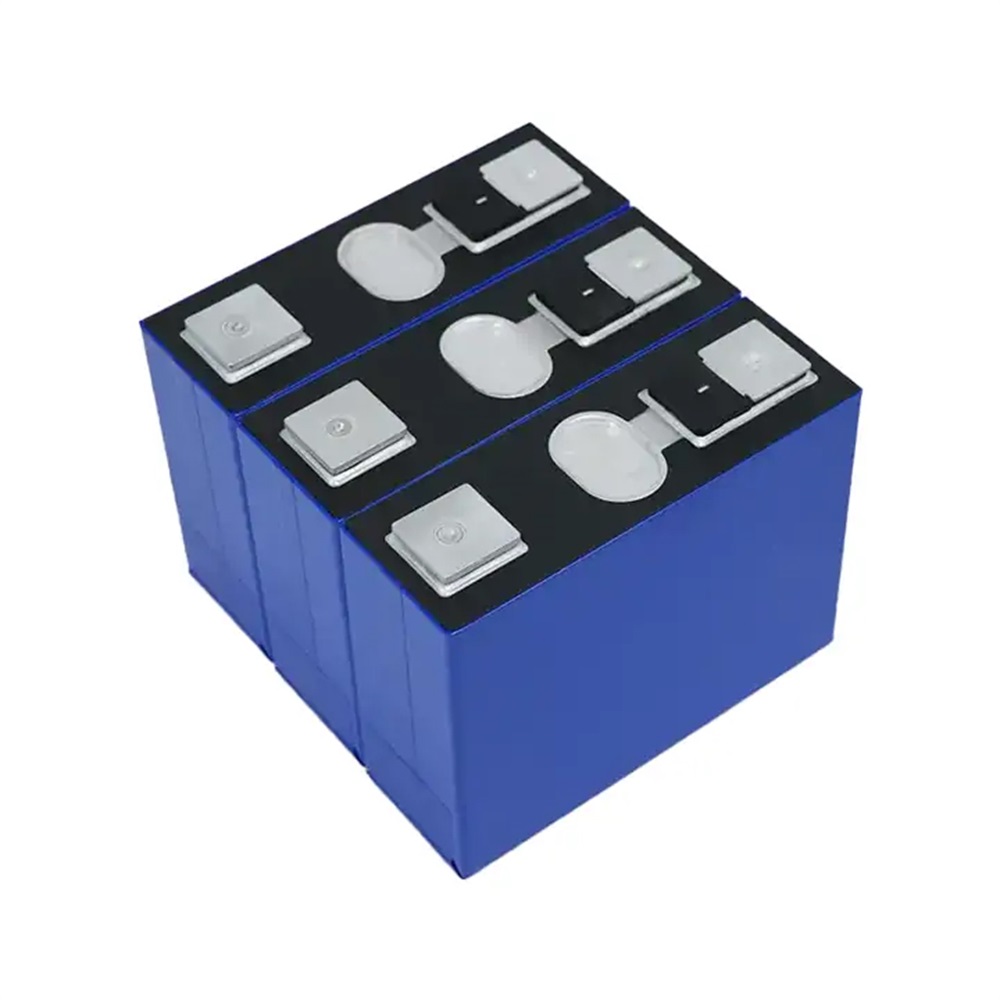

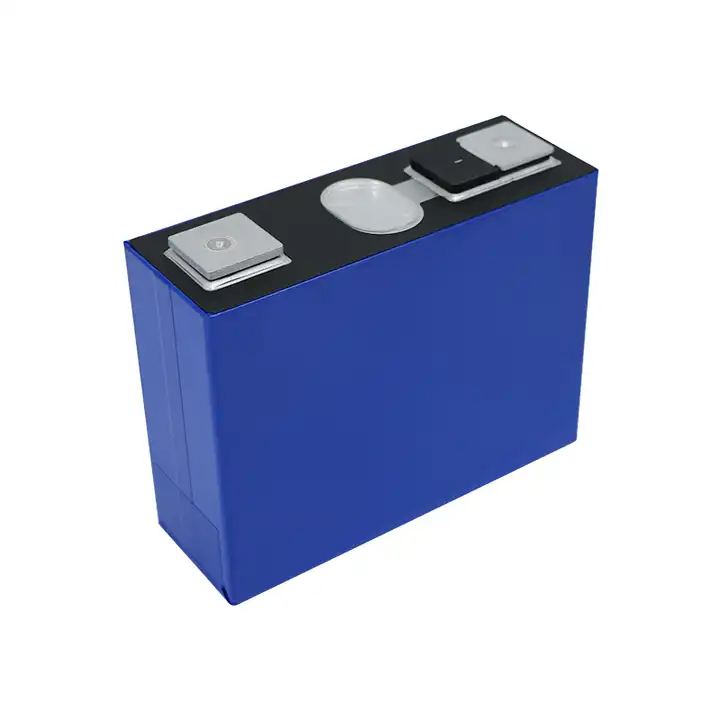

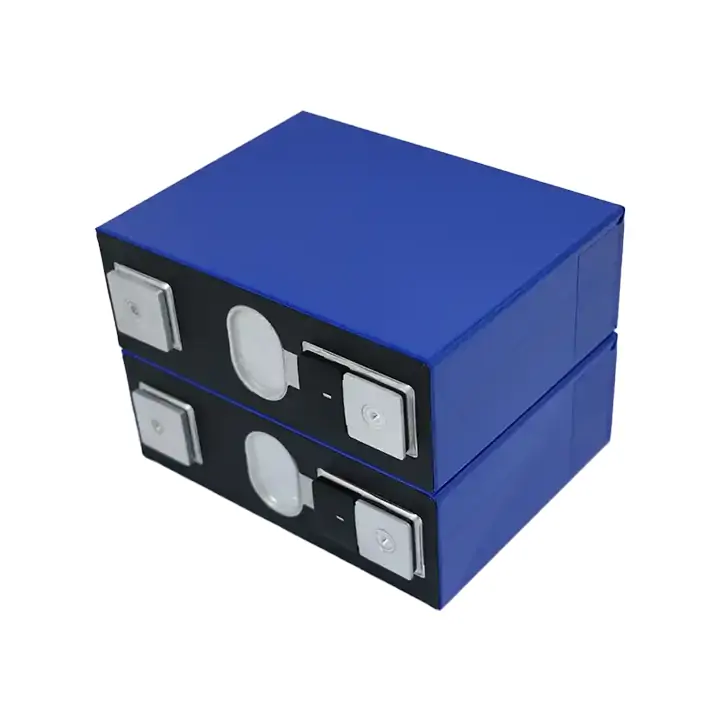

3.2V 106Ah Prismatic LiFePO4 Battery Cell

3.2V 106Ah Brand New Grade A Prismatc LiFePO4 Battery Cell For EV, ESS, solar system, etc.

3.2V 106Ah Prismatic LiFePO4 Battery Cell3.2V 106Ah Prismatic LiFePO4 Battery Cell


3.2V 106Ah Brand New Grade A Prismatc LiFePO4 Battery Cell For EV, ESS, solar system, etc.

1. Our batteries are sourced directly from SVOLT, ensuring they are Grade A, brand new, and have the guaranteed capacity.

2. We offer a welded screw service for the terminals, including complimentary bus bars, nuts (material: copper), one bus bar, two screws, and two washers for each 106ah battery cell.

3. Our batteries come with certifications including CE, MSDS, UN, and UL. Please reach out to us if you require these documents


Specifications


Item

Specification

Condition

Nominal Capacity

≥106Ah

≥104Ah

25℃, 106A(1C) DC to 2.0V

25℃, 34.7A(1/3C) DC to 2.0V



Energy

≥341.3Wh

≥332.8Wh

25℃, 106 A(1C) DC to 2.0V

25℃, 34.7 A(1/3C) DC to 2.0V

Specific Energy

≥176.8Wh/Kg

≥172.4Wh/Kg

25℃, 106 A(1C) DC to 2.0V

25℃, 34.7 A(1/3C) DC to 2.0V

Operating voltage

2.0 ~ 3.65 V


ACR(1KHz)

0.2~0.4mΩ

25℃, BOL, 30%SOC

ACR mean(1KHz)

0.30±0.05mΩ

25℃, BOL, 30%SOC

Outgoing Voltage

3.29±0.005V

25℃, BOL, 30%SOC

Outgoing capacity

≥106 Ah

25℃, 34.7A (1/3C) DC to 2.0V

Operating temperature

Charge: 0 ~ 55℃

Discharge: -30 ~ 60℃


Cycle life

≥3500(80%SOH)

25℃ 0.5C/1C, 100%DOD

Discharge power@25℃

≥1350W

25±2℃, ≥30%SOC, 10 s, BOL

Discharge power density@25℃

≥700W/Kg

25±2℃, ≥30%SOC, 10 s, BOL

Recommended SOC range

2% - 99%


Cell weight

1935±30 g


Cell dimension

117.2(L)*52.3(T)*147.3(W)mm




Details

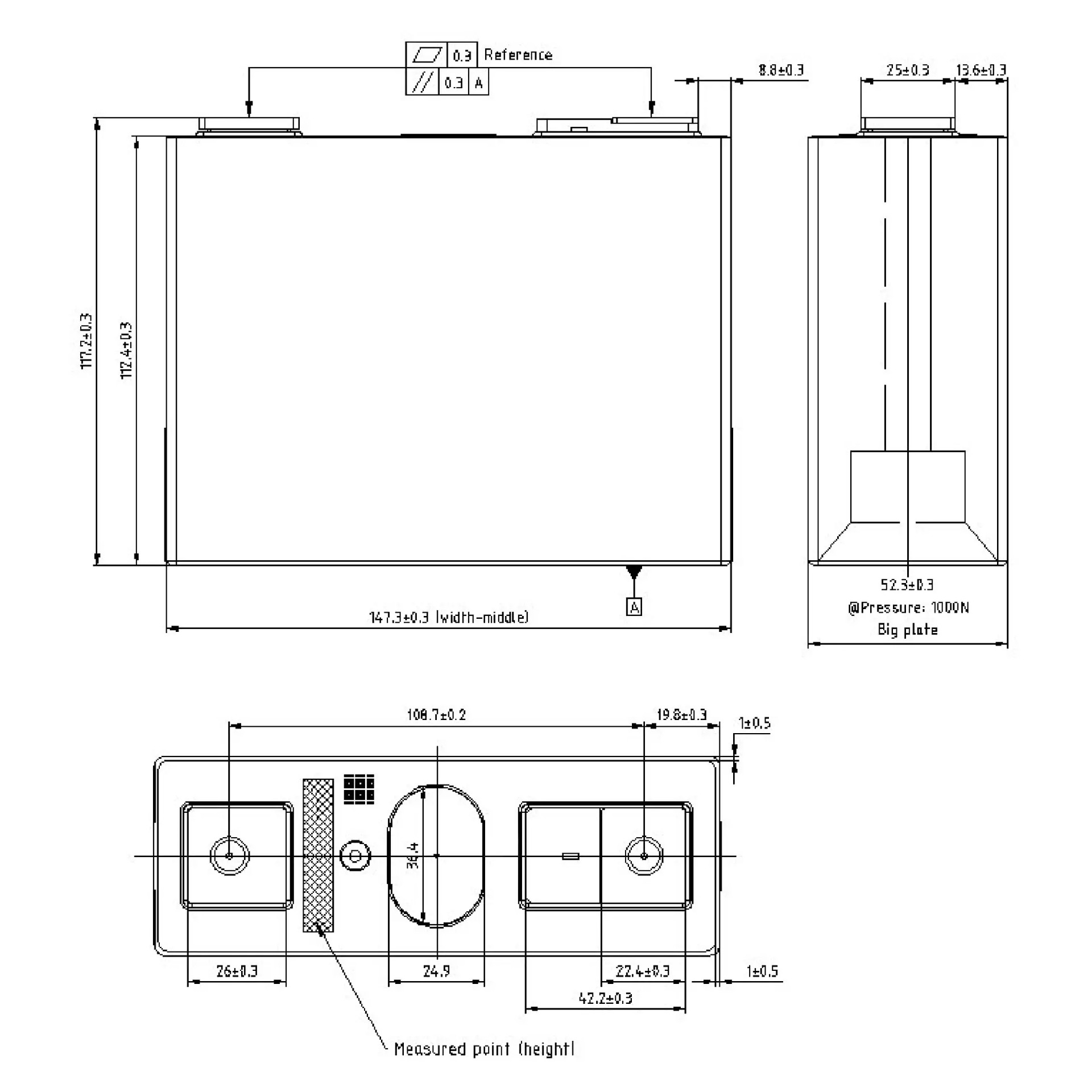

3.2V 106Ah Prismatic LiFePO4 Battery Celldimension


application
