3.2V 10ah High Rate Battery lifepo4 battery Cells

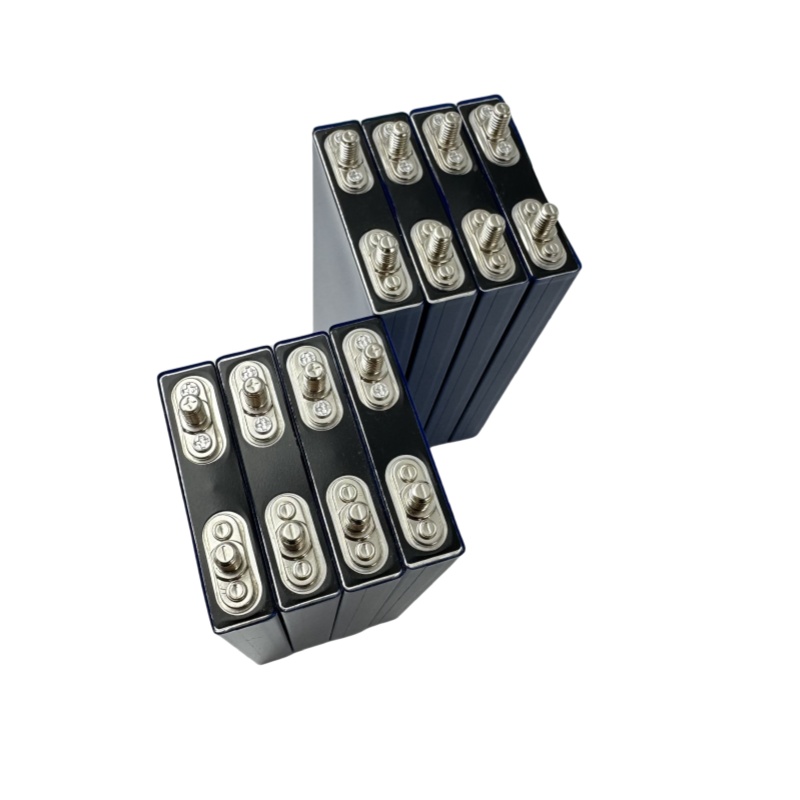

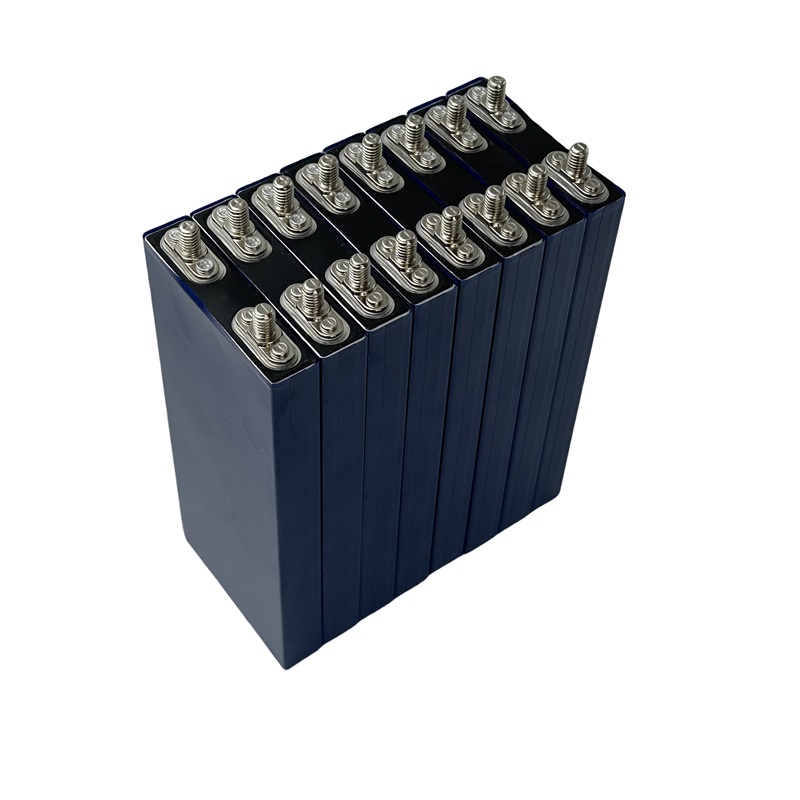

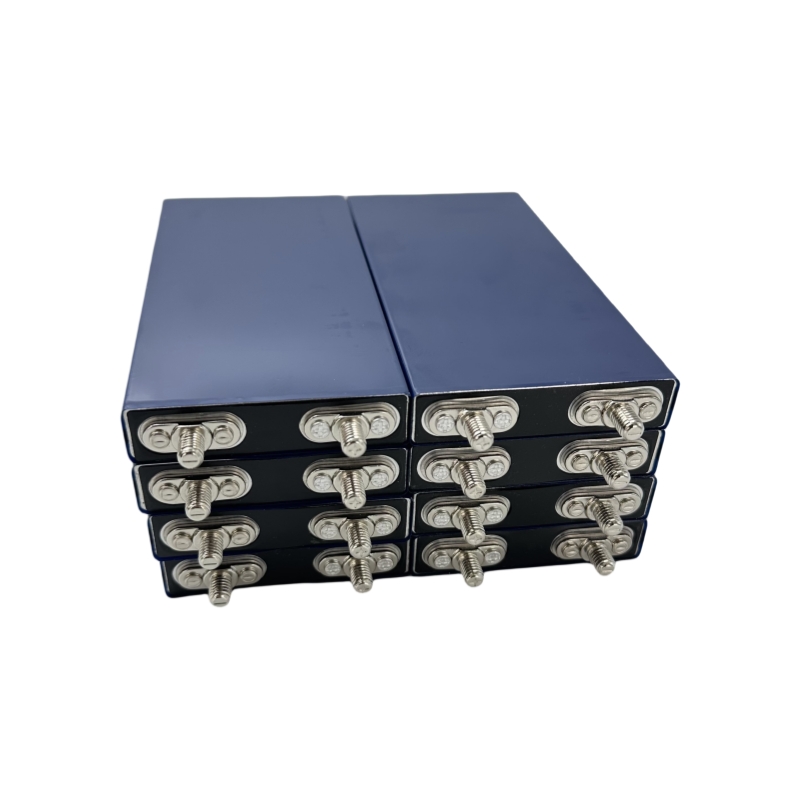

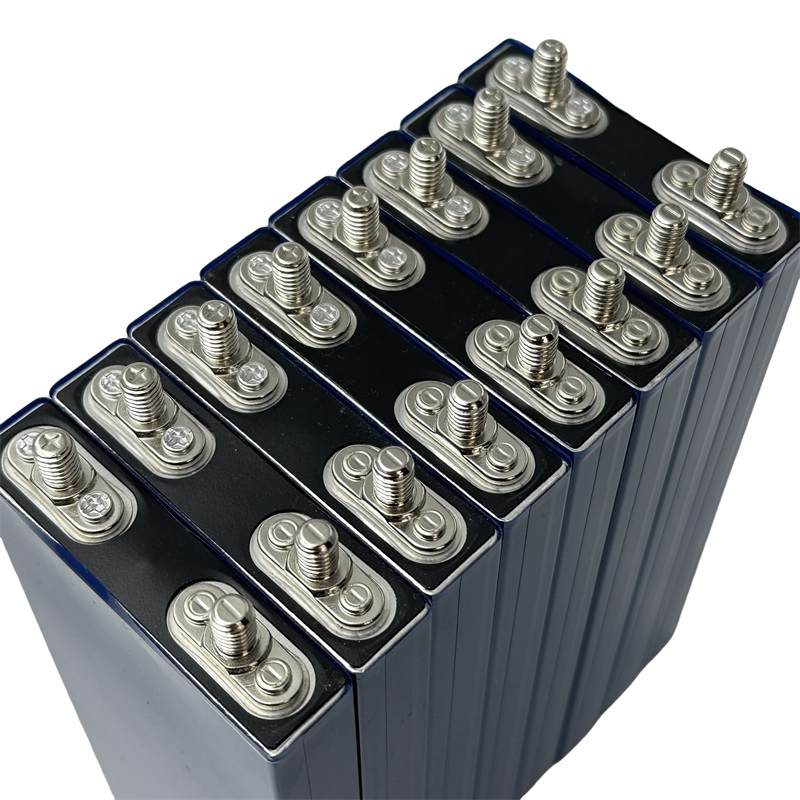

3.2V 10Ah lithium iron phosphate high rate battery prismatic lifepo4 lfp power battery cell

Parameters


Items

Criteria

Shell

Aluminum Alloy 3003

Nominal Capacity

10Ah

Energy

32Wh

Nominal Voltage

3.2V

Open Circuit Voltage

3.2-3.4V

Internal Impedance

≤6.0mΩ

End of Charge Voltage

3.65V±0.05V

Std. Charge Current

10A(1C)

Std. Discharge Current

10A(1C)

Max. Continuous Charge Current

20A(2C)

Max. Continuous Discharge Current

30A(3C)

Max. Pulse Discharge Current(10s)

50A(5C)

Discharge cut-off Voltage

2.5V

Operating Temperature

0~+45℃

-20~+55℃

Storage Temperature

-10~+45℃

-10~+35℃

Weight

<276g

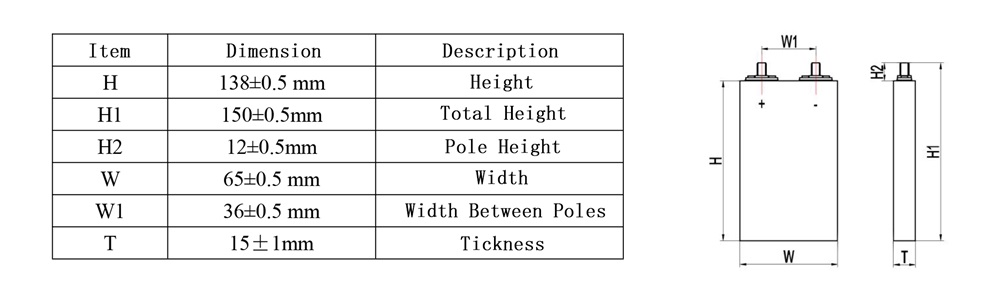

Battery Size Draft

spdcification and dimension


Application Area

3.2V 10Ah prismatic power lithium lfp battery cells, can be widely used in communication station, UAV, Golf carts, electric forklifts, e-wheelchair, lawn mover, low speed vehicles, etc.

application

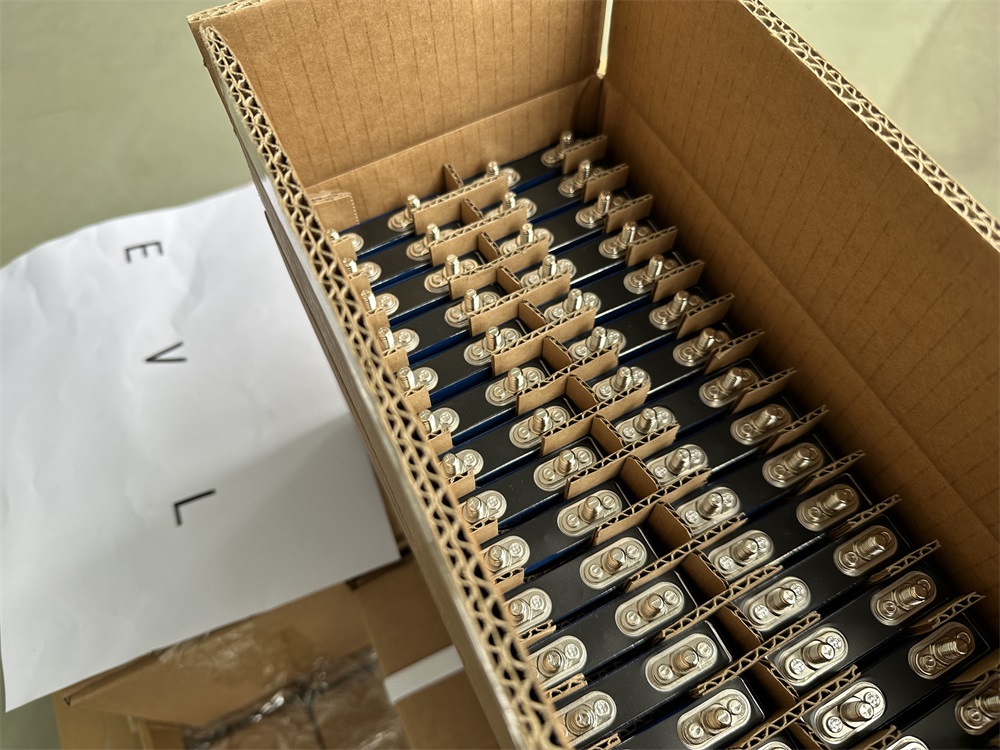

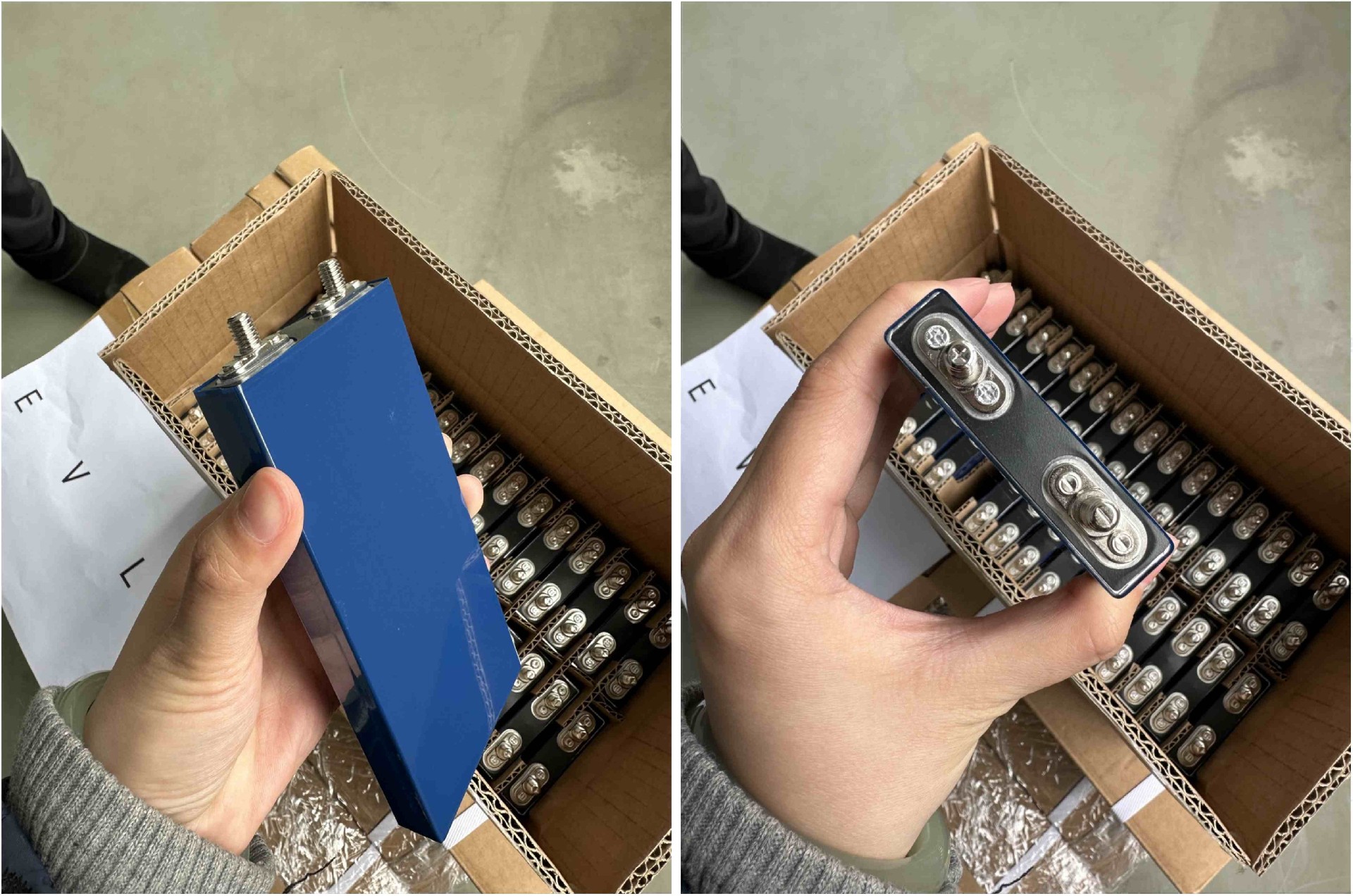

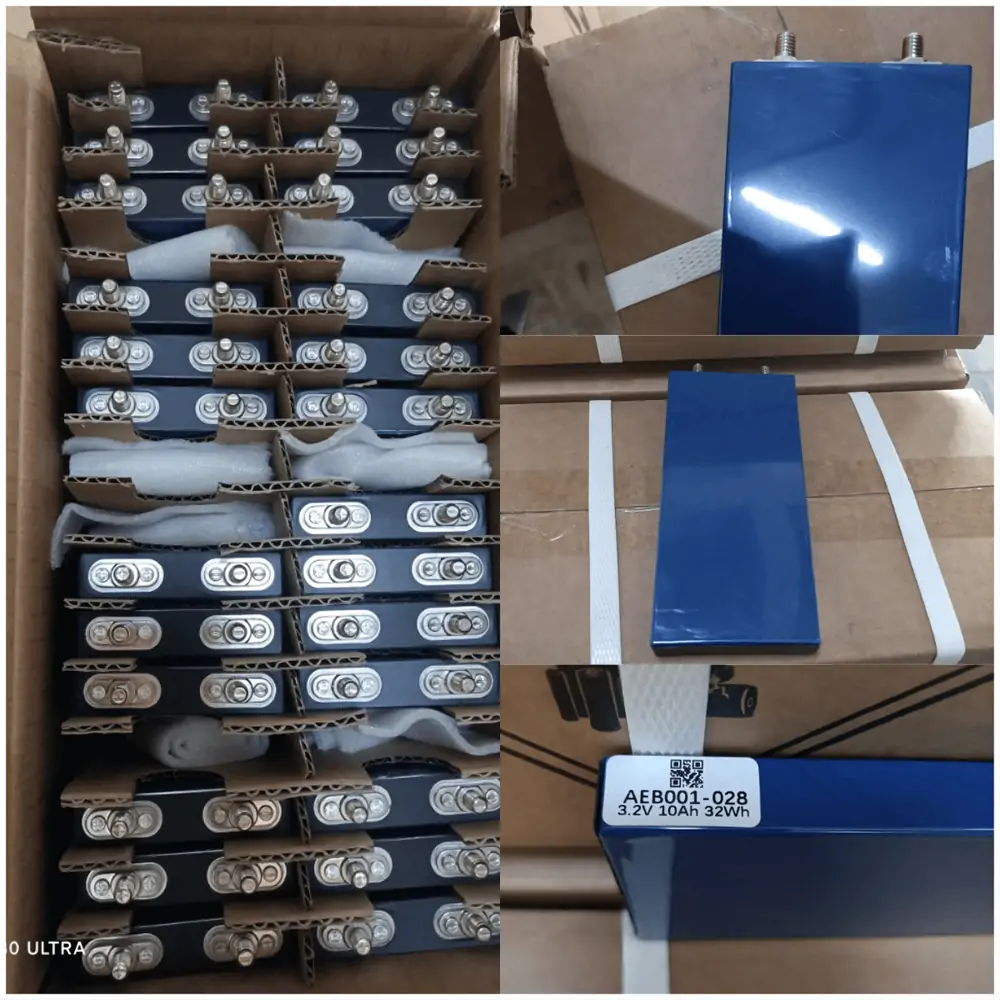

Recent Shipments of 3.2V 10ah High Rate LiFePO4 Battery LFP Cells


shipments
