3.2V 1100mah 18650 JGPFR18650 Cylindrical Lithium ion LiFePO4 Battery Cell with Certification
3.2V 1100mah 18650 JGPFR18650 Cylindrical Lithium ion LiFePO4 Battery Cell with Certification: CE/UL/CB/ROHS/BIS/KC/MSDS/UN38.3
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
Main Features:
Nominal capacity: 1100 mAh
Nominal voltage: 3.2 V
Internal Resistance: ≤18mΩ
Max. Charging Current: 5.5A
Discharge Cut-off Voltage: 2.5V
Standard Discharge Current: 5.5A
Fast Discharge Current: 11A
Max. Continuous Discharge Current: 33A（Only for single cell）
Pulse Discharge Current: 40A，10s
Cycle Characteristic: 500 times（100%DOD）,1000 times（80%DOD）,3000 times（50%DOD）

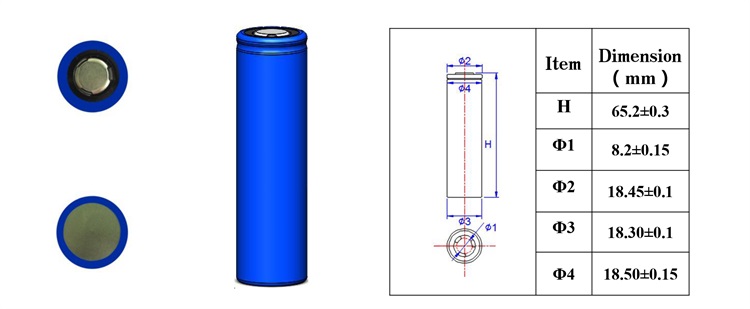

Dimension: 65.2mm (L) x 18.45 mm (D) Weight: 40g
·Advantages:
Light weight and high performance
Small internal resistance
High energy density, low self-discharge
Pollution free, long cycle life
No memory effect
Existing stock for short delivery time.
OEM orders are available (battery pack, battery with spot welding ect.)
Specifications of 18650 lifepo4 battery cell
Item | Parameter Specification | |
1 | Model No. | 18650-1100mAh-3.2V |
2 | Nominal Capacity | 1100mAh |
3 | Operating voltage | 2.5~3.65V |
4 | AC internal resistance | ≤ 18mΩ |
5 | Maximum charging current | 5.5A |
6 | Discharge cut-off voltage | 2.5V |
7 | Standard continuous discharge current | 5.5A |
8 | Fast continuous discharge current | 11A |
9 | Maximum continuous discharge current | 33A |
10 | Pulse discharge current | 40A, 10s |
11 | Working temperature | Charging: 0℃～55℃ |
Discharge: -20℃～60℃ | ||
12 | Storage temperature | -20℃～55℃ |
13 | Battery weight | 39.5g (approx.) |

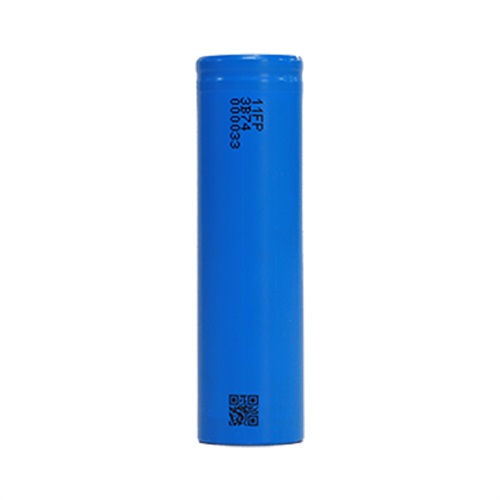

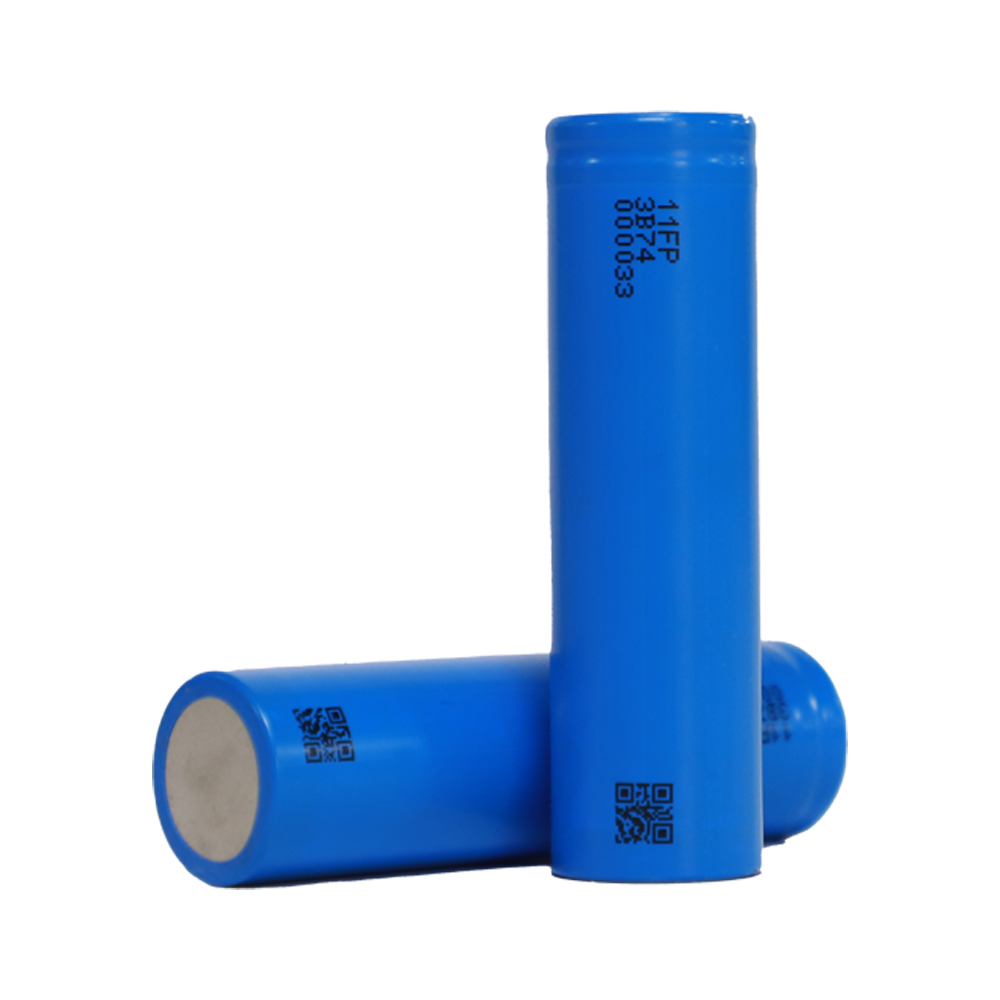

Details of 18650 lithium battery
Application:
Widely used in energy storage power station, communication base station, UPS backup power source, solar and wind power generation, electric bus, electric tools, ship, yacht, rail transit, electric motorcycle, golf cart, golf trolley, medical instrument.
·Certificate
CE/UL/CB/ROHS/BIS/KC/MSDS/UN38.3
