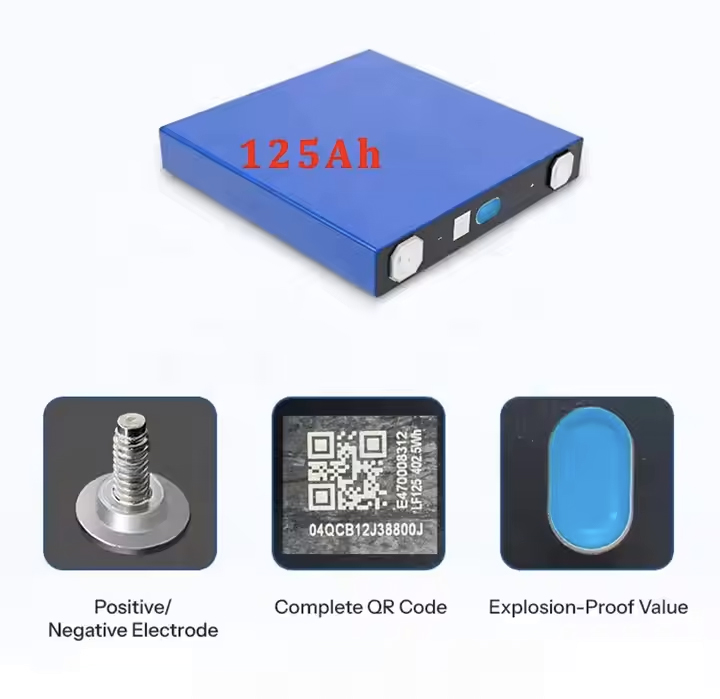

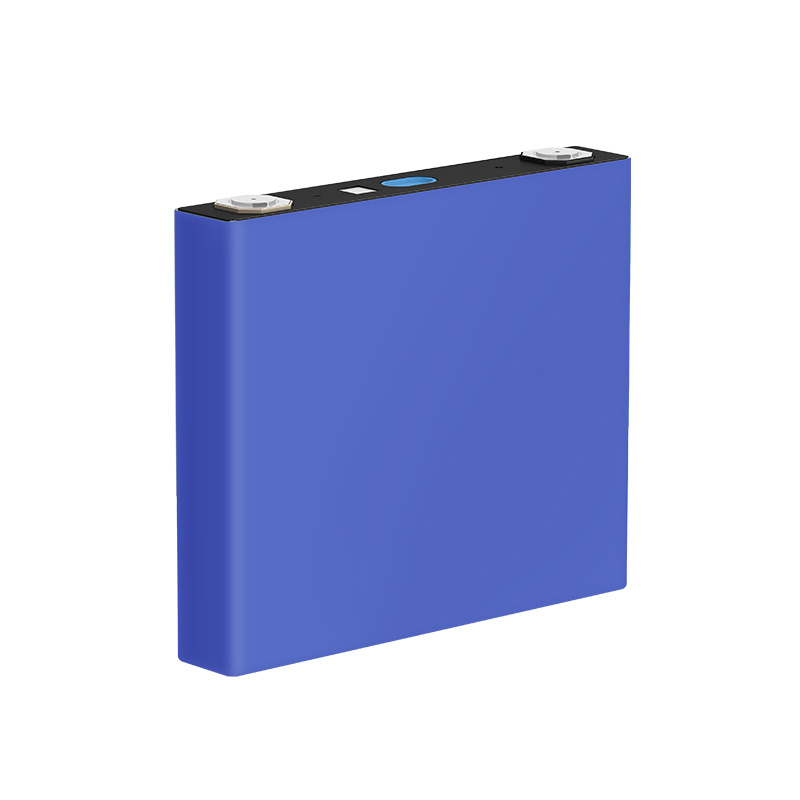

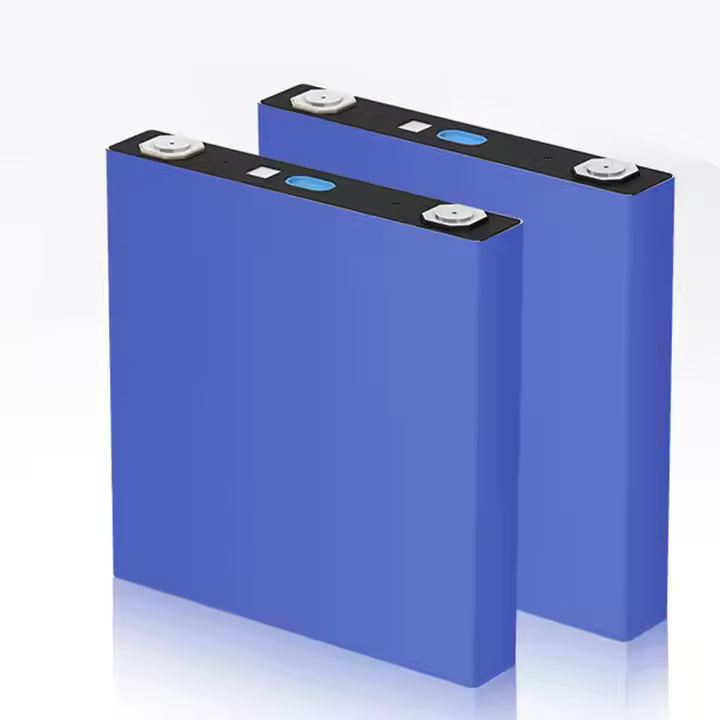

3.2V 125Ah LiFePO4 Prismatic Power Battery Cells With High Rate
3.2V 125Ah high discharge rate lithium lifepo4 prismatic power cells for Commercial vehicles, heavy trucks, light trucks
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
Feature
Automated： Automated production/Product consistency
Ultra-Safe： Explosion-proof/ No leakage
Stable ：Low IR / High CR / Discharge steadily
Customized Custom-mad e：CustomerDemand Customization
Super Lo ng：Ultra-long life cycle
Environmentally Frien dly：Passed environmental system certification
Specifications
Parameter | Specification |
Nominal Capacity | 125Ah |
Nominal Voltage | 3.22V |
Initial IR | 0.40 m2 + 0.05 mΩ |
Weight | 2390g士 71g |
Charging Cut-off Voltage | 3.65 V |
Discharging Cut-off Voltage | 2.5 VT>0℃)2.0VT≤ 0℃) |
Charging Temperature | -10 ℃~65℃ |
Discharging temperature | -35℃~65℃ |
Storage Temperature | -20℃~45℃ |
Model Name | LF125P |
Cycle Life | 4000 Cycles |
Standard Charging/Discharging Current | 125A |
Maximum continues Charging/Discharging current | 375A, 3C 25+2°C |
Maximum instantaneous Charging current | 500A, 30 s,≤ 40% SOC, 25°℃+ 2°℃ |
Maximum Instantaneous Discharging Current | 625A, 30 s,≥ 30% SOC, 25'℃ + 2°℃ |

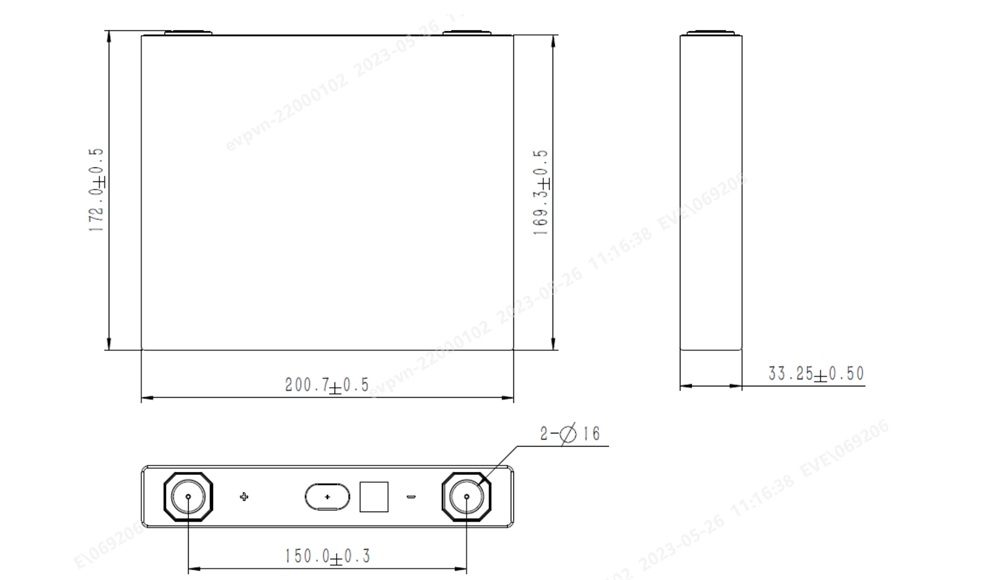

Height(H) with terminal | 172.00 mm 士 0.50 mm |
Height(h) without terminal | 169.30 mm 士 0.50 mm |
Length | 200.70 mm 士0.50 mm |
Thickness | 33.25 mm + 0.50 mm |
Details
Applications
Excavators, heavy trucks, forklifts, passenger cars
bulldozers, heavy trucks, forklift, buses, and passenger cars
Transportation and Handling Requirements
· It is not allowed to ship with inflammable, explosive, and corrosive articles in the same vehicle during transportation, and stacking is prohibited during large package transportation; The product shall not be exposed to rain, snow,w and other liquid substances without any protection, or suffer mechanical damage;
· While handling, lift trucks or special tools shall be used to load and unload products; Handle with care, do not throw or squeeze, which may cause cell damage or personal injury. It is strictly prohibited to put cells together with corrosive substances such as acid and alkali.
