3.2V 134Ah Prismatic LiFePO4 Battery Cell
3.2v 134Ah Rechargeable prismatic LiFePO4 cell electric car battery for EV solar energy storage system
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
3.2v 134Ah Rechargeable prismatic LiFePO4 cell electric car battery for EV solar energy storage system
3.2V 134Ah Brand New Grade A Prismatic LiFePO4 Battery Cell For EV, ESS, solar system, etc.
1. Our batteries are sourced directly from SVOLT, ensuring they are Grade A, brand new, and have the guaranteed capacity.
2. We offer a welded screw service for the terminals, including complimentary bus bars, nuts (material: copper), one bus bar, two screws, and two washers for each 106ah battery cell.
3. Our batteries come with certifications including CE, MSDS, UN, and UL. Please reach out to us if you require these documents.
Specifications
Item | Specification | Condition |
Nominal Capacity | ≥131Ah ≥134Ah | 25℃, 134A(1C)DC to 2.5V 25℃, 44.7A(1/3C)DCto2.5V |
Energy | ≥421.82Wh ≥431.48Wh | 25℃, 134A(1C)DCto2.5V 25℃, 44.7A(1/3C)DCto2.5V |
Specific Energy | ≥174.31Wh/Kg ≥178.30Wh/Kg | 25℃, 134A(1C)DC to 2.5V 25℃, 44.7A(1/3C) DC to 2.5V |
Operating voltage | 2.5~3.65V 2.0~3.65V 2.0~3.65V | -5℃<T≤55℃ |
-20℃<T≤-5℃ | ||
-30℃<T≤-20℃ | ||
ACR(1KHz) | ≤0.350mΩ | 25℃,BOL,50%SOC |
ACR mean(1KHz) | ≤0.350mΩ | 25℃,BOL,50%SOC |
Outgoing Voltage | 3.22±0.005V | 25℃, BOL, 50%SOC |
Outgoing capacity | ≥134Ah | 25℃,44.7A(1/3C) DC to 2.5V |
Operating temperature | Charge: -20~55℃ Discharge: -30~60℃ | |
Cycle life | ≥3000； ≥3800； ≥2000; | 25℃, Stepcharge/1C, 3-97%SOC, 80%SOH； 25℃, stepcharge/1C, 3-97%SOC, 70%SOH； 45℃, stepcharge/1C, 3-97%SOC, 70%SOH |
Discharge power | ≥1456W | 25±2℃, 50%SOC, 10s, BOL |
Discharge power density | ≥601W/Kg | 25±2℃, 50%SOC, 10s, BOL |
Recommended SOC range | 2% - 99% | |
Cell weight | 2420±30g | |

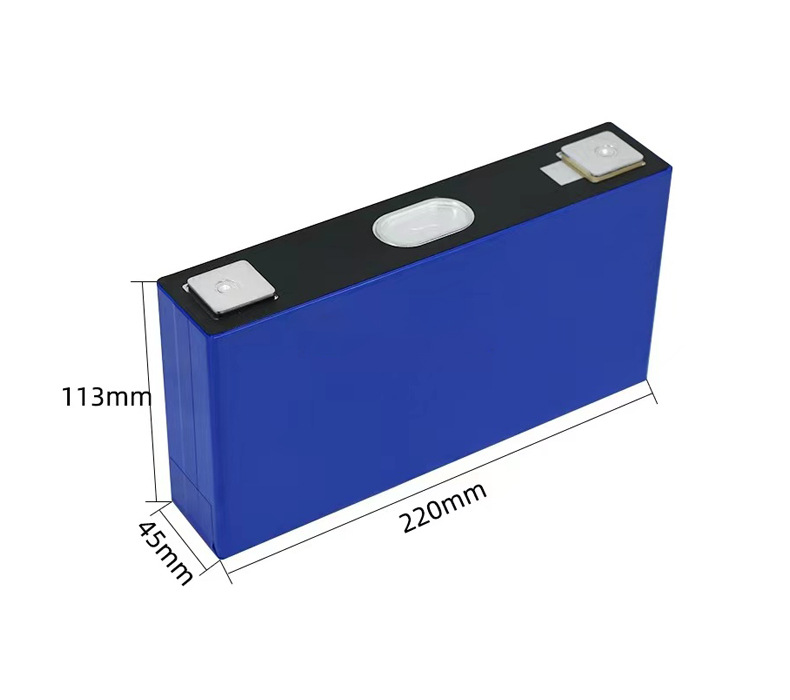

Cell dimension | 220(W)*44.6(T)*112(H)mm |
Details

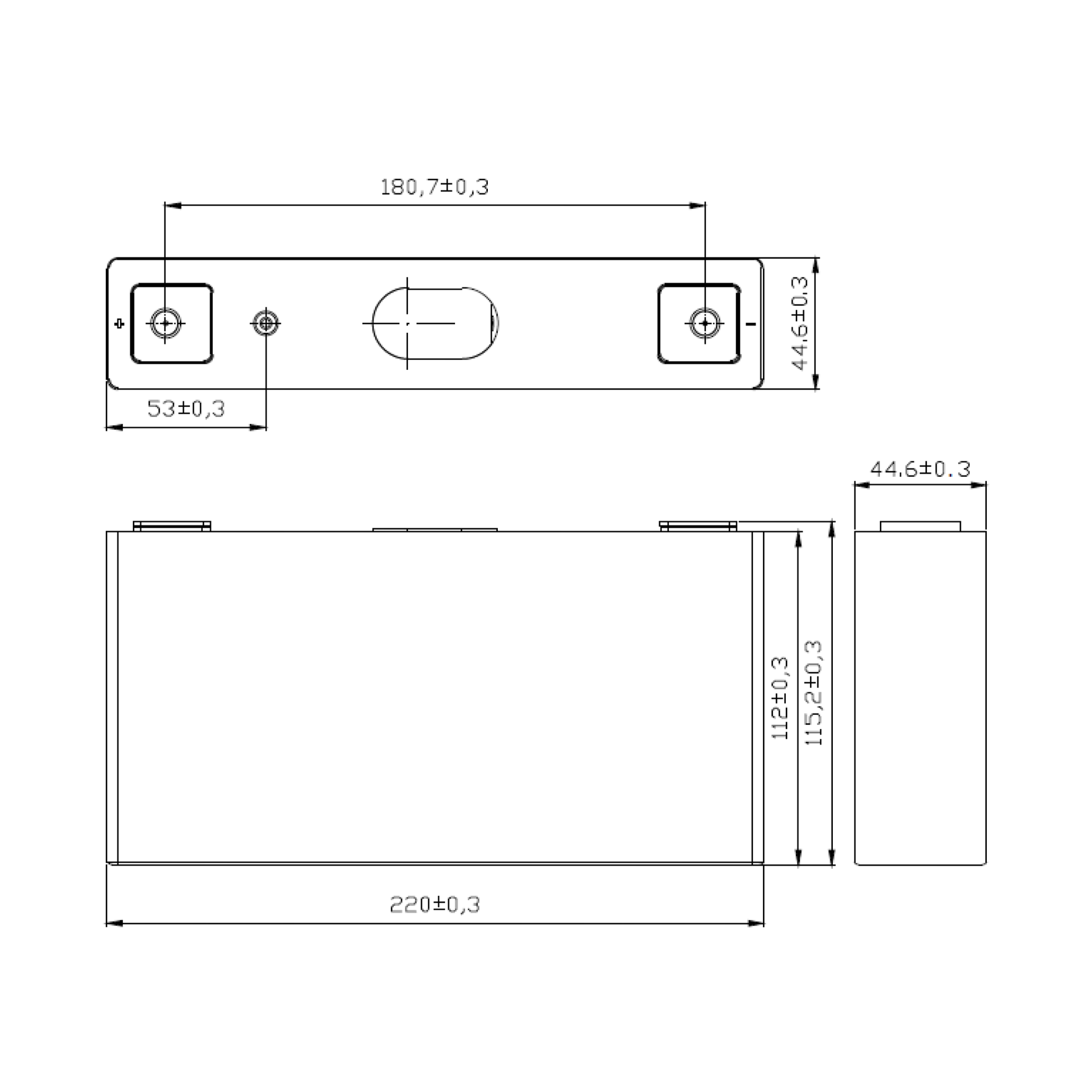

Dimensions
