3.2V 150Ah LiFePO4 Lithium Battery Cell PF173-150A for ESS

3.2V 150ah prismatic lifepo4 battery cell for Commercial and Industrial ESS/Telecom ESS/Home ESS

3.2V 150Ah LiFePO4 Lithium Battery Cell PF173-150A For Energy Storage System

3.2V 150Ah LiFePO4 Lithium Battery Cell PF173-150A For Energy Storage System3.2V 150Ah LiFePO4 Lithium Battery Cell PF173-150A For Energy Storage Systemjpg


PF173-150A 3.2V 150ah brand new grade A prismatic lifepo4 battery cell for Commercial and Industrial ESS/Telecom ESS/Home ESS


Items

Parameters

Nominal voltage

3.2V

AC internal Resistance

≤0.5mΩ, RT , 1KHz

Rated discharging capacity

150Ah, RT ,0.5C/1.0C

Standard charging current

75A(0.5C)

Maximum continuous charging current

150Ah(1C)

Cut-off charging voltage

3.65V

Maximum charging temp.range

0°C~60℃

Optimal charging temperature range

10℃~35℃

Standard discharging current

75A(0.5C)

Maximum continuous discharging current

150A(1C)

Maximum pulse discharging current

450A(3C)SOC>40% 60s, SOC<40% 10s,

Cut-off discharging voltage

2.5V(T>0℃), 2.0V(-30℃<T≤0℃)

Allowable discharging temperature range

-30℃~60℃

Optimal discharging temperature range

10℃~35℃

Storage temperature

-20℃~60℃, Within 7 days

-20℃~40℃, Within 3 months

Over 3 months, 0℃~35℃

Storage humidity

<95%RH

Cycle life

≥3500 cycles (80%EOL), RT ,1C/1C

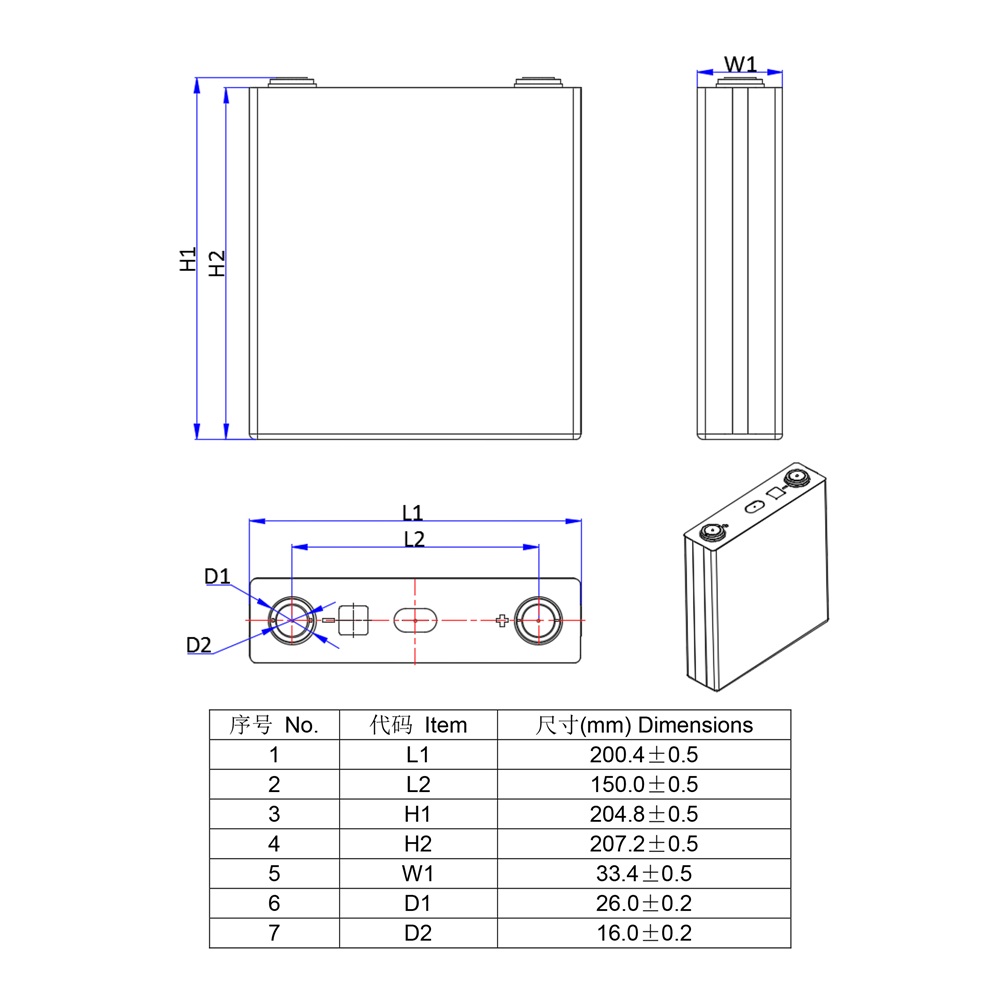

Dimensions

T33.4*W200.4*H207.2±0.5mm
