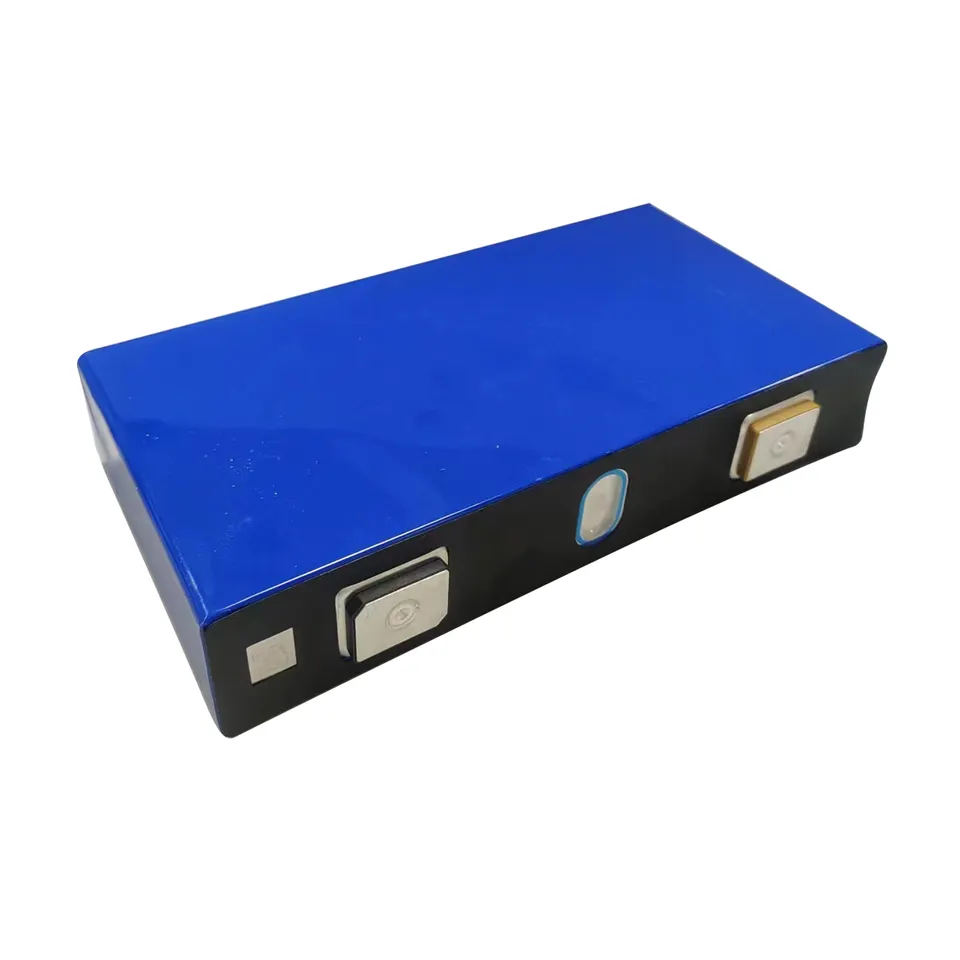

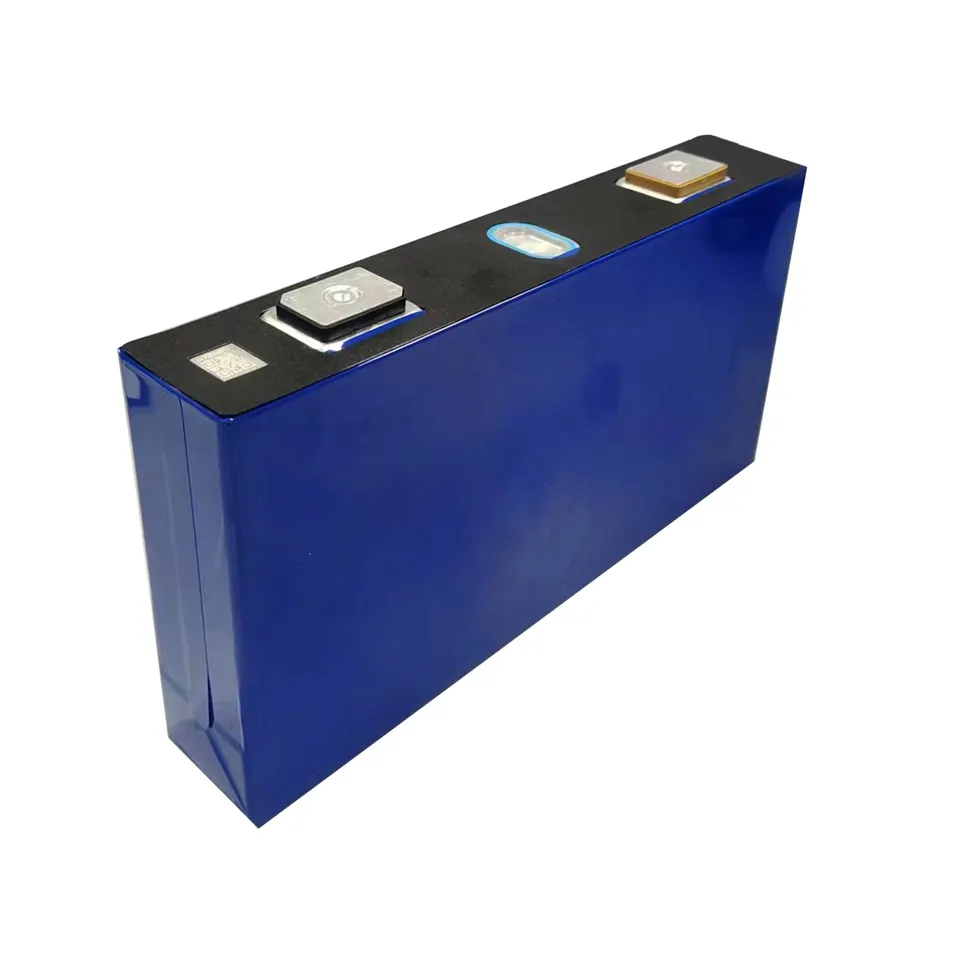

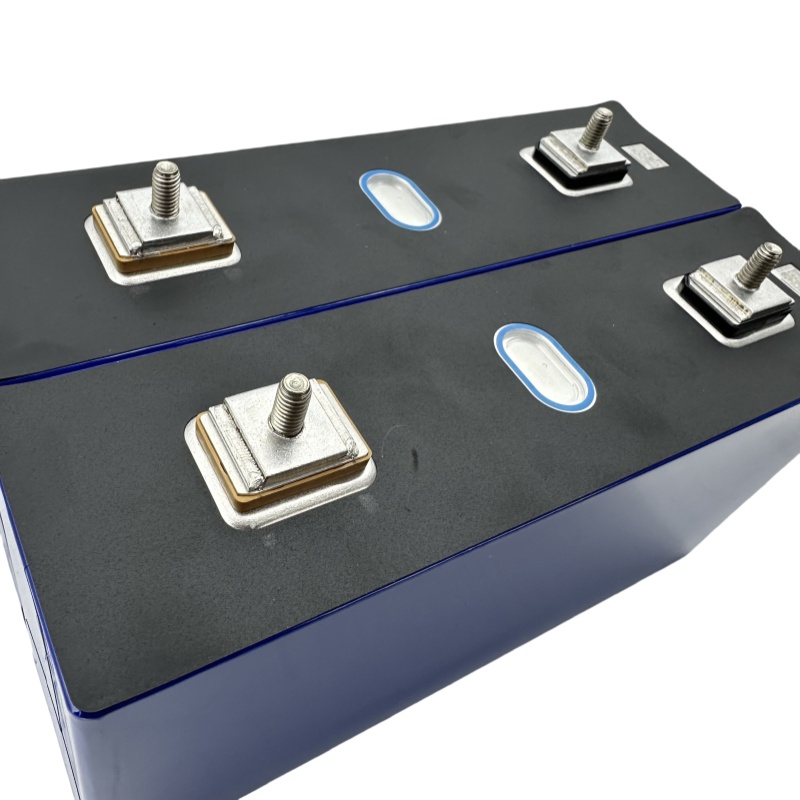

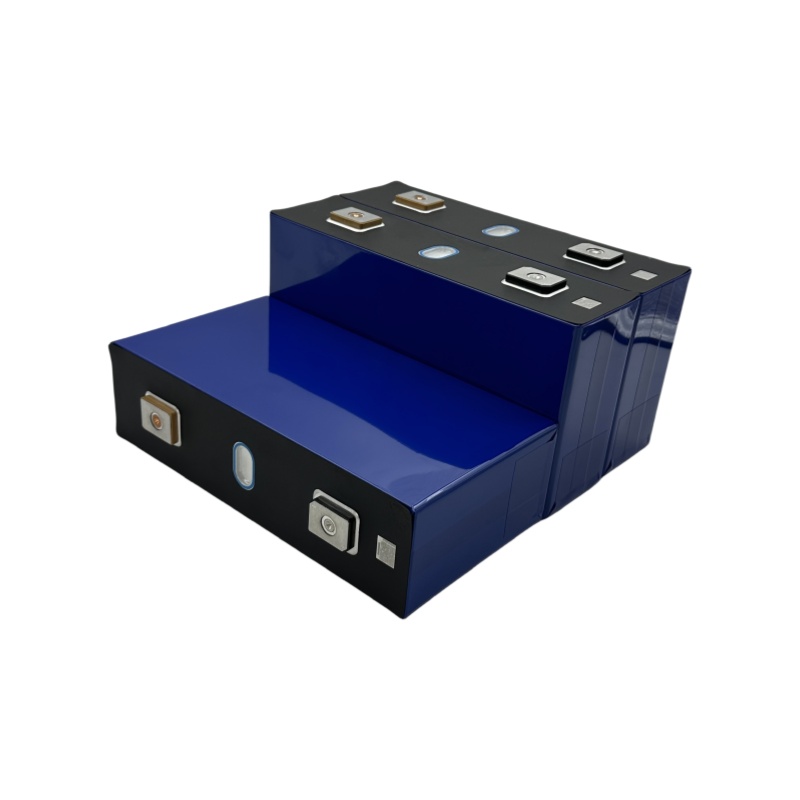

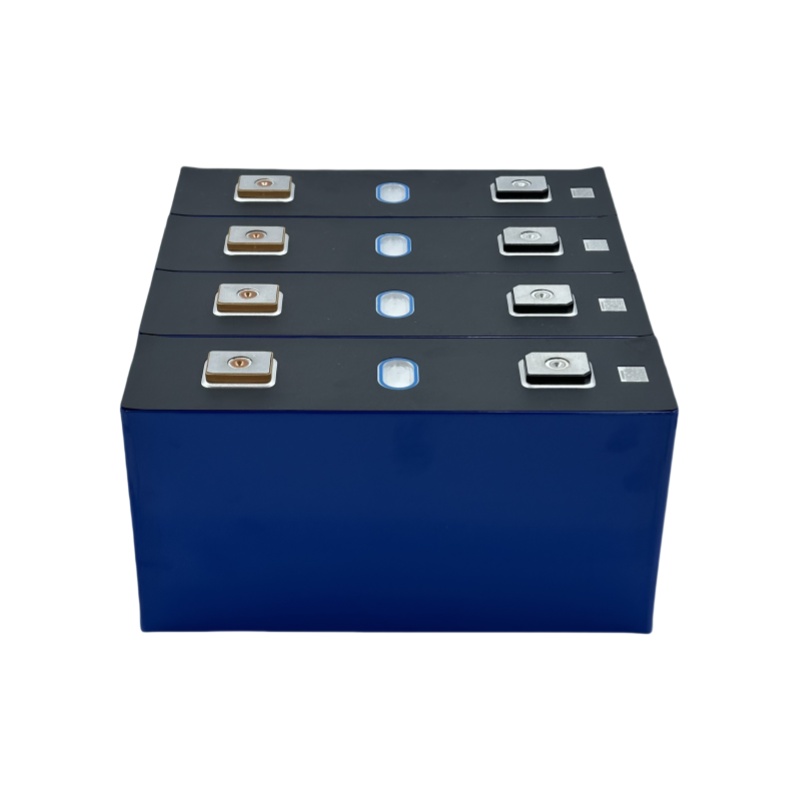

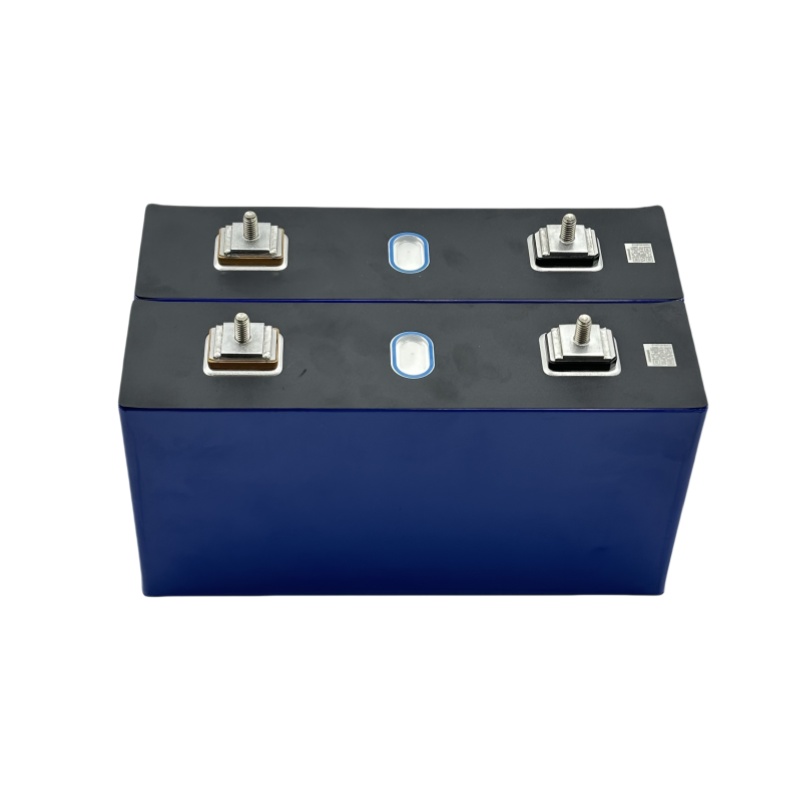

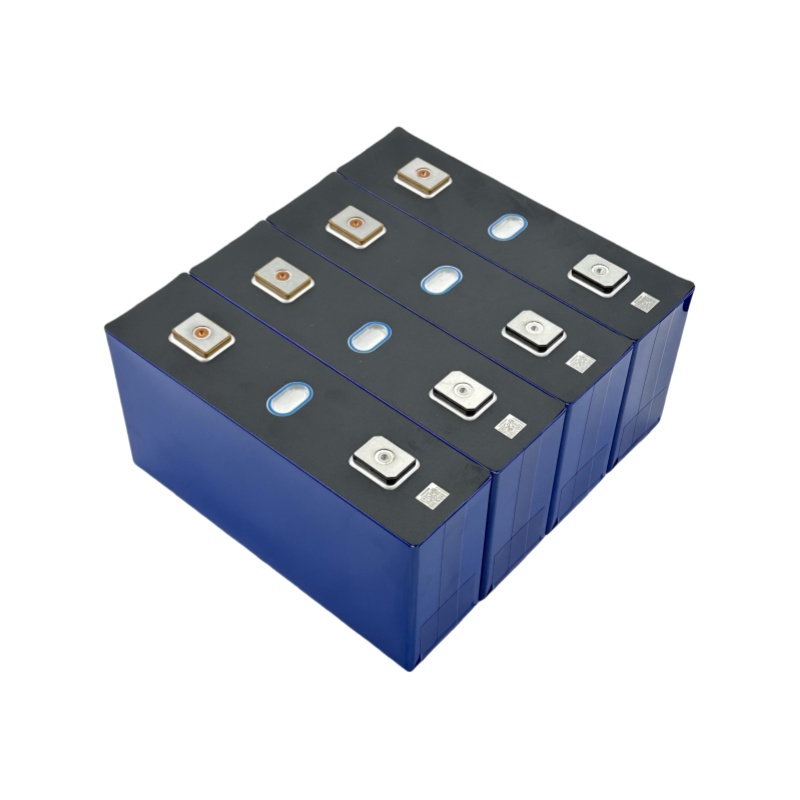

BAKCBBL150 3.2V LiFePO4 150Ah Prismatic Power Battery Cell

BAKCBBL150 3.2V prismatic lifepo4 battery 150ah, with 1.5C fast charge and 2c discharge high rate for EV, golf cart power applications

BAKCBBL150 3.2V LiFePO4 150Ah Prismatic Power Battery CellBAKCBBL150 3.2V LiFePO4 150Ah Prismatic Power Battery Cell


Features

Durability: Designed for a long lifespan with a high capacity, it boasts impressive shock resistance.

Performance: Exhibits low self-discharge and superior discharge performance, even at low temperatures.

Charging Capability: Renowned for its powerful charging acceptance and swift charging ability.

Resilience: Notable for its strong resistance to over-discharge and excellent charge retention.

Maintenance-Free: Requires no acid or water for maintenance, offering hassle-free usage.

Powerful Discharge: Delivers exceptional large current discharge performance, making it particularly advantageous for startups and climbing.

Temperature Tolerance: Performs optimally even in high-temperature conditions.

Eco-Friendly: Designed with environmental considerations in mind.

Compact: Its lightweight and compact size makes it easy to handle and install.

Safety: Offers the highest level of safety, with no risk of explosions or fires.

Specifications

ITEM

SPECIFICATION

Minimal capacity

150Ah

Typical capacity

152Ah

Nominal voltage

3.2V  (0.5C)

Charge Ending voltage

3.65V

Discharge ending voltage

2.5V  (>0℃) 、2.0V(≤0℃)

Nominal energy



480Wh

Max. charge limited current at room temperature

 (not for cycle )

225A(Continuous) / 400A(50%SOC, 10s)

Max. discharge limited current at room temperature

(not for cycle )

300A(Continuous) / 400A(50%SOC, 10s)

Charge temperature range

0~+55℃

Discharge temperature range

-20~+55℃



Storage temperature

Recommended



- 10~+35℃

Allowable ( short term )

-30~+55℃

Internal resistance

≤ 0.6mΩ (AC Impedance, 1000 Hz)

typical: 0.3mΩ

Cycle life

≥ 1000cycles

(standard charge and standard discharge)

Weight

2.98±0. 10kg
