FC4680 3.2V 15Ah LiFePO4 4680 Battery Cell

Discover the potent 3.2V 15Ah LiFePO4 4680 Battery Cell and redefine energy storage. Unleash the future today!

Standardized

◤ 4680 industry-standard size, which facilitates standardized packassembly.

◤ Incorporate innovative Laser Cleaning technology and central-tabsdesign to reduce internal resistance

High Safety

◤ Passed the tests of Fire Burning, Nail Penatration, and Over-charging.

◤ No severe chemical reactions such as fire or explosion appeared duringThermal Runaway Test

High Safety

◤ 6000 times at Room Temperature(25℃,0.5/0.5C,70% retention rate)

◤ 2000 times at High Temperature(45℃,0.510.5C,70% retention rate)


1. Significantly increased battery power (6 times that of the 21700 battery), reduced battery costs, optimized heat dissipation performance, production efficiency, and charging speed, and further improved energy density and cycle performance;

2. The design of non-polar ears (full-polar ears) greatly shortens the distance of electronic movement, reduces internal battery resistance, and significantly enhances the battery's charging and discharging capabilities.


Specifications


Item

Specification

Remark

Typical Capacity

15.3Ah

0.2C Rate Discharge Capacity

Minimum Capacity

15Ah

0.2C Rate Discharge Capacity

Nominal Voltage

3.2V


Internal Impedance

≤8mΩ

By AC 1kHz

Cell Weight

Max 335g


Size

D: 46.3 ±0.25mm

H: 80.2 ±0.3mm


End of Charge Voltage

3.65V


End of Discharge Voltage

2.0V


Standard Charge Current

7.5A(0.5C)


Standard Charging Time

150min


Maximum Charging Current

15A(1C)


Standard Discharge Current

3A(0.2C)


Max. Discharge Current

(Continuous)

15A(1C)


Cycle life

≥4000Cycles

0.5C Charge/0.5C Discharge ,70% DOD

 Operating Temperature



0~45°C

Charging

-20~60°C

Discharging

Storage Temperature For
Shipping Cell

< 35°C

Recommended<23°C for Long Term Storage

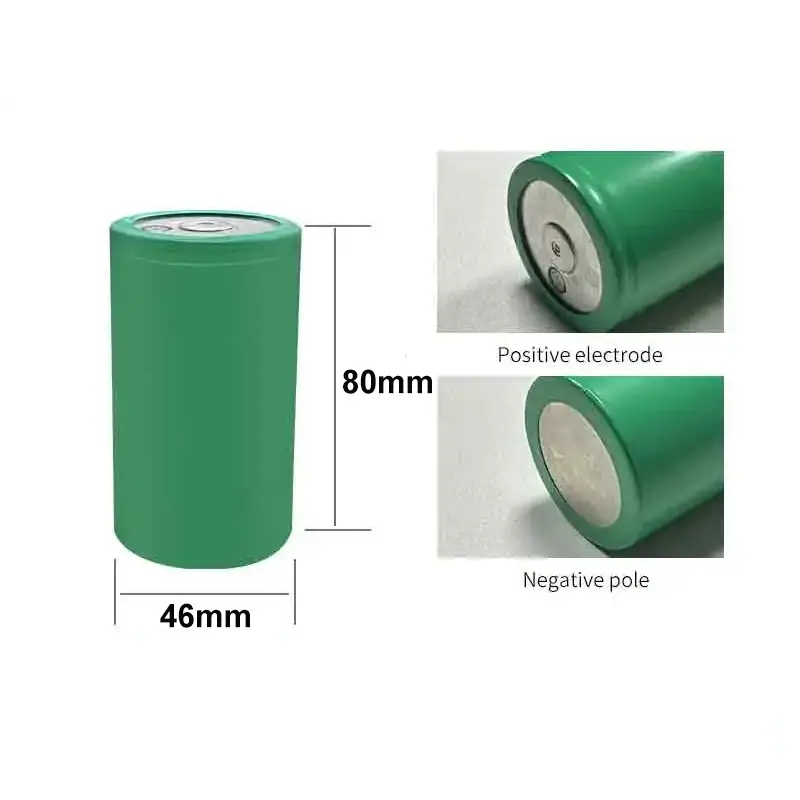

dimension and details


 FC4680 3.2V 15Ah LiFePO4 4680 Battery Cell
