3.2V 196Ah Short Blade LiFePO4 Battery Cell

L600 3.2V 196Ah Short Blade LiFePO4 Battery Cell

Optimized Performance: 196Ah LiFePO4 Blade Battery Cells boast higher energy density, offering extended range and improved performance for electric vehicles.

Extended Lifespan: Blade batteries, utilizing LiFePO4 chemistry, ensure prolonged cycle life, reduced maintenance needs, and enhanced environmental friendliness.

Effortless Installation and Maintenance: Blade batteries feature a modular design that simplifies both installation and maintenance procedures.

Top-Quality Assurance: prioritizes environmental sustainability, striving for continual enhancement in battery performance and safety, ensuring products consistently meet a 100% Grade A standard.


Specifications


Item

Specification

Condition


≥192Ah

25℃, 196 A(1C) DC to 2.0V

Nominal Capacity

≥196Ah

25℃, 65.3 A(1/3C) DC to 2.0V

Energy

≥592.1Wh

25℃, 196 A(1C) DC to 2.0V

≥625Wh

25℃, 65.3 A(1/3C) DC to 2.0V

Specific Energy

≥176Wh/Kg

25℃,196 A(1C) DC to 2.0V

≥185Wh/Kg

25℃,65.3A(1/3C)DCto2.0V

Operating voltage

2.0~3.65V


ACR(1KHz)

≤0.45mΩ

25℃, BOL, 50%SOC

Outgoing Voltage

3.305±0.004V

25℃, BOL, 50%SOC

Outgoing Voltage

≥196Ah

25℃, BOL, 50%SOC

Operating temperature

Charge: -20 ~ 55℃

Discharge: -30 ~ 55℃


Cycle life

≥2000

25℃, Step charge/1C, 3-100%SOC, 80%SOH


Discharge power@25℃

≥2240W

25±3℃,50%SOC, 10s

Discharge power density@25℃

≥662W/Kg

25±3℃,50%SOC, 10s

Recommended SOC range

3% - 100%


Cell weight

3380±50 g

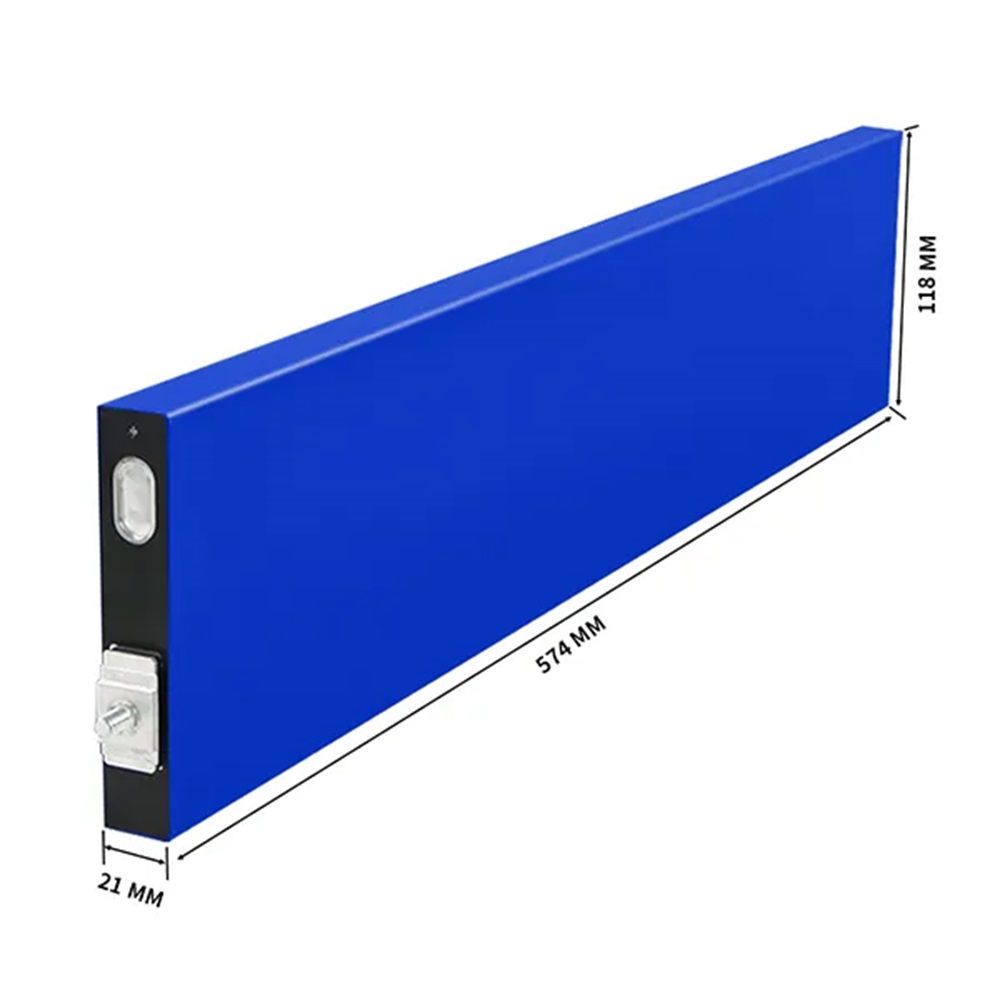

Dimension

21.5 x 574 x 118mm




Details

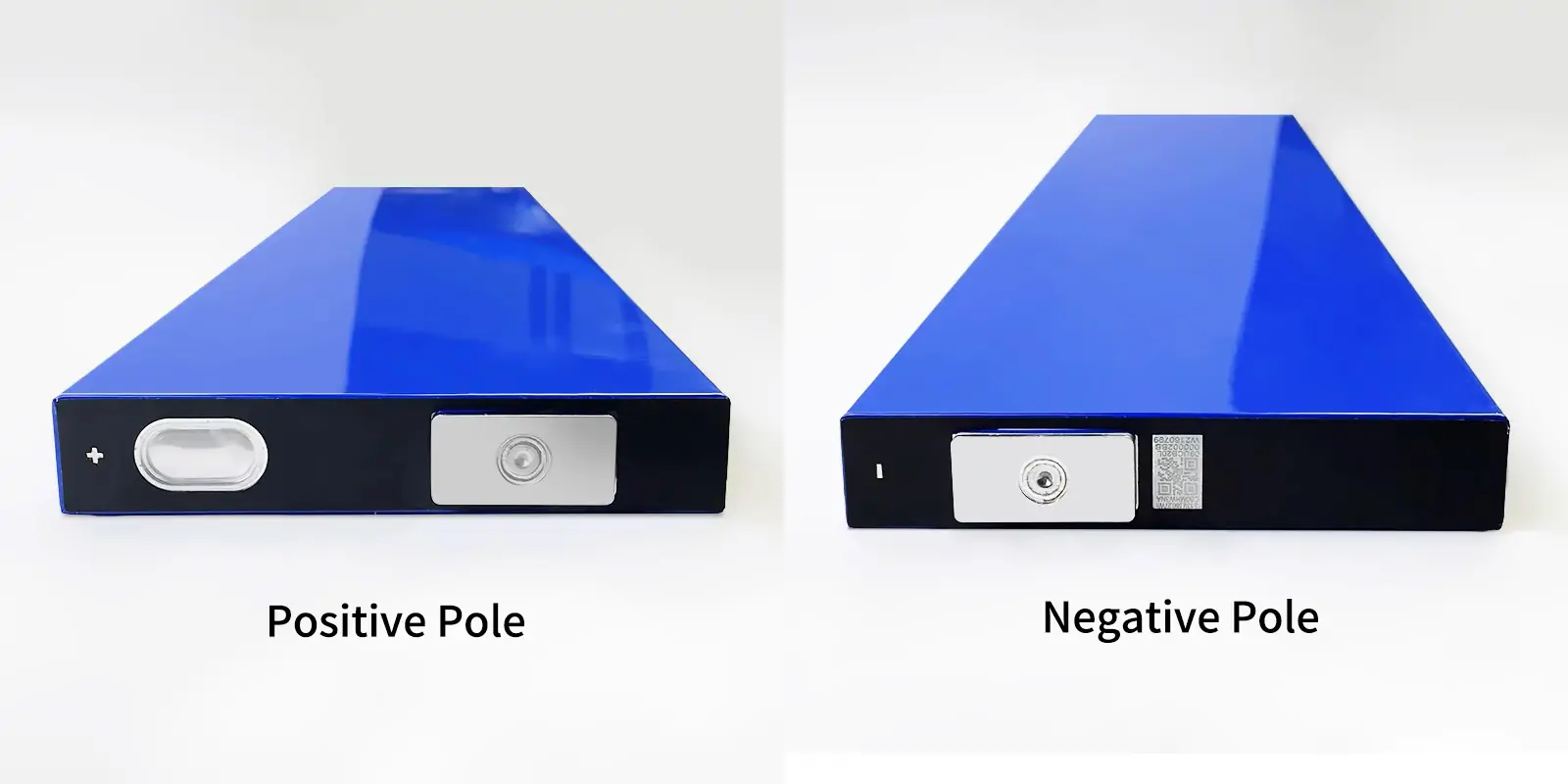

DETAIL


The SVOLT L600 with 196 Ah has a gravimetric energy density of 185 Wh/kg and a volumetric energy density of 430 Wh/L with a size of 21.5 x 574 x 118 mm. Its voltage is 3.2 V, the capacity is 627.2 Wh.

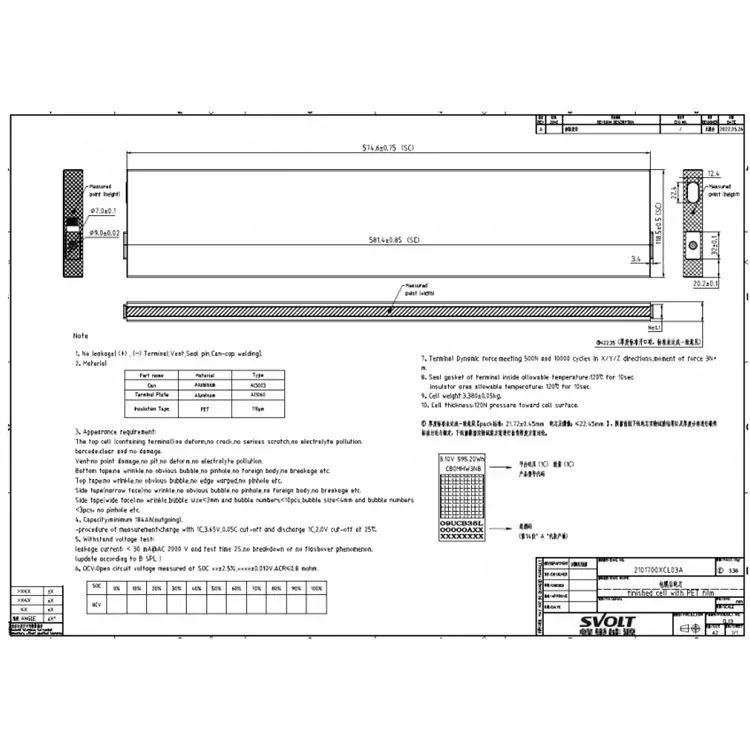

DIMENSIONDETAIL

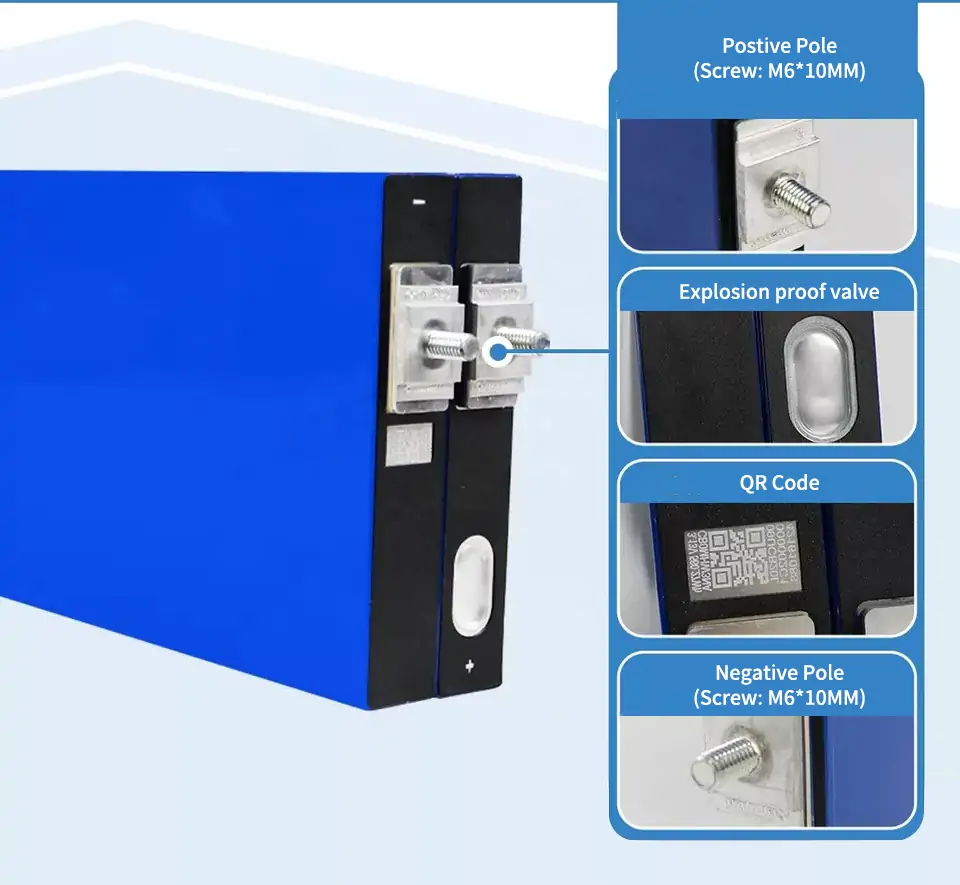

We also provide custmozied welding screws service.

DETAIL


APPLICATION
