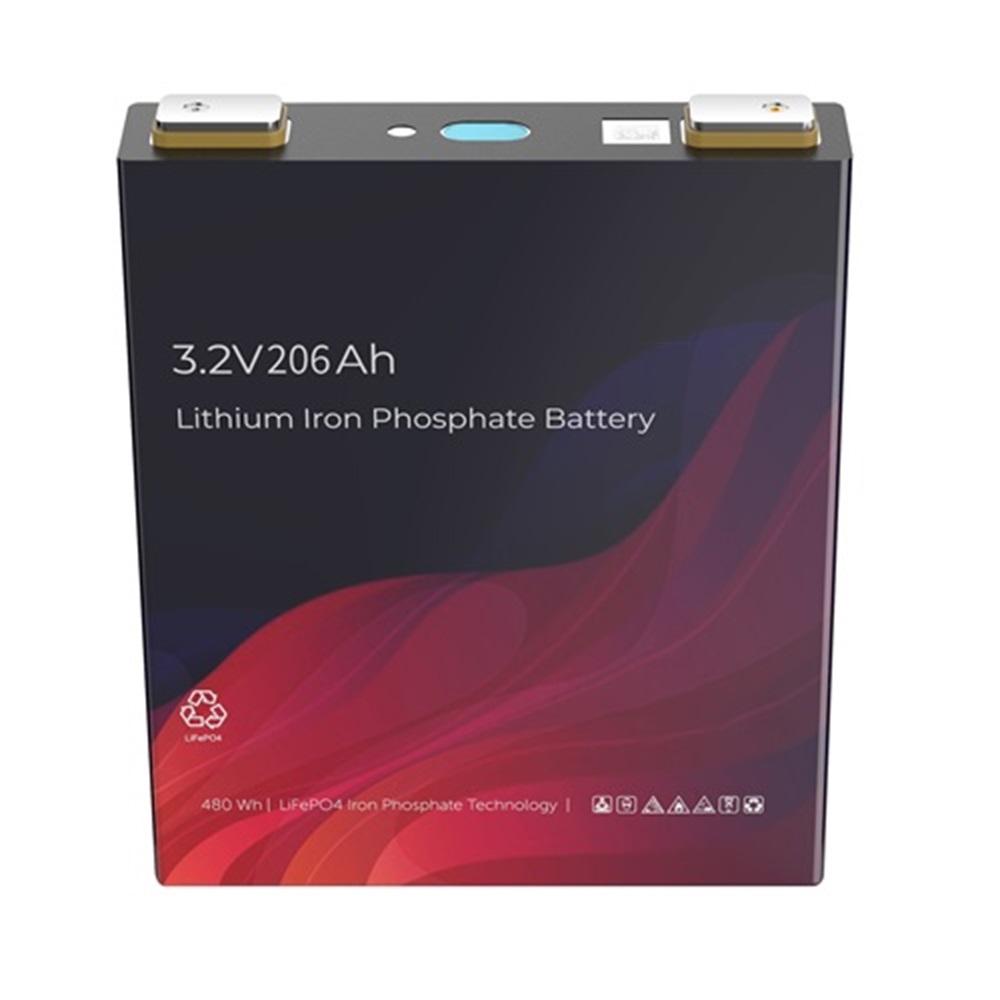

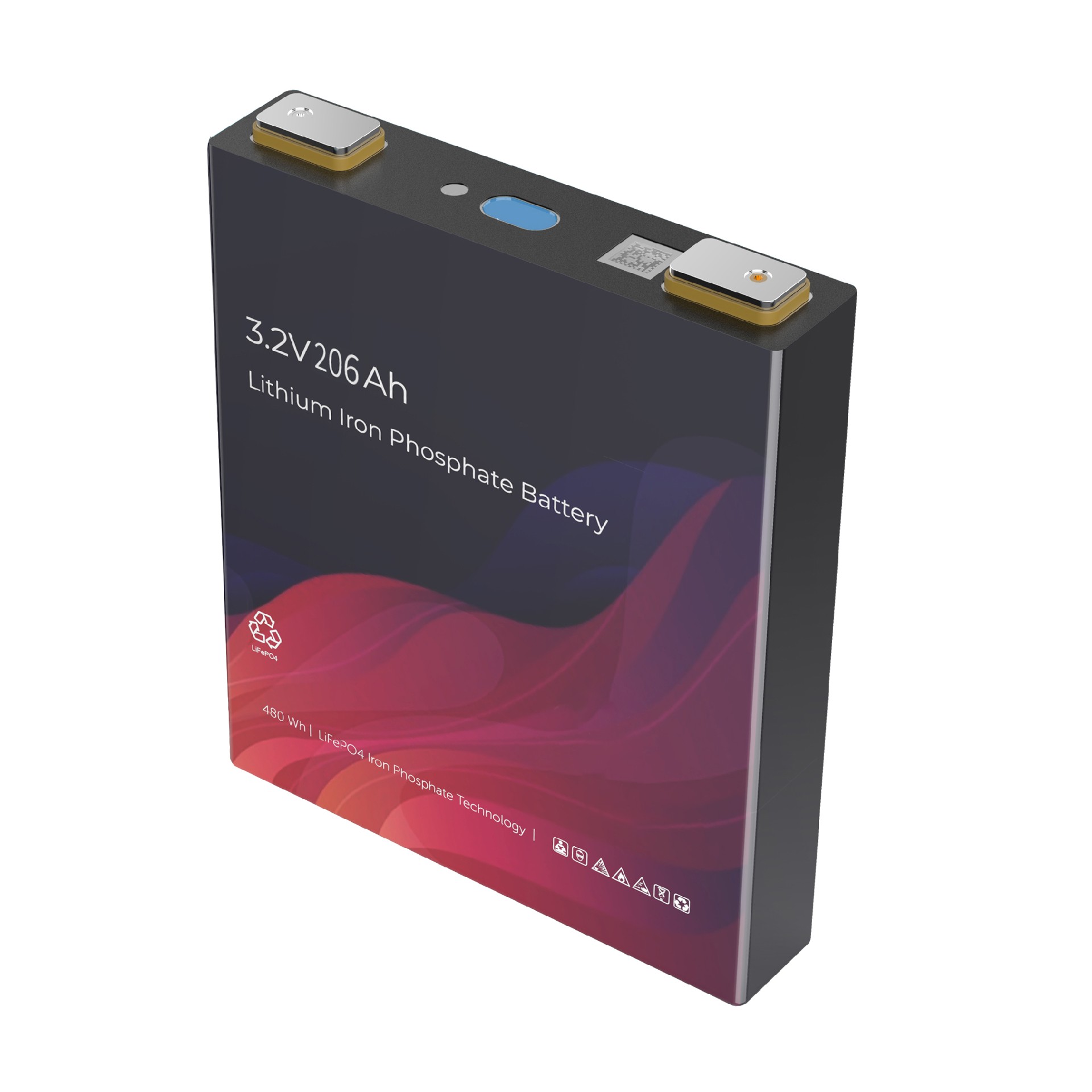

3.2V 206Ah Lithium Iron Phosphate Battery Cell

EVL3.2-206 3.2V 206Ah rechargeable lithium iron phosphate lifepo4 battery cell

3.2V 206Ah Lithium Iron Phosphate Battery Cell


EVL3.2-206 3.2V 206Ah rechargeable lithium iron phosphate lifepo4 battery cell


Nominal Capacity: 206Ah

Nominal Voltage: 3.2V

AC Internal Resistance: <0.3mΩ

Energy Density: ≥164Wh/kg

Weight: 4000g±120g

Dimension: 54mm*173mm*200mm







Our prismatic aluminum shell lifepo4 cell has the performance of lightweight, high stability, and long cycle life. It can be customized according to the product's dimension, providing more flexibility for battery design. It is widely used in the power field, communication base station, backup power supply, household, commercial energy storage systems, etc.



Features of 3.2V 206Ah lifepo4 cell

· Long cycle life and high reliability

· Small size, lightweight, high energy density, green environmental protection

· Wide working temperature range, good high and low-temperature performance

· Excellent heat dissipation performance



Parameters of 3.2V 206Ah lifepo4 cell



Item

Parameter

Nominal Capacity

206Ah

Nominal Voltage

4000g±120g

Working Voltage

2.5V~3.65V @-5℃~60℃

2.0V~3.65V @-30℃~-5℃

AC Internal Resistance

<0.3mΩ

Energy Density

≥164Wh/kg

Rated Power

329.6W

Max. Continuous Charging Current

1C (15℃≤T<45℃)

Max. Continuous Discharge Current

1.C (-20℃≤T≤60℃)

Operating discharge temperature range

-20~60℃

Cycle Life

≥6000cycles (80%DOD)

Size

54mm*173mm*200mm

Weight

966g±30g




Details

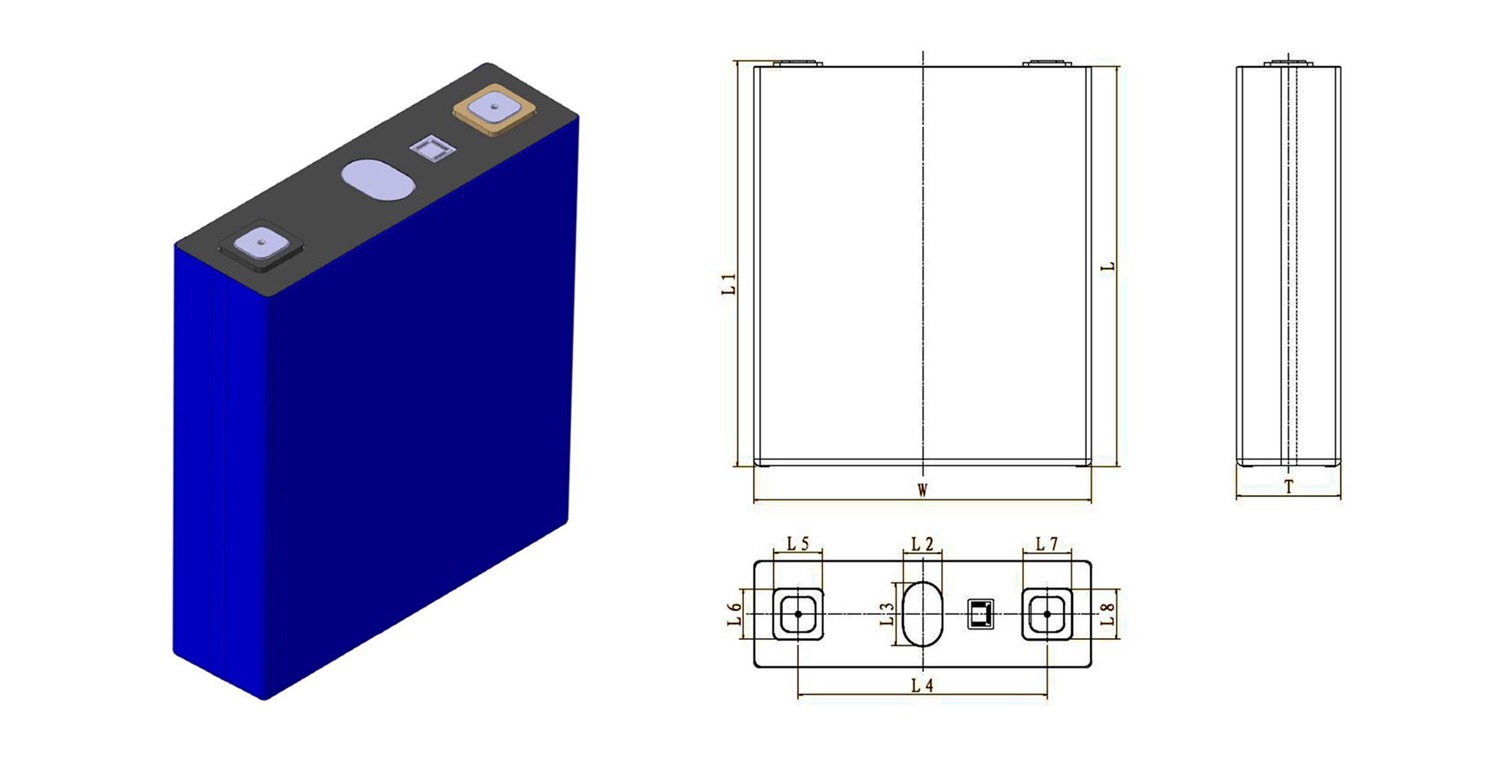

dimension


Name

Dimension parameters

T

54.3±1.0mm

W

173.8±0.6mm

L

200.66±0.6mm

L1

203.33±0.6mm

L2

19.7±0.5mm

L3

31.7±0.5mm

L4

128.0±0.5mm

L5

26.9±0.25mm

L6

26.9±0.25mm

L7

26.9±0.25mm

L8

26.9±0.25mm

Remark:

a)       Allowable welding melting depth of pole ≤ 2.0mm.

b)      300±20kgf pressure is applied in the thickness direction during the measurement of cell Size.

c)       Cell surface insulation, test pressure 300±30kgf, AC1500V, leakage current ≤ 10mA.
