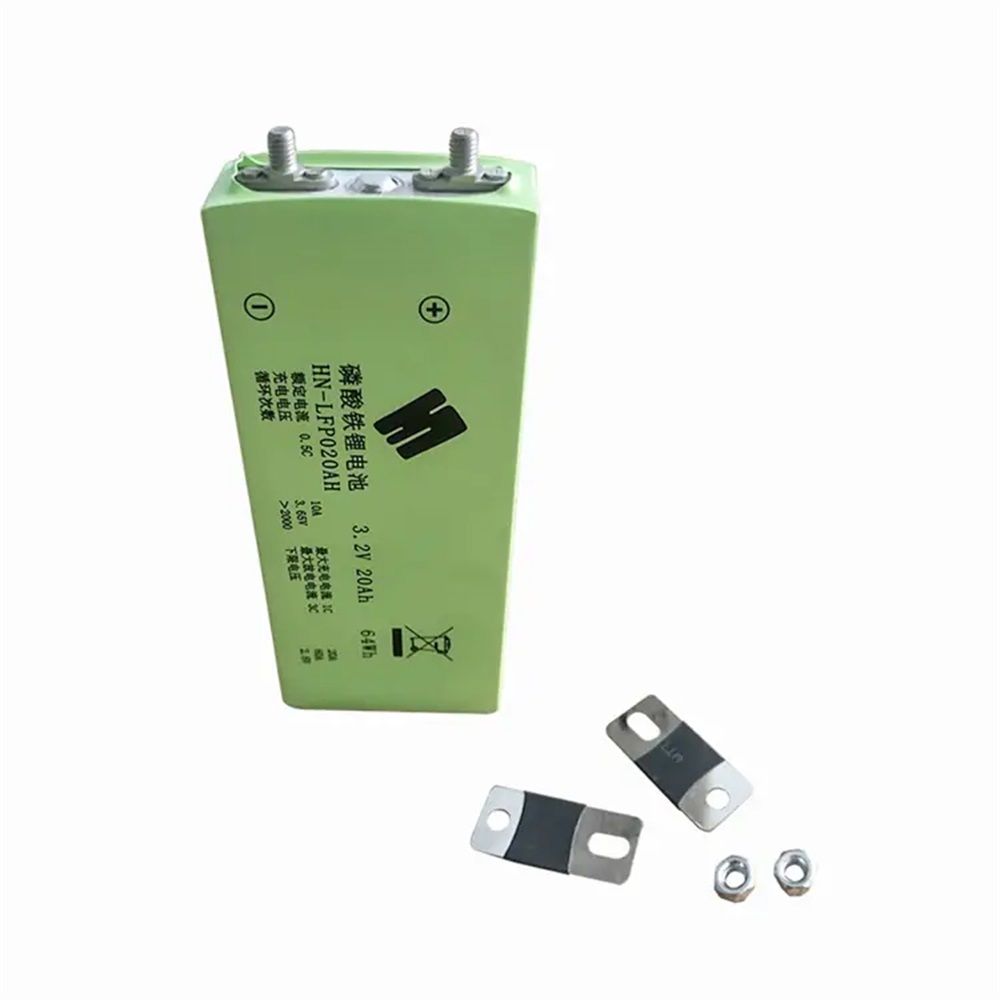

HN2770165P20Ah LiFePO4 Battery prismatic lithium Cell

HN2770165P20Ah 3.2V 20AH LiFePO4 Battery with Aluminum Case

HN2770165P20Ah 3.2V 20AH LiFePO4 Battery Lithium prismatic cell with Aluminum Case


HN2770165P20Ah LiFePO4 Battery prismatic lithium CellHN2770165P20Ah LiFePO4 Battery prismatic lithium Cell



Features

High-quality 20Ah prismatic lithium cell (battery) on lithium iron technology - LiFePO4 allows 3C discharge continuous current and 10C max. Current. The cell is in a metal housing for high energy density (106.67Wh/kg).


The tiny thing's dimensions (178x71x28) and weight of only 0.65 Kg make this cell suitable for EV and lightweight applications and energy storage.

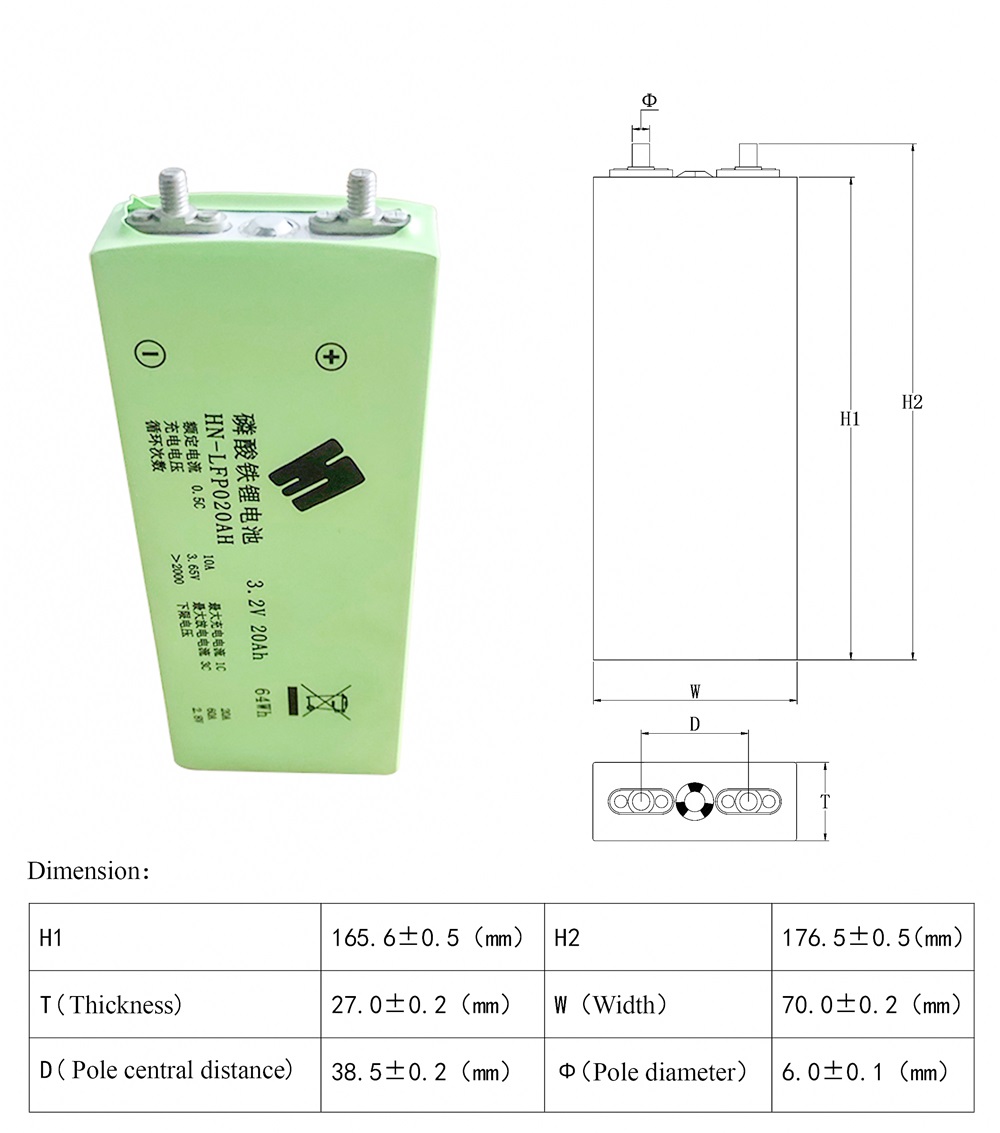

Dimension




Main advantages of the HN2770165P20Ah


Supports high-speed discharge (3C, 60A)

Provides high currents at peak discharge (10C, 200A)

High quality of production for a long lifespan (over 2000 cycles at 80% DoD with 80% residual capacity)

Narrow tolerance of the specifications

Metallic housing (case)

Cells are provided with nuts for easy connecting



Specifications



Items

Parameters

Rated Capacity

20Ah

Rated voltage

3.2V

Cut off voltage

2.0V

Rated charge model

CC/CV, 0℃40℃

Rated charge current

6.67A1/3C

Max Continuous charge current

current 100A (5C)

Rated charge voltage

3.65V

Rated discharge current

6.67A1/3C

Max continuous discharge current

100A5C

Impedance

2mΩ

Weight

600g

Energy density

106.67wh/kg

Operating temperature range

Charge: 0℃50℃, Discharge: -20℃60℃

Dimensions

176.5*27*70mm(H*T*W)

Cycle life

2000 cycles @80% DOD

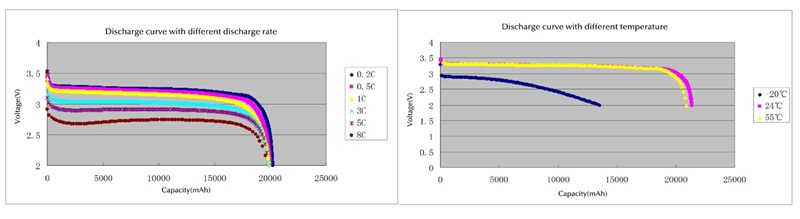

The following chart shows the discharging capacity test and temperature test


curve
