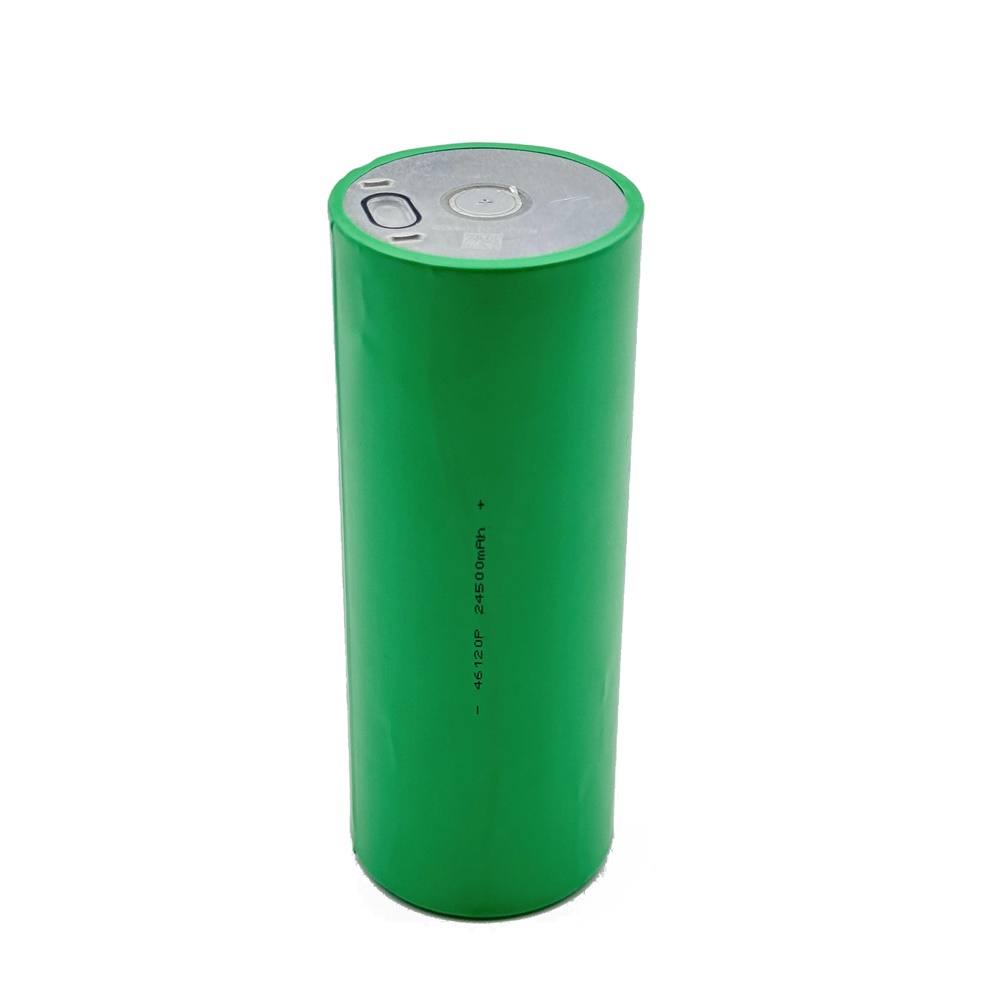

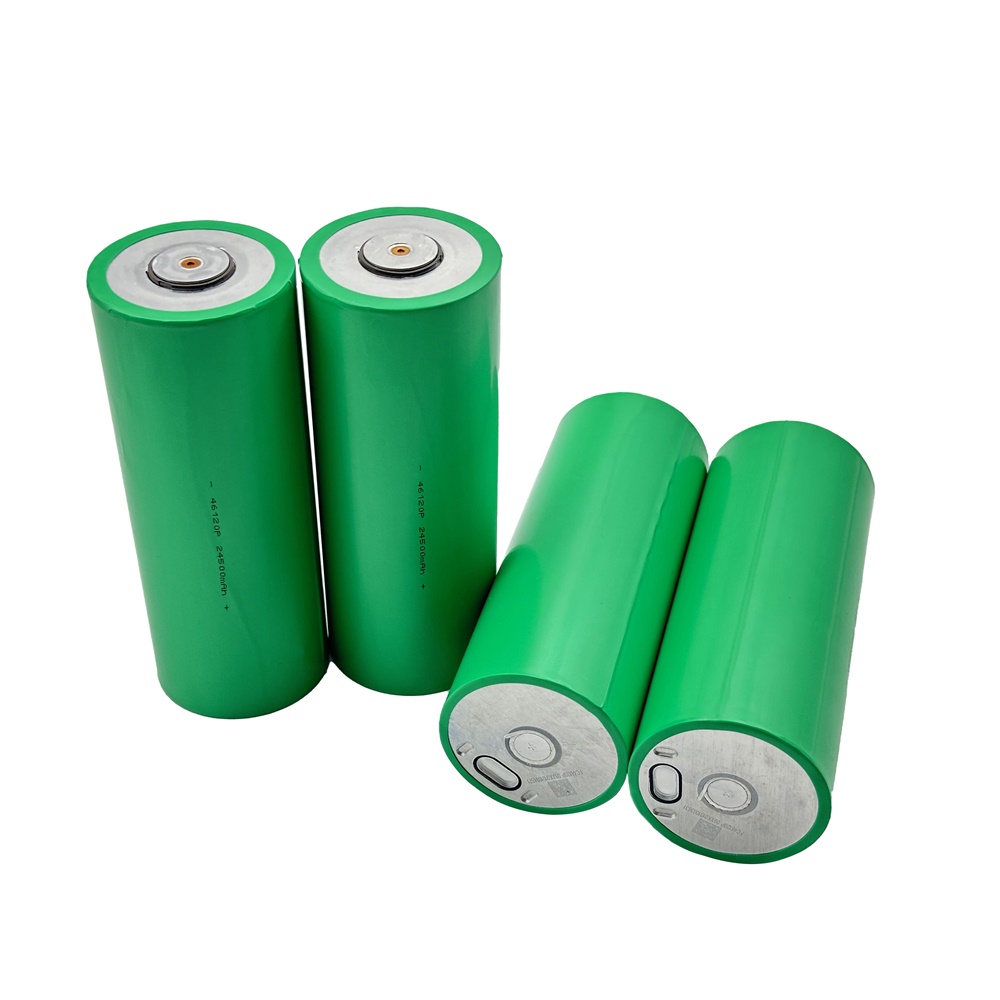

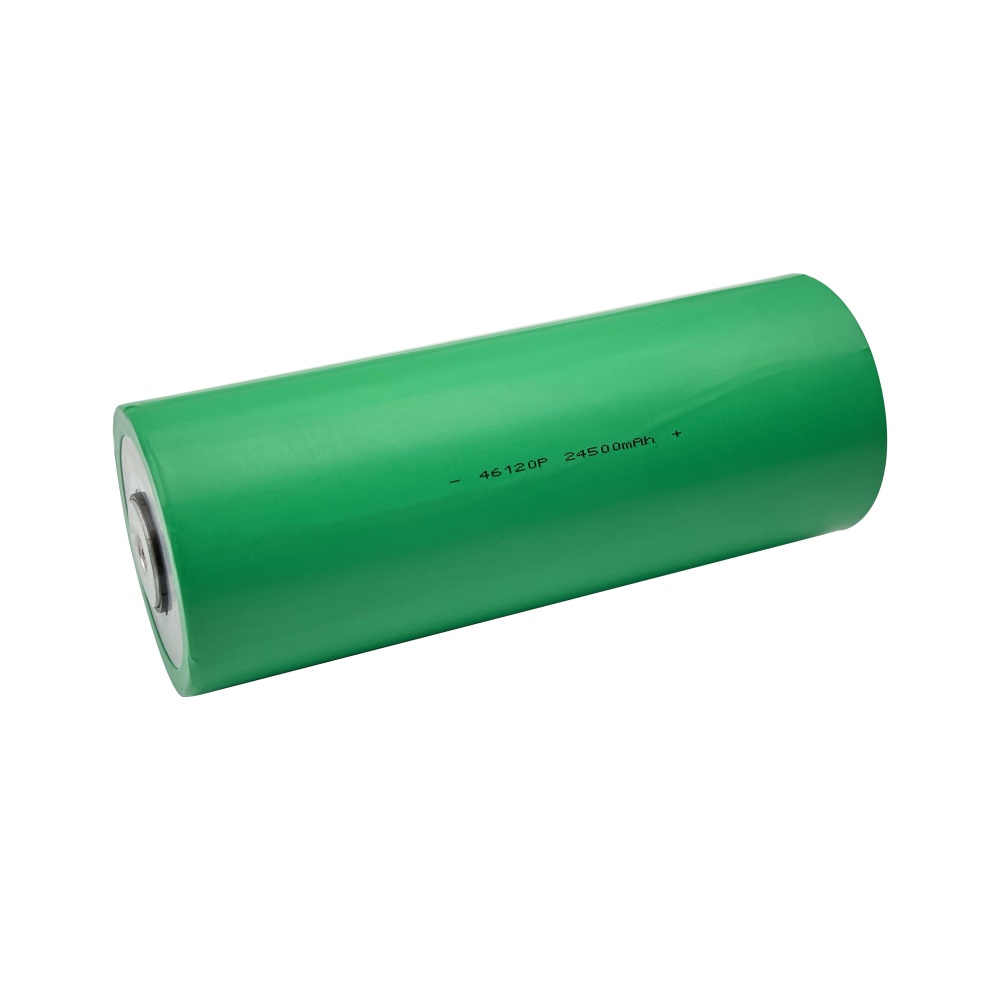

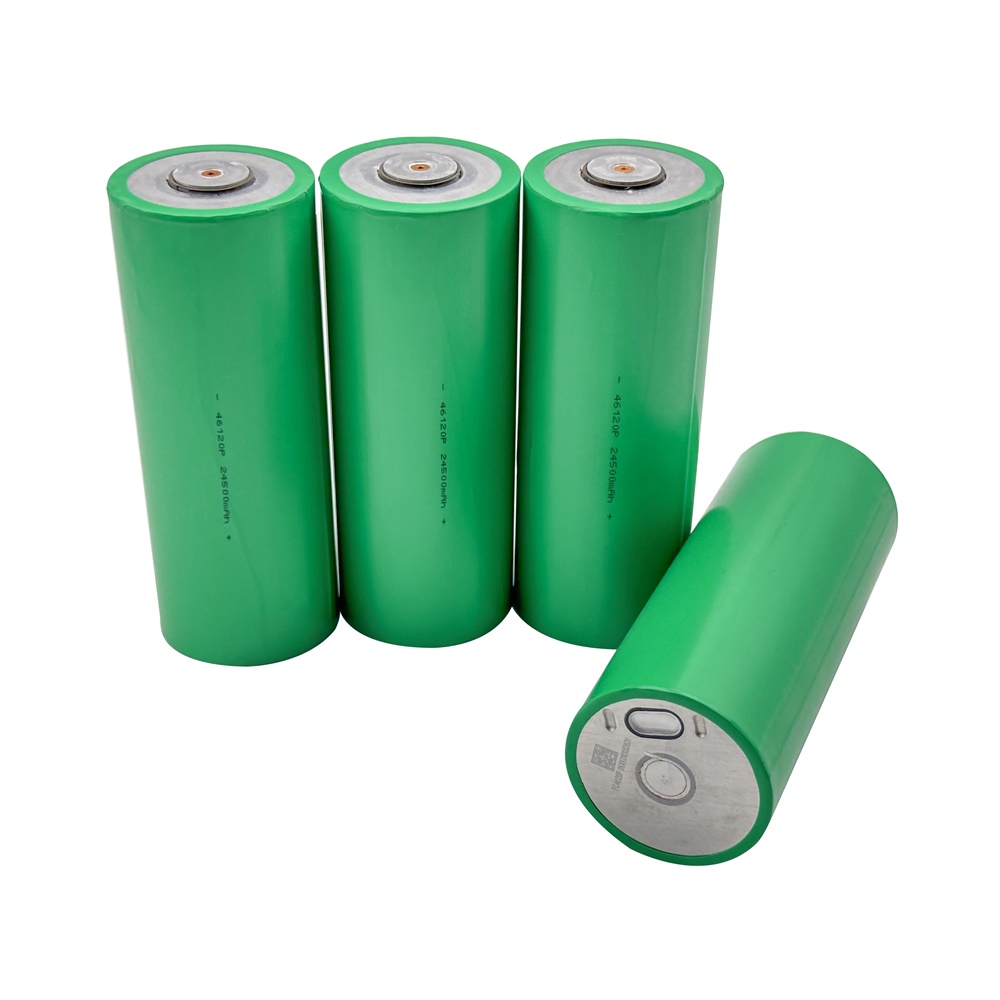

FC46120P 3.2V 25Ah Cylindrical LiFePO4 Cell

FC120P 3.2V 25Ah 46120 Cylindrical LiFePO4 Battery Cell for energy storage electric vehicle

Specification

Item

Specification

Typical Capacity

24.5Ah

Minimum Capacity

24Ah

Nominal Voltage

3.2V

Charge Cut-off Voltage

3.65V

Discharge Cut-off Voltage

2.0V

Internal Resistance

≤ 2mΩ

Max. Continuous Charge Current

1C

Standard Discharge Current

0.2C

Max. Continuous Discharge Current

3C

Operating Temperature Range

Charge: 0 ~ 55℃

Discharge: -20~60℃

Storage Temperature

One month: -20 ~ 55 ℃

3 months: -20 ~ 45 ℃

1 year: -20 ~ 25 ℃

Cycle Life

4000cycles@70%DOD, 0.5C/0.5C

Dimension

46.60*:121.00mm

Weight

453 ± 10g

Shipping SOC

25% SOC


Standardized

1. 46120 industry-standard size, which facilitates standardized packassembly.

2. Incorporate innovative Laser Cleaning technology and central tabs design to reduce internal resistance


High Safety

1. Passed the tests of Fire Burning, Nail penetration, and Overcharging.

2. No severe chemical reactions such as fire or explosion appeared during the thermal Runaway Test


High Safety

1. 4000 times at Room Temperature(25℃,0.5/0.5C,70% retention rate)

2. 2000 times at High Temperature(45℃,0.510.5C,70% retention rate)


1. Significantly increased battery power (10 times that of the 21700 battery), reduced battery costs, optimized heat dissipation performance, production efficiency, and charging speed, and further improved energy density and cycle performance;

2. The design of non-polar ears (full-polar ears) greatly shortens the distance of electronic movement, reduces internal battery resistance, and significantly enhances the battery's charging and discharging capabilities.


Detail

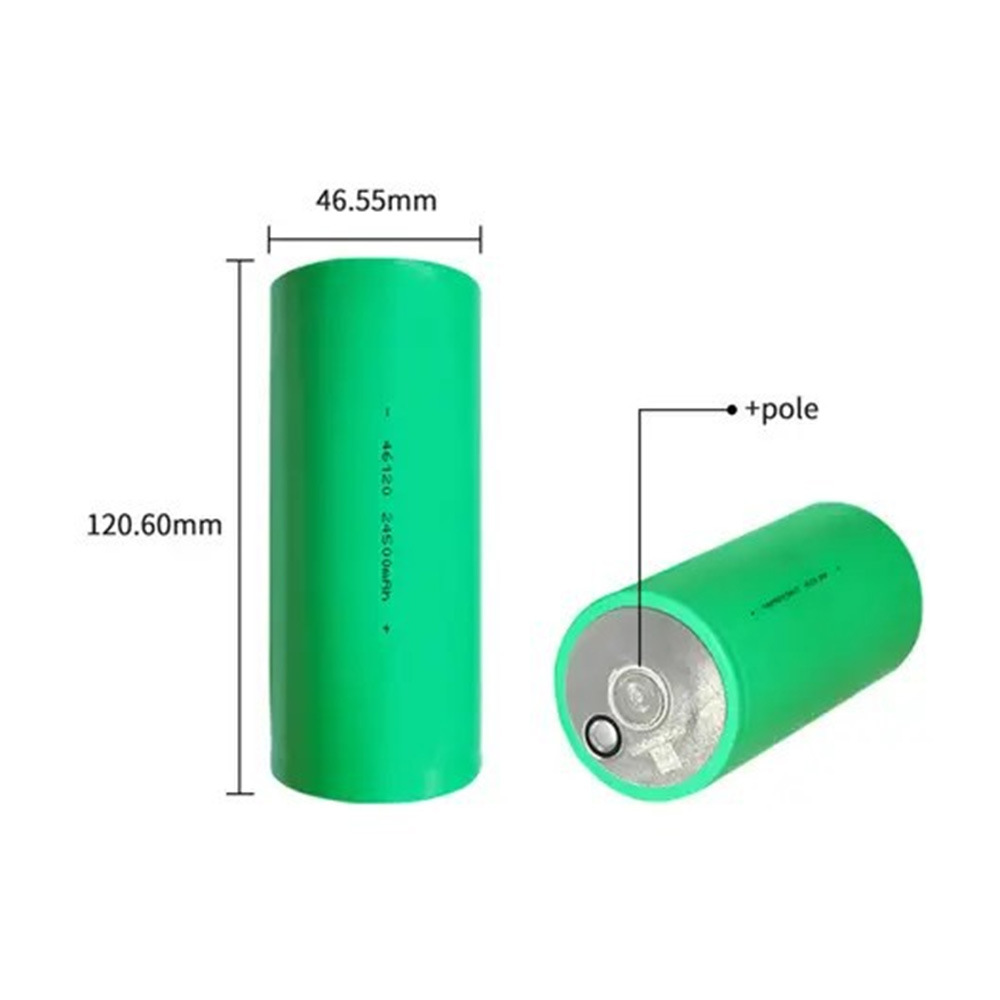

dimension

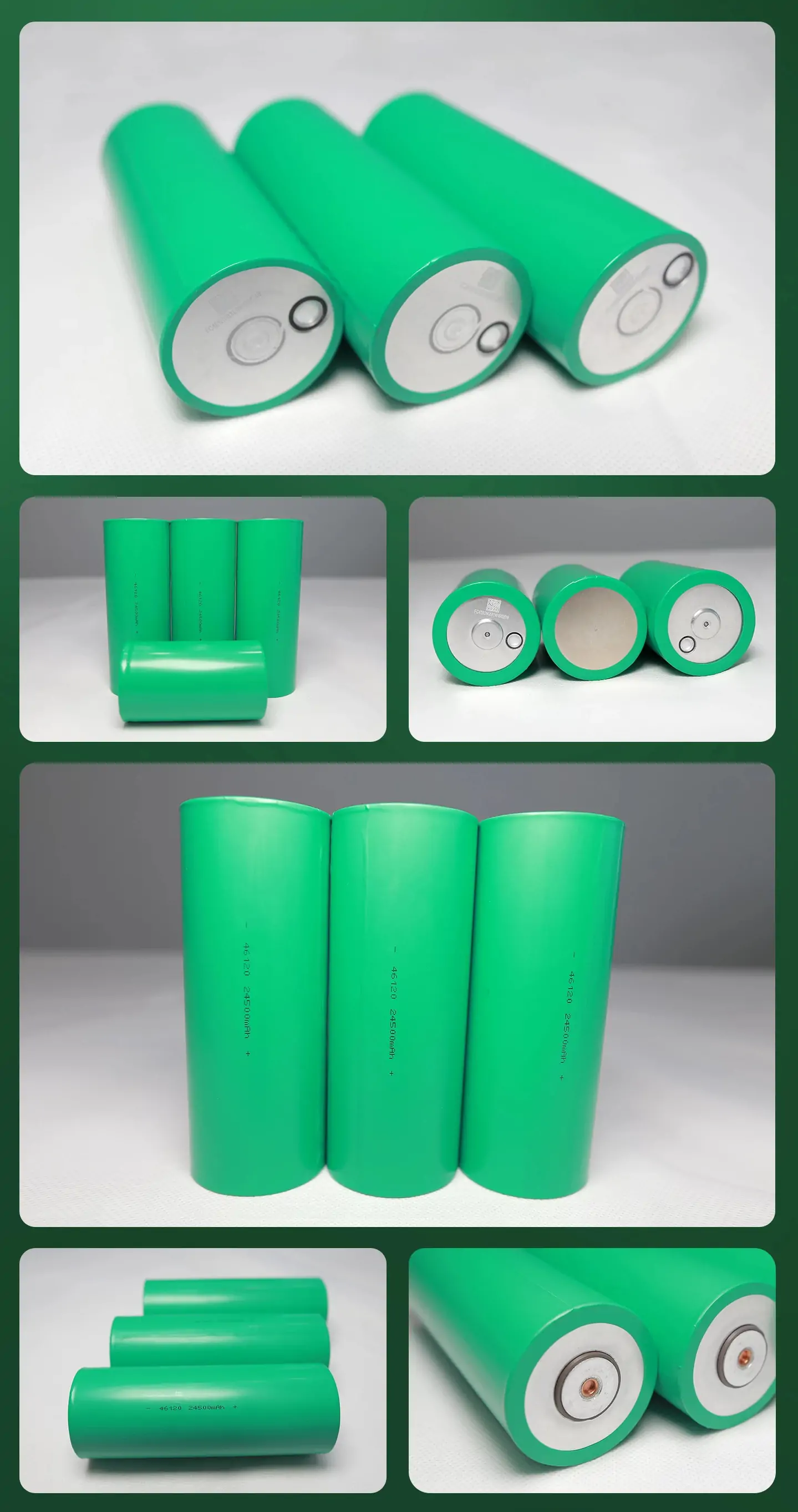

FC46120P 3.2V 25Ah detail

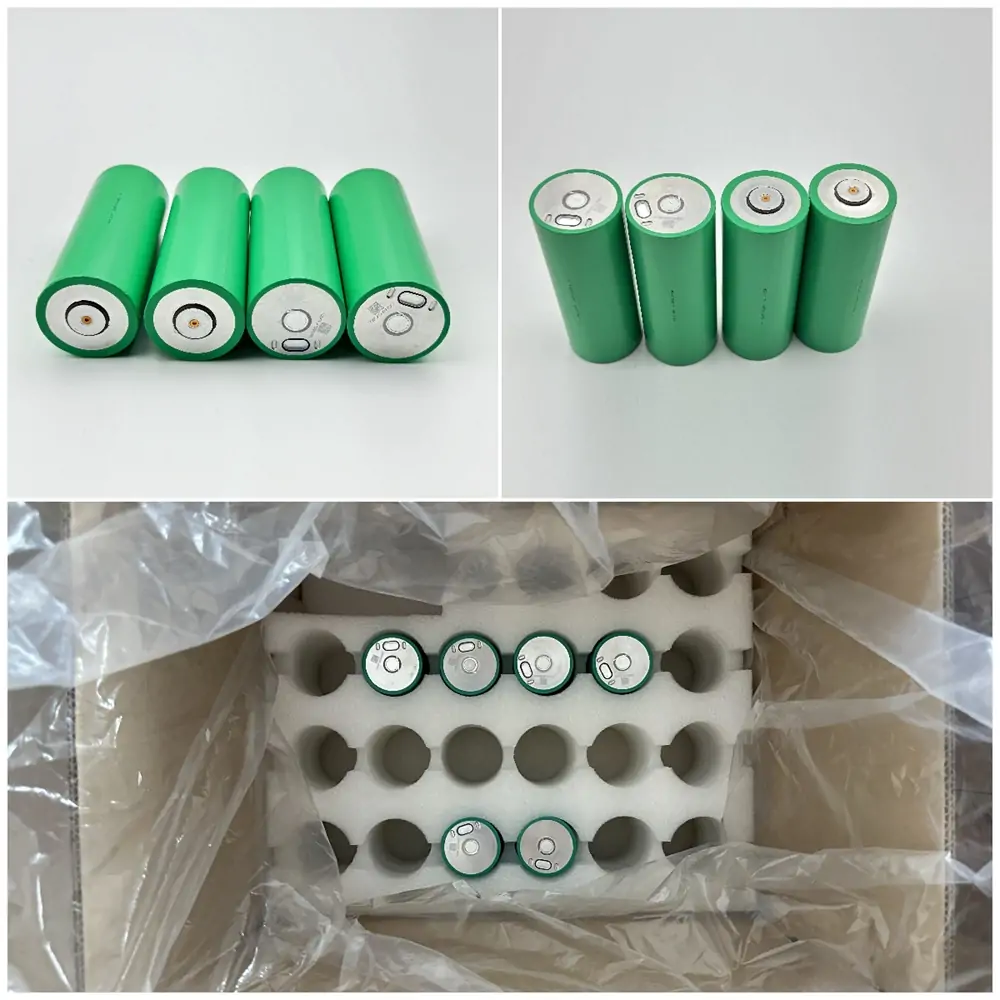

FC46120P 3.2V 25Ah pack
