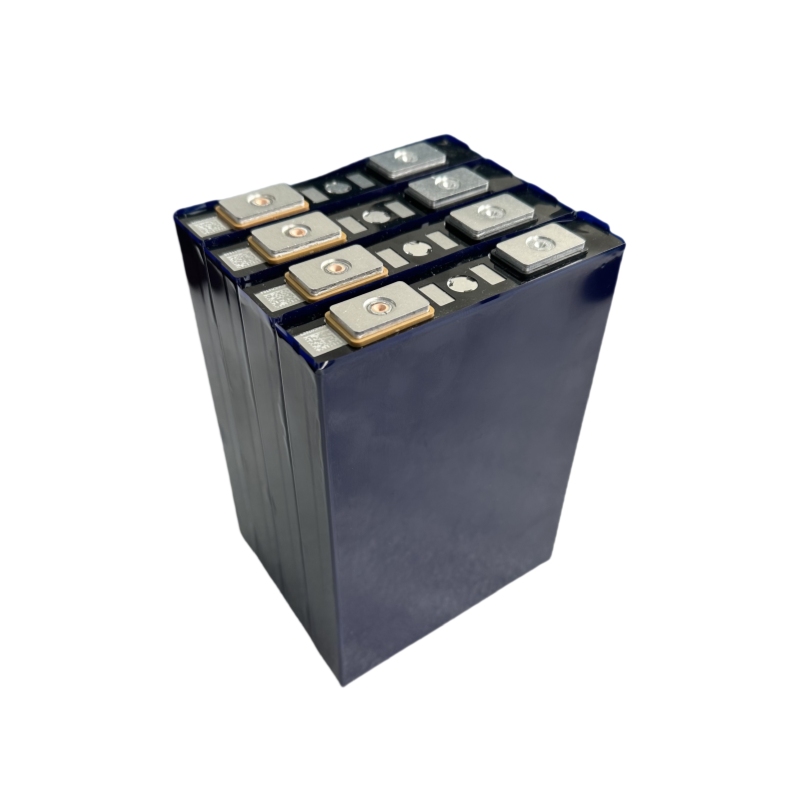

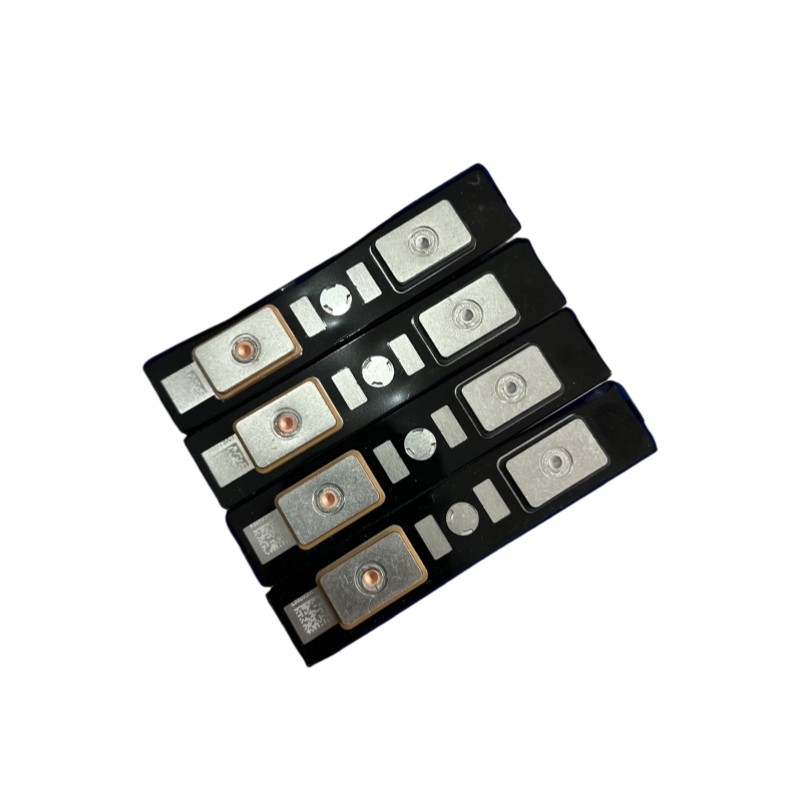

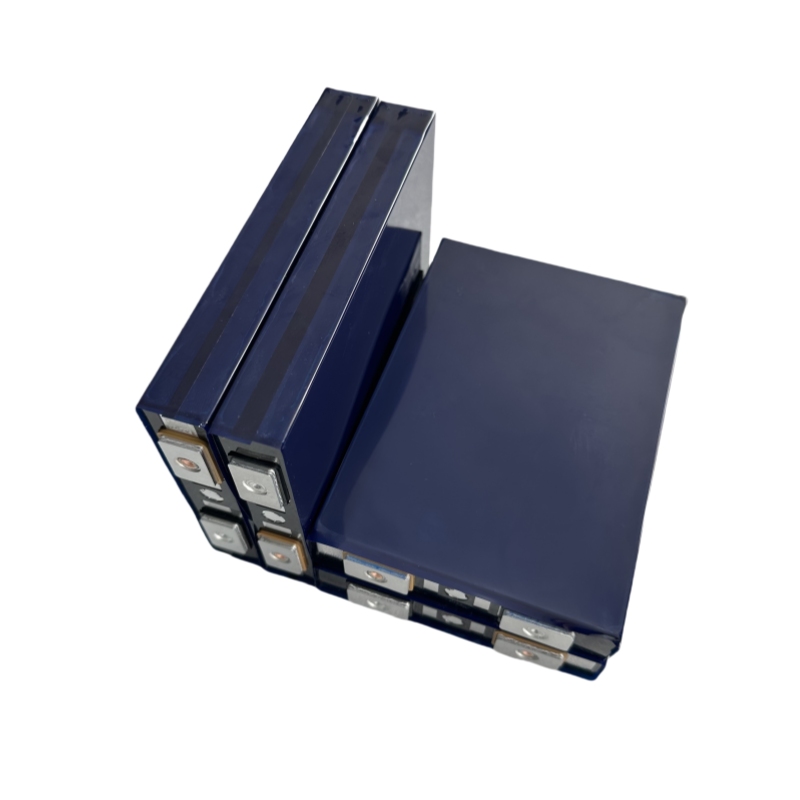

3.2V 27Ah IFP20100140A-27Ah Prismatic LiFePO4 Battery Cell
IFP20100140A-27Ah high rate 3.2V 27Ah prismatic LiFePO4 battery cell top grade a LiFePO4 battery
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery cell
IFP20100140A-27Ah, max continuous discharge rate 6C Gotion battery cell 3.2V 27Ah widely used in electric tools/ bicycle/ motorcycle/ scooter energy storage, home solar power system, etc.
Features
1. Qualified for UN38.3/MSDS, RoHS, CE, TUV, UL with high safety
2. More than 5000 cycles under the designed working condition
3. Integral safety valve is used to enhance safety
4. High Energy Density
Specifications
Parameter | Specification | Remark |
Nominal Voltage | 3.2V | / |
AC Internal Resistance | 0.9 mΩ±0.3 mΩ | / |
DC Internal Resistance | ≤3.0 mΩ | 50%SOC(5C/10 s，25 ℃) |
Rated Capacity | 27.0 Ah | 1C standard charge and discharge, 25 ℃, |
Operating Voltage | 2.0 V～3.65 V | / |
Energy Density | ≥140 Wh/kg | 0.33C discharge |
Optimum Charging/Discharge Temperature Range | 10 ℃～35 ℃ | / |
Storage Temperature Range | -40 ℃～60 ℃ | |
Max Continuous Discharge Current | 4C
| Single battery at 15 ° C ~ 35 ° C 1C constant current constant pressure full, set aside 1 h to 6C discharge to termination voltage 2.0V, and single electric pool temperature rise < 30 ℃ |
Max Pulse Discharge Current | 6C～10 s | 20 ℃～35 ℃ |
Dimension | (21.3±0.9)× (100.5±0.5)× (144.8±0.5)mm | (T×W×H)mm |
Weight | 605 g±18 g | / |

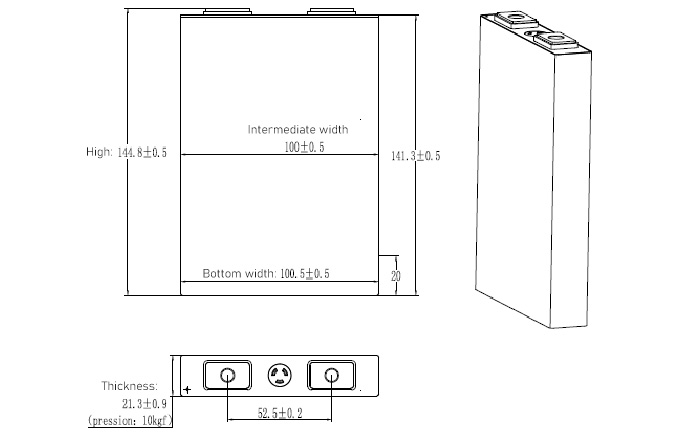

Details and Dimension

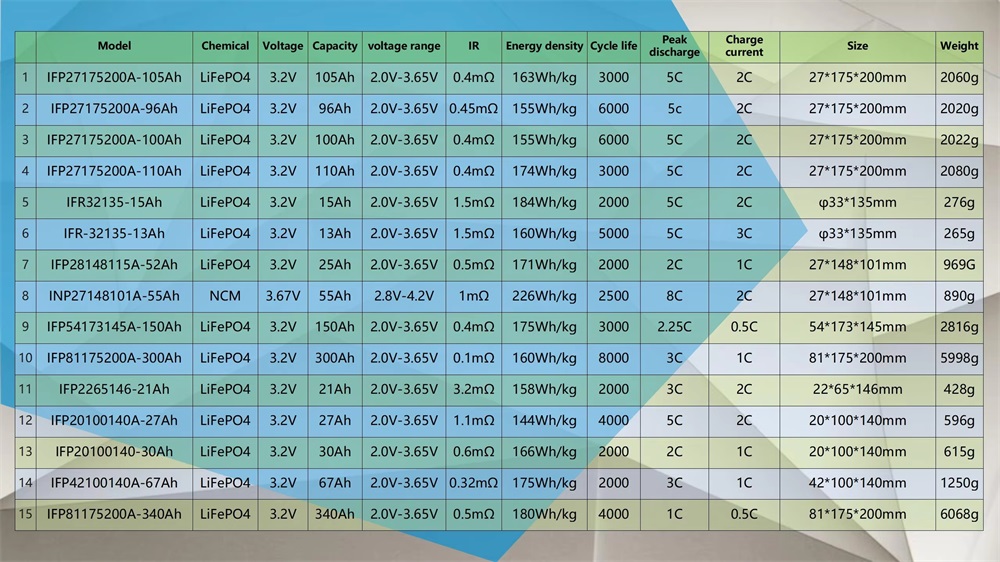

3.2V Lithium Iron Phosphate Battery Cells Series
We are spot trader for Gotion 3.2V Lithium iron phosphate battery cells. To provide you with reliable and efficient power solutions that you can trust
Applications
3.2V IFP20100140A-27Ah is used in toys, power tools, household appliances, consumer electronics, ships, golf carts, submarines, electric bicycles/scooters, electric vehicles, electric wheelchairs, power systems, solar energy storage systems, uninterruptible power supplies, electric forklifts, energy storage ESS home energy storage electric vehicles.

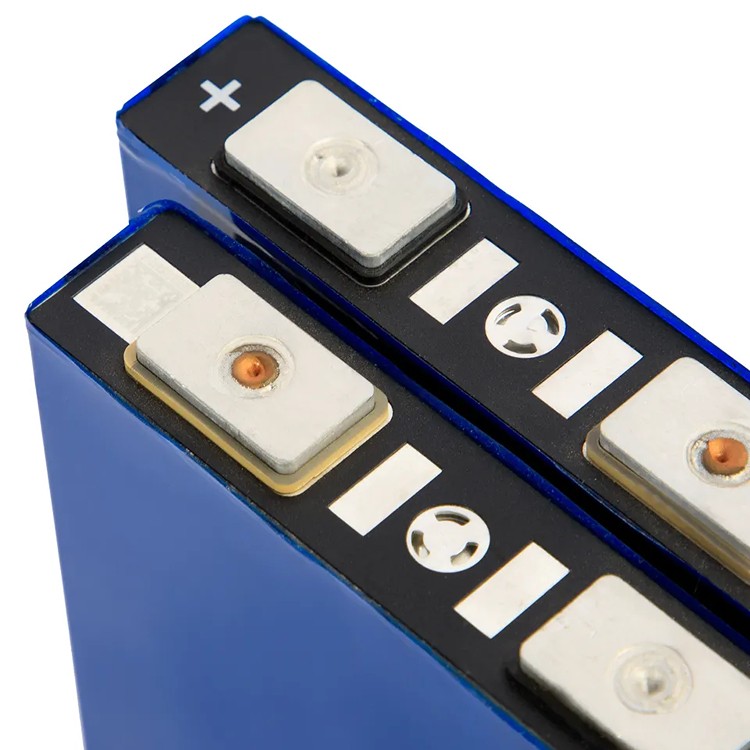

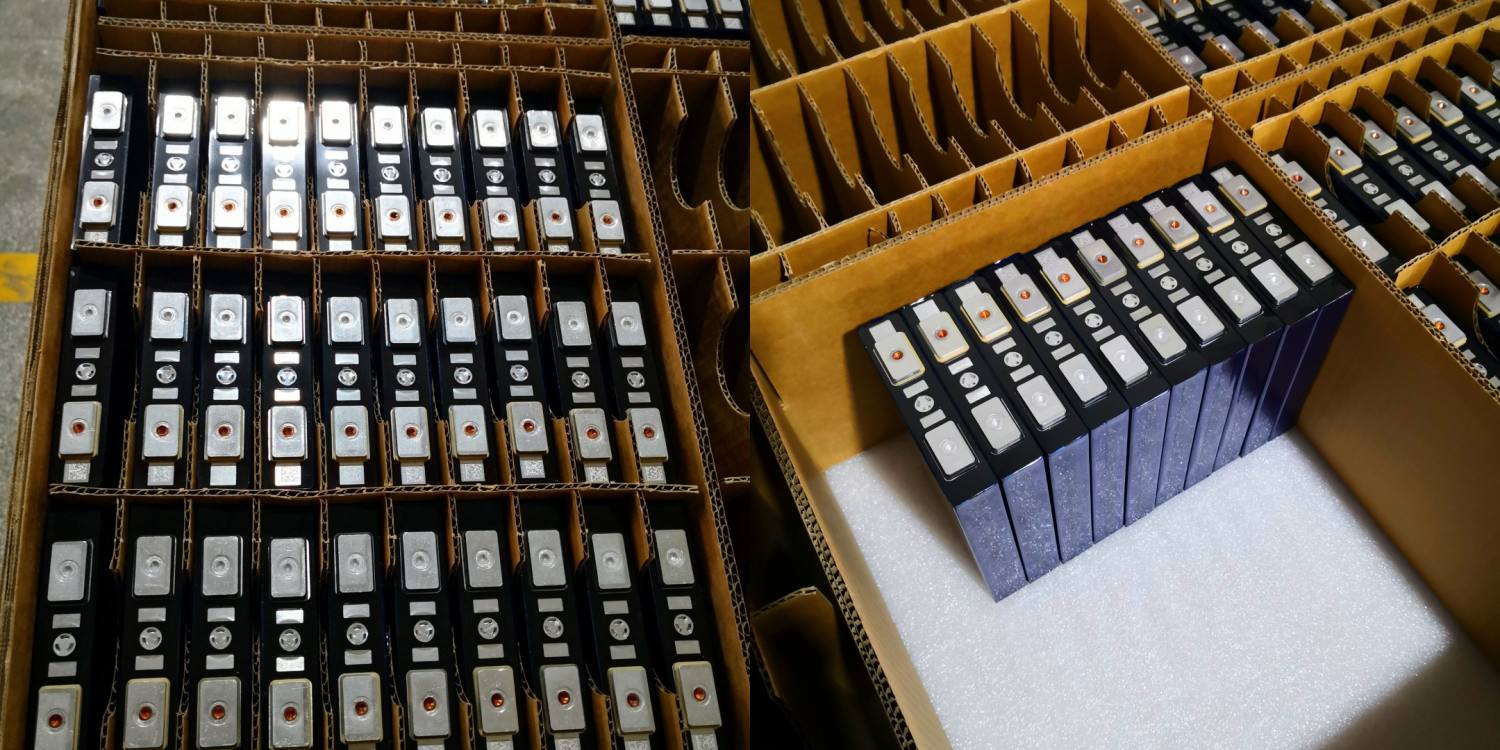

Different Batches of Real Pictures Of the Battery

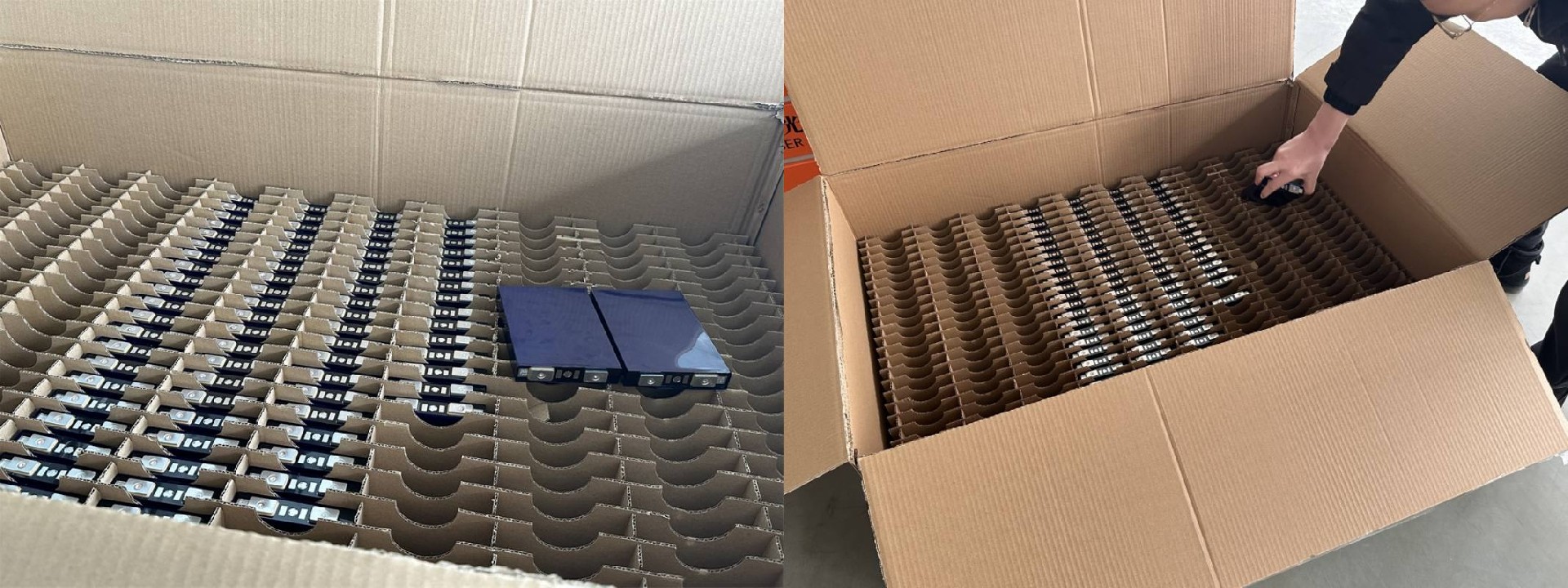

Above Latest Batch Delivery
