3.2V 280Ah LiFePO4 Lithium Prismatic Aluminum Shell Battery Cell
3.2V 280Ah LiFePO4 Lithium Prismatic Aluminum Shell Battery Cell Ideal for high capacity, high safety and long life applications.
- Category: LiFePO4 Battery Cell
- Tag: lifepo4 battery lifepo4 battery cell
The LiFePO4 (Lithium Iron Phosphate, LFP) battery is a version of the lithium-ion battery with a battery voltage of 3.2V. The LiFePo4 battery has a long life (about 2,000 charge and discharge cycles) and is suitable for applications that require a long service life, such as electric vehicles, electric bicycles, scooters, boats, submarines, golf carts, communications, energy storage, intelligent networks, UPS systems, etc. As the world's leading lifeo4 battery supermarket, we provide including but not limited to 280ah lithium iron phosphate batteries, you can get inexpensive products and quality service if you need to contact us for a free quote!
Specifications
Parameter | Specification | Remarks |
Typical Capacity | 280.0Ah | At a 1C discharge current (25±2℃) |
Operating Voltage | 2.50V~3.65V | 0℃＜T≤60℃ |
2.00V~3.65V | -20℃≤T≤0℃ | |
Impedance (1KHz) | ≤0.25mΩ | At a fresh state |
Shipping Capacity | 3~30%SOC | / |
Operating Temperature (Charging) | 0~60℃ | / |
Operating Temperature (Discharge) | -20~60℃ | / |
Weight | ≤5.6Kg | N.A. |
Dimension | ≤3.5%/month | Count after fresh cell need standard charge to 50%SOC and storage at 25±2°C for 3 month |
Cell Dimension | 300Kgf pressure | |
Standard Charge Current | 0.5C | 25±2℃ |
Standard Charge Voltage | Cell max voltage 3.65V | 25±2℃ |
Standard Discharge Current | 0.5C | 25±2℃ |
Maximum Discharge Current (Continuous) | 1.0C | N.A |
Maximum Discharge Current (Long Pulse) | 2.0C | 120 Seconds duration maximum followed by a ‘zero current rest period’ of same duration. |
Maximum Discharge Current (Short Pulse) | 3.0C | 60 Seconds duration maximum while cell temperature ≤ 50°C and SOC˃40%SOC; 10 seconds duration maximum while cell temperature ≤ 50°C and SOC≤40%SOC. |
Discharge Cut-Off Voltage | 2.50V | 0℃＜T≤60℃ |
2.00V | -20℃≤T≤0℃ | |
Standard Discharge Temperature | 25±2℃ | N.A |
Cycled Capacity | Cap. Retention*≥ 196Ah | Within 6000 cycles, 0.5C charge and discharge, temp. : 25±2°C 300±20Kgf preload. |
Characteristic advantage of 3.2V 280ah lifepo4 lithuim battery
The 3.2V 280Ah lithium iron phosphate battery cell of Ganfeng Lithium Battery has significant advantages in capacity, safety, life, charging speed, etc., and is the ideal choice for high-capacity, high-safety, long-life applications.
1. High energy density: Can provide a high energy output. Its large capacity is still sufficient to meet the needs of most high-power applications.
2. High security: Excellent thermal and chemical stability. Extreme conditions significantly reduce the occurrence of thermal runaway and fire, such as power tools, electric vehicles and energy storage systems.
3. Long life: 280Ah large capacity and high life characteristics, so that it can maintain stable performance in long cycle use.
4. Wide temperature working range: Lithium iron phosphate battery has a wide operating temperature range, can work stably in a variety of environments, and is suitable for a variety of complex environmental conditions.
5. Fast charge and discharge performance: It has good charge and discharge efficiency, and can realize fast charge and high discharge rate.
6. Go green: The material is relatively environmentally friendly, does not contain toxic heavy metals (such as nickel, cobalt), and has good recyclability.
7. Low self-discharge rate: With a low self-discharge rate, it can maintain a long time of power stability without use.
8. Wide range of applications: The cells are widely used in electric vehicles (EVs), power tools, solar energy storage systems, UPS uninterruptible power supplies (UPS), and other applications with high power and high capacity requirements.

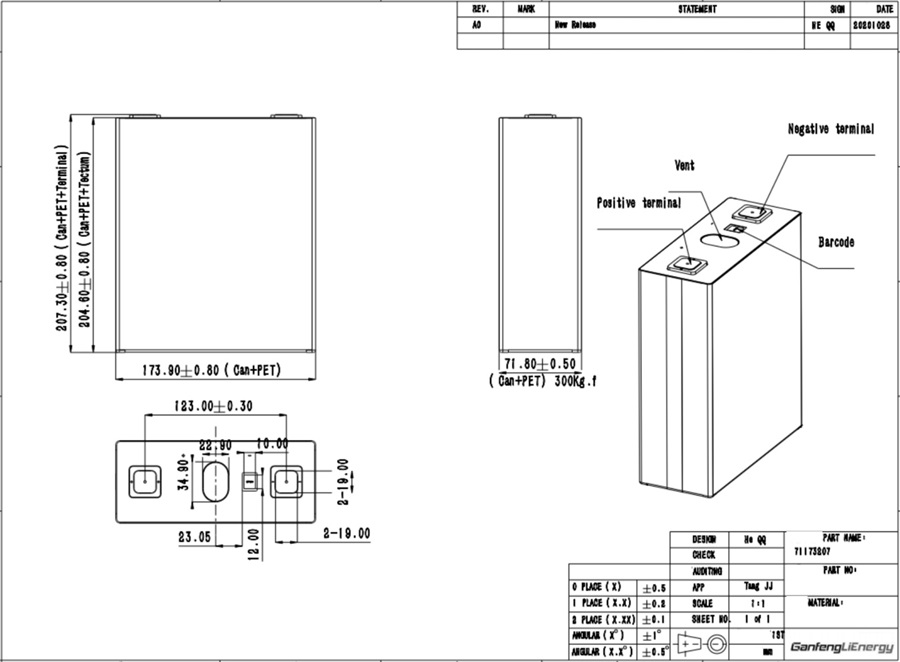

Product details and dimensions
Wide range of applications
Electric forklift/electric vehicle/two-wheeled/three-wheeled/four-wheeled/ATV/Environmental protection vehicle) Pollutant discharge vehicle/sweeper/cutting green vehicle energy/base station/energy storage/RV/patrol vehicle/hand operation/inverter power storage battery pack
